J4300 and J6300 Services Router PIM

Installation Instructions

4 November 2004

Part No: 530-011519-01

Revision 1

This document describes how to remove and replace a Physical Interface Module

(PIM) on Juniper Networks J4300 and J6300 Services Routers. For hardware

installation and basic troubleshooting procedures for J-series Services Routers, see

the J-series Services Router User Guide.

Contents Tools and Parts Required........................................................... 2

Replacing a PIM..................................................................... 2

Removing a PIM ............................................................... 2

Installing a PIM................................................................. 3

List of Technical Publications ...................................................... 4

Requesting Support................................................................. 6

Revision History .................................................................... 7

J4300 and J6300 Services Router PIM Installation Instructions

Tools and Parts Required

To replace a component, you need the following tools and parts:

Electrostatic bag or antistatic mat

Electrostatic discharge (ESD) grounding wrist strap

Phillips (+) screwdriver, number 2

Replacing a PIM

Physical Interface Modules (PIMs) in J4300 and J6300 Services Routers are field

replaceable. The router must be powered off before the PIMs are removed or

installed. This section contains the following topics:

“Removing a PIM” on page 2

“Installing a PIM” on page 3

Removing a PIM

The PIMs are installed in the front of the Services Router. A PIM

weighslessthan1lb(0.5kg).

To remove a PIM (see Figure 1):

1. Place an electrostatic bag or antistatic mat on a flat, stable surface to receive

the PIM.

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and

connect the strap to the ESD point on the chassis, or to an outside ESD point if

the Services Router is disconnected from earth ground. For more information

about ESD, see the J-series Services Router User Guide.

3. Press and release the power button to power off the router. Verify that the

POWER ON LED blinks and then turns off.

4. Label the cables connected to the PIM so that you can later reconnect each

cable to the correct PIM.

5. Disconnect the cables from the PIM.

6. If necessary, arrange the cables to prevent them from dislodging or developing

stress points:

Secure the cable so that it is not supporting its own weight as it hangs

to the floor.

Place excess cable out of the way in a neatly coiled loop.

Use fasteners to maintain the shape of cable loops.

2Removing a PIM

7. Loosen the captive screws on each side of the PIM faceplate.

8. Grasp the handles on each side of the PIM faceplate and slide the PIM out of

the router. Place it in the electrostatic bag or on the antistatic mat.

9. If you are not reinstalling a PIM into the emptied slot, install a blank PIM panel

over the slot to maintain proper airflow.

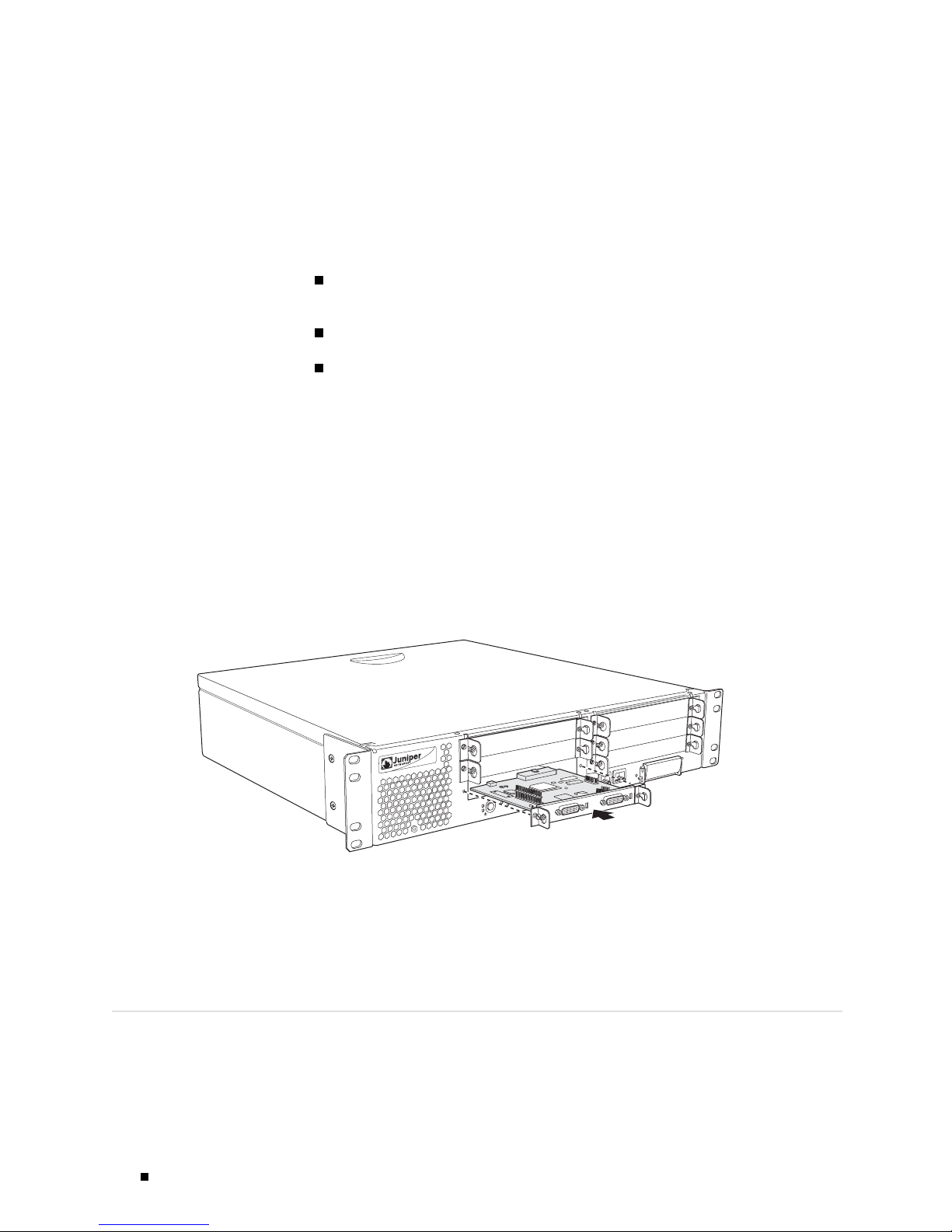

Figure 1: Removing a PIM

ALARM

SLOT

10/100

ETHERNET

POWERONCONFIG

PORT0

COMPACTFLASH

USB

CONSOLEPORT1

SLOT 1/0 SLOT 3/0 SLOT 5/0

J4300

g003539

EJECT

SERIAL

PORT 0 STATUS

PORT 1 STATUS

Captive screws

USE

Installing a PIM

To install a PIM (see Figure 2):

1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and

connect the strap to the ESD point on the chassis, or to an outside ESD point if

the Services Router is disconnected from earth ground. For more information

about ESD, see the J-series Services Router User Guide.

2. Press and release the power button to power off the router. Verify that the

POWER ON LED blinks and then turns off.

3. Align the notches in the connector at the rear of the PIM with the notches in

the PIM slot in the Services Router, and then slide the PIM in until it lodges

firmly in the router.

CAUTION: Slide the PIM straight into the slot to avoid damaging the components

on the PIM.

Installing a PIM 3

J4300 and J6300 Services Router PIM Installation Instructions

4. Tighten the captive screws on each side of the PIM faceplate.

5. Insert the appropriate cables into the cable connectors on the PIM.

6. If necessary, arrange the cables to prevent them from dislodging or developing

stress points:

Secure the cable so that it is not supporting its own weight as it hangs

to the floor.

Place excess cable out of the way in a neatly coiled loop.

Use fasteners to maintain the shape of cable loops.

7. Press and release the power button to power on the router. Verify that the

POWER ON LED lights steadily after you press the power button.

8. Verify that the PIM status LED lights steadily green to confirm that the PIM

is online.

You can also verify correct PIM functioning by issuing the show chassis fpc

pic-status command described in the JUNOS Protocols, Class of Service, and

System Basics Command Reference.

Figure 2: Installing a PIM

ALARM

SLOT

10/100

ETHERNET

POWERONCONFIG

PORT0

COMPACTFLASH

USB

CONSOLEPORT1

USE

SLOT 1/0 SLOT 3/0 SLOT 5/0

J4300

g003540

EJECT

SERIAL

PORT 0 STATUS

PORT 1 STATUS

List of Technical Publications

Table 1 lists the software and hardware guides and release notes for Juniper

Networks routing platforms that use the JUNOS Internet software and describes

the contents of each book.

4List of Technical Publications

Table 1: Juniper Networks Technical Documentation

Book Description

JUNOS for J-series, M-series, and T-series Routing Platforms Configuration Guides

Feature Guide Provides a detailed explanation and configuration examples for

several of the most complex features in the JUNOS software.

System Basics Provides an overview of the JUNOS software and describes how to

install and upgrade the software. This manual also describes how

to configure system management functions and how to configure

the chassis, including user accounts, passwords, and redundancy.

Network Interfaces and Class of Service Provides an overview of the network interface and class-of-service

functions of the JUNOS software and describes how to configure

the network interfaces on the router.

MPLS Applications Provides an overview of traffic engineering concepts and describes

how to configure traffic engineering protocols.

Multicast Protocols Provides an overview of multicast concepts and describes how to

configure multicast routing protocols.

Network Management Provides an overview of network management concepts and

describes how to configure various network management features,

such as SNMP, accounting options, and cflowd.

Policy Framework Provides an overview of policy concepts and describes how to

configure routing policy, firewall filters, and forwarding options.

Routing Protocols Provides an overview of routing concepts and describes how to

configure routing, routing instances, and unicast routing protocols.

Services Interfaces Provides an overview of the services interfaces functions of the

JUNOS software and describes how to configure the services

interfaces on the router.

VPNs Provides an overview and describes how to configure Layer 2 and

Layer 3 virtual private networks (VPNs), virtual private LAN service

(VPLS), and Layer 2 circuits. Provides configuration examples.

JUNOS References

Network and Services Interfaces Command

Reference

Describes the JUNOS Internet software operational mode

commands you use to monitor and troubleshoot network and

services interfaces on Juniper Networks routing platforms.

Protocols, Class of Service, and System Basics

Command Reference

Describes the JUNOS Internet software operational mode

commands you use to monitor and troubleshoot most aspects of

Juniper Networks routing platforms.

System Log Messages Reference Describes how to access and interpret system log messages

generated by JUNOS software modules and provides a reference

page for each message.

JUNOScript API Documentation

JUNOScript API Guide Describes how to use the JUNOScript application programming

interface (API) to monitor and configure Juniper Networks routers.

JUNOScript API Configuration Reference Provides reference pages for the configuration tags in the

JUNOScript API.

JUNOScript API Operational Reference Provides reference pages for the operational tags in the JUNOScript

API.

List of Technical Publications 5

J4300 and J6300 Services Router PIM Installation Instructions

Book Description

JUNOS Comprehensive Index and Glossary

Comprehensive Index and Glossary Provides a complete index of all JUNOS Internet software books

and the JUNOScript API Guide. Also provides a comprehensive

glossary.

Hardware Documentation

Hardware Guide Describes how to install, maintain, and troubleshoot routers and

router components. Each platform has its own hardware guide.

PIC Guide Describes the router Physical Interface Cards (PICs). Each router

platform has its own PIC guide.

JUNOScope Documentation

JUNOScope Software User Guide Describes the JUNOScope software graphical user interface (GUI),

how to install and administer the software, and how to use the

software to manage router configuration files and monitor router

operations.

J-series Services Router Documentation

J-series Services Router User Guide Contains instructions for installing, configuring, and managing a

J-series Services Router. The guide explains how to prepare your

site for installation, unpack and install the hardware, power on the

router, configure secure routing, monitor network operations, and

perform routine maintenance.

Release Notes

JUNOS Internet Software Release Notes Provide a summary of new features for a particular software

release. Software release notes also contain corrections and

updates to published JUNOS and JUNOScript manuals, provide

information that might have been omitted from the manuals, and

describe upgrade and downgrade procedures.

Hardware Release Notes Describe the available documentation for the router platform

and summarize known problems with the hardware and

accompanying software. Each platform has its own release notes.

JUNOScope Software Release Notes Contain corrections and updates to the published JUNOScope

manual, provide information that might have been omitted from

the manual, and describe upgrade and downgrade procedures.

J-series Services Router Release Notes Briefly describe Services Router features, identify known hardware

problems, and provide upgrade and downgrade instructions

Requesting Support

For technical support, open a support case using the Case Manager link at

http://www.juniper.net/support/ or call 1-888-314-JTAC (within the United States) or

1-408-745-9500 (outside the United States).

For documentation issues, fill out the bug report form located at

http://www.juniper.net/techpubs/docbug/docbugreport.html.

6Requesting Support

Revision History

4 November 2004—Revision 1.

Juniper Networks, the Juniper Networks logo, NetScreen, NetScreen Technologies, the NetScreen logo, NetScreen-Global Pro, ScreenOS, and

GigaScreen are registered trademarks of Juniper Networks, Inc. in the United States and other countries.

The following are trademarks of Juniper Networks, Inc.: ERX, ESP, E-series, Instant Virtual Extranet, Internet Processor, J2300, J4300, J6300, J-Protect,

J-series,J-Web,JUNOS,JUNOScope,JUNOScript,JUNOSe,M5,M7i,M10,M10i,M20,M40,M40e,M160,M320,M-series,MMD,NetScreen-5GT,

NetScreen-5XP, NetScreen-5XT, NetScreen-25, NetScreen-50, NetScreen-204, NetScreen-208, NetScreen-500, NetScreen-5200, NetScreen-5400,

NetScreen-IDP 10, NetScreen-IDP 100, NetScreen-IDP 500, NetScreen-Remote Security Client, NetScreen-Remote VPN Client, NetScreen-SA 1000 Series,

NetScreen-SA 3000 Series, NetScreen-SA 5000 Series, NetScreen-SA Central Manager, NetScreen Secure Access, NetScreen-SM 3000, NetScreen-Security

Manager, NMC-RX, SDX, Stateful Signature, T320, T640, T-series, and TX Matrix. All other trademarks, service marks, registered trademarks, or registered

service marks are the property of their respective owners. All specifications are subject to change without notice. Juniper Networks assumes no responsibility

for any inaccuracies in this document. Juniper Networks reserves the right to change, modify, transfer, or otherwise revise this publication withoutnotice.

Requesting Support 7

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Juniper

Juniper

Juniper M20 Manual de usuario

Juniper

Juniper ACX6160 Instrucciones de instalación

Juniper

Juniper PTX10001-36MR Manual de usuario

Juniper

Juniper T Series Instrucciones de instalación

Juniper

Juniper E120 - RELEASE 11.1.X HARDWARE GUIDE... Instrucciones de instalación

Juniper

Juniper Internet Router M160 Instrucciones de instalación

Juniper

Juniper M20 Guía del usuario

Juniper

Juniper JRR200 Instrucciones de instalación

Juniper

Juniper M7i Instrucciones de instalación

Juniper

Juniper MX10003 Instrucciones de instalación

Juniper

Juniper QFX5100-48S Manual de usuario

Juniper

Juniper E SERIES BROADBAND SERVICES ROUTERS 11.3.X - ERX HARDWARE GUIDE REV... Instrucciones de instalación

Juniper

Juniper J4350 Manual de usuario

Juniper

Juniper PTX1000 Manual de usuario

Juniper

Juniper ACX7348 Instrucciones de instalación

Juniper

Juniper EX4300 Instrucciones de instalación

Juniper

Juniper ACX5448-D Instrucciones de instalación

Juniper

Juniper E SERIES BROADBAND SERVICES ROUTERS 11.3.X - E120 AND E320 HARDWARE GUIDE REV... Instrucciones de instalación

Juniper

Juniper Day One+ MX304 Manual de usuario

Juniper

Juniper T640 Manual de usuario

Juniper

Juniper ACX1000 Instrucciones de instalación

Juniper

Juniper MX10016 Manual de usuario

Juniper

Juniper E120 Manual de usuario

Juniper

Juniper ACX2000 Instrucciones de instalación

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
