Quick Start Guide

ACX6160 Universal Metro Router

IN THIS GUIDE

About This Quick Start Guide | 1

Step 1: Prepare Your Site for the ACX6160 | 2

Step 2: Unpack the ACX6160 | 2

Step 3: Mount the Chassis | 2

Step 4: Connect the Grounding Cable | 5

Step 5: Connect to the Management Console | 6

Step 6: Power On the ACX6160 | 7

Step 7: Perform the Initial Configuration | 11

Safety Warnings Summary | 12

Power Cable Warning (Japanese) | 13

About This Quick Start Guide

This Quick Start Guide contains information you need to install and connect the Juniper Networks ACX6160 Universal

Metro Router. For complete installation instructions, see the ACX6160 Universal Metro Router Hardware Guide at

https://www.juniper.net/documentation/.

WARNING: This Quick Start Guide contains a summary of safety warnings in “Safety Warnings Summary”

on page 12. For a complete list of warnings for the ACX6160, including translations, see the ACX6160

Universal Metro Router Hardware Guide at https://www.juniper.net/documentation/.

The Juniper Networks ACX6160 Universal Metro Router is a standalone optical disaggregated transponder that has 12

network ports, of which 8 are (QSFP28) client ports, and 4 are (CFP2-DCO) line ports. It has removable DC power supplies

and cooling fans.

Step 1: Prepare Your Site for the ACX6160

Before installing the ACX6160, make sure your site meets all power, environmental, and clearance requirements.

Ensure that you have the following parts and tools available to install the ACX6160:

•ESD grounding strap (not provided).

•A pair of front-mounting rails (provided).

•A pair of rear-mounting blades (provided). These mounting blades support the rear of the chassis and must be installed.

•Extension brackets (provided).

•Flat-head screws to secure the mounting rails to the chassis (12 screws are provided).

•Eight screws to secure the chassis and mounting blades to the rack (not provided).

•Screwdriver appropriate for the rack-mounting screws (not provided).

•RJ-45 cable and RJ-45 to DB-9 serial port adapter (provided).

•Management host, such as a PC laptop, with a serial port (not provided).

Step 2: Unpack the ACX6160

For detailed instructions on how to unpack the box and verify the parts received for the ACX6160, see the ACX6160

Universal Metro Router Hardware Guide at https://www.juniper.net/documentation/.

Step 3: Mount the Chassis

To mount the ACX6160 on a four-post rack by using the provided mounting kit:

1. Wrap and fasten one end of the ESD grounding around your bare wrist and connect the other end of the strap to the

ESD point on the chassis.

2. Decide whether the field-replaceable unit (FRU) end or the port end of the ACX6160 must be placed at the front of

the rack. Position the ACX6160 in such a manner that the AIR OUT labels on components are next to the hot aisle.

3. Align the holes in the mounting rail with the screw holes on the side of the chassis. The front bracket is preinstalled in

the rail. See Figure 1 to see the proper alignment for the ACX6160.

Figure 1: Attaching Front-Mounting Rails to the ACX6160

g100384

0/7

0/6

1/3

1/2

0/5

0/4

0/3

0/2

1/1

1/0

0/1

0/0

4. Attach the mounting rail to the device by using the mounting screws. Tighten the screws.

5. Repeat Step 3and Step 4on the opposite side of the device.

6. Have one person grasp both sides of the device, lift it, and position it in the rack so that the front bracket is aligned

with the rack holes. See Figure 2.

7. Have a second person secure the front of the device to the rack by using four mounting screws (and cage nuts and

washers if your rack requires them). Tighten the screws.

Figure 2: Attaching the ACX6160 (with Mounting Rails to the Rack)

0/7

0/6

1/3

1/2

0/5

0/4

0/3

0/2

1/1

1/0

0/1

0/0

g100385

8. Continue to support the ACX6160 while sliding the rear-mounting blades into the channel of the mounting-rails on

the sides of the chassis and securing the blades to the rack. Use four mounting screws (and cage nuts and washers if

your rack requires them) to attach the blade to the rack. Tighten the screws. See Figure 3.

Figure 3: Sliding Mounting Blades into the Mounting Rail

g100386

0/7

0/6

1/3

1/2

0/5

0/4

0/3

0/2

1/1

1/0

0/1

0/0

9. Ensure that the ACX6160 chassis is level by verifying that all the screws on the front of the rack are aligned with the

screws at the back of the rack.

Step 4: Connect the Grounding Cable

To meet safety and electromagnetic interference (EMI) requirements and to ensure proper operation, you must connect

the ACX6160 device to earth ground before you connect it to power.

See Figure 4 for the ACX6160 grounding points.

g100380

MGMT

10M

TOD

PPS

OUT

RESET

PTP

Before you connect earth ground to the protective earthing terminal of a ACX6160 device, ensure that a licensed electrician

has attached an appropriate grounding lug to the grounding cable.

CAUTION: Using a grounding cable with an incorrectly attached lug can damage the device.

NOTE: Mount your device in the rack before attaching the grounding lug to the device. See Mounting the ACX6160.

Ensure that you have the following parts and tools available:

•Grounding cable for your ACX6160 device—The grounding cable must be 14 AWG (2 mm²), minimum 90° C wire, or as

permitted by the local code. We have grounding points on either side or on one side of the chassis. These can be seen

through the gaps in the mounting rails/blades. We align the grounding lug with the grounding points on the chassis, and

then screw the lug in to the points.

•Grounding lug for your grounding cable—The grounding lug required is a Panduit LCD10-10A-L or equivalent.

•Two SAE 10-32 UNF x .31L washers and screws—To attach the grounding lug to the protective earthing terminal.

•Screwdriver to attach the screws.

To connect earth ground to a ACX6160 device:

1. Attach one end of the grounding cable to an appropriate earth ground site, such as the mounting rack.

2. Position the grounding lug attached to the grounding cable over the protective earthing terminal on the side of the

chassis. See Figure 5.

3. Secure the grounding lug to the chassis with the washers and screws.

g100382

0/0 0/1 1/0

4. Dress the grounding cable and ensure that it does not touch or block access to other device components and that it

does not drape where people could trip over it.

Step 5: Connect to the Management Console

The ACX6160 has a console port with an RJ-45 connector. Use the console port to connect the device directly to a

management console, such as a laptop, or to a console server.

Ensure that you have an RJ-45 to DB-9 rollover cable available.

NOTE: If your laptop or PC does not have a DB-9 male connector pin and you want to connect your laptop or PC

directly to the ACX6160, use a combination of the RJ-45 cable and RJ-45 to DB-9 adapter and a USB to DB-9

male adapter. You must provide the cable and adapter.

To connect the ACX6160 to the management console (see Figure 6 or Figure 7):

Figure 6: Connecting the ACX6160 to a Management Console

g050109

Laptop CPU

ETH CRAFT

port (on device)

CON

Figure 7: Connecting the ACX6160 to a Management Console Through a Console Server

g050108

Laptop CPU

To Console Port

CON

NOTE: For instructions to connect to a management Ethernet device see the ACX6160 Universal Metro Router

Hardware Guide at https://www.juniper.net/documentation/.

Step 6: Power On the ACX6160

IN THIS SECTION

Connecting DC Power to the ACX6160 | 7

Connecting DC Power to the ACX6160

The ACX6160 is shipped from the factory with two power supplies. Each power supply is a hot-removable and hot-insertable

field-replaceable unit (FRU) when the second power supply is installed and running. You can install replacement power

supplies in the two slots next to the fan modules without powering off the device or disrupting the routing functions.

WARNING: DC-powered ACX6160 models are intended for installation only in a restricted-access

location.

NOTE: The battery returns of the DC power supply must be connected as an isolated DC return (DC-I).

Ensure that you have the following parts and tools available:

•ESD grounding strap

•DC power source cables (14–16 AWG) with ring lug (Molex 190700069 or equivalent) (not provided)

•Phillips (+) screwdriver, number 2 (not provided)

•Multimeter (not provided)

Before you begin connecting DC power to the ACX6160:

•Read General Electrical Safety Guidelines and Warnings,DC Power Electrical Safety Guidelines, and the following warnings:

•DC Power Copper Conductors Warning

•DC Power Disconnection Warning

•DC Power Grounding Requirements and Warning

•DC Power Wiring Sequence Warning

•DC Power Wiring Terminations Warning

•Ensure that you have taken the necessary precautions to prevent ESD damage (see Prevention of Electrostatic Discharge

Damage).

•Ensure that you have connected the ACX6160 chassis to earth ground.

CAUTION: Before you connect power to the device, a licensed electrician must attach a cable lug to

the grounding and power cables that you supply. A cable with an incorrectly attached lug can damage

the device (for example, by causing a short circuit). To meet safety and electromagnetic interference

(EMI) requirements and to ensure proper operation, you must connect the chassis to earth ground

before you connect it to power. For installations that require a separate grounding conductor to the

chassis, use the protective earthing terminal on the device chassis to connect to the earth ground. For

instructions on connecting earth ground, see Connecting the ACX6160 Grounding Cable.

•Install the power supply in the chassis following the instructions in Installing a Power Supply in an ACX6160 see the

ACX6160 Universal Metro Router Hardware Guide.

NOTE: Each power supply must be connected to a dedicated power source outlet.

To connect DC power to an ACX6160:

1. Wrap and fasten one end of the ESD grounding strap around your bare wrist, and connect the other end of the strap

to an approved site ESD point on the chassis.

2. Verify that the DC power cables are correctly labeled before making connections to the power supply. In a typical

power distribution scheme where the return is connected to chassis ground at the battery plant, you can use a multimeter

to verify the resistance of the –48V and RTN DC cables to chassis ground:

•The cable with very low resistance (indicating a closed circuit) to chassis ground is positive (+) and is installed on the

V+ (return) DC power input terminal.

•The cable with very high resistance (indicating an open circuit) to chassis ground is negative (–) and is installed on

the V– (input) DC power input terminal.

CAUTION: You must ensure that power connections maintain the proper polarity. The power source

cables might be labeled (+) and (–) to indicate their polarity. There is no standard color coding for DC

power cables. The color coding used by the external DC power source at your site determines the

color coding for the leads on the power cables that attach to the DC power input terminals on each

power supply.

3. Ensure that the input circuit breaker is open so that the voltage across the DC power source cable leads is 0 V and

that the cable leads do not become active while you are connecting DC power.

NOTE: The V+ terminals are referred to as +RTN, and V– terminals are referred to as –48 V in DC Power Wiring

Sequence Warning and DC Power Electrical Safety Guidelines.

4. Ensure that the power supplies are fully inserted in the chassis.

5. Remove the terminal block cover. The terminal block cover is a piece of clear plastic that snaps into place over the

terminal block (see Figure 8).

6. Remove the screws on the terminals using the screwdriver. Save the screws.

WARNING: Ensure that the power cables do not block access to device components or drape where

people can trip on them.

7. Connect each power supply to the power sources. Secure power source cables to the power supplies by screwing the

ring lugs attached to the cables to the appropriate terminals by using the screw from the terminals (see Figure 8 and

Figure 9). The ACX6160 is designed to operate with a DC power supply that has a single, nonredundant, feed input.

For source redundancy, two DC power supplies must be installed; connect source (A) to one power supply and connect

source (B) to the second power supply. This configuration provides the commonly deployed A/B feed redundancy for

the system.

The terminal block of the power supply has four terminals labeled V+, V+, V–, and V– for connecting DC power source

cables labeled positive (+) and negative (–). The V+ terminals are shunted internally together, as are the V– terminals.

CAUTION: The connection between each power source and power supply must include a circuit

breaker.

Do not connect two sources to a single power supply because doing so can potentially cause circulating

current in feed wires whenever there is any difference in the voltage of the two sources.

a. Secure the ring lug of the positive (+) DC power source cable to the V+ terminal on the DC power supply.

b. Secure the ring lug of the negative (–) DC power source cable to the V– terminal on the DC power supply.

c. Use the screwdriver to tighten the screws on the power supply terminals until they are snug. Do not

overtighten—apply between 5 lb-in. (0.56 Nm) and 6 lb-in. (0.68 Nm) of torque to the screws.

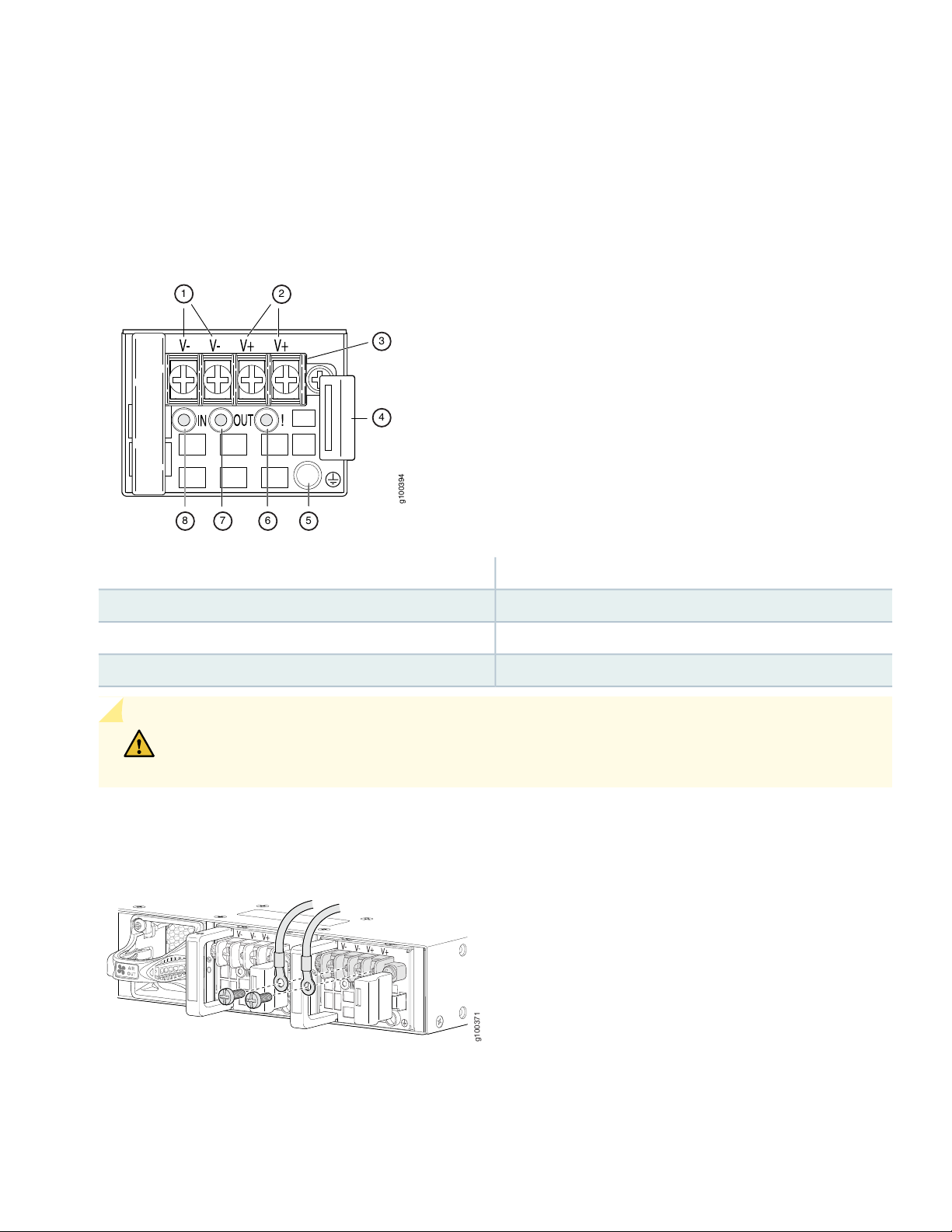

Figure 8: DC Power Supply Faceplate for an ACX6160

g100394

5678

5—1—ESD grounding pointShunt negative input terminals (+RTN)

6—2—Fault(!) LEDShunt positive input terminals (-48V)

7—3—Output (OUT) LEDTerminal block

8—4—Input (IN) LEDLatch lever

CAUTION: The V+ terminals are shunted internally together, as are the V- terminals. Do not connect

the terminals to different sources.

Figure 9: Securing Ring Lugs to the Terminals on the ACX6160 DC Power Supply

g100371

8. Replace the terminal block cover.

9. Close the input circuit breaker.

Otros manuales para ACX6160

Tabla de contenidos

Otros manuales de Enrutador de red de Juniper

Juniper

Juniper M120 Instrucciones de instalación

Juniper

Juniper JUNOS OS 10.4 Manual de usuario

Juniper

Juniper PTX10008 Manual de usuario

Juniper

Juniper T320 Instrucciones de instalación

Juniper

Juniper ACX1000 Instrucciones de instalación

Juniper

Juniper MX5 Instrucciones de instalación

Juniper

Juniper EX9200 Series Hoja de especificaciones

Juniper

Juniper PTX10001-36MR Manual de usuario

Juniper

Juniper EX2200 Series Instrucciones de instalación

Juniper

Juniper ACX2000 Instrucciones de instalación

Juniper

Juniper QFX5100 Instrucciones de instalación

Juniper

Juniper M-Series Manual de usuario

Juniper

Juniper JCS 1200 Manual de usuario

Juniper

Juniper E SERIES BROADBAND SERVICES ROUTERS - E SERIES END-OF-LIFE MODULE GUIDE... Manual de usuario

Juniper

Juniper MX150 Instrucciones de instalación

Juniper

Juniper M10i Instrucciones de instalación

Juniper

Juniper NFX150-C-S1 Manual de usuario

Juniper

Juniper PTX10002-60C Manual de usuario

Juniper

Juniper M40e Instrucciones de instalación

Juniper

Juniper ACX1000 Manual de usuario

Juniper

Juniper MX10016 Manual de usuario

Juniper

Juniper J2320 Manual de usuario

Juniper

Juniper M7i Instrucciones de instalación

Juniper

Juniper T4000 - Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
