Juniper SRX 5800 Manual de usuario

SRX 5600 and SRX 5800

Services Gateway

Flex IOC and Port Module

Installation Instructions

May 2009

Part Number: 530-029503-01

Revision 02

This document describes how to install and remove flex IOCs and port modules

installed in Juniper Networks SRX 5800 and SRX 5600 services gateways. The

illustrations in this document show the SRX 5600 services gateway, but the

instructions apply to both SRX 5800 and SRX 5600 services gateways.

Contents Flex I/O Cards and Port Modules .....................................................................2

Flex IOC Components ...............................................................................3

Port Module Components .........................................................................4

Port Module LEDs .....................................................................................4

Handling and Storing Cards .............................................................................5

Holding a Card ..........................................................................................6

Storing a Card ...........................................................................................8

Replacing Flex IOCs and Port Modules ............................................................9

Removing a Flex IOC ................................................................................9

Installing a Flex IOC ................................................................................11

Removing a Port Module .........................................................................12

Installing a Port Module ..........................................................................14

Preventing Electrostatic Discharge Damage ..................................................16

Electrostatic Discharge Point .........................................................................16

List of Technical Publications ........................................................................19

Requesting Technical Support .......................................................................19

Revision History ............................................................................................20

■1

Flex I/O Cards and Port Modules

Flex I/O Cards (flex IOCs) are IOCs with two slots, which accept port modules that

add Ethernet ports to your services gateway. A flex IOC with installed port modules

functions in the same way as a regular IOC, but allows greater flexibility in adding

different types of Ethernet ports to your services gateway. Figure 1 on page 2 shows

a flex IOC with two typical port modules installed.

Figure 1: Flex IOC with Port Modules

g030286

Flex IOC

4x10GE-XFP

port module

in slot 0

16x1GE-TX

port module

in slot 1

NOTE: Your services gateway must be running JUNOS version 9.5R1 or later in order

to recognize flex IOCs and port modules.

Each flex IOC has a processor subsystem, which includes a 1.2-GHz CPU, a system

controller, 1 GB SDRAM, and two Packet Forwarding Engines (PFEs) with a maximum

throughput of 10 Gbps each. See “Installing a Flex IOC”on page 11 and “Removing

a Flex IOC”on page 9 for information about installing and removing flex IOCs.

Table 1 on page 2 describes the different port modules available.

Table 1: Port Module Types

Oversubscription

Ratio

Maximum

Throughput

Port TypeNumber of PortsPort Module Name

4:110 GbpsXFP 10 Gbps44x10GE-XFP

1.6:110 GbpsRJ-45 1 Gbps1616x1GE-TX

1.6:110 GbpsSFP 1 Gbps1616x1GE-SFP

2■Flex I/O Cards and Port Modules

SRX 5600 and SRX 5800 Services Gateway Flex IOC and Port Module Installation Instructions

You use port modules and flex IOCs to add different combinations of SFP, XFP, and

TX ports to your services gateway to suit the specific needs of your network. The

available port modules are shown in Figure 2 on page 3. See “Installing a Port

Module”on page 14 and “Removing a Port Module”on page 12 for information

about installing and removing port modules.

Figure 2: Port Modules Supported on the Flex IOC

g030274

SRX-IOC-16GE-TX 16-Port RJ-45

SRX-IOC-16GE-SFP 16-Port SFP

SRX-IOC-4XGE-XFP 4-Port XFP

Flex IOC Components

Each flex IOC consists of the following components:

■Flex IOC cover, which functions as a ground plane and a stiffener

■Two slots for port modules

■Fabric interfaces

■Two Gigabit Ethernet interfaces that allow control information, route information,

and statistics to be sent between the Routing Engine and the CPU on the flex

IOC

■Two interfaces from the SCBs that enable the flex IOC to be powered on and

controlled

■Two 10 Gbps PFEs

Flex I/O Cards and Port Modules ■3

Flex I/O Cards and Port Modules

■Midplane connectors and power circuitry

■Processor subsystem, including a 1.2-GHz CPU, a system controller, and 1 GB

of SDRAM

Port Module Components

Each port module consists of the following components:

■Port module cover, which functions as a ground plane and a stiffener

■Physical I/O port connectors

■Ethernet switch

■Online button (behind pinhole) for bringing the port module online and offline

■Port module slot connectors and power circuitry

Port Module LEDs

LEDs on the faceplate of each port module indicate the status of the module and of

each port. Table 2 on page 4, Table 3 on page 4, and Table 4 on page 5 describe

the LEDs on each port module type.

Table 2: 4-Port 10-Gigabit XFP Ethernet Port Module LEDs

DescriptionStateColorLabel

Port module is functioning normally.On steadilyGreen

OK/FAIL

Port module has failed.On steadilyRed

Link is active.On steadilyGreen

LINK

No link.Off

Port is receiving or transmitting data.BlinkingGreen

TX/RX

No activity.Off

Table 3: 16-Port SFP Ethernet Port Module LEDs

DescriptionStateColorLabel

Port module is functioning normally.On steadilyGreen

OK/FAIL

Port module has failed.On steadilyRed

Link is active.On steadilyGreen

Link 0

through 15

No link.Off

4■Flex I/O Cards and Port Modules

SRX 5600 and SRX 5800 Services Gateway Flex IOC and Port Module Installation Instructions

Table 4: 16-Port TX Ethernet Port Module LEDs

DescriptionStateColorLabel

Port module is functioning normally.On steadilyGreen

OK/FAIL

Port module has failed.On steadilyRed

Link is active.On steadilyGreenLink (top or

left of each

port) No link.Off

Port is receiving or transmitting data.BlinkingGreenTX/RX

(bottom or

right of

each port)

No activity.Off

Handling and Storing Cards

This section explains how to avoid damaging the cards (IOCs, SPCs, host subsystems,

and port modules) that you install into the services gateway. Many components on

the cards are fragile.

CAUTION: Failure to handle cards as specified in this document can cause irreparable

damage.

This section discusses how to hold cards in both the vertical and horizontal positions.

Regardless of orientation, this section uses the same terms for all four edges of the

card (see Figure 3 on page 6):

■Faceplate—Edge of the card that has connectors to which you connect cables or

sockets for SFP or XFP transceivers.

■Connector edge—Edge opposite the faceplate; this edge has the connectors that

attach to the midplane.

■Top edge—Edge at the top of the card when it is vertical.

■Bottom edge—Edge at the bottom of the card when it is vertical.

NOTE: The instructions in this section apply to all card and port module types.

Handling and Storing Cards ■5

Handling and Storing Cards

Figure 3: Card Edges

Holding a Card

When you carry a card, you can hold it either vertically or horizontally.

NOTE: A card weighs up to 13.1 lb (5.9 kg). Be prepared to accept the full weight of

the card as you lift it.

To hold a card vertically:

1. Orient the card so that the faceplate faces you. To verify orientation, confirm

that the text on the card is right-side up and the electromagnetic interference

(EMI) strip is on the right-hand side.

2. Place one hand around the card faceplate about a quarter of the way down from

the top edge. To avoid deforming the EMI shielding strip, do not press hard on

it.

3. Place your other hand at the bottom edge of the card.

If the card is horizontal before you grasp it, place your left hand around the faceplate

and your right hand along the bottom edge.

To hold a card horizontally:

1. Orient the card so that the faceplate faces you.

2. Grasp the top edge with your left hand and the bottom edge with your right hand.

6■Handling and Storing Cards

SRX 5600 and SRX 5800 Services Gateway Flex IOC and Port Module Installation Instructions

You can rest the faceplate of the card against your body as you carry it.

As you carry the card, do not bump it against anything. Card components are fragile.

Never hold or grasp the card anywhere except the places that this document indicates.

In particular, never grasp the connector edge, especially at the power connector in

the corner where the connector and bottom edges meet (see Figure 4 on page 7).

Figure 4: Do Not Grasp the Connector Edge

Handling and Storing Cards ■7

Handling and Storing Cards

Never carry the card by the faceplate with only one hand.

Do not rest any edge of a card directly against a hard surface (see Figure 5 on page

8).

Do not stack cards.

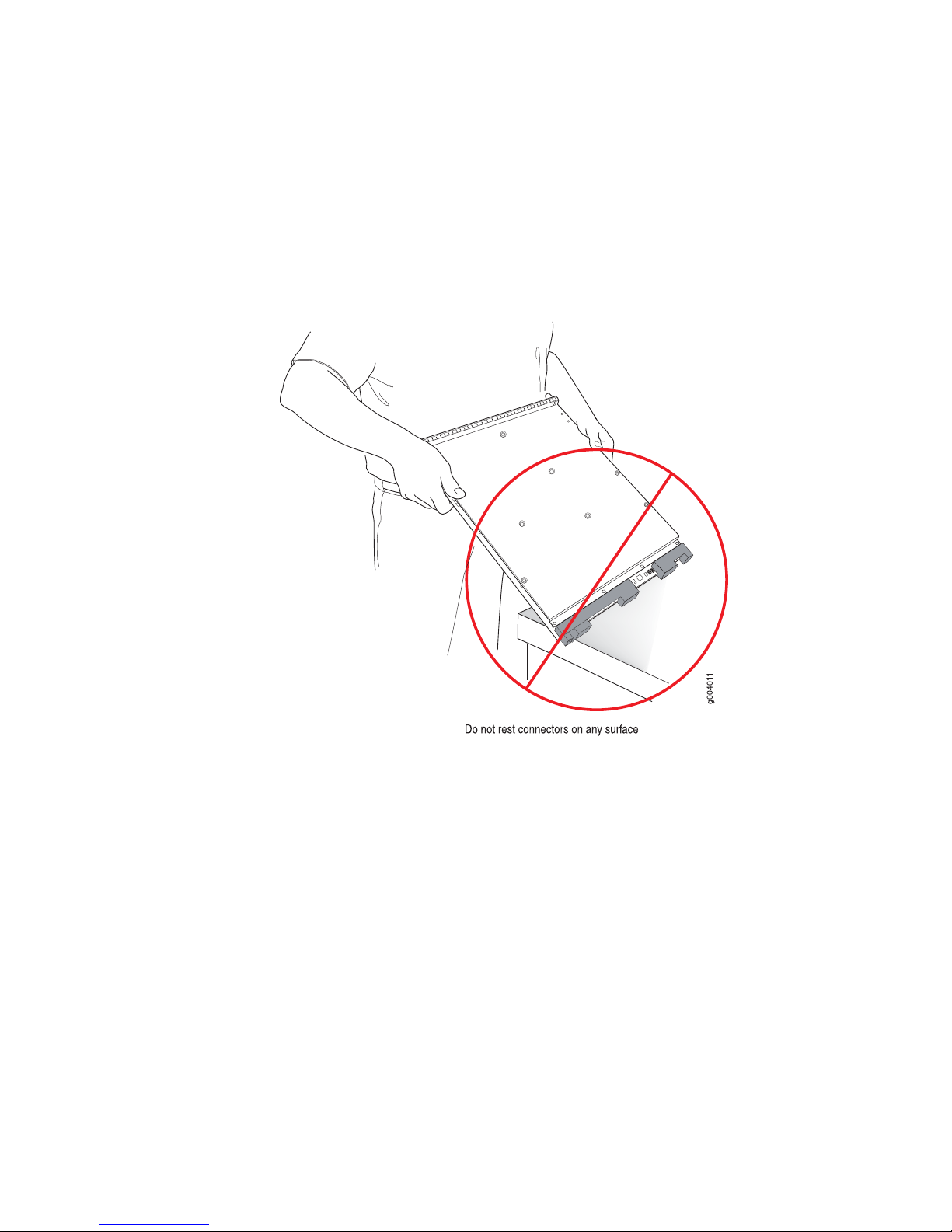

Figure 5: Do Not Rest the Card on an Edge

If you must rest the card temporarily on an edge while changing its orientation

between vertical and horizontal, use your hand as a cushion between the edge and

the surface.

Storing a Card

You must store a card as follows:

■In the device chassis

■In the container in which a spare card is shipped

■Horizontally and sheet metal side down

When you store a card on a horizontal surface or in the shipping container, always

place it inside an antistatic bag. Because the card is heavy, and because antistatic

bags are fragile, inserting the card into the bag is easier with two people. To do this,

one person holds the card in the horizontal position with the faceplate facing the

body, and the other person slides the opening of the bag over the card connector

edge.

8■Handling and Storing Cards

SRX 5600 and SRX 5800 Services Gateway Flex IOC and Port Module Installation Instructions

If you must insert the card into a bag by yourself, first lay the card horizontally on

a flat, stable surface, sheet metal side down. Orient the card with the faceplate facing

you. Carefully insert the card connector edge into the opening of the bag, and pull

the bag toward you to cover the card.

Never stack a card under or on top of any other component.

Replacing Flex IOCs and Port Modules

You install flex IOCs and port modules in the front of the services gateway. You install

flex IOCs directly in the card cage. You install port modules into flex IOCs. Flex IOCs

and port modules are hot-insertable and hot-removable. When you remove a flex

IOC or port module, the services gateway continues to function, although the flex

IOC or port module being removed no longer functions. Before replacing a flex IOC

or port module, review the information in “Handling and Storing Cards”on page 5.

To replace a flex IOC or port module, use the following procedures:

■Removing a Flex IOC on page 9

■Installing a Flex IOC on page 11

■Removing a Port Module on page 12

■Installing a Port Module on page 14

Removing a Flex IOC

A flex IOC weighs up to 13.1 lb (5.9 kg). Be prepared to accept the full weight of the

card as you remove it.

To remove a flex IOC (see Figure 6 on page 10):

1. Have ready a replacement card or blank panel and an antistatic mat for the flex

IOC.

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and

connect the strap to one of the ESD points on the chassis. For more information

about ESD, see “Preventing Electrostatic Discharge Damage”on page 16.

3. Use one of the following methods to take the flex IOC offline:

■Press and hold the corresponding online button on the craft interface. The

green OK LED next to the button begins to blink. Hold the button down until

the LED goes off.

■Issue the following CLI command:

user@host>request chassis fpc slot slot-number offline

For more information about the command, see the JUNOS System Basics and

Services Command Reference.

4. If you have not already done so, remove the port modules installed in the flex

IOC as described in “Removing a Port Module”on page 12.

Replacing Flex IOCs and Port Modules ■9

Replacing Flex IOCs and Port Modules

5. Simultaneously turn both of the ejector handles counterclockwise to unseat the

flex IOC.

6. Grasp the handles and slide the flex IOC straight out of the card cage halfway.

7. Place one hand around the front of the flex IOC and the other hand under it to

support it. Slide the flex IOC completely out of the chassis, and place it on the

antistatic mat or in the electrostatic bag.

CAUTION: The weight of the flex IOC is concentrated in the back end. Be prepared

to accept the full weight—up to 13.1 lb (5.9 kg)—as you slide the flex IOC out of the

chassis.

When the flex IOC is out of the chassis, do not hold it by the ejector handles, bus

bars, or edge connectors. They cannot support its weight.

Do not stack flex IOCs on top of one another after removal. Place each one individually

in an electrostatic bag or on its own antistatic mat on a flat, stable surface.

8. If you are not reinstalling a replacement card into the empty slot within a short

time, install a blank panel over the slot to maintain proper airflow in the card

cage.

CAUTION: After removing an IOC from the chassis, wait at least 30 seconds before

reinserting it, removing an IOC from a different slot, or inserting an IOC into a

different slot.

Figure 6: Removing a Flex IOC

Flex IOC

g030277

10 ■Replacing Flex IOCs and Port Modules

SRX 5600 and SRX 5800 Services Gateway Flex IOC and Port Module Installation Instructions

Otros manuales para SRX 5800

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Puerta de Juniper

Juniper

Juniper SRX100B Manual de usuario

Juniper

Juniper SRX300 Series Manual de usuario

Juniper

Juniper SRX380 Manual de usuario

Juniper

Juniper SRX240 Series Manual de usuario

Juniper

Juniper SRX3600 Manual de usuario

Juniper

Juniper SRX220 Manual de usuario

Juniper

Juniper SRX5400 Instrucciones de instalación

Juniper

Juniper SRX 5800 Manual de usuario

Juniper

Juniper SRX 1400 SERVICES GATEWAY - Manual de usuario

Juniper

Juniper SSG140 Instrucciones de funcionamiento y seguridad

Juniper

Juniper SRX5600 Manual de instrucciones

Juniper

Juniper SRX240 Series Manual de usuario

Juniper

Juniper SRX-4600 Manual de usuario

Juniper

Juniper SRX650 Manual de instrucciones

Juniper

Juniper SRX220 Instrucciones de instalación

Juniper

Juniper SRX650 Manual de usuario

Juniper

Juniper SRX550 Manual de usuario

Juniper

Juniper SRX3600 Manual de usuario

Juniper

Juniper SRX345 Instrucciones de instalación

Juniper

Juniper SRX345 Manual de usuario

Juniper

Juniper SRX4100 Instrucciones de instalación

Juniper

Juniper SRX340 Instrucciones de instalación

Juniper

Juniper SRX110 Manual de usuario

Juniper

Juniper SSG5 Manual de usuario

Manuales populares de Puerta de otras marcas

LST

LST M500RFE-AS Manual de usuario

Kinnex

Kinnex Media Gateway Manual de usuario

2N Telekomunikace

2N Telekomunikace 2N StarGate Manual de usuario

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario

Telsey

Telsey CPVA 500 - SIP Manual de usuario

RTA

RTA 460A-NNA4 Hoja de especificaciones

Shaw

Shaw Gateway HDPVR Manual de usuario

ABB

ABB VSN900 Guía de inicio rápido

Commander

Commander Pulse Manual de usuario

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manual de usuario

NETGEAR

NETGEAR C6300BD Manual de usuario

Amit

Amit CDW531AM Manual de usuario

HMS

HMS Netbiter EasyConnect EC150 Manual de usuario

Huawei

Huawei EchoLife HG620 Manual de usuario

AT&T

AT&T U-verse 3801 Manual de uso y cuidado

Logic IO

Logic IO RTCU MX2 turbo Manual de usuario

Suttle

Suttle MediaMAX MXM-521 Manual de usuario
