INSTALLATION

INSTRUCTIONS

IMPORTANT: KEEP THIS INSTRUCTION BOOKLET IN

THE PLACE PROVIDED ON THE CHILD RESTRAINT

MODEL I 0911 F

P-IM0097P

INSTALLATION

DO NOT USE THIS CHILD RESTRAINT UNTIL YOU HAVE

READ AND UNDERSTOOD THE INSTRUCTIONS IN THIS

USER GUIDE AND IN YOUR VEHICLE OWNERS MANUAL

This Child Restraint is suitable for children up to approxi-

mately 6 months of age.

Before installation and use of this child restraint check that

it is suitable for the size of your child.

See pages 7 & 8 of the USE Instructions for more informa-

tion.

Quick Reference .............................................................. 2

WARNINGS .................................................................... 3

Additional Warnings ................................................ 4 & 5

Features .......................................................................... 6

Installation - General ................................................. 7 & 8

Installation - Vehicle Belts ........................................ 9 - 11

Checklist - Vehicle Belt Installation .............................. 11

Fitting Restraint to Base.................................................12

WARNINGS – Tether Strap ............................................13

How to use the Tether Strap ................................... 14 - 16

Checklist - Tether Strap ............................................... 17

Installation – Tether Anchorage............................... 18 - 20

Use with Strollers .......................................................... 21

Cleaning and Maintenance ........................................... 22

Contents

Keep these Instructions for future reference.

Distributed by Nuna Baby Australia Pty. Ltd.

ACN: 642 240 140

Unit 1, 35 Lyn Parade Prestons, NSW Australia 2170

For after-sales & warranty service, contact:

1800 951 070 customerservice@nunababy.com.au

This is a rear facing child

restraint. Do not face

forward.

INSTALLATION

Vehicle Belt

must always be secure

and pulled tight.

See pages 10 & 11

Carry Handle

must always be locked

into position.

Tether Strap

must always be used when the

restraint is installed in a vehicle.

Store end of tether in bag.

See pages 14 - 16

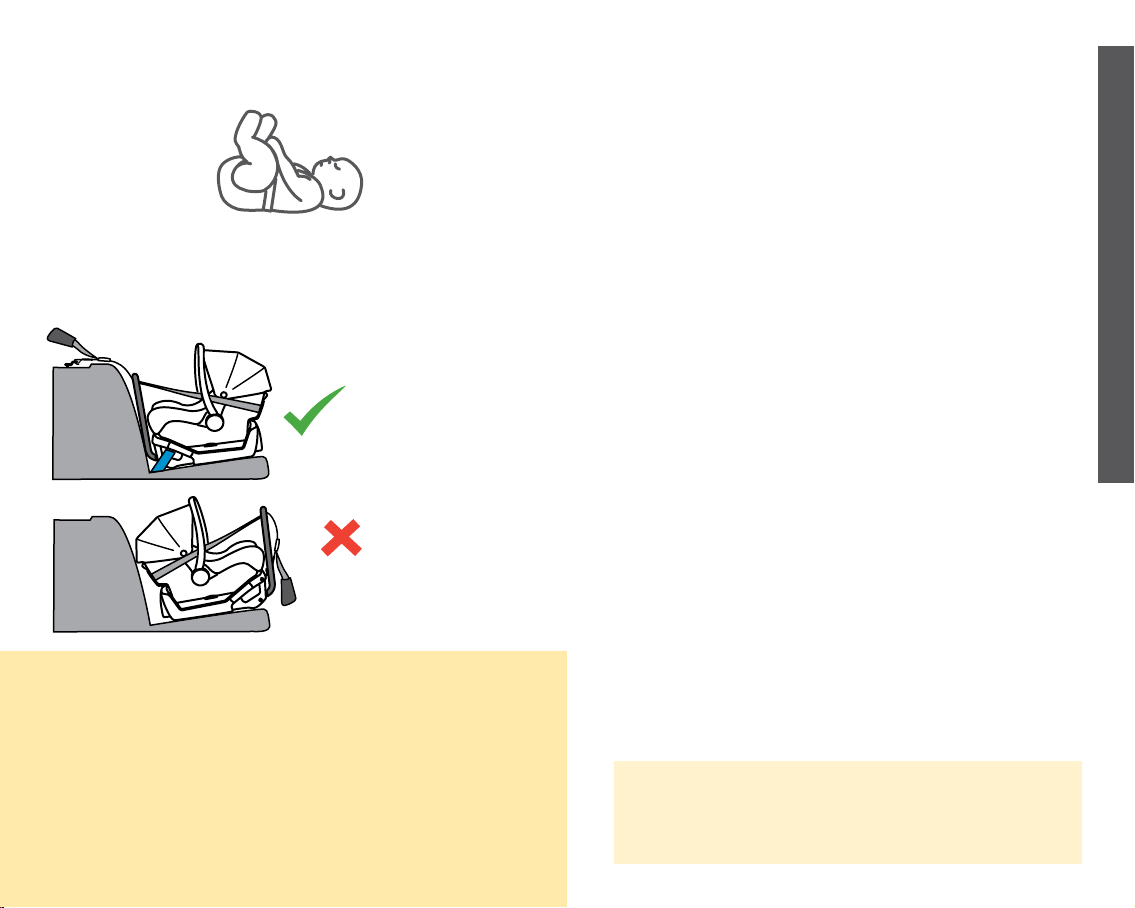

Base Recline Adjustment

base must be reclined correctly

See pages 7 & 8

Secure Latching

restraint must be

securely latched

into base.

See page 12

Quick Reference

• Use the restraint exactly as shown in the instructions.

• Fit the restraint ﬁrmly to the car seat.

• A loose harness or restraint is dangerous.

• Destroy the restraint if it has been in a severe crash,

even if no damage is visible.

• Do not alter or modify this restraint.

• Repairs must only be done by the manufacturer or

agent.

• This child restraint is not approved for use with any

connectors that connect to the car’s ISOFIX low

anchorages.

• DO NOT USE A REAR FACING CHILD RESTRAINT

WHERE AN AIRBAG IS FITTED IN FRONT OF THE

SEATING POSITION.

• Only use this restraint with the base it was supplied

with. If a second or replacement base is required it

must be a matching model number.

WARNINGS

NOTE: The warnings on these pages are those

required by the Australian and New Zealand

Standard AS/NZS 1754 for this type of child

restraint. Other warnings specific to this

particular child restraint will be found throughout

these instructions.

IMPORTANT: Also read the following instructions carefully

Read the whole of these instructions carefully and if there

is any doubt about the method of installation, consult the

child restraint manufacturer or agent, or a child restraint

tting station authorized by the relevant transport

authority, or in New Zealand an agent for the vehicle.

INSTALLATION

TO BE USED WITH A LAP-SASH/LAP ONLY SEATBELT

IN THE BACK OF MOST CARS WITH FORWARD FACING

SEATS.

This restraint is 700 mm long, 440 mm wide and 480 mm

high (with the handle down). Check the measurement

between the front of the seat back of the rear seat and all

front seats in the car in which the restraint is intended to

be used to ensure the space available is sufcient.

Seat belt extenders are not recommended if the car seat

belt is too short to secure the child restraint. If the car

seat belt is too short get advice from a child restraint tter

regarding use of these.

Never install the Child Re-

straint in a seat with a front

airbag. DEATH or SERIOUS

INJURY may occur. Refer to

your vehicle Owners Manual

for airbag warnings and in-

formation.

Only install child restraint

in a forward facing vehicle

seat. Never install in a seat

that faces the rear or the

side of the vehicle.

This is a rearward facing

child restraint. Do not install

facing the side or forwards.

Always check child restraint

to base connection.

ADDITIONAL WARNINGS

CLICK

CHECK

480

440

700

ADDITIONAL WARNINGS

INSTALLATION

INSTRUCTIONS

Features

1 Tether Strap

2 Child Restraint Release

Lever

3 Snap Hook

4 Tether Strap Anchorage

5 Tether end storage

6 Rebound Bar

7 Vehicle Belt Lock-Off

8 Bubble Level Indicator

9 Instruction Manual

Storage

10 Recline Foot

11 Recline Foot Fold Latch

Where to install the child

restraint?

Only install the child re-

straint in a forward facing

vehicle seat.

Do not install in a seat that

faces the rear or the side

of the vehicle.

Install in the rear seat, the

safest place is normally the

centre.

The base can be installed

on vehicle seats tted with

either a lap belt or a lap/

sash belt.

To install correctly the

vehicle must be on a level

surface.

IMPORTANT:

Correct position and

installation is essential

for your child's safety.

Installation - General

INSTALLATION

1 Position base on a

forward facing vehicle

seat.

Adjust base so bubble

is between the black

patches.

2 Use recline adjustment,

if needed, to achieve

correct angle for

installation.

Recline adjustment foot

snaps into position.

3 If the recline adjustment

foot does not give

sufcient recline, add a

folded towel or similar

rm padding.

IMPORTANT:

Any extra padding

placed under the base

must be rmly folded so

that when the vehicle

belts are pulled up tight,

the base is secure.

Always secure the base

with a vehicle belt, even

when the restraint is not

tted to it.

An unsecured base may

be dangerous in an ac-

cident or sudden stop.

Installation — Vehicle Belts

REARWARD-FACING

BELT PATH

INSTALLED

BASE

Use the Belt Path

labels as a guide for

correct belt placement.

Installation - General

REARWARD FACING

BELT

PATH

P-WL0163A

Top Tether

Anchorage

1110

INSTALLATION

3. Buckle the vehicle belt.

1. Open the belt lockoff.

4. Push the base into the

vehicle seat rmly Aand

pull the vehicle belts

tight B.

5. Hold vehicle belts tight

and engage the belt

lockoff.

3. Vehicle belt is not

twisted.

4. Level indicator

bubble is fully in the

clear area.

2. Vehicle belt is tight.

Checklist — Vehicle Belt Installation

1. Vehicle Buckle

engaged.

BELTS MUST BE

TIGHT.

LOOSE BELTS ARE

DANGEROUS.

2. Pass the vehicle belt

through the openings in

the base labeled ‘BELT

PATH’

Installation — Vehicle Belts

IMPORTANT

Belts must not be

twisted.

Place the base on the

vehicle seat in line with a

top tether anchorage point.

CLICK

1312

INSTALLATION

To Install

First make sure there is

nothing in or on the base

(blankets, toys etc).

These may stop the

restraint from latching

securely.

Lower the restraint down

into the base. Listen for a

"CLICK" from the latches in

the base.

Pull up on the restraint

to ensure it is securely

latched.

To Release

Lift the restraint with one

hand while pulling up on

the release latch at the

back of the base.

"CLICK"

WARNINGS

TETHER STRAP

THIS RESTRAINT MUST BE ATTACHED TO A CHILD

RESTRAINT UPPER ANCHORAGE POINT IN THE CAR.

REFER TO CAR OWNERS HANDBOOK FOR LOCATION

OF ANCHORAGE POINTS.

REFER TO A CHILD RESTRAINT FITTING STATION IF NO

ANCHORAGE POINTS ARE IN THE MOTOR CAR.

THIS RESTRAINT IS NOT SUITABLE FOR USE WHERE

THE TOP TETHER STRAP MAY FALL INTO A SPLIT IN

THE SEAT BACK OR OFF THE SIDE OF THE SEAT.

Always secure the loose end of the top tether strap to

prevent it hanging out of the car or being accessible by

the child. It should be stored in the bag provided on the

end of the strap.

Do not use the child restraint where this strap may fall into

a split in the seat back or off the side of the seat.

ALWAYS ATTACH HOOK AND REMOVE SLACK.

CAUTION: CHILDREN CAN BE INJURED OR RE-

STRAINTS AND TOP TETHER STRAP DAMAGED BY

UNSECURED CARGO IN A COLLISION.

SECURE OR REMOVE HAZARDOUS CARGO BEFORE

USING THIS CHILD RESTRAINT.

Fitting Restraint to Base

1514

INSTALLATION

How to use the Tether Strap

Always use the tether strap.

Connect the tether strap to the built-in anchorage tting

in the vehicle, or if there is not one available, install the

anchor tting supplied with this restraint.

Store the extra webbing in the bag attached to the end of

the tether.

Snap Hook

Tether

Anchorage

Tether Adjustor

Tether End

Storage Bag

NOTE: the tether strap wraps around the sides of

the restraint, not over the top.

If the canopy is fitted the tether passes outside it.

2. To increase webbing

tension pull upper strap

through adjustor.

How to use the Tether Strap

PULL

3. To release webbing

tension press adjustor

button and pull lower

strap. PULL

PRESS

DO NOT attach the

hook to a parcel tie

down point.

1. Connect the snap hook

securely to the anchorage

tting.

Note: there are several

different looking types of

anchorage, yours may not

look like this.

Check the vehicle owners

manual.

When the

restraint is in a

vehicle always

ﬁt the tether

into the guide

at the back.

1716

INSTALLATION

4. Do not adjust so tight

that it lifts the child restraint

off the vehicle seat.

5. Store unused web in

bag on end of tether.

How to use the Tether Strap

Straps must

not be twisted

In some vehicles without a fixed parcel shelf an

extension tether strap may be required. These

are available in several different lengths and can

be obtained from child restraint retail outlets.

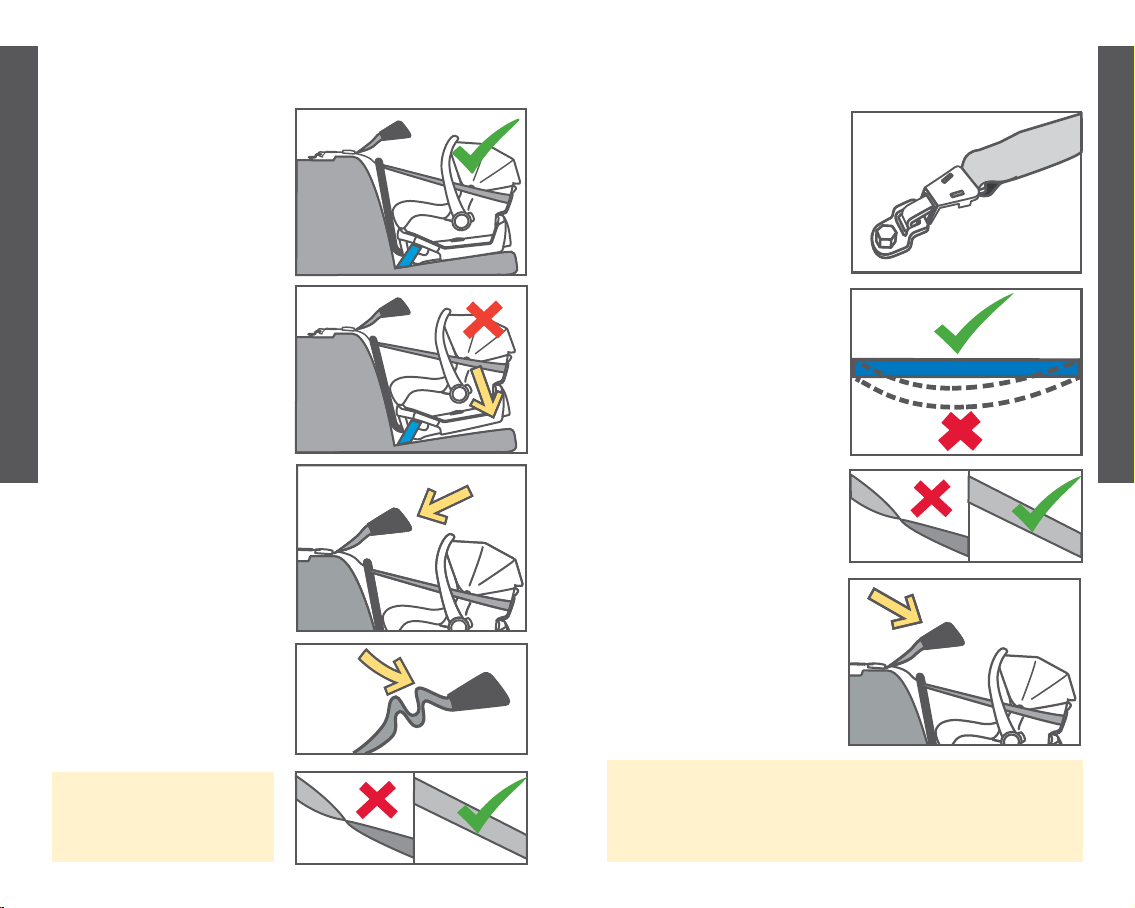

Checklist — Tether Strap

1. Is snap hook securely

attached to tether anchor-

age?

2. Is tether strap correctly

tensioned?

3. Is tether strap twisted?

4. Is loose end of tether

stored in bag?

Otros manuales para gemm

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Asiento de coche de Joie

Joie

Joie C2005B Manual de usuario

Joie

Joie spin 360 signature Manual de usuario

Joie

Joie every stage R129 Manual de usuario

Joie

Joie gemm I0911DA Manual de usuario

Joie

Joie spin 360 GT Manual de usuario

Joie

Joie Curve C 0925 Manual de usuario

Joie

Joie I1404C Manual de usuario

Joie

Joie i-Jemini Guía del usuario

Joie

Joie every stage Manual de usuario

Joie

Joie Signature i-Traver Manual de usuario

Joie

Joie stages isofix Manual de usuario

Joie

Joie Every Stage FX Manual de usuario

Joie

Joie Steadi R129 Manual de usuario

Joie

Joie juva Manual de usuario

Joie

Joie signature i-Prodigi Manual de usuario

Joie

Joie duallo Manual de usuario

Joie

Joie I-Level Recline Manual de usuario

Joie

Joie i-Snug Manual de usuario

Joie

Joie gemm Manual de usuario

Joie

Joie i-Quest signature Manual de usuario

Joie

Joie juva Manual de usuario

Joie

Joie i-Traver Manual de usuario

Joie

Joie Trillo C1220GA Manual de usuario

Joie

Joie spin 360 signature Manual de usuario

Manuales populares de Asiento de coche de otras marcas

Britax

Britax PARKWAY SGL Manual de usuario

JANE

JANE nurse cruiser Manual de usuario

Digicom

Digicom Tippy Pad Manual de usuario

Fisher-Price

Fisher-Price Futura 20/60 Manual de usuario

Giordani

Giordani orion 012 Manual de usuario

BRIO

BRIO ZENTO Manual de usuario

Combi

Combi Zeus Turn 8815 Series Manual de usuario

Graco

Graco Car Booster Seat Manual de usuario

Coccolle

Coccolle Atira Manual de usuario

hifold

hifold HF01-GL Manual de usuario

CYBEX

CYBEX SOLUTION X2-FIX Manual de usuario

kiwy

kiwy SLF 123 Manual de usuario

Safety 1st

Safety 1st Summit ISO 30 Manual de usuario

Safety 1st

Safety 1st Grand 2-IN-1 Manual de usuario

Graco

Graco NAUTILUS Manual de usuario

Britax

Britax Multi-Tech BB0-702-00 Manual de usuario

Grammer

Grammer MSG45/421 Instrucciones de funcionamiento

Nuna

Nuna REBL PLUS Manual de usuario
