Johnston V Series Manual
Johnston Sweepers Limited
Foreword
General Arrangement
Controls
Operation
Optional Equipment
V Range Suction Sweepers
Incorporating
VT501 ● 651 ● 801
Twin engine machines
&
VS501 ● 651 ● 801
Single engine, Hydrostatic machines
Part No 01282-1-GB (A5 size)
Revision Level 02
E.C.M. Issue - 711837 Print date - 03.02.2014
F
1
2
3
4
Operator’s
Guide
Johnston Visual Module
Routine Maintenance
5
6
Conformity Certificates 7
VT - Twin Engine
VS - Single Engine
Specific to Twin engine sweepers.
Specific to Single engine sweepers.
All Copyright and rights are the property of Johnston Sweepers Ltd
Foreword 1 Issue 01
V Range 501 ●651 ●801 - Operator’s Guide
FOREWORD
The Johnston V501, 651 and 801 range of Suction Sweeper represents the highest grade of
craftsmanship and reliability that makes Johnston probably the world leader in sweeping technology.
This machine is designed for the removal of spoil on traffic or pedestrian areas, and litter collection
using the Wanderhose [Ref. EN 13019], and should only be driven by trained operatives.
This machine should not be used for sweeping hot or burning substances. In the unlikely event of
a fire, normal powder or foam fire fighting equipment can be used on this product.
An operator should receive training in the follow elements:
1 Safety Observations/Notices
2 Transit driving
3 Correct use of body prop
4 In cab controls
5 External controls
6 Sweeping techniques
7 Load discharge
8 Channel brush setting and changing
9 WSB setting and changing
10 Nozzle setting and Maxigap operation
11 Daily and weekly maintenance items
12 Driving/operation assessment
13 End of day cleaning of body and machine
Johnston Sweepers Limited can provide operator training upon request.
We would point out that it is the employers responsibility to carry out his own Risk Assessment on
the equipment in his particular working environment and work application.
This handbook should be carefully studied. In it you will find instructions for the operation and
maintenance of your JOHNSTON SWEEPER.
It is vitally important that the operator and maintenance staff have a copy of this book. The life of
the machine will depend upon following these instructions in respect of regular maintenance and
correct operating methods.
It is important that only GENUINE JOHNSTON SPARE PARTS are used when servicing and
maintaining the sweeper. This is especially important for consumables, filters etc, as the use of
non-genuine parts may cause premature failure and invalidation of warranty.
When carrying out maintenance or part replacement, additional explanatory illustrations can be
found in the Parts Manual, which shows and lists hardware, and availability of spares with the
orientation and positions of the various components.
All Copyright and rights are the property of Johnston Sweepers Ltd
Johnston Sweepers Limited
V Range 501 ●651 ●801 - Operator’s Guide
Issue 01
Foreword 2
Every endeavour has been made to ensure that the information contained in this Operator’s Guide
is correct, but due to continuous product development, the Company reserve the right to alter its
contents without notice. This document should not be interpreted as being part of a formal contract.
The universal safety symbol is used throughout this manual to indicate information which
is essential for health and safety for all operating personnel.
Safety Notice
Johnston®JOHNSTON®JOBRO®BROOMVAK®are registered trade marks of Johnston Sweepers Limited.
All copyrights and rights reserved. The reproduction, distribution and utilisation of this document
as well as the communication of its contents to others without express authorisation is prohibited.
Offenders will be held liable for the payment of damages. All rights reserved in the event of the
grant of a patent, utility model or design.
For further information and enquiries please contact:
Johnston Sweepers Limited
Curtis Road, Dorking, Surrey RH4 1XF, UK
Tel: +44 (0)1306 884722
Fax: +44 (0)1306 884151
E-mail: [email protected]
Web: www.johnstonsweepers.com
All Copyright and rights are the property of Johnston Sweepers Ltd
Foreword 3 Issue 02
V Range 501 ●651 ●801 - Operator’s Guide
PAGE ISSUE LEVELS
Page Issue Changed Page Issue Changed
Front Page 02 üForeword 1 01
Foreword 2 01 Foreword 3 02 ü
Foreword 4 01 Foreword 5 01
Foreword 6 02 üForeword 7 01
OG1:1 01 OG1:2 01
OG1:3 01 OG1:4 01
OG2:1 01 OG2:2 01
OG2:3 01 OG2:4 01
OG2:5 01 OG2:6 01
OG2:7 01 OG2:8 01
OG2:9 01 OG2:10 01
OG2:11 01 OG2:12 01
OG2:13 01 OG2:14 01
OG3:1 01 OG3:2 01
OG3:3 01 OG3:4 01
OG3:5 01 OG3:6 01
OG3:7 01 OG3:8 01
OG4:1 01 OG4:2 02 ü
OG4:3 01 OG4:4 01
OG4:5 01 OG4:6 01
OG4:7 01 OG4:8 01
OG4:9 01 OG4:10 01
OG5:1 02 üOG5:2 02 ü
OG5:3 01 OG5:4 01
OG5:5 01 OG5:6 01
OG5:7 01 OG5:8 01
OG5:9 01 OG5:10 01
OG5:11 01 OG5:12 01
OG5:13 01 OG5:14 01
OG5:15 01 OG5:16 01
OG5:17 01 OG5:18 02 ü
OG5:19 02 üOG5:20 01
OG6:1 01 OG6:2 01
OG6:3 02 üOG6:4 02 ü
OG6:5 02 üOG6:6 01
OG6:7 01 OG6:8 01
OG6:9 01 OG6:10 01
OG6:11 01 OG6:12 01
OG6:13 01 OG6:14 01
OG6:15 01 OG6:16 01
OG6:17 01 OG6:18 01
OG6:19 02 üOG6:20 01
OG7:1 01 OG7:2 01
OG7:3 01 OG7:4 01
OG7:5 01 OG7:6 01
All Copyright and rights are the property of Johnston Sweepers Ltd
Johnston Sweepers Limited
Issue 01
Foreword 4
V Range 501 ●651 ●801 - Operator’s Guide
INTERNATIONAL SYMBOLS
Conforming to ISO 3767
Graphical symbols are used to indicate the water, fuel and hydraulic oil tank filler ports and air
cleaner servicing instructions.
Their location and descriptions are shown below.
M02OG-001
1a
1a
21b
1b
5
3/4
ULTRA LOW SULFUR
FUEL ONLY
S≤15 mg/kg
1. Water tank filler ports 1a = Hose Pipe
1b = Hydrant
2. Hydraulic oil tank filler
3. Fuel tank (diesel) filler
4. Fuel tank - Engine requires Ultra Low Sulfur fuel
5. Engine air cleaner instructions, i.e. use only genuine Johnston
replacement air cleaner elements and refer to Chapter 6 of this
guide for servicing instructions
All Copyright and rights are the property of Johnston Sweepers Ltd
Foreword 5 Issue 01
V Range 501 ●651 ●801 - Operator’s Guide

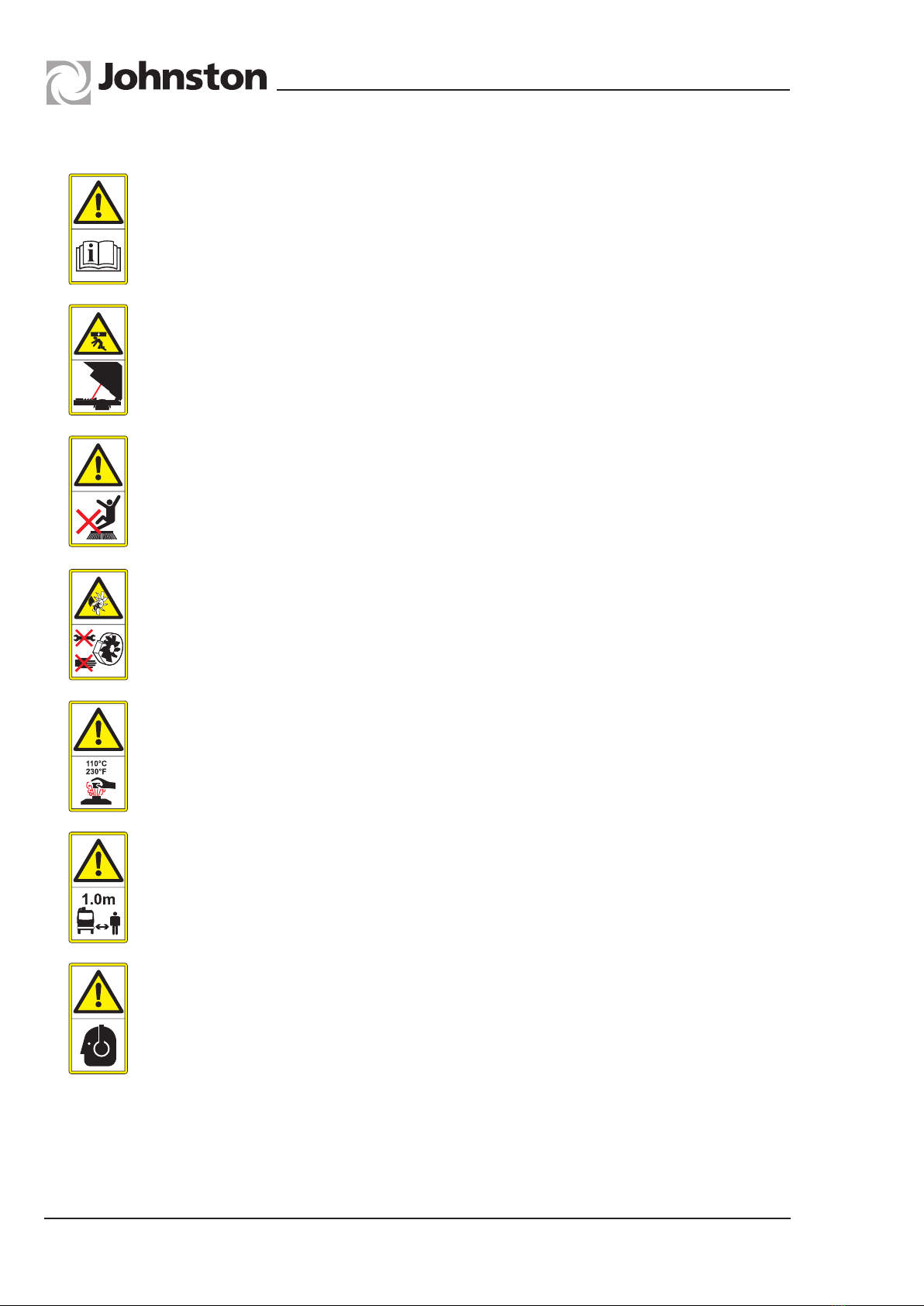

VEHICLE SAFETY LABELS
General safety alert symbol.
Read Operator’s Guide.
Crushing of whole body - force applied from above.
Body prop correctly engaged in rack.
Keep clear of brushes.
Severing of fingers or hand - Impeller blade.
Never reach in or drop tools into the fan case.
Release radiator cap carefully when hot to avoid scalding.
Stay at least 1 metre distance from the machine.
Wear ear defenders when working in this area.
General safety alert symbol.
General safety alert symbol.
General safety alert symbol.
General safety alert symbol.
All Copyright and rights are the property of Johnston Sweepers Ltd
Issue 02
V Range 501 ●651 ●801 - Operator’s Guide Johnston Sweepers Limited
DO NOT
● Workonoraroundtheenginewhilstitisrunningexcepttoadjustidlesettings.
● Remove engine radiator cap when the engine is hot, without first covering the
capwithacloth.Release itslowly,otherwise thereisa riskofbeing scaldedby
escaping coolant.
● Touch any part of the engine exhaust system without first allowing it to cool
sufficiently.
● Drainengineoiluntilithascooled,toavoidscalding.
● Disconnecthydraulicorwaterpipeswhilsttheengineisrunning.
● Approachfaninletoroutletwhilstthefanisrunning.
ALWAYS
● Ensure necessary precaution are taken when re-fuelling to avoid any risk from
spillage,duetotheheightofthefuelfiller.
● Ensurethemachineisstandingonfirm,levelgroundandtherearenoobstructions
above or to the rear before raising the hopper.
● Ensurethatthebodyisrestingonthebodyprop,beforeworkingunderneaththe
raised hopper - See Maintenance Section of the Technical Manual.
● Keephands,looseclothing,hairetc,wellclearofmovingparts.
● Useapproved safetyplatforms/gantrieswhen workingabove groundlevel.Get a
secondpersontocheckperiodicallywhenonlyonepersonisworkingonaccess
equipment or inside the body.
● Ensuretheoperatorsandservicepersonnelarefullyconversantwiththecontrols
and their operation.
● Disconnect the vehicle battery when working on the electrical system. Remove
the plugs from the Nodes and the Display when carrying out any welding on the
vehicle.
● Removeignitionkeywhenworkingonthevehicle.Ensureallpersonnelareclear
of the vehicle before restarting engine.
● Ensureallguardsandcoversarerefittedafterservicing.
● Disconnectorisolatetheairsysteminthesystemslockerbeforeworkingonany
pneumatic items.
● Alwaysfollow thechassis manufactures recommendationswhen usinga battery
boosterorstarterpacktoavoiddamagingelectroniccomponents.
Safety Notice
Foreword 6
All Copyright and rights are the property of Johnston Sweepers Ltd
V Range 501 ●651 ●801 Operator’s Guide
Foreword 7 Issue 01
All Copyright and rights are the property of Johnston Sweepers Ltd
Johnston Sweepers Limited
General Arrangements
Chapter - General Arrangements
Page Issue 01 OG1:1
V Range 501 ●651 ●801 - Operator’s Guide
CHAPTER 1
Table of Contents
Subject Page
General Arrangement
General Arrangement Drawing OG1 : 2
Equipment Access OG1 : 4
All Copyright and rights are the property of Johnston Sweepers Ltd
Chapter - General Arrangements Page Issue 01
OG1:2
V Range 501 ●651 ●801 - Operator’s Guide
10
8
9
11
14
7
17
15
20
26
28
16
19
21
25
31
29
29
18
22
12
M02OG-002-2
5
6
30
1
2
4
13
27
3
29
23
24
GENERAL ARRANGEMENT
