Installation Instructions T25

Issue Date 05/27/14

T25 Two-Stage Room Thermostat

Application Requirements

T25 thermostats are for line- or low-voltage service

requiring accurate control of two operating functions.

There are two stages of control for heating and

cooling with automatic changeover on three- and

four-pipe fan coil installations and similar

applications. Typical uses are for compressor

controls, relays, valves, fan coils, and other

applications where low differentials and accurate

sensing are required.

Installation

IMPORTANT: Use this T25 Two-Stage Room

Thermostat only as an operating control. Where

failure or malfunction of the thermostat could lead to

personal injury or property damage to the controlled

equipment or other property, additional precautions

must be designed into the control system.

Incorporate and maintain other devices, such as

supervisory or alarm systems or safety or limit

controls, intended to warn of or protect against

failure or malfunction of the thermostat.

IMPORTANT : Utiliser ce T25 Two-Stage Room

Thermostat uniquement en tant que dispositif de

contrôle de fonctionnement. Lorsqu'une

défaillance ou un dysfonctionnement du thermostat

risque de provoquer des blessures ou

d'endommager l'équipement contrôlé ou un autre

équipement, la conception du système de contrôle

doit intégrer des dispositifs de protection

supplémentaires. Veiller dans ce cas à intégrer de

façon permanente d'autres dispositifs, tels que des

systèmes de supervision ou d'alarme, ou des

dispositifs de sécurité ou de limitation, ayant une

fonction d'avertissement ou de protection en cas

de défaillance ou de dysfonctionnement du

thermostat.

Parts Included

•1 thermostat

•1 Allen wrench

•2 machine screws

Dimensions

Refer to Figure 1 for detailed dimensions of the

T25 Two-Stage room Thermostat.

Mounting

Location Considerations

Mount the thermostat about 4 to 5 ft. (1.2 to 1.5 m)

above the floor on an interior wall, where it can sense

the average room temperature. It is designed for vertical

mounting and will produce the lowest operating

differentials when installed in this position.

Do not mount the thermostat where it may react to heat

or cold from water pipes, windows, doors, lamps,

sunlight, or other heat or cold sources.

On unit heater applications, place the thermostat below

and behind the heater in the path of air entering the unit,

not in the path of discharge air.

Part No. 24-9716-5, Rev. B www.johnsoncontrols.com

2.78

(71)

1.13

(29)

5.22

(133) 0.63

(16)

Diameter

1.06

(27)

1.94

(49)

1.88

(48)

0.41

(10) Two Threaded

Studs

3.28

(83)

0.63

(16)

Two Mounting Holes

0.28

(7.1) 0.15

(3.8)

2.84

(72) 1.44

(37)

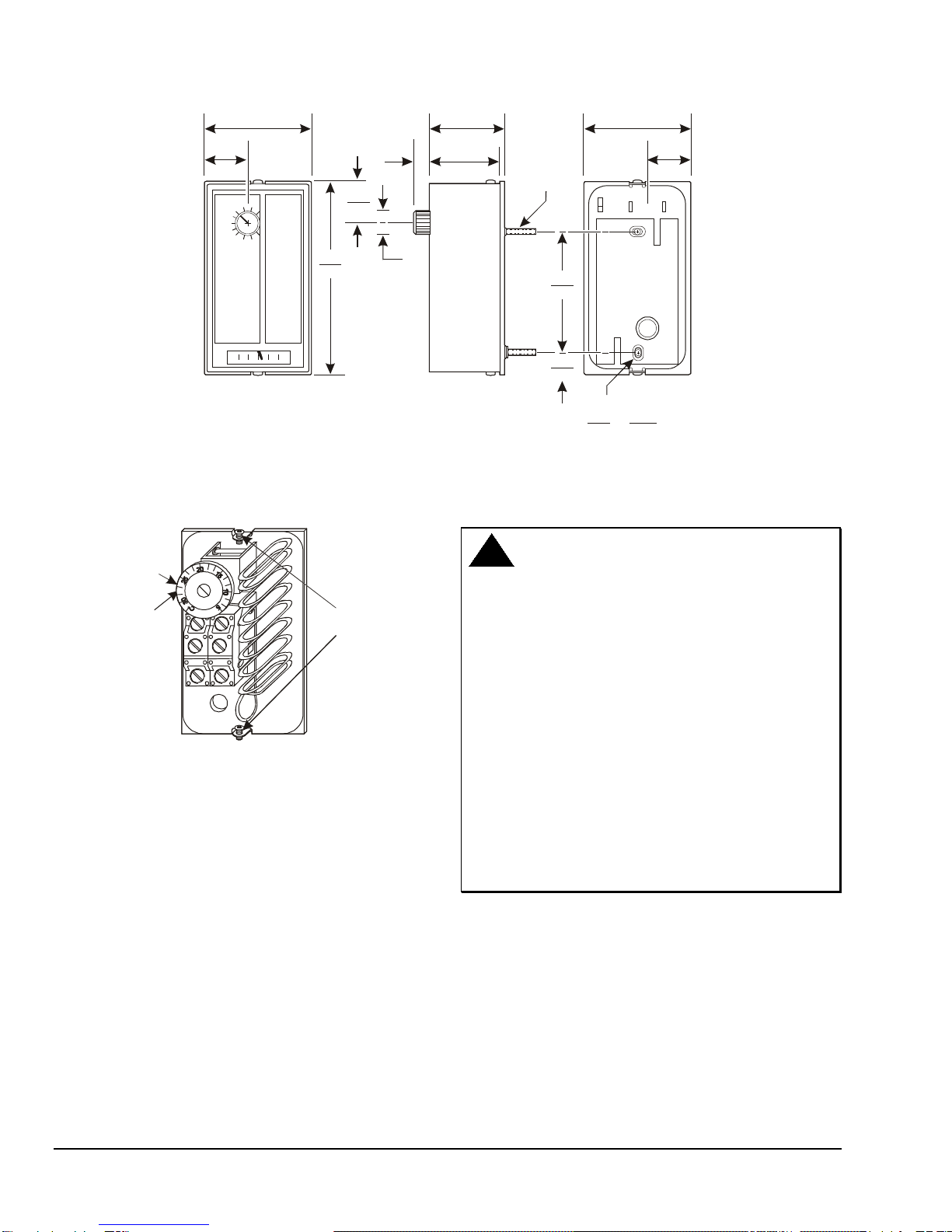

Figure 1: T25A Dimensions, in. (mm)

Mounting

Plate

Studs

High

Temperature

Stop

Set Point

Knob

Figure 2: Inside View of T25

Wall Box Mounting

To mount the thermostat to an electrical conduit box,

proceed as follows:

1. Remove the external adjustment knob, when

furnished, by loosening the knob set screw using

the provided Allen wrench. Slide the knob from the

adjustment shaft.

2. Remove the cover by loosening the Allen-head

screws at the top and bottom of the thermostat.

3. Remove the adaptor plate from the back of the

thermostat by loosening the machine nuts (inside

the thermostat) from the two threaded studs on the

plate.

WARNING: Risk of Electric Shock.

Disconnect or isolate all power supplies before

making electrical connections. More than one

disconnection or isolation may be required to

completely de-energize equipment. Contact with

components carrying hazardous voltage can cause

electric shock and may result in severe personal

injury or death.

AVERTISSEMENT : Risque de décharge

électrique. Débrancher ou isoler toute alimentation

avant de réaliser un branchement électrique.

Plusieurs isolations et débranchements sont

peut-être nécessaires pour -couper entièrement

l'alimentation de l'équipement. Tout contact avec

des composants conducteurs de tensions

dangereuses risque d'entraîner une décharge

électrique et de provoquer des blessures graves,

voire mortelles.

4. Pull the electrical thermostat wires through the

opening in the thermostat adaptor plate.

5. Secure the adaptor plate to the conduit box with

the two machine screws provided.

6. Insert the wires through the opening in the

thermostat base.

7. Place the thermostat on the adaptor plate, so that

the two threaded studs on the adaptor plate pass

through the corresponding holes in the thermostat

base (upper left and lower right corners).

2T25 Two-Stage Room Thermostat Installation Instructions

8. Secure the thermostat to the adaptor plate with the

two machine nuts referred to in Step 3.

9. Refer to the Wiring section to connect the

terminals on the Pennswitches.

10. If a high temperature stop is desired, proceed to

the Setup and Adjustments section.

Wall Surface Mounting

To mount the thermostat directly to an interior wall

surface (no electrical box) proceed as follows:

1. At the desired thermostat location, make an

opening in the wall approximately 1/2 in. in

diameter, and pull the wires through it.

2. Plug the rest of the wall opening to prevent drafts

from affecting the operation of the thermostat

(when applicable).

3. Remove the adjusting knob, thermostat cover, and

adaptor plate. See Steps 1, 2, and 3 under

Wall Box Mounting.

4. Pull the electrical thermostat wires through the

opening in the thermostat adaptor plate.

5. Secure the adaptor plate to the mounting surface.

Note: When mounting on uneven surfaces, always

use the adaptor plate in order to prevent twisting the

unit and consequently affecting thermostat calibration

and operation.

6. Proceed as outlined in Step 6 through Step 10 in

the Wall Box Mounting section.

Wiring

Make all wiring connections using copper conductors

only in accordance with the National Electrical Code

and local regulations. Use a relay or motor starter to

handle loads that exceed the rating of the thermostat.

WARNING: Ri sk of Electric Shock.

Disconnect or isolate all power supplies before

making electrical connections. More than one

disconnection or isolation may be required to

completely de-energize equipment. Contact with

components carrying hazardous voltage can cause

electric shock and may result in severe personal

injury or death.

AVERTISSEMENT : Risque de décharge

électrique. Débrancher ou isoler toute alimentation

avant de réaliser un branchement électrique.

Plusieurs isolations et débranchements sont

peut-être nécessaires pour -couper entièrement

l'alimentation de l'équipement. Tout contact avec

des composants conducteurs de tensions

dangereuses risque d'entraîner une décharge

électrique et de provoquer des blessures graves,

voire mortelles.

For low-voltage applications, use 18 AWG wire or

larger for all connections to the thermostat. Use

14 AWG wire on runs over 500 ft. Make all splices in

junction boxes using approved solderless connectors,

or by soldering and then taping the connection.

Make all wiring connections to the screw terminals on

the Pennswitches.

•Use the terminal screws supplied with the

Pennswitches. Screws longer than 1/4 in. can

cause problems in making proper connections.

•Connect the thermostat grounding provision to the

grounding conductor of the branch circuit.

Refer to Figure 4, Figure 5, Figure 6, Figure 7, and

Figure 8 for typical wiring diagrams.

Note: Use the furnished terminal screws

(8-32 by 1/4 in. binder head). Substitution of other

screws may cause problems in making proper

connections.

T25 Two-Stage Room Thermostat Installation Instructions 3

LO -Temp

Stage

HI-Temp

Stage

Temperature

Dial

Temperature

Fall

RY Opens

RB Closes

Low

Stage

Temperature

Rise Dial

Settings

RY Closes

RB Opens

RY Closes

RB Opens

DHigh

Stage

Note: RB , RY indicates

HI-TEMP. RB , RY indicates

LO-TEMP. D represents differential

between stages. H represents High.

L represents Low.

Figure 3: Two-stage Control Switching Action

Hot

Neutral

Power Supply Cooling

Equipment

Heating

Equipment

Hot (240 VAC)

or Neutral (120 VAC)

YHYL

BHBL

RHRL

Figure 4: Typical Wiring for One-stage Heating and

One-stage Cooling

Hot

Neutral

Power Supply 2nd Stage

Cooling

Hot (240 VAC)

or Neutral (120 VAC) 1st Stage

Cooling

YHYL

BHBL

RHRL

Figure 5: Typical Wiring for Two-stage Cooling

Hot

Neutral

Power Supply

1st Stage

Heating

2nd Stage

Heating

Hot (240 VAC)

or Neutral (120 VAC)

YHYL

BHBL

RHRL

Figure 6: Typical Wiring for Two-stage Heating

Hot

Neutral

Power Supply Heating

Valve

Hot (240 VAC)

or Neutral (120 VAC) Cooling

Valve

Fan

HI-Temp LO -Temp

YHYL

BHBL

RHRL

Note: The application is wired for simultaneous cycling of

valve and fan. Cooling will operate at a higher

temperature than heating even though connections

are to opposite stages.

Figure 7: Typical Wiring for Fully Automatic

Heating and Cooling Service

Hot

Neutral

Power Supply

Reversing

Valve

Hot (240 VAC) or

Neutral (120 VAC)

Compressor

Fan

HYL

BHBL

RHRL

Figure 8: Typical Heat Pump Wiring for

Combination Heating and Cooling, Continuous Fan

4T25 Two-Stage Room Thermostat Installation Instructions

Setup and Adjustments

The indicator line on models with knobs denotes the

thermostat dial setting. Concealed adjustment models

have internal adjustment dials. Adjust concealed dial

models (with the cover removed) by turning the dial

and lining up the desired dial setting at a 9 o’clock

position when the thermostat is vertical.

Calibration

The T25 thermostats are factory calibrated. Do not

attempt field calibration.

Set Screw

High

Temperature

Stop

Set Point Knob

Figure 9: Setting the High Temperature Stop

Commissioning the High Temperature Stop

If a high temperature stop is desired, refer to Figure 9

and follow the procedure described below.

1. Turn the thermostat dial so that the desired

setting, minus one degree, is in line with the slot in

the high temperature slot bracket, as shown in

Figure 9. For example, to set the stop at 76°F

(24°C), line up the 75°F (23°C) mark on the

temperature dial with the slot.

2. Loosen the stop screw and slide the screw toward

the back of the dial (the front of the unit) against

the step behind the dial.

3. Tighten the stop screw.

Note: For concealed adjustment models, set the

desired temperature and switch functions before

replacing the cover.

Checkout

Before completing the installation, observe at least

three complete operating cycles to ensure that all

components are functioning correctly.

Heating

If the unit has a system selector, select the Heating or

Auto position. Turn the set point knob to a temperature

well above room temperature. This simulates a

temperature fall and should cycle on the heating

system. Turn the set point knob about 10F° (5.6C°)

below the room temperature. The heating system

should stop. Turn the knob to the desired setting.

Cooling

If the unit has a system selector, select the Cooling or

Auto position. Turn the set point knob to a temperature

well below the room temperature. This simulates a

temperature rise and should cycle on the cooling

system. Turn the set point knob about 10F° (5.6C°)

above the room temperature. The cooling system

should stop. Turn the knob to the desired setting.

Repairs and Replacement

Do not make field repairs. To replace the thermostat,

cover, knobs, or faceplate contact the nearest

Johnson Controls representative.

T25 Two-Stage Room Thermostat Installation Instructions 5

Table 1: Electrical Ratings

Motor Ratings 120 V 208 V 240 V 277 V

AC Full Load Amperes 6.0 3.5 3.0 -

AC Locked Rotor Amperes

36.0 21.0 18.0 -

Non-inductive Amperes 10.0 9.2 8.0 7.2

Pilot Duty—125 VA24 to 277 VAC

Note: When used as a two-circuitswitch,the total connected loadmust notexceed 2,000 VA.

Technical Data

Product T25 Two-Stage Room Thermostat

Output Single Pole,Double Throw (SPDT)

Switches

Two Enclosed Pennswitches

Cover Cold Rolled Steel with “TawnySilver” Finish

Differential(Mechanical) Each Stage 0.7F° (0.4C°) Approximately

Between Stages 3F° (1.7C°) Non-Adjustable

Supply Voltage 24 V,120 V,208 V, 240 V, 277 V

Mounting With Adaptor Plate for Wall or Electrical Box Mounting;Vertical

Mounting Only

Range Thermostat 40 to 90°F(5 to 32°C)

Thermometer 50 to 90°F(10 to 32°C)

Sensing Element Liquid Charged, No Leveling Required

Shipping Weight Individual Pack 1.5 lbs (0.7 kg)

Overpack of

20 Units

32 lbs (14.5 kg)

Terminals Screw Type. Color Coded:

Red is Common.

Red Closes to Yellow on Temperature Rise.

Red Closes to Blue on Temperature Drop.

Thermometer Bimetal

Agency Listings UL Listed; File E6688,CCN XAPX(U.S.),CCN XAPX7 (Canada)

CSACertified;File LR948,Class 4813 02

The performance specifications are nominal andconform to acceptableindustrystandards.For application atconditions beyond these

specifications,consult thelocal Johnson Controls office.Johnson Controls, Inc.shall notbeliablefor damages resulting from misapplication or

misuse ofits products.

Building Efficiency

507 E.Michigan Street,Milwaukee,WI 53202

® Johnson Controlsand PENN are registered trademarks ofJohnson Controls,Inc.in the

United Statesof America and/or other countries.All other trademarks used herein are the property

6T25 Two-Stage Room Thermostat Installation Instructions

Tabla de contenidos

Otros manuales de Termostato de Johnson Controls

Johnson Controls

Johnson Controls FX-WRZRMT10K-0 Manual de usuario

Johnson Controls

Johnson Controls T701DFN-1 Manual de usuario

Johnson Controls

Johnson Controls T9600 Manual de usuario

Johnson Controls

Johnson Controls T5000 Manual de usuario

Johnson Controls

Johnson Controls T8200-TB20-9JF0 Series Manual de usuario

Johnson Controls

Johnson Controls TEC2003-3 Manual de usuario

Johnson Controls

Johnson Controls TEC2103-2 Manual de usuario

Johnson Controls

Johnson Controls TEC2103-1 Manual de usuario

Johnson Controls

Johnson Controls A19 Series Manual de usuario

Johnson Controls

Johnson Controls T9580 Instrucciones de funcionamiento

Johnson Controls

Johnson Controls TEC2101-3 N2 Manual de usuario

Johnson Controls

Johnson Controls TEC2216-4 Manual de usuario

Johnson Controls

Johnson Controls TEC3023-14-000 Manual de usuario

Johnson Controls

Johnson Controls TCN-890x Manual de usuario

Johnson Controls

Johnson Controls T8690 Instrucciones de funcionamiento

Johnson Controls

Johnson Controls TEC22x1-3 LONWORKS Manual de usuario

Johnson Controls

Johnson Controls T8000 Series Manual de usuario

Johnson Controls

Johnson Controls TEC2045-4 Manual de usuario

Johnson Controls

Johnson Controls T8800 Series Manual de usuario

Johnson Controls

Johnson Controls T-901 Manual de usuario

Johnson Controls

Johnson Controls TEC2102-3 Manual de usuario

Johnson Controls

Johnson Controls T7200 Manual de usuario

Johnson Controls

Johnson Controls A19A Manual de usuario

Johnson Controls

Johnson Controls TEC2627-2 Manual de operación y mantenimiento

Manuales populares de Termostato de otras marcas

EWELLY

EWELLY EW-181 Manual de usuario

Prolon

Prolon T1100 Instrucciones de instalación

Computherm

Computherm Q20 Manual de usuario

Heatmiser

Heatmiser neoStat Manual de usuario

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manual de usuario

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manual de usuario

Saswell

Saswell SAS920XWHB-7-S-RF Guía

Aircalo

Aircalo TFP1-ET85P2 Manual de usuario

Honeywell

Honeywell CM721 Manual de usuario

Carrier

Carrier DEBONAIR 33CS Manual de usuario

Lennox

Lennox iHarmony Zone Thermostat Instrucciones de montaje

Gemtech

Gemtech GT7000 Manual de instrucciones

Rollei

Rollei Smartes 45000 Manual de usuario

Sinope

Sinope TH1300RF Manual de usuario

Honeywell

Honeywell RLV4305 Manual de usuario

Honeywell

Honeywell Prestige 2.0 THX9421 Manual de usuario

NuTone

NuTone NTBZ48 Instrucciones de funcionamiento originales

Stelpro

Stelpro MAESTRO ASMT402AD Manual de usuario
