Installation Instructions M9106AGx-2N0x

Issue Date June 3, 2014

M9106-AGx-2N0x Series Electric

Non-Spring Return Actuators

Installation

IMPORTANT: Use this M9106-AGx-2N0x Series

Actuator only to control equipment

under normal operating conditions.

Where failure or malfunction of the

actuators could lead to personal

injury or property damage to the

controlled equipment or other

property, additional precautions must

be designed into the control system.

Incorporate and maintain other

devices, such as supervisory or alarm

systems or safety or limit controls,

intended to warn of or protect against

failure or malfunction of the

actuators.

IMPORTANT : Utiliser ce M9106-AGx-2N0x Series

Actuator uniquement pour

commander des équipements dans

des conditions normales de

fonctionnement. Lorsqu'une

défaillance ou un dysfonctionnement

du actuators risque de provoquer des

blessures ou d'endommager

l'équipement contrôlé ou un autre

équipement, la conception du

système de contrôle doit intégrer des

dispositifs de protection

supplémentaires. Veiller dans ce cas

à intégrer de façon permanente

d'autres dispositifs, tels que des

systèmes de supervision ou d'alarme,

ou des dispositifs de sécurité ou de

limitation, ayant une fonction

d'avertissement ou de protection en

cas de défaillance ou de

dysfonctionnement du actuators.

The actuator may be mounted in any convenient

orientation. When installing the DPT-2015 Differential

Pressure Transmitter on the actuator, mount it so the

tubing connecting the flow pick-up device to the

DPT-2015 creates a moisture trap. This will prevent

condensation from entering the sensor.

No extra mounting brackets, linkage, or couplers are

required for standard mounting, but wiring terminals

must be accessible and protected from moisture and

corrosive fumes.

Parts Included

•M9106-AGx-2N0x Actuator

•CBL-2000-1 Wiring Harness and DPT-2015-0

Differential Pressure Transmitter (included with the

M9106-AGS-2N02)

•No. 10 self-drilling sheet metal screw

Special Tools Needed

•5/16 in. (8 mm) square socket

•3/8 in. (10 mm) 12-point socket

•drill with a 5/16 in. hex nut driver

•digital voltmeter (for troubleshooting the

transmitter)

Mounting

To mount the actuator to a damper:

1. Position the actuator on the damper shaft so the

damper shaft protrudes through the actuator

coupler as shown in Figure 1.

Damper

Shaft

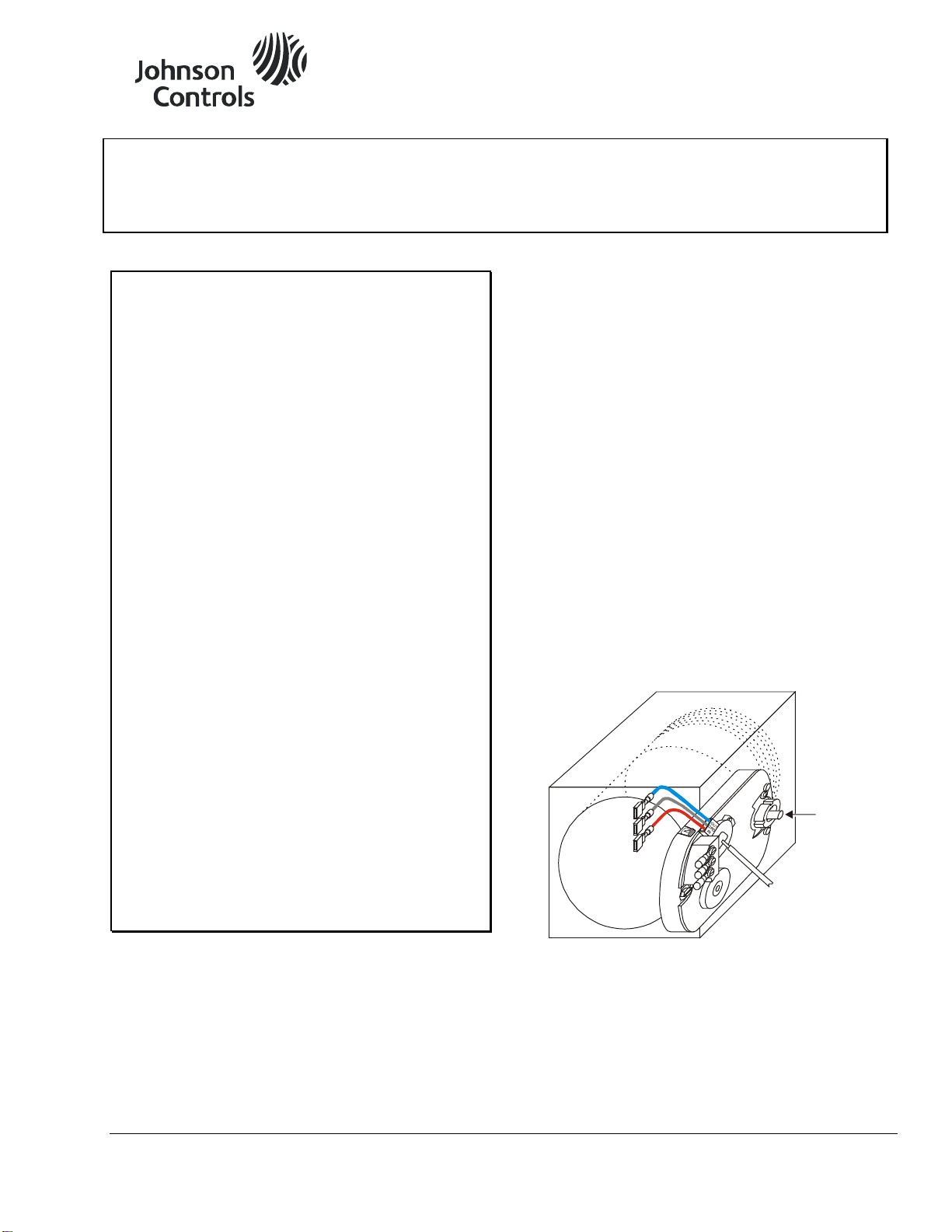

Figure 1: Mounting on the Damper Shaft

2. Make sure the actuator is in the desired mounting

position, parallel to the mounting surface as shown

in Figure 2.

Part No. 34-636-1077, Rev. B www.johnsoncontrols.com

Approximately

an 1/8 in.

(3.2 mm) Gap

Gear

Release

Lever

Mounting

Surface DPT-2015

Figure 2: Actuator Position

3. Verify that the shoulder washer is centered

between the plastic ribs of the actuator housing to

allow actuator movement during rotation.

(See Figure 3.)

Shoulder

Washer

Plastic Ribs

Self-drilling

Sheet Metal

Screw

CCWCOMCW

OUT

GND

(-)LO

DPT-2015

Figure 3: Shoulder Washer Position

4. Hold the actuator in place on the damper shaft,

and insert the self-drilling sheet metal screw

through the shoulder washer. (See Figure 3.)

5. Place a 5/16 in. (8 mm) socket on the screw and

using a drill and extension, drill the screw into the

mounting surface until tight against the washer.

IMPORTANT: Do not overtighten the mounting

screw to avoid stripping the threads.

Rotation Range

Make sure that the damper blade is visually accessible

or its position is permanently marked on the end of the

damper shaft as shown in Figure 4.

Figure 4: Damper Position Icons

To set the actuator stroke, proceed as follows:

1. Grasp the damper shaft firmly with pliers and

rotate the damper fully closed. (See Figure 5.)

Damper

Shaft

CCW to

Close CW to

Damper

Blade

Damper

Figure 5: Damper Rotation

2. Press and hold the gear release lever shown in

Figure 2, and rotate the actuator coupler to the

fully closed position.

3. Make a note of the rotation travel and direction,

either Clockwise (CW) or Counterclockwise

(CCW), required to close the damper.

If rotation is less than 90°, proceed to Less Than

90 Degrees section.

IMPORTANT: Do not remove the sheet metal

screw and force the damper blade closed by rotating

the actuator. This puts additional stress on the gear

train and could reduce the life of the actuator.

90 Degrees

1. Release the gear release lever.

2. Secure the coupler to the shaft using a crescent

wrench or one of the tools from the Special Tools

Needed section to tighten the coupler set screw

against the damper shaft. (See Figure 6.)

2M9106-AGx-2N0x Series Electric Non-spring Return Actuators Installation Instructions

Coupler Set

Screw

45°

Damper

Shaft

End-stop

Set Screws on

End Stops

(2 each)

90°

30°

Stop Gear

60°

10°

Figure 6: Setting the Rotation Range

3. Keeping the actuator parallel to the mounting

surface, continue tightening the coupler set screw

approximately 1/2 turn to achieve 150 to 180 lb∙in

(17 to 20 N∙m) torque.

4. Press and hold the gear release lever, and turn the

coupler by hand to ensure the damper rotates from

end to end.

Proceed to the DPT-2015 section if needed.

Less Than 90 Degrees

If the damper shaft rotation is less than 90°, the stroke

of the actuator has to be adjusted using the scale on

the actuator. (See Figure 6.)

Use the center of the coupler set screw as a pointer to

observe the position on the scale when rotating the

coupler from one side to the other.

Examples:

•For a rotation range of 90°, set both end-stop

set screws fully up as shown in Figure 6.

•For a rotation range of 60°, leave one end-stop

set screw fully up, and adjust the other one, so the

coupler rotates between the 30 and 90° indicator

marks on the scale.

•For a rotation range of 45°, adjust both end-stop

set screws, so the coupler rotates between 30 and

75°.

•For a rotation range of 30°, move both end-stop

set screws, so the coupler rotates between the

30 and 60° indicator marks on the scale.

To accurately set the end-stops:

1. Press and hold the gear release lever, and turn the

actuator coupler to the minimum rotation position

for the minimum ventilation flow required.

2. Release the gear release lever.

3. Use a Phillips screwdriver to loosen the end-stop

set screw that is closest to the stop gear. Move the

end-stop set screw in its slot until it is tight against

the stop gear. (See Figure 6.)

IMPORTANT: Do not remove the end-stop

set screws, as this could interfere with the actuator’s

operation.

4. Hand tighten the set screw so it remains in this

position.

5. Secure the coupler to the shaft by using a crescent

wrench or one of the tools from the Special Tools

Needed section to tighten the coupler set screw

against the damper shaft. (See Figure 6.)

6. Keeping the actuator parallel to the mounting

surface, continue tightening the coupler set screw

approximately 1/2 turn to achieve 150 to 180 lb∙in

(17 to 20 N∙m) torque.

7. Repeat Steps 1 through 3 to set the desired

maximum rotation position.

8. Use the Phillips screwdriver to tighten both

end-stop set screws to a minimum of 25 lb∙in

(2.8 N∙m).

9. Press and hold the gear release lever, and turn the

coupler by hand to ensure the damper rotates from

end to end.

DPT-2015

The M9106-AGx-2N housing has two mounting bosses

for the DPT-2015. (See Figure 7.) Follow the

procedure in the installation instructions included with

the DPT-2015, DPT-2015 Differential Pressure

Transmitter for VAV Box Applications Installation

Instructions (Part No. 24-7547-18).

COMCW

CCW

Mounting

Bosses

Figure 7: Location of the Mounting Bosses

M9106-AGx-2N0x Series Electric Non-spring Return Actuators Installation Instructions 3

Wiring

CAUTION: Risk of Electric Shock.

Disconnect the power supply before making

electrical connections to avoid electric shock.

MISE EN GARDE : Risque de décharge

électrique. Débrancher l'alimentation avant de

réaliser tout raccordement électrique afin d'éviter tout

risque de décharge électrique.

CAUTION: Risk of Property Damage.

Do not apply power to the system before checking all

wiring connections. Short circuited or improperly

connected wires may result in permanent damage to

the equipment.

MISE EN GARDE : Risque de dégâts matériels.

Ne pas mettre le système sous tension avant d'avoir

vérifié tous les raccords de câblage. Des fils formant

un court-circuit ou connectés de façon incorrecte

risquent d'endommager irrémédiablement

l'équipement.

IMPORTANT: All wiring must be in accordance

with the National Electrical Code and local electrical

regulations.

The actuator requires a 24 VAC control signal and is

compatible with a variety of controllers. Refer to

Figure 8 for the wiring configuration.

CBL-2000-x Wiring Harness

VAC 24

VAC

14.5 to 17

VDC

(+)

0.5 to 4.5

VDC

(+)

(-)

CCW COM CW IN GND OUT

Common

M9106-AGx-2N0x DPT-2015

Figure 8: Wiring Diagram

Note: To avoid excessive wear or drive time on the

motor, use a controller and/or software that provides a

time-out function to remove the signal at the end of

rotation (stall).

The 20 in. (0.5 m) CBL-2000-1 Wiring Harness,

accepted by Underwriters Laboratories, Inc.® (UL) for

plenum use, is pre-wired with the M9106-AGS-2N02 or

may be ordered separately.

The plenum-rated 20 in. (0.5 m) CBL-2000-2 and

72 in. (1.8 m) CBL-2000-3 Wiring Harnesses are also

available. (See Table 1.)

Setup and Adjustments

Air Pressure (M9106-AGS-2N02)

The flow pickup device provided with the Variable Air

Volume (VAV) box must be connected to the

DPT-2015 using field-supplied tubing as follows:

1. Cut two lengths of tubing, and connect them to the

flow pickup device.

IMPORTANT: Make sure the tubing is properly

sized and made of an elastic material, such as

silicone rubber, to ensure airtight connections and

minimize flow measurement errors.

2. Connect the tubing from the flow pickup device to

the corresponding barbed high and low pressure

ports on the DPT-2015. (See Figure 9.)

Note: The upper port is the low pressure port and

indicated as (-)LO on the transmitter.

Upper Port

(-)LO

1/4 in. Barbed Ports (2)

for Field-supplied Tubing

DPT-2015

Figure 9: M9106-AGS-2N02 with Wiring Harness

3. Route the tubing so a portion of it is lower than the

DPT-2015. This creates a trap that prevents any

condensation from entering the sensor. Avoid

making any sharp bends in the tubing.

IMPORTANT: Overpressure limit is 15 in. W.C.

(3.74 kPa). Do not blow into ports to test their

operation, as this could damage the sensing

element.

4M9106-AGx-2N0x Series Electric Non-spring Return Actuators Installation Instructions

Commissioning

M9106-AGx-2N0x

After wiring is completed, apply power to the controller

and provide signals to the actuator to drive it at least

one complete cycle open and closed.

DPT-2015

To commission the transmitter:

1. Perform the checkout procedure provided in the

controller installation instructions, DPT-2015

Differential Pressure Transmitter for VAV Box

Applications Installation Instructions

(Part No. 24-7547-18), to ensure proper operation

of the transmitter.

IMPORTANT: Perform commissioning when

the transmitter is permanently mounted and

operating at normal temperatures.

2. Set up and zero using HVAC PROsoftware

when using a DPT-2015 with a Johnson Controls

VAV Series controller. Refer to the Variable Air

Volume Controller Technical Bulletin

(LIT-6363040) for details.

Troubleshooting

M9106-AGx-2N0x

If the actuator is not responding or working properly:

•Verify that the actuator assembly is properly

secured to the duct.

•Check that all electrical connections are complete

and power is applied.

•Verify that the damper fully opens and closes,

using the gear release lever on the actuator.

•Check that the actuator stroke is set for the

desired application.

DPT-2015

The DPT-2015 must be auto zeroed by a

Johnson Controls VAV controller. If the DPT-2015 is

not operating properly:

•Verify that the air lines on the DPT-2015 are

connected to their respective high and low ports

with no kinks in the tubing.

•Check the supply voltage to ensure it is within the

14.5 to 17 VDC range and the polarity is correct.

•Disconnect the air lines from the high and low

ports, and place a voltmeter across the OUT and

GND terminals on the DPT-2015. If the output is

not between 0.4 and 0.6 volts with power applied

to the DPT-2015 in the vertical position, the

transmitter is defective and should be replaced.

Note: Voltage readings may vary by 0.1 volt if the

transmitter is in the horizontal position.

Repairs and Replacement

Field repairs must not be made. For a replacement

product or an accessory, refer to the M9106-AGx-2N0x

Series Electric Non-Spring Return Actuators Product

Bulletin (LIT-2681126).

M9106-AGx-2N0x Series Electric Non-spring Return Actuators Installation Instructions 5

Technical Data

Product

M9106-AGx-2N0x Series Electric Non-Spring Return Actuators

Power Requirements M9106-AGA-2N01: 20 to 30 VAC at 50/60 Hz, 2.5 VA supply, Class 2

M9106-AGx-2N02: 20 to 30 VAC at 50/60 Hz, 2.1 VA supply, Class 2

DPT-2015: 15 VDC (14.5 to 17 VDC) unregulated; 15 mA maximum

Input Signal

M9106-AGx-2N0x: 24 VAC (20 to 30 VAC) at 50 or 60 Hz

Motor Input Impedance M9106-AGA-2N01: 200 ohms, nominal

M9106-AGx-2N02: 250 ohms, nominal

DPT-2015-0 Pressure Range: 0 to 1.5 in. W.C. (0 to 374 Pa)

Over Pressure Limit: 15 in. W.C. (3.74 kPa)

Output Voltage: 0.5 to 4.5 VDC with 25,000 ohm minimum load impedance

Mechanical Output

Running Torque: 53 lb∙in (6 N∙m)

Cycles 100,000 full cycles; 2,500,000 repositions rated at 53 lb∙in (6 N∙m)

Audible Noise Rating

35 dBA maximum at 1 m

Rotation Range

Adjustable from 30 to 90°, CW or CCW

Rotation Time M9106-AGx-2N01: Nominal 60 seconds at 60 Hz and 72 seconds at 50 Hz for 90°

M9106-AGS-2N02: Nominal 120 seconds at 60 Hz and 144 seconds at 50 Hz for 90°

Electrical Connection

No. 6-32 screw terminals on the M9106 actuator; 1/4 in. spade terminals on the DPT-2015

Pressure Connection 6 in. (152 mm) length of silicone tubing with barbed fittings for 1/4 in. (6.35 mm)

O.D. tubing

Enclosure

NEMA1, IP30

Ambient Operating

Conditions M9106-AGA-2N0x: 32 to 125°F (0 to 52°C); 90% RH maximum, non-condensing

M9106-AGS-2N02: 32 to 125°F (0 to 52°C); 90% RH maximum, non-condensing

60 to 100°F (16 to 38°C); 90% RH maximum, non-condensing

For DPT rated accuracy, see DPT-2015 Differential Pressure Transmitter for VAV Box

Applications Installation Instructions (Part No. 24-7547-18).

Ambient Storage

Conditions -20 to 150°F (-29 to 66°C); 90% RH maximum, non-condensing

Dimensions (H x W x D) M9106-AGA-2N01: 5.95 x 4.2 x 2.15 in. (151.2 x 107.3 x 54.6 mm)

M9106-AGx-2N02:5.95 x 4.2 x 2.32 in. (151.2 x 107.3 x 58.9 mm) with the DPT-2015

Shipping Weight M9106-AGA-2N0x: 2.0 lb (0.91 kg)

M9106-AGS-2N02: 2.2 lb (0.99 kg) with the DPT-2015

Agency Compliance

(M9106 Actuator) UL 873 Listed, File E27734, CCN XAPX

CSA C22.2 No. 139 Certified, File LR85083, Class 3221 02

CE Mark, EMC Directive 89/336/EEC

The performance specifications are nominal and conform to acceptable industry standards. For application at conditions beyond these

specifications, consult the local Johnson Controls office. Johnson Controls, Inc. shall not be liable for damages resulting from misapplication

or misuse of its products.

Building Efficiency

507 E. Michigan Street, Milwaukee, WI 53202

Metasys® and Johnson Controls® are registered trademarks of Johnson Controls, Inc.

6M9106-AGx-2N0x Series Electric Non-spring Return Actuators Installation Instructions

Tabla de contenidos

Otros manuales de Controladores de Johnson Controls

Johnson Controls

Johnson Controls Metasys VMA1610 Manual de usuario

Johnson Controls

Johnson Controls M9102-GA-1S Series Manual de usuario

Johnson Controls

Johnson Controls Joventa BAS1(S) Manual de usuario

Johnson Controls

Johnson Controls LX-HPUL-1 Manual de usuario

Johnson Controls

Johnson Controls VMA18 Series Manual de usuario

Johnson Controls

Johnson Controls M9132-AG -1N Series Manual de usuario

Johnson Controls

Johnson Controls TRUE RH HC-67x3 Manual de usuario

Johnson Controls

Johnson Controls VA-8122 Manual de servicio

Johnson Controls

Johnson Controls PENN P28 Manual de usuario

Johnson Controls

Johnson Controls M9106 Series Manual de usuario

Johnson Controls

Johnson Controls SMART EQUIPMENT VERASYS VEC100 Manual de usuario

Johnson Controls

Johnson Controls VMA1930 Manual de usuario

Johnson Controls

Johnson Controls SE-ZEC510-1 Manual de usuario

Johnson Controls

Johnson Controls M91 GDA-1N Series Manual de usuario

Johnson Controls

Johnson Controls TEC3000 Series Manual de usuario

Johnson Controls

Johnson Controls T9800 Series Manual de servicio

Johnson Controls

Johnson Controls A25CN Series Guía

Johnson Controls

Johnson Controls S1-33103010000 Manual de usuario

Johnson Controls

Johnson Controls LX Series Manual de usuario

Johnson Controls

Johnson Controls M9220-GGx-3 series Manual de usuario

Johnson Controls

Johnson Controls LC-AVMHTC1-0 Manual de usuario

Johnson Controls

Johnson Controls M4-CVM03050 Manual de usuario

Johnson Controls

Johnson Controls TEC3620 Series Manual de usuario

Johnson Controls

Johnson Controls EDA-8000 Instrucciones de montaje

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
