Jetson PROTON Manual de usuario

ELECTRIC DUAL WHEEL SCOOTER

PROTON

TABLE OF CONTENTS

What’s in the Box 1

Features & Specs 2

Charging the Battery 3

Battery Indicator Lights 4

How to Recalibrate 5

Opening the Pedals 6

Closing the Pedals 7

Getting On the Proton 8

Getting Off the Proton 9

Riding the Proton 10

Care and Maintenance 11

Safety Warnings 12

1. WHAT’S IN THE BOX

1 1

7 8

1. PEDALS

2. POWER BUTTON

3. CARRYING HANDLE

4. TIRES

5. CHARGING PORT

6.REFLECTORS

7. CHARGER

8. CHARGING CABLE

2. FEATURES & SPECS

PROTON

• Weight Limit: 220 lbs.

• Product Weight: 23 lbs.

• Dimensions (Unfolded): 11.14” x 16.30” x 10.94”

• Dimensions (Folded): 11.14” x 8.78” x 10.94”

• Recommended Age: 13+

• Tire Size: 8.5”

• Max Speed: Up To 7 mph

• Max Range: Up To 6 miles

• Battery: 48V, 2.2Ah Lithium-Ion

• Motor: 350W, Hub Motor

• Charger: 110-240V AC

• Charge Time: Up To 2 Hours

• Climbing Angle: Up To 15°

3. CHARGING THE BATTERY

Charging Port

• Only use the included charger.

• Plug the charger into the wall before the Charging Port.

• Don’t turn on the Proton while it’s charging (it needs its rest).

• Charge the battery until it is fully charged - up to 2 hours.

• Do not overcharge, the battery life will be affected.

• Replace the cover over the Charging Port when done.

• Remember to have fun!

CHARGING INDICATOR ON THE CHARGER:

Red Light: Battery is charging.

Green Light: Charging is complete.

4. BATTERY INDICATOR LIGHTS

• Over 25% power - When the Proton is stationary the lights will

be green. When it’s moving the lights will cycle through 7

flashing colors.

• Between 25%-5% power - When the Proton is stationary the

lights will be yellow. When it’s moving the lights will flash yellow.

• Less than 5% power - When the Proton is stationary the lights

will be red. When it’s moving the lights will flash red. The Proton

will not be happy (it will make a beeping sound). You should

charge the Proton immediately!

Battery

Indicator

Light

5. HOW TO RECALIBRATE

If the Battery Indicator Lights turn red and stay red after charging, or

if you are having issues with the Proton, you may need to recalibrate it.

Follow these steps...

1. Place the Proton on a flat, level surface. Now say something nice to

it. Just kidding, but, go ahead if you like.

2. Hold the Power Button (for about 5 seconds) until you are notified of

a successful recalibration.

3. Restart the Proton by turning it off and then on.

4. You’re all set! The Proton is ready to roll.

Hold for

5 seconds

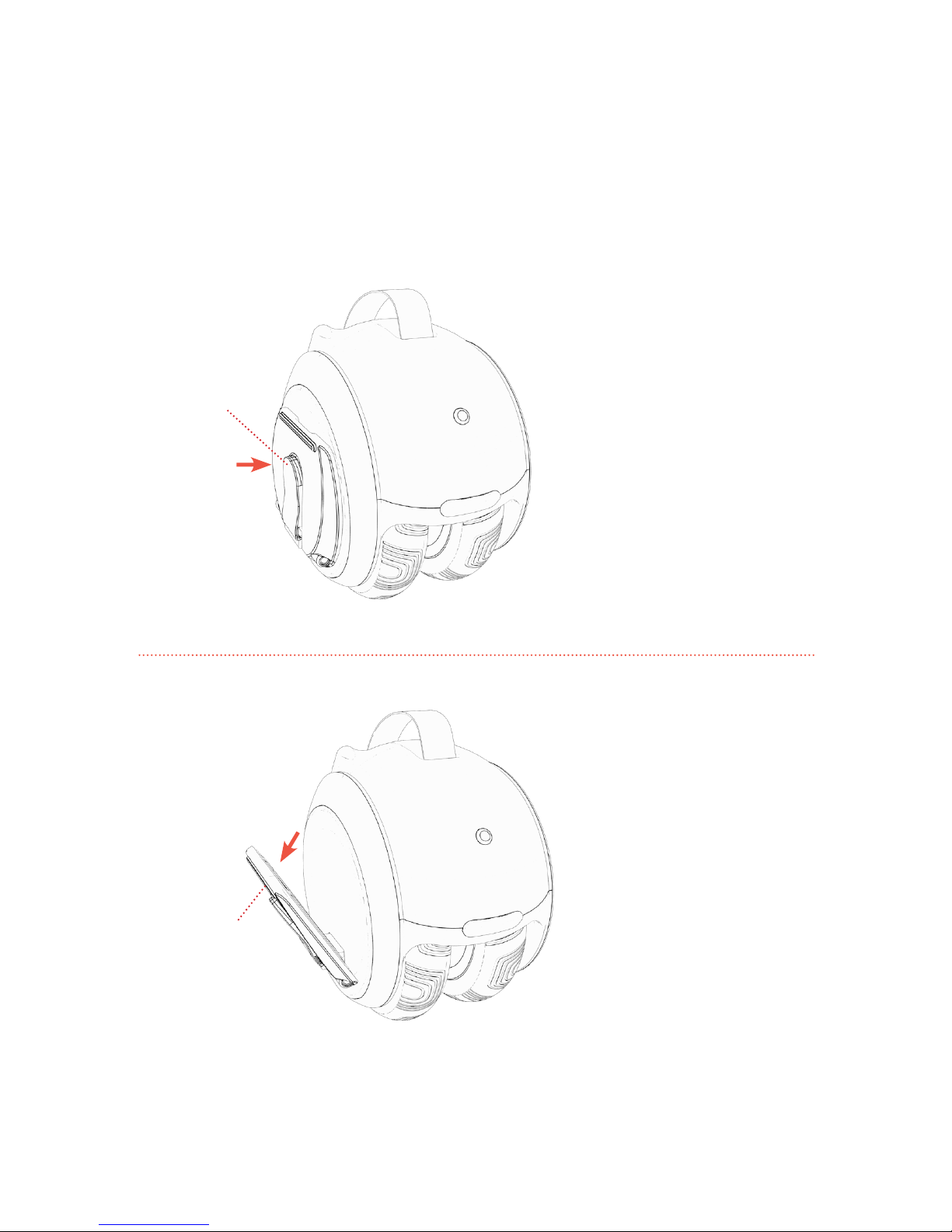

6. OPENING THE PEDALS

Quick Note:

Remember to do this on

both sides of the Proton :)

Press

button to

release

the lock

6.1

6.2

Push

down

gently

7. CLOSING THE PEDALS

7.1

7. 2

Press the

button again

and lift the

pedal

Push in to

lock into

place

8. GETTING ON THE PROTON

8.1 8.2

8.3

Always step forward when

getting on the Proton.

Carefully step one

foot onto pedal &

then the other.
