Jetson ARROW Manual de usuario
1
ARROW
-MANUAL-
2
TABLE OF CONTENTS
Introduction 3
Included In The Box 4
Features And Specs 5
Assembly 6
Safe Riding 12
Charging Battery 13
How To Use The Bike Controls 14
A. Gears
B. LCD Display
C. Turning the Bike On and Off
D. Pedal Assist
E. Speedometer
F. Walk Mode
G. Battery Indicator
H. Showing the Mileage
I. Error Codes
J. Settings
Care And Maintenance 17
Safety Warnings 19
Warranty 21
Product Registration 22
3
Congratulations on your new Jetson Arrow! The Arrow is an innovative and
fun personal transportation device, ready to take on everyday use. Before
your rst ride, check whether the wheels are damaged, or parts are loose.
If there are any abnormalities, please contact Jetson Customer Support at
1-(888) 976-9904 or email us at customerservice@jetsonbike.com.
This product manual can help you understand, use, and maintain your
Arrow. In order to avoid danger caused by collisions, falls, and loss of control,
please use caution and learn how to ride the Arrow safely. Jetson and autho-
rized dealers cannot be held liable for injury or damage caused from riding
the Arrow. Users ride at their own risk.
The rider is responsible for consequences caused by violating warnings or
improper operations.
If you want to return this product for any reason, be sure to rst call or email
us before taking it back to the store so we can assist you.
INTRODUCTION
4
INCLUDED IN THE BOX
1. Front Fork
2. Handlebar
3. Handlebar Stem
4. Charging Port
5. Frame
6. Saddle Post
7. Saddle
8. Seat Clamping Lever
9. Seat Tube
1. Left Brake Lever
2. LCD Display
3. Gear Shifter
10. Rear Derailleur
11. Front Derailleur
12. Pedals
13. Concealed Battery
14. Front Wheel
15. Front Disc Brake
2
1
14
13
12 10
9
8
7
6
4
3
5
15 11
5
FEATURES AND SPECS
MODEL: ARROW
WHEEL DIAMETER: 700C
MAX SPEED: 20 MPH
MAX RANGE: 30-35 MILES
BATTERY TYPE: LITHIUM ION
BATTERY RATED VOLTAGE: 36v/ 7.8Ah
MOTOR TYPE: BRUSHLESS
1. Left Brake Lever
2. LCD Display
3. Gear Shifter
1
2
3
MOTOR: 250w
MOTOR RATED RPM: 195
CHARGER: 110-240V
CHARGE TIME: 4-6 HOURS
PRODUCT WEIGHT: 38 LBS
WEIGHT LIMIT: 300 LBS
RECOMMENDED AGE: 14+
6
ASSEMBLY
The Arrow comes partially assembled. In order to fully assemble, you will
need to attach the Handlebars, the Front Wheel, the Disc Brake, and the
Saddle. Please refer to the diagrams on pages 4 and 5 while assembling
your Arrow. If you are having difculty assembling the Arrow, please call our
customer service or take your Arrow to a local bike shop.
Please Note: Pictures may vary slightly from the actual product.
Assembling the Handlebar
• First, make sure the Handlebar Stem is facing forward, towards the Front
Fork.
• Unscrew the 4 bolts in the Handlebar Stem using the provided Allen Key.
Handlebar Stem
7
• Make sure all the wires are connected according to color.
• Place the Handlebar into the Handlebar Stem and screw the 4 bolts in
using the provided Allen Key.
Connect Wires by Color
8
• Twist the cap off the Quick Release Clamping Lever and remove it from the
Wheel.
• Place the Quick Release Clamping Lever to the side.
ATTACHING THE FRONT WHEEL
Assembling the Front Disc Brake
• Attach the Front Disc Brake to the Front Fork by screwing in the two bolts.
Bolts
9
• Slide the front Tire between the Front Fork.
• Hook the Front Fork onto each side of the Tire and slide the Disc Brake into
the Disc.
•Please be careful not to bend the Disc Brake. If you nd that it will not go in
smoothly, please call us for assistance or bring the Arrow to your local bike
shop.
Lever
Cap

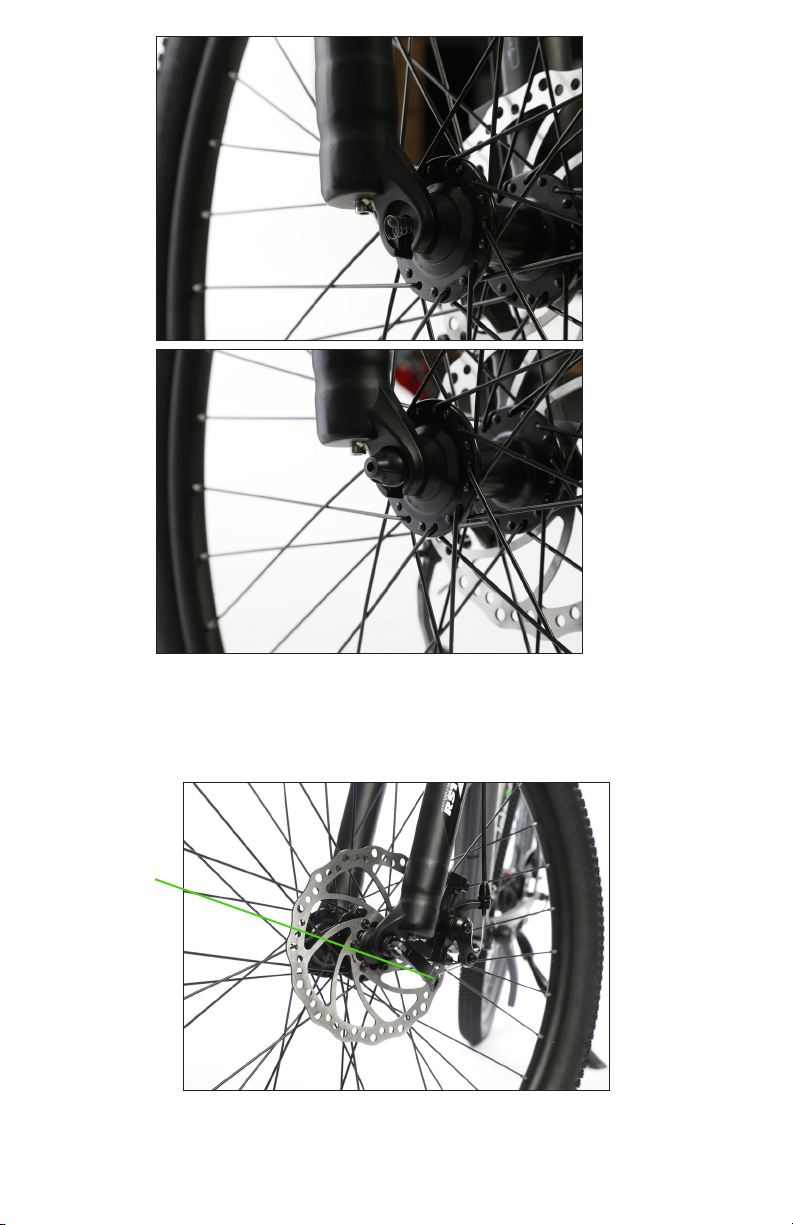

• Now that the front Tire is t to the Front Fork, slide the Quick Release
Clamping Lever through the Front Wheel. Place the spring back on to the
Quick Release Clamping Lever, with the wide end of the spring facing
outwards, and turn the lever clockwise. Once tight enough, fold over the lever
to secure.
10
• Make sure the Quick Release Clamping Lever is secure.
• Make sure the Brake is hooked onto the Disc and working properly.
Push Lever in
