Jensen VX4025 Manual de usuario

VX4025

Operation Manual

6.2” Double DIN Multimedia Receiver

DVD / SiriusXM Ready™ / Built-in BT Technology /

iPhone® - iPod® / Pandora® / USB / AV In

4VRMS

RCA Output

VX4025

Android is a trademark of Google Inc.

microSD is a trademark or registered trademark of SD-3C, LLC in the United States,

other countries or both.

Pandora® is a registered trademark of Pandora Media, Inc.

Sirius, XM and all related marks and logos are registered trademarks of Sirius XM

VX4025

CONTENTS

Features ...�� 5

Controls and Indicators ..........�� 8

Remote Control ..... ��10

External Devices ......�.��13

Quick Start ................�.��14

Audio Equalizer .....................�.��17

System Settings ....�.��19

Disc Operation �.��....��28

AM-FM Radio ......................�.��.��40

USB / MicroSD card...............�.��........��45

iPod®/ iPhone® Connectivity�.��50

AV-In1 / AV-In2 .....................�.��54

BT / Hands Free Calling ...�.��.55

Rear Camera .........................�.��63

Steering Wheel Controls (SWC) ..............................�.��64

Pandora® Radio ..........................��.��.65

SiriusXM® Radio .......................�.��.69

Care and Maintenance .......�.��87

Specifications �.��.....��88

Notes �.��...��90

Common Replacement Parts��..Back Cover

User Uploadable Wallpaper ....�.��.82

Troubleshooting ......................�.��.83

VX4025

FCC Statement

1. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that

may cause undesired operation.

2. Changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment o and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance of 20 centimeters between the radiator and your body.

“Made for iPod,” and “Made for iPhone” mean that an electronic accessory (This head unit) has

been designed to connect specifically to iPod®, or iPhone®, respectively, and has been certified by the

developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory

standards. Please note that the use of this head unit with iPod® or iPhone® may affect mobile

phone performance.

iPhone ®and iPod® are trademarks of Apple Inc., registered in the U.S. and other countries.

VX4025

Thank you for choosing a Jensen product. We hope you will find the instructions

in this owner’s manual clear and easy to follow. If you take a few minutes to look

through it, you’ll learn how to use all the features of your new Jensen VX4025

Multimedia Receiver for maximum enjoyment. Please save this manual for future

reference.

We recommend having your Jensen VX4025 Multimedia Receiver installed by

a reputable installation shop.

FEATURES

DVD

• Audio Equalizer

• Next Chapter and Previous Chapter

• Play/Pause

• Track Direct Entry

• Disc Menu

• Selection Repeat / Track Repeat

• Disc Audio

• Disc Language

• Picture Control

CD / MP3 / WMA

• CD-Text Compatible

•ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• MP3 and WMA Files on a DVD+R / RW

• Audible Forward / Reverse Track Search (CD-DA Only)

• Random, Repeat and Intro

• Play, Pause, Stop, Next Track and Previous Track

AM-FM

• USA / European Frequency Spacing

• 30 Station Presets (18 FM / 12 AM)

• Auto Stereo / Mono

• Local / Distance

• Auto Store / Preview Scan

iPod®/iPhone®

• iPod®/ iPhone® via USB

•High Speed Direct Connect Interface to Access iPhone® and iPod® Playlists,

Artists, Albums

• Power Management Charges iPhone® / iPod® while Connected

VX4025

SiriusXM Ready®

• Satellite Channel Name, Artist, Song, and Categories Displayed on Monitor

(Vehicle Tuner and Subscription required and sold separately)

Chassis

• 2.0 DIN (Import / ISO-DIN Mountable)

• Fixed Front Panel

• 6.2” High Definition TFT LCD

• 800h x 480v x RGB WVGA

General

• Beep Tone Confirmation (ON-OFF Option)

•BT / Hands-Free calling for safety and convenience and A2DP for streaming music

from your smartphone.

• One Composite Video Output for Additional Screens

• Front Panel Audio/Video Input

• Front Panel USB - Playback Music / Video Files via Portable Hard Drives / USB

flash drives

•Ten-Band Graphic Equalizer

• 4VRMS Front / Rear / Subwoofer RCA Line Output

• Rear Camera Input

• Touch Screen Calibration Mode

• Rotary Encoder Audio Control

Rear Camera

• The VX4025 is “camera ready.” Before accessing any camera features, you must

purchase and install a rear video camera.

•USB Charging Current - 2.1 Amp Support

VX4025

WARNING! Never install this unit where operation and viewing could

interfere with safe driving conditions.

WARNING! To reduce the risk of a traffic accident (except when using for

rear view video camera) never use the video display function while driving

the vehicle. This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or fire, never expose this unit to

moisture or water.

WARNING! Never use irregular discs.

WARNING! Using an improper fuse may cause damage to the unit and

result in fire.

VX4025

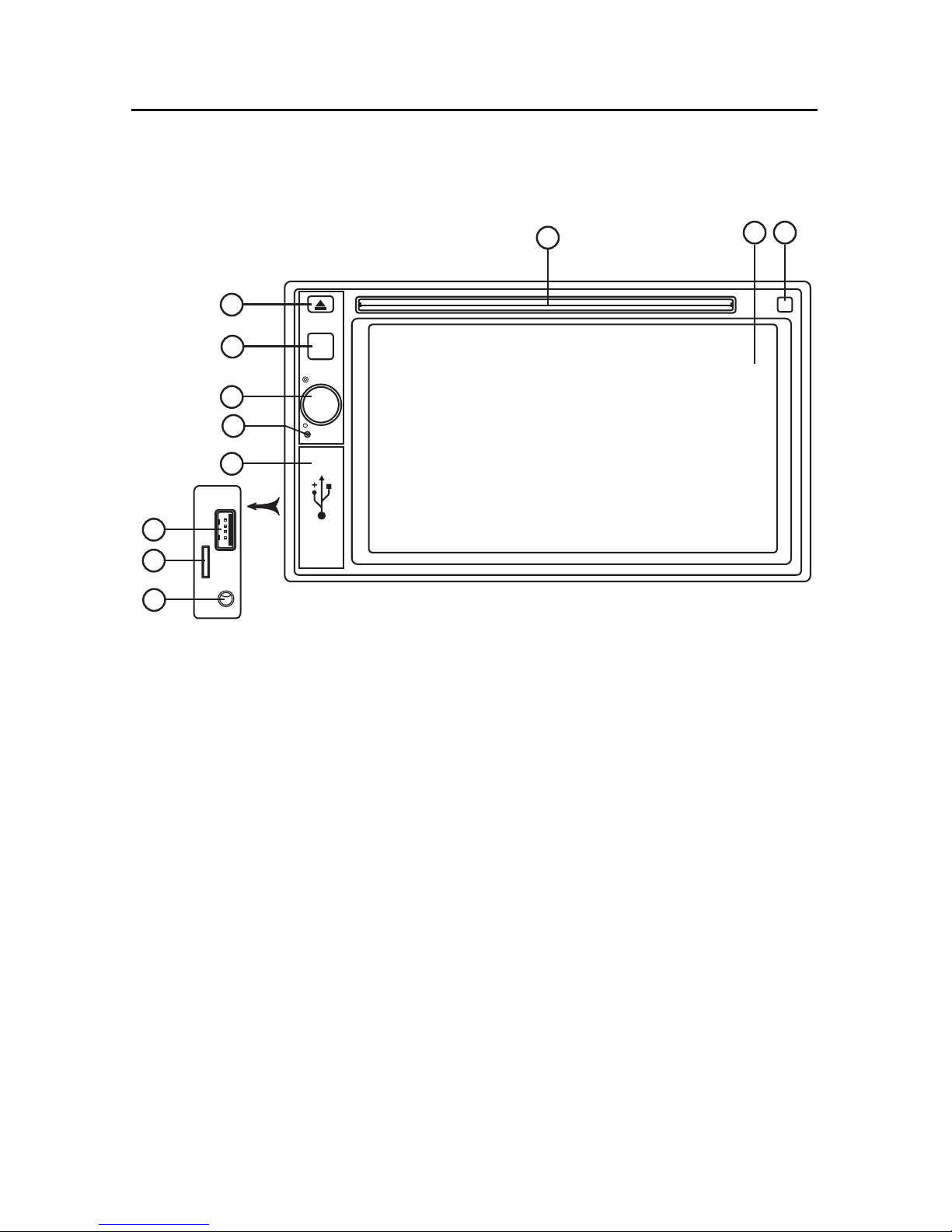

CONTROLS AND INDICATORS

AV INPUT

EJECT

MUTE

OPEN

VX4025 Controls and Indicators

1. Disc Slot:

Accepts DVD/CD/MP3 discs. If the unit is turned on, playback begins when a

disc is inserted.

2. LCD Screen and Touch Screen:

Touch icons on this screen to access menus or control functions.

3. Remote Sensor:

Used to receive command signals from the remote control.

4. 3�5mm AV IN Jack:

This connector accepts a 3.5 mm jack through which signals from various

audio/video devices can be applied to the unit.

5. MicroSD Card Slot:

Playback of music/video files.

VX4025

6. USB Slot:

Used to connect an iPhone/iPod®, MP3 player or USB flash drive for

playback of music/video files.

7. Interface Cover:

Covers the 3.5mm AV In, microSD card and USB slot.

8. Reset Button:

Press this button to reset the system settings (except password and parental

lock settings) and to correct a system halt or other illegal operation. Use the

tip of a pen to press the Reset button.

9. Power On/Off ( ) Button / Rotary Volume ( ) Knob / Mute Button

Press to turn the unit ON. Press and hold to turn the unit OFF.

Rotate the knob to adjust the volume.

Press the knob momentarily to mute the audio. Press the knob again to

restore the audio.

10. Menu Button:

Press this button to access the Main SRC Menu.

11. Eject ( ) Button:

Press this button to eject a DVD/CD/MP3 disc. Disc play is stopped, the disc is

ejected and the unit will change to radio operation. If the disc is not removed

from the unit and the button is pressed again, the disc will be re-loaded. If the

disc is not removed from the disc slot within 10 seconds of being ejected, it

will be automatically reloaded to prevent it from being accidentally damaged.

VX4025

NOTES ON REMOTE CONTROL USAGE

• Aim the remote control at the TFT/screen.

•Remove the battery from the remote control or insert a battery insulator if

the remote control will not be used for a month or longer.

•DO NOT store the remote control in direct sunlight or in a high

temperature environment, or it may not function properly.

•The battery will last for 6 months under normal conditions. If the remote

control does not work, please change the battery.

• Use lithium battery type CR2025 (3V) only.

• DO NOT recharge, disassemble, heat or expose the battery to fire.

• Insert the battery in the proper direction according to the ( + ) and ( - ) polarity

marks.

•Store the battery in a place where children cannot reach it to avoid the risk

of an accident.
