Operating Instructions

6.2” Double DIN Multimedia Receiver

DVD / NAV / SiriusXM-Ready™ / Built-in Bluetooth / Compatible with iPhone /

Compatible with iPod / Pandora Link / USB / Aux In

VX7020

“Made for iPod”and“Made for iPhone” means that an electronic accessory has

been designed to connect specically to iPod or iPhone, respectively, and has

been certied by the developers to meet Apple performance standards. Apple

is not responsible for the operation of this device or its compliance with safety

or regulatory standards. Please note that the use of this accessory with iPod or

iPhone may aect wireless performance.

Android is a trademark of Google Inc.

The Bluetooth® word mark and logos are registered trademarks owned by

Bluetooth SIG, Inc. and any use of such marks by the Voxx Electronics Corporation

is under license. Other trademarks and trade names are those of their respective

owners.

microSD is a trademark or registered trademark of SD-3C, LLC in the United States,

other countries or both.

Pandora is a registered trademark of Pandora Media, Inc.

Sirius, XM and all related marks and logos are registered trademarks of Sirius XM

VX7020

CONTENTS

FEATURES ...............................................................................................................5

CONTROLS AND INDICATORS ...............................................................................8

REMOTE CONTROL...............................................................................................10

EXTERNAL DEVICES .............................................................................................16

QUICK START GUIDE ............................................................................................18

EQUALIZER CONTROL MENU ..............................................................................21

SYSTEM SETTINGS ...............................................................................................23

DISC OPERATION .................................................................................................32

RADIO TUNER OPERATION..................................................................................44

USB OPERATION...................................................................................................49

iPod®/iPhone® OPERATION .................................................................................54

AV-In1/AV-In2 OPERATION..................................................................................59

BLUETOOTH OPERATION.....................................................................................60

NAVIGATION QUICK START GUIDE .....................................................................68

REAR CAMERA OPERATION.................................................................................71

STEERING WHEEL CONTROLS (SWC) OPERATION .............................................72

PANDORA RADIO OPERATION............................................................................74

SiriusXM® RADIO OPERATION ............................................................................78

CARE AND MAINTENANCE ..................................................................................95

SPECIFICATIONS ..................................................................................................96

NOTES ...................................................................................................................98

VX7020

FCC Statement

1. This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that

may cause undesired operation.

2. Changes or modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for

a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation.

This equipment generates uses and can radiate radio frequency energy and, if

not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined

by turning the equipment o and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with

minimum distance of 20 centimeters between the radiator and your body.

VX7020

Thank you for choosing a Jensen product. We hope you will nd the instructions

in this owner’s manual clear and easy to follow. If you take a few minutes to look

through it, you’ll learn how to use all the features of your new Jensen VX7020

Multimedia Receiver for maximum enjoyment. Please save this manual for future

reference.

We recommend having your Jensen VX7020 Multimedia Receiver installed by a

reputable installation shop.

FEATURES

DVD

• Audio Equalizer

• Next Chapter and Previous Chapter

• Play/Pause

• Track Direct Entry

• Disc Menu

• Selection Repeat / Track Repeat

• Disc Audio

• Disc Language

• Pic Control

CD / MP3 / WMA

• CD-Text Compatible

• ID3 Tag Compatible

• Directory Search (MP3 / WMA Only)

• Burn up to 1500 MP3 and WMA Files onto a DVD+R / RW

• Audible Forward / Reverse Track Search (CD-DA Only)

• Random, Repeat and Intro

• Play, Pause, Stop, Next Track and Previous Track

AM-FM

• USA, China, Japan, Europe, Europe (LW) and Orient (OIRT)

• 30 Station Presets (18 FM / 12 AM)

• Auto Stereo / Mono

• Local / Distance

• Auto Store / Preview Scan

iPod®/iPhone®

• iPod®/ iPhone® via USB

• High Speed Direct Connect Interface to Access iPod® Playlists, Artists, Albums

and Songs. Play music and view video/photo* les from your iPod®. *Video/

photo playback requires jLink-USB iPod® interface cable (sold separately).

• Power Management Charges iPod® while Connected

VX7020

SiriusXM-Ready®

• Satellite Channel Name, Artist, Song, and Categories Displayed on Monitor

(Vehicle Tuner and Subscription required and sold separately)

Chassis

• 2.0 DIN (Import / ISO-DIN Mountable)

• Fixed Front Panel

• 6.2” High Denition TFT LCD

• 1,152,000 Sub Pixels (800 x 3 x 480)

General

• Beep Tone Conrmation (ON-OFF Option)

• Built-In Bluetooth® providing Hands-Free operation for safety and convenience

and A2DP for streaming music from your smartphone or other Bluetooth®

device.

• One Composite Video Output for Additional Screens

• Front Panel Audio/Video Input

• Front Panel USB - Playback Music / Video Files via Portable Hard Drives / USB

Sticks

• Ten-Band Tone Equalizer

• Rear Subwoofer Line Output

• Rear Camera Input

• Touch Screen Calibration Mode

• Rotary Encoder Audio Control

Rear Camera

• The VX7020 is “camera ready.”Before accessing any camera features, you must

purchase and install a rear video camera.

Navigation

• Tele Atlas Map Data

• 11 Million Points of Interest

• External Memory 4GB SD Card

• Latest Map Guarantee (Must be redeemed within 90 days of initial activation)

• 13 Natural Voice Languages for Navigation Guidance

VX7020

WARNING! Never install this unit where operation and viewing could interfere

with safe driving conditions.

WARNING! To reduce the risk of a trac accident (except when using for rear

view video camera) never use the video display function while driving the vehicle.

This is a violation of federal law.

WARNING! Never disassemble or adjust the unit.

WARNING! To prevent injury from shock or re, never expose this unit to moisture

or water.

WARNING! Never use irregular discs.

WARNING! To prevent damage to the mechanism inside this unit, avoid impact to

the unit’s monitor.

WARNING! Using an improper fuse may cause damage to the unit and result in

re.

VX7020

CONTROLS AND INDICATORS

VX7020

AV INPUT

EJECT

MUTE

Bluetooth

6VRMS Line Out

OPEN

VX7020 Controls and Indicators

1. Disc Slot:

Accepts DVD/CD/MP3 discs. If the unit is turned on, playback begins when a

disc is inserted.

2. LCD Screen and Touch Screen:

Touch icons on this screen to access menus or control functions.

3. Remote Sensor:

Used to receive command signals from the remote control.

4. 3.5mm AV IN Jack:

This connector accepts a 3.5 mm jack through which signals from various

audio/video devices can be applied to the unit.

5. MicroSD Card Slot:

Used to insert microSD cards containing navigation software updates.

VX7020

6. USB Slot:

Used to connect an iPod®, MP3 player or ash drive connection adapter for

playback of music/video les.

7. Interface Cover:

Covers the AV IN jack, microSD card slot, and USB slot.

8. Reset Button:

Press this button to reset the system settings (except password and parental

lock settings) and to correct a system halt or other illegal operation. Use the

tip of a pen to press the Reset button.

9. Power On/O ( ) Button / Rotary Volume ( ) Knob / Mute Button

Press to turn the unit ON. Press and hold to turn the unit o.

Rotate the knob to adjust the volume from 0 to 50.

Press the knob momentarily to mute the audio. Press the knob again to

restore the audio.

10. Menu Button:

Press this button to access the Main touch screen menu.

11. Eject ( ) Button:

Press this button to eject a DVD/CD/MP3 disc. Disc play is stopped, the disc is

ejected and the unit will change to radio operation. If the disc is not removed

from the unit and the button is pressed again, the disc will be re-loaded. If the

disc is not removed from the disc slot within 10 seconds of being ejected, it

will be automatically reloaded to prevent it from being accidentally damaged.

VX7020

REMOTE CONTROL

Remote Control Notes

1. Aim the remote control at the remote sensor on the unit.

2. Remove the battery or insert a battery insulator if the remote control will not

be used for a month or longer.

3. Do not store the remote control in direct sunlight or in a high temperature

environment. It may not function properly.

4. Under normal operation conditions, battery life is approximately 6 months. If

the remote control does not work, replace the battery.

5. Use button-shaped CR2025 lithium batteries only.

6. Do not recharge or disassemble the battery.

7. Do not heat the battery or expose the battery to re.

8. To avoid risk of accident, store the battery in a place that children can not

reach.

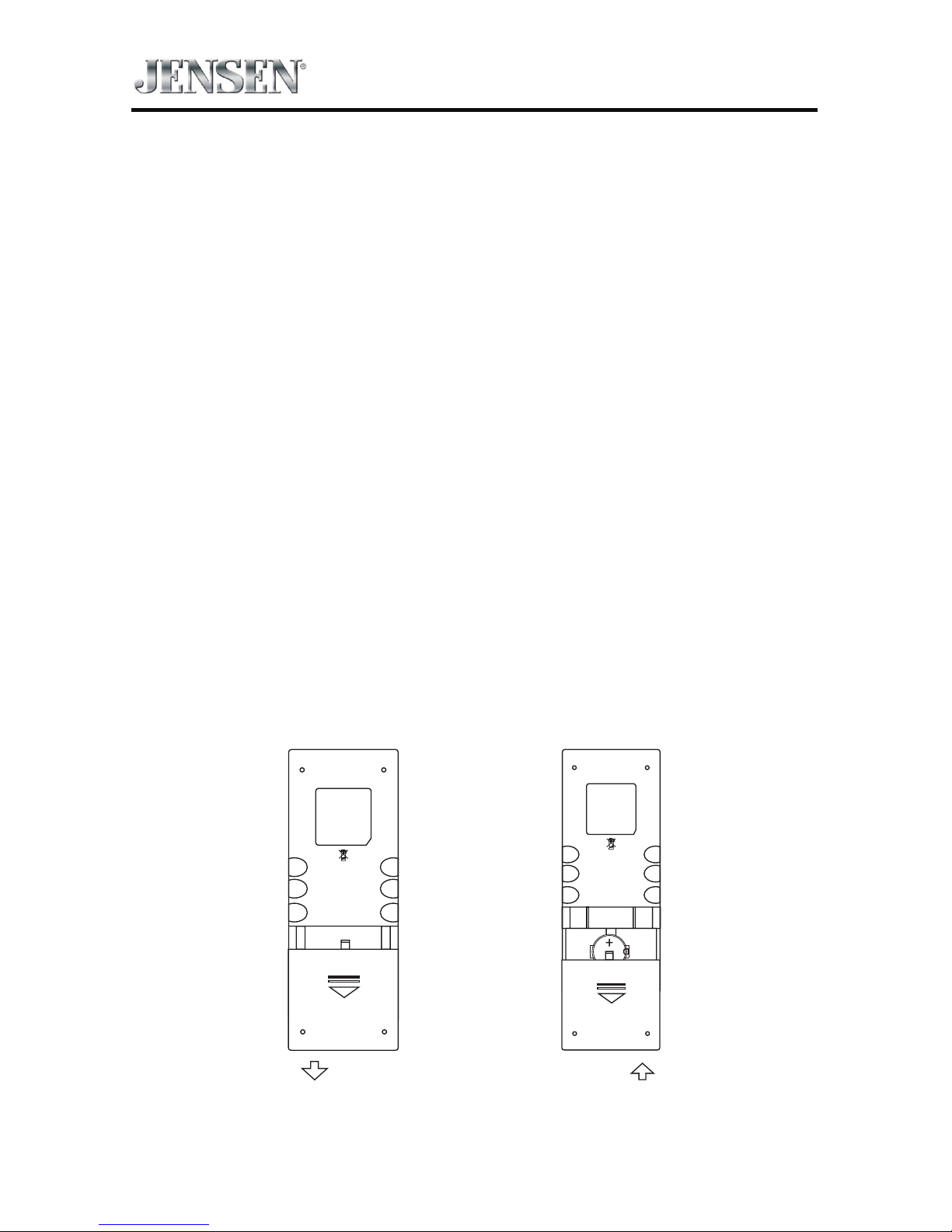

Battery Installation/Removal

1. Slide out the battery compartment cover located on the bottom of the back

of the remote control.

2. Insert a CR2025 lithium battery into the battery tray. Make sure that the

proper polarity (+ or -) is observed.

3. Align the cover tabs with the remote control and slide the cover in until it

locks.

Slide Out

Slide In

Battery Compartment Cover Removal/Installation

Otros manuales para VX7020

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de coche de Jensen

Jensen

Jensen VM9312HD - DVD Player With LCD Monitor Manual de usuario

Jensen

Jensen powersports hd1bt Manual de usuario

Jensen

Jensen VM8013HD - Screen MultiMedia Receiver Manual de usuario

Jensen

Jensen JDV8035 Manual de usuario

Jensen

Jensen JWM72A Manual de usuario

Jensen

Jensen VM9214BT Manual de usuario

Jensen

Jensen Mobile Multimedia AM/FM/DVD Receiver... Manual de usuario

Jensen

Jensen MP6512i Manual de usuario

Jensen

Jensen VM9414 Manual de usuario

Jensen

Jensen MPX6411 - Radio / CD Manual de usuario

Jensen

Jensen VX7014 Hoja de datos

Jensen

Jensen VM9224 Manual de usuario

Jensen

Jensen MSR4500 Manual de usuario

Jensen

Jensen VM9314 Manual de usuario

Jensen

Jensen MP1524 Manual de usuario

Jensen

Jensen CAR1000 Instrucciones de funcionamiento

Jensen

Jensen MP3310 - In-Dash CD Player Manual de usuario

Jensen

Jensen VM9216BT Manual de usuario

Jensen

Jensen Heavy Duty JHD40BT Instrucciones de funcionamiento y mantenimiento

Jensen

Jensen JWM62A Manual de usuario

Jensen

Jensen JCD3007 Manual de usuario

Jensen

Jensen VM9423 - Double DIN 6.5 Touchscreen Multimedia... Manual de usuario

Jensen

Jensen VM8514 Manual de usuario

Jensen

Jensen Phase Linear CD1213 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
