Jenn-Air JDB1105AWB41 Manual de usuario

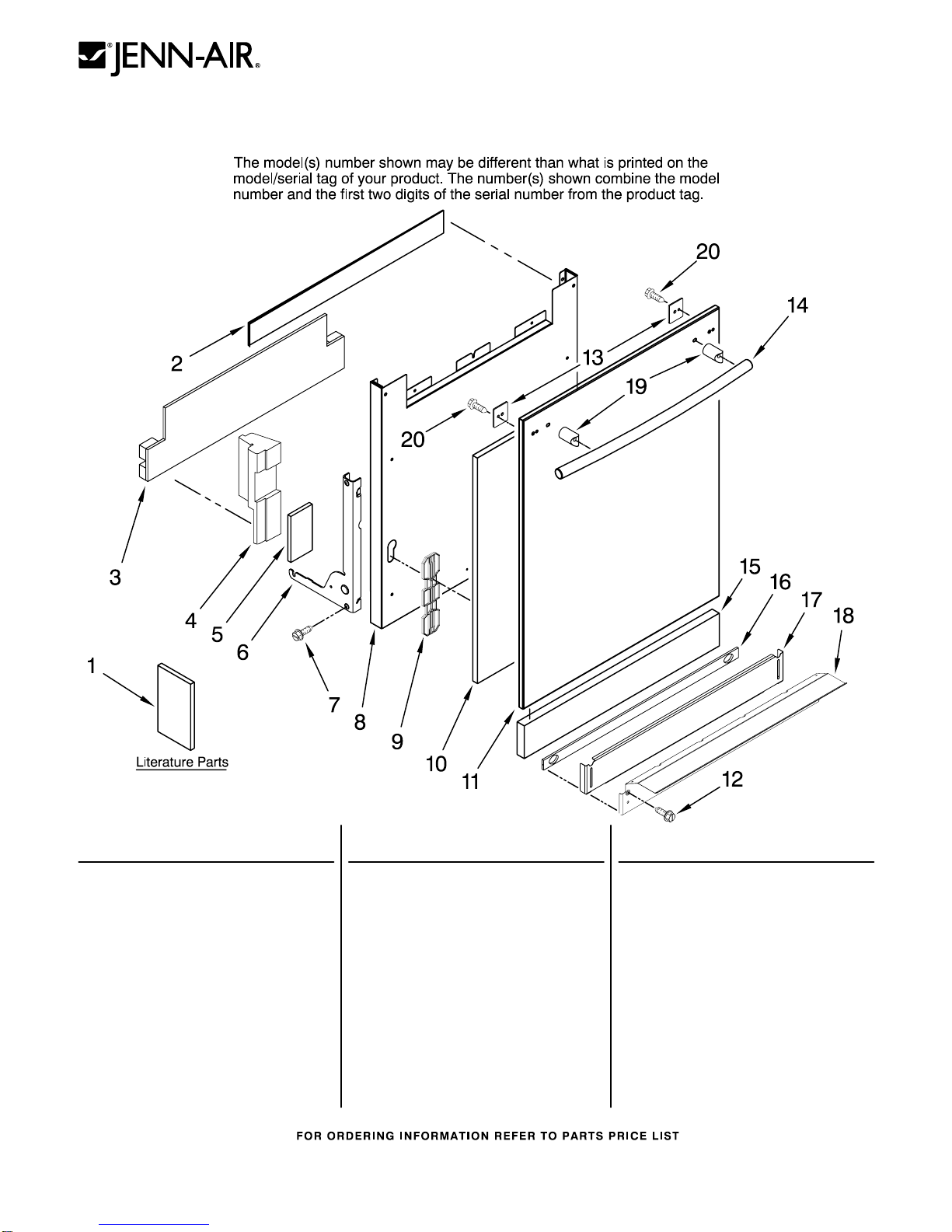

DOOR AND PANEL PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

12−08 Litho In U.S.A. (cre) (eeb) Part No. W10245755 Rev. A

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10158012

Instructions,

Installation

W10119999

Energy Guide

W10164024

Guide, Use & Care

2 99002693 Insulation, Door

3 99003048 Barrier, Foam

4 Block, Foam

99003046 Left

99003047 Right

5 99003049 Wrap, Foam

6 Bracket, Hinge

99002929 Left

99002930 Right

7 99001075 Screw

8 99003094 Support, Inner

Door

9 99003095 Anchor, Panel

Fastener

10 99003093 Pad, Foam

11 Panel, Front

99003090 Black

99003092 White

W10166535

Stainless

12 Screw

912366 Black

99001194 White

13 99003097 Plate, Handle

Black

14 99003088 Handle, Door

15 99002414 Insulation, Toe

Panel

16 Damper, Toe Panel

99002694 Black

99002698 White

17 Panel, Toe

(Includes Item 16)

99002765 Black

99002766 White

18 Support, Front

99002859 Black

99002860 White

19 99003089 Stud, Handle

20 99003154 Screw

CONTROL PANEL PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

W10245755

Illus. Part

No. No. DESCRIPTION

1 99002575 Housing, Board

(Top)

W10119995

Board, Control

3 99002576 Housing, Board

W10161783

Panel, Control

5 99002751 Switch, Door

6 99003347 Latch, Assembly

7 99003096 Fastener, Panel

DOOR AND LATCH PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

W10245755

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 99003308 Harness, Wiring

2 99003045 Seal, Door

(Bottom)

3 99003060 Cap, Rinse Aid

4 99003320 Dispenser, Rinse

Aid

5 Y912620 Screw, Door

W10120976

Inner Door

W/ Damper

7 99002465 Bracket, Dispenser

8 912615 Screw

9 99003044 Insulation, Door

LOWER WASHARM PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

W10245755

Illus. Part

No. No. DESCRIPTION

1 99003083 Cap, Wash Arm

2 99003144 Wash Arm, Lower

(Includes Item 3)

3 99002653 Shield, Radiant

HEATER PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

W10245755

Illus. Part

No. No. DESCRIPTION

1 99002971 Heater Element

Assembly

W/ Gasket

2 99003033 Nut, Heater

NOTE:

If heater element is

removed, it must be replaced.

FILL AND OVERFILL PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

W10245755

Illus. Part

No. No. DESCRIPTION

1 99002852 Hose, Inlet

2 911856 Clamp, Spring

3 99002975 Valve, Water

W10130103

Switch, Float

5 99002652 Hose, Drain

W10130095

Float

7 99003028 Inlet, Air/Water

TUB AND FRAME PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

W10245755

TUB AND FRAME PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

W10245755

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10119337

Strike, Door

2 99002648 Bracket, Cabinet

Mounting

3 99002640 Fastener

4 99002610 Bracket, Spring

Adjustment

5 Bracket, Support

99002636 Left

6 Trim, Corner Edge

99003039 Right

99003038 Left

7 99003688 Nut

8 99003686 Bracket, Cable

9 99002608 Roller, Cable

Bracket

10 99003687 Bolt, Shoulder

11 99003118 Spring, Door

12 99003446 Door Cable Assy.

13 Gap Seal,

Toe Kick

99002701 Black

99002703 White

14 99003127 Insulation, Tub

15 99003337 Seal, Door

W10142298

Tub Assembly

17 99003041 Trim, Tub Edge

(Bottom)

18 99003087 Bracket, Support

(Rear)

19 99002633 Thermostat,

Limiting

20 99001008 Clip, Thermostat

21 99002692 Screw, Trim

Mounting

22 99002637 Bracket, Junction

Box

23 99002635 Leg, Leveling

24 99003035 Strip, Trim

25 99002638 Cover, Junction

Box

26 99003036 Strip, Trim

27 99003034 Strip, Trim

28 Support, Hinge

W10117484

Right

W10117485

Left

29 Backer, Hinge

99003150 Right

99003451 Left

30 99003155 Screw

31 99002150 Seal, Air/Water

Inlet

32 99003029 Grill, Air/Water

Inlet

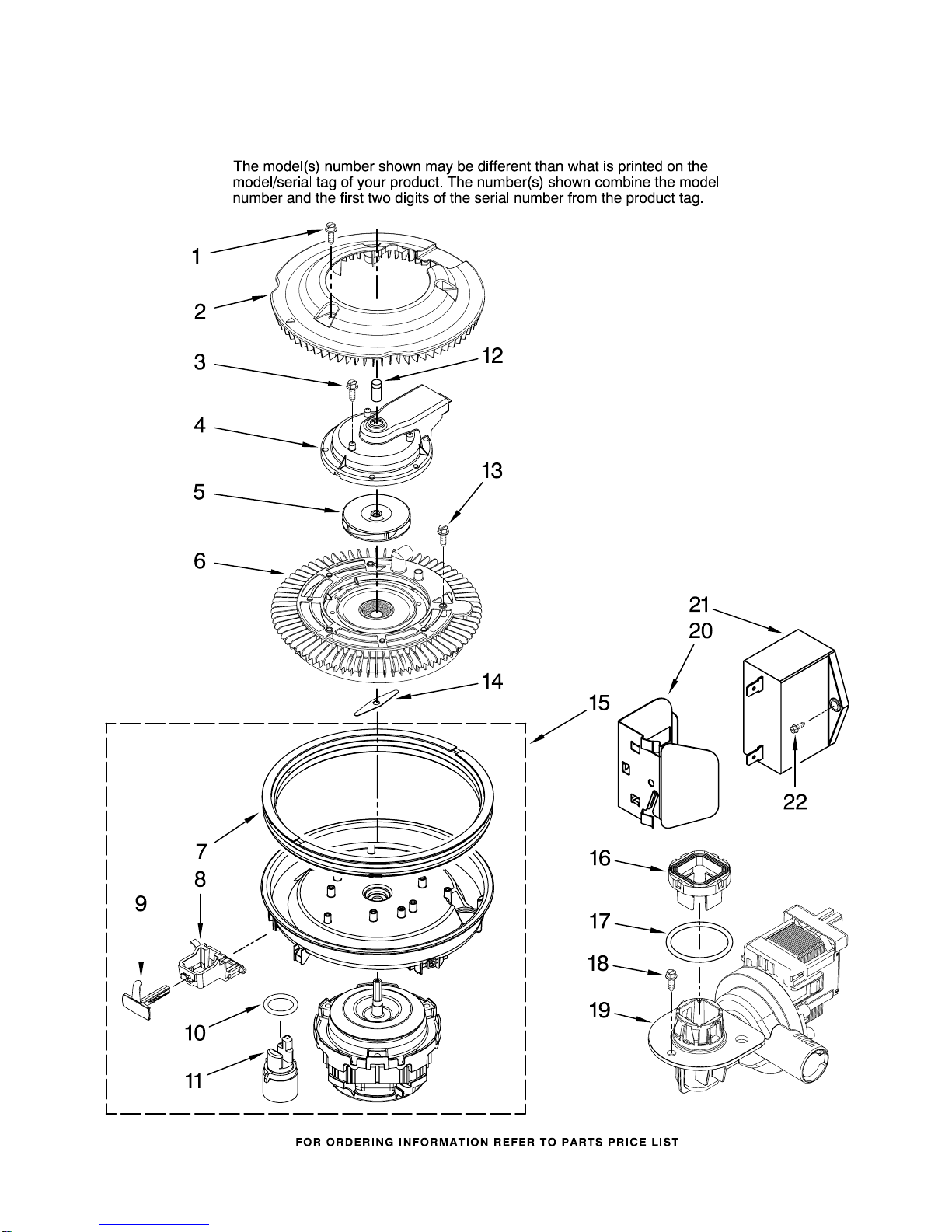

PUMP AND MOTOR PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

W10245755

PUMP AND MOTOR PARTS

For Models: JDB1105AWB41, JDB1105AWW41, JDB1105AWS41

(Black) (White) (Stainless)

JDB1105AWB44, JDB1105AWW44, JDB1105AWS44

JDB1105AWB45, JDB1105AWW45, JDB1105AWS45

W10245755

Illus. Part

No. No. DESCRIPTION

1 99002666 Screw

2 99003468 Guard, Filter

3 99002668 Screw

4 99003145 Discharge, Housing

Assembly

5 99002659 Wash Impeller

Assembly

6 99003292 Filter/Flowplate,

Assembly

7 99003055 Gasket, Motor

Mount

8 99003056 Lever, Motor Mount

9 99003057 Plunger, Motor

Mount

10 99002651 O−Ring, Turbidity

Sensor

W10120019

Sensor, Turbidity

12 99003697 Pivot, Wash Arm

13 99002664 Screw

14 99003427 Chopper

15 99003436 Wash Motor Assy.

16 99003309 Flapper, Drain

Pump Inlet

17 99002857 O−Ring, Drain Pump

18 99002740 Screw

W10200518

Drain Pump Assy.

20 99003440 Sheild, Capacitor

21 99002665 Capacitor

22 99002601 Screw
