JBL DSC 400 Manual de usuario

Harman International SNC - Harman Consumer International 2, route de Tours 72500 Château du Loir FRANCE

SIMPLY CINEMA - DSC 400

SERVICE-MANUAL

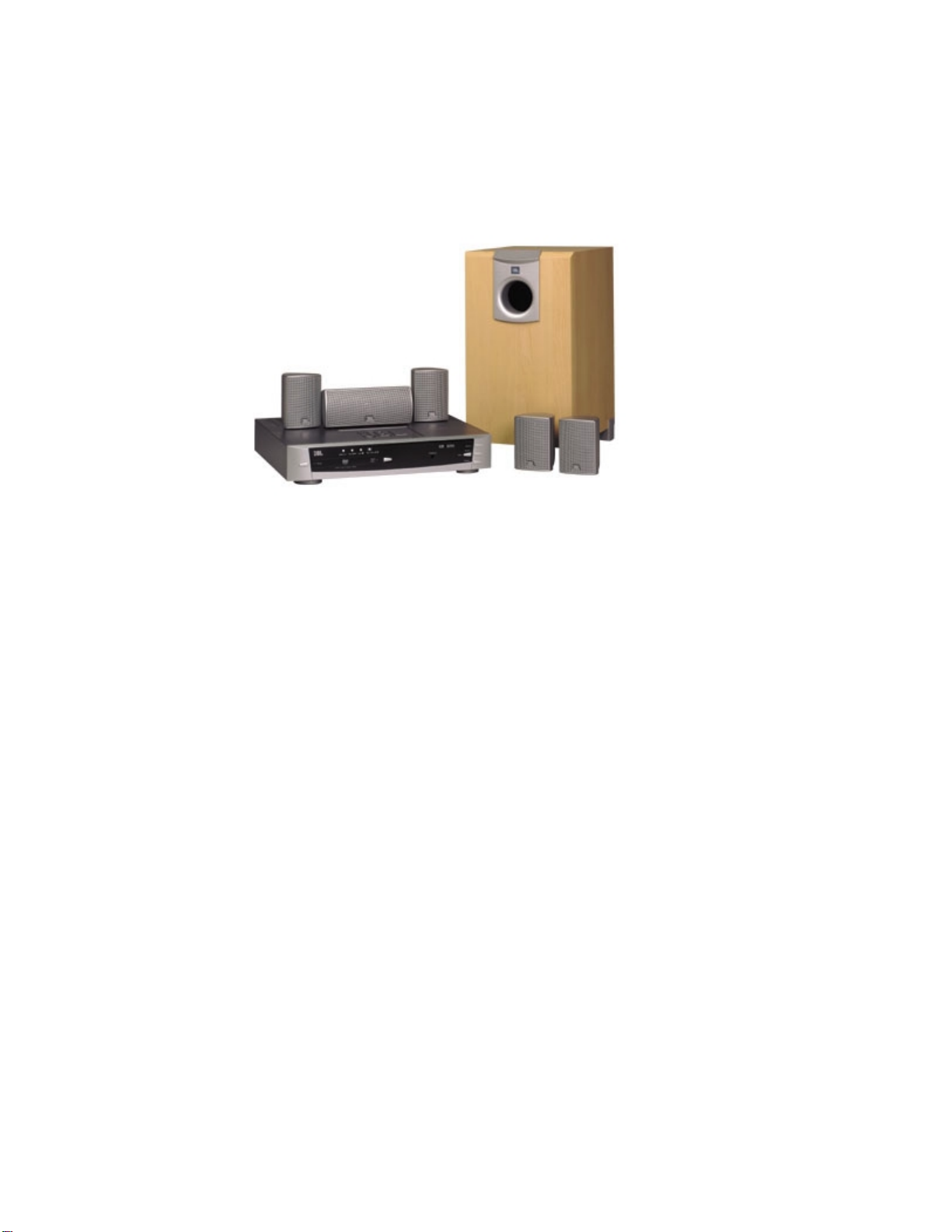

DESCRIPTION:

• 7 Piece Home Cinema Speaker System

• DVD Player/RDS Tuner Source Unit

• DVD/CD/VCD/CD-R/MP3 Readability

• Loudspeaker and Interconnect Kit Included

• 100W Active Slimline Subwoofer

• 5 x 35W Amplification for Satellites and Center Speakers

• 275W Total System Power

• Video-shielded Satellite Speakers

• Video-shielded, Voice-matched Center Speaker

• Vinyl Laminate Finish on Subwoofer in Beech

• Remote Control

Harman International SNC - Harman Consumer International 2, route de Tours 72500 Château du Loir FRANCE

SPECIFICATIONS:

Source Unit Section

• Software Compatibility: DVD Video/CD/VCD/MP3/CD-R

• Analog: DTS®, Dolby® Digital, Dolby® Pro Logic, Phantom, Dolby® 3-Stereo, Stereo

• Dimensions: 80mm x 430mm x 345mm

• Video Outputs: Euro SCART, Composite Video, S_VHS (S-Video)

• Audio Connections: Din Plug System Connector

Audio Output, Euro SCART, Aux Audio Input/Output (Tape Loop) RCA Phono

FM Tuner Section

• System: PLL quartz-locked digital synthesizer system

• Tuning Range: 87.50MHz - 108.00MHz

• Antenna Terminals: 75 Ohms unbalanced

• Presets: 40 including AM Tuner

AM Tuner Section

• System: PLL quartz-locked digital synthesizer system

• Tuning Range: 530kHz - 1710kHz

• Presets: 40 including FM Tuner

System Section

• Surround Processing Modes: DTS®, Dolby® Digital, Dolby® Pro Logic, Phantom, Dolby® 3-stereo,

Stereo

• Frequency Response (-6db): 35Hz - 20kHz

Satellite Section

• Frequency Response (-6db): 120Hz - 20kHz

• Sensitivity (2,83 V @ 1m): 86dB

• Nominal Impedance: 8 Ohms

• Recommended Amplifier Power: 10 - 50 Watts RMS per Channel

• Drive Units: 12mm Titanium Laminate Dome Video-shielded HF

75mm Paper Cone Video-shielded Midrange

• Dimensions (H x W x D): 111mm x 81mm x 95mm

• Weight: 0.5kg

Speaker System Section

• Frequency Response (-6db): 35Hz - 20kHz

Center Section

• Frequency Response (-6db): 120Hz - 20kHz

• Sensitivity (2,83 V @ 1m): 88dB

• Dimensions (H x W x D): 83mm x 194mm x 95mm

• Weight: 0.85kg

• Nominal Impedance: 8 Ohms

Subwoofer Section

• Amplifier Power Output:

Satellites: 5 x 35 Watts RMS 0.1% THD

Subwoofers: 100 Watts RMS 1% THD

• Drive Units: 200mm Paper Cone Long Throw Driver.

Bass Reflex Enclosure

• Dimensions (H x W x D): 450mm x 250mm x 360 mm

• Weight: 15.7kg

SPDC-SZ

Date:27/oct/2001 Page#1

Model DSC100DVD-RDS

PROTECTED SYSTEM SETTINGS

TO BE CHANGED BY SERVICE PERSONNEL ONLY

1. Cancel parental control and reset password

2. Change video ouput(CVBS->RGB)

3. Revise region code

4. View software version number and region code

Statement

1. Cancel parental control and reset secret code

a.Press and Hold R/C “6” button

b.Press R/C “3” button

TV shows “parental code canceled”, password resume “3308”.

Into “set up menu—>preferences” , you can revise parental password.

2. Change video ouput(CVBS->RGB)

DVD door close

a).Press and hold R/C ”6” button

b).Press R/C ” MENU/PBC” button.

TV shows ”video out!CVBS”.

c).Cyclically press R/C ” MENU/PBC” button to select CVBS->RGB

3. Revise region code

4. View software version number and region code

a. DVD door close

b. Press and hold R/C ”6” button

c. Press R/C ” REPEAT” button.

TV shows the software version number and region code.

**Pls refer to the following description about version number.

SPDC-SZ

Date:27/oct/2001 Page#3

FB = JBL

\M+5D7BC\M+5C5FA

DSC 100

ITEM PART NUMBER DESCRIPTION QTY

1 BRF0013M002 RUBER PAD L45xW20xT2.0mm 4

2 DSS0007-004 WASHER ID3xHD6xH2.9mm 7

3 GAL0055-008 HEAT SINK AL 1

4 GMI0005-001 MICA SHEET L22xW26xT0.1mm W/1 HOLE 3.3D 6

5 GSI0001-001 SI RUBBER W13xH18xT0.3 mm W/1 HOLE 3.0D 1

6 H041002-308 SCREW M3.0xP1.4xL8 mm PAN HEAD W/WASHER 8

7 H060404-321 SCREW M3.5xP0.6xL21 mm BLACK WAFER HEAD 4

8 H111002-306 SCREW T3x1.27P-2RHXL6.0mm BLACK W/WASHER 8

9 HNI1482 K-NUT #6-32 NICKEL WITH TOOTH WASHER 4

10 HWS1550-515 WASHER STL OD15xID5.0xT1.5mm ZINC PLATE 4

11 IVE0246-003 EVA SPONGE L218xW398xT2mm BLK W/ADV

(

ESC380E

)

12 TTL2301-005 PWR TRANS EI-105 230V35Wx5+60WESC380E 1

13 IVE0246-006 UL SPONGE L190xW15xT1mm BLK W/ADV

(

ESC380E

)

UL94 1

14 FTW6080-312 SPK DRIVER 1

15 BPA0010M001 PCB CVR F ABS ECS380 1

16 BPA0011M001 PCB CVR B ABS ECS380 1

17 BRF0007-001 RUBBER BLACK 1

18 DBU0002-001 BUSHING AC LINE BUSHING PIN GOOD 4RF-5 1

19 DFH1229-001 FUSE HOLDR FUSE HOLDER FH-B02 10A; DIA 5.2x20 1

20 GSE0074M003 JACK PLATE 218X98X3mm SECC ESC380E-DSC800 JBL 1

21 H060301-314 SCREW M3.0xP0.5xL14 mm BLACK PAN HEAD 2

22 H101001-308 SCREW M3.0xP1.27-2RHxL8 mmBLACK PAN HEAD 2

23 H101001-310 SCREW M3.0xP1.27-2RHxL10mmBLACK PAN HEAD 14

24 IVE0246-002 EVA SPONGE L192xW34.0xT1mm BLK W/ADV 2

25 IVE0246-005 EVA SPONGE L216xW97.5xT2mm BLK W/ADV 1

26 IVE0246-001 EVA SPONGE 1

27 MSV0001-004 SW ROCKER 1

28 GSE0215-001 JACK BKT 22.5x22.5 mm SECC S-7445 2

29 H111002-306 SCREW T3x1.27P-2RHXL6.0mm BLACK W/WASHER 4

30 GSE0256-001 BRACKET PCB BRACKET

(

)

SECCESC333 1

31 GSE0257-001 BRACKET PCB BRACKET

(

)

SECCESC333 1

32 H111002-306 SCREW T3x1.27P-2RHXL6.0mm BLACK W/WASHER 4

33 GSE0253-001 BRACKET PCB BRACKET-R SECC ESC333 1

34 GSE0254-001 BRACKET PCB BRACKET-L SECC ESC333 1

35 H111002-306 SCREW T3x1.27P-2RHXL6.0mm BLACK W/WASHER 4

36 IVE0001-001 SPONGE L28xW18xT4mm BACK ADHESIVE 2

37 IVE0088-002 SPONGE L45xW20xT1mm W/ADHESIVE 1

38 BPE0005MBL0 FOOT METALLIC GREY-SILVERDP6P1753 4

39 BPR0009MBL1 FRONT PORT METALLIC GREY SILVERDP6P1753 1

40 BPR0020-BL0 PORT EDGE METALLIC GREY SILVERDP6P1753 1

41 BRF0015M001 RUBER FOOT D13.6XT2mm BLK W/ADV

(

ESC380E

)

42 EVM0063-001 WOOD BOX L430XW400XH330mm BEECH COLOR[ESC380E] 1

43 H016701-316 SCREW W8#-18xL16 mm HD=6.8BLACK PAN HEAD 26

44 H101001-310 SCREW M3.0xP1.27-2RHxL10mmBLACK PAN HEAD 1

45 H101002-320 SCREW T3.0x1.27p-2RHxL20mmW/WASHER BLACK 4

46 HWS1335-310 WASHER OD13xID3.5xT1.0mm STEEL BLACK 1

47 IVE0032-007 SPONGE L7xW5xT7mm BLACK W/ADV SENSOR SPONGE 1

48 IVE0041-001 DRIVER SPO OD210xID184xT1.0 mm EVA BLK W/ADHESIVE 1

49 IVE0246-004 EVA SPONGE OD97xID67xT2mm BLK W/ADV

(

ESC380E

)

Use

APE0006M002
