JBL BAR 2.0 ALL-IN-ONE Manual de usuario

Bar 2.0 ALL-IN-ONE (MK2)

OWNER’S MANUAL

IMPORTANT SAFETY INSTRUCTIONS

Verify Line Voltage Before Use

The JBL Bar 2.0 (soundbar) has been designed for use with

100-240 volt, 50/60 Hz AC current. Connection to a line voltage

other than that for which your product is intended can create

a safety and re hazard and may damage the unit. If you have

any questions about the voltage requirements for your specic

model or about the line voltage in your area, contact your retailer

or customer service representative before plugging the unit into

a wall outlet.

Do Not Use Extension Cords

To avoid safety hazards, use only the power cord supplied

with your unit. We do not recommend that extension cords be

used with this product. As with all electrical devices, do not run

power cords under rugs or carpets, or place heavy objects on

them. Damaged power cords should be replaced immediately

by an authorized service center with a cord that meets factory

specications.

Handle the AC Power Cord Gently

When disconnecting the power cord from an AC outlet, always

pull the plug; never pull the cord. If you do not intend to use this

speaker for any considerable length of time, disconnect the plug

from the AC outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product.

Opening the cabinet may present a shock hazard, and any

modication to the product will void your warranty. If water

accidentally falls inside the unit, disconnect it from the AC power

source immediately, and consult an authorized service center.

www.jbl.com

English

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS 2

1 INTRODUCTION 4

2 WHAT’S IN THE BOX 5

3 PRODUCT OVERVIEW 6

3.1 CONTROLS AND INDICATORS 6

3.2 CONNECTORS 6

3.3 REMOTE CONTROL 6

4 PLACE 7

4.1 DESKTOP PLACEMENT 7

4.2 WALL-MOUNTING 7

5 CONNECT 8

5.1 TV CONNECTION 8

5.2 BLUETOOTH CONNECTION 8

6 PLAY 9

6.1 POWER-ON/AUTO STANDBY/AUTO WAKEUP 9

6.2 PLAY FROM THE TV SOURCE 10

6.3 PLAY FROM THE BLUETOOTH SOURCE 10

7 SOUND SETTINGS 11

8 RESTORE FACTORY SETTINGS 11

9 SOFTWARE UPDATE 12

10 PRODUCT SPECIFICATIONS 12

11 TROUBLESHOOTING 13

12 TRADEMARKS 14

13 OPEN SOURCE LICENSE NOTICE 14

1 INTRODUCTION

Thank you for purchasing the JBL Bar 2.0 All-in-One (soundbar)

which is designed to bring an extraordinary sound experience to

your home entertainment system. We encourage you to take a

few minutes to read through this manual, which describes the

product and includes step-by-step instructions for setting up

and getting started.

To make the most of product features and support, you

may need to update the product software through the USB

connector in the future. Refer to the software update section

in this manual to ensure that your product has the latest

software.

Designs and specications are subject to change without notice.

If you have any questions about the soundbar, installation or

operation, please contact your retailer or customer service

representative, or visit our website: www.jbl.com.

www.jbl.com

English

2 WHAT’S IN THE BOX

Unpack the box carefully and ensure that the following parts

are included. If any part is damaged or missing, do not use it

and contact your retailer or customer service representative.

Main unit

Remote control (with 2 AAA batteries)

Power cord*

* Power cord quantity and plug type vary by region.

HDMI cable

Wall-mounting kit

Product information & wall-mounting template

3 PRODUCT OVERVIEW

3.1 Controls and indicators

1 32

1. (Power)

• Switch on or to standby

2. -/+ (Volume)

• Decrease or increase the volume

• Press and hold to decrease or increase the volume

continuously

• Press the two buttons together to mute or unmute.

3. (Source)

• Select a sound source: TV (default) or Bluetooth

4. Status indicators

Solid white TV source selected

Solid blue Connected to Bluetooth

Flashing blue Entering Bluetooth pairing mode

Scrolling white Volume change ongoing

Flashing white Maximum volume level reached

Flashing amber Sound muted

Solid amber Entering standby mode

3.2 Connectors

1 2 3 4

1. POWER

• Connect to power

2. OPTICAL

• Connect to the optical output on your TV or digital device

3. USB

• USB connector for software update

• Connect to a USB storage device for audio play (for the

US version only)

4. HDMI OUT (TV ARC)

• Connect to the HDMI ARC input on your TV

3.3 Remote Control

• Switch on or to standby

2. TV

• Select the TV source

3. (Bluetooth)

• Select the Bluetooth source

• Press and hold to connect another Bluetooth device

4. + / -

• Increase or decrease the volume

• Press and hold to increase or decrease the volume

continuously.

5. (Mute)

• Mute/unmute

www.jbl.com

English

4 PLACE

4.1 Desktop placement

Place the soundbar on a at and stable surface.

NOTES:

−The power cord shall be properly connected to power.

−Do not place any objects on the top of the soundbar.

4.2 Wall-mounting

3 4

≤8 mm/

0.31"

4mm/

0.16"

≥30 mm/1.18" Figure 1

1. Preparation:

a) With a minimum distance of 2” (50mm) from your TV, stick

the supplied wall-mounting template to a wall by using

adhesive tapes.

b) Use your ballpen tip to mark the screw holder location.

Remove the template.

c) On the marked location, drill a 4 mm/0.16” hole. Refer to

Figure 1 for the screw size.

2. Install the wall-mounting bracket.

3. Fasten the screw onto the back of the soundbar.

4. Mount the soundbar.

NOTES:

−Make sure that the wall can support the weight of the soundbar.

−Install on a vertical wall only.

−Avoid a location under high temperature or humidity.

−Before wall-mounting, make sure that cables can be properly

connected between the soundbar and external devices.

−Before wall-mounting, make sure that the soundbar is unplugged

from power. Otherwise, it may cause an electric shock.

5 CONNECT

5.1 TV connection

Connect the soundbar with your TV through the supplied HDMI

cable or an optical cable (sold separately).

Through the supplied HDMI cable

An HDMI connection supports digital audio and video with a

single connection. HDMI connectivity is the best option for your

soundbar.

HDMI OUT

(TV ARC)

HDMI

(ARC)

1. Connect the soundbar with your TV by using the supplied

HDMI cable.

2. On your TV, check that HDMI-CEC and HDMI ARC have been

enabled. Refer to the owner’s manual of your TV for more

information.

NOTES:

−Full compatibility with all HDMI-CEC devices is not guaranteed.

−Contact your TV manufacturer if you have problems with the HDMI-

CEC compatibility of your TV.

Through an optical cable

OPTICAL

• Connect the soundbar with your TV by using an optical cable

(sold separately).

5.2 Bluetooth connection

Through Bluetooth, connect the soundbar with your Bluetooth

device, such as a smartphone, tablet and laptop.

Settings Bluetooth

Bluetooth

DEVICES

JBL BAR 2.0

Now Discoverable

Connected

< 10 m / 33 ft

Connect a Bluetooth device

1. Press to switch on (See “Power-on/Auto standby/Auto

wakeup” in the “PLAY” chapter).

2. To select the Bluetooth source, press on the soundbar or

on the remote control.

→Ready for pairing: The status indicator ashes blue.

3. On your Bluetooth device, enable Bluetooth and search for

“JBL Bar 2.0” within three minutes.

→Connected: The status indicator lights up solid blue. A

conrmation tone is heard.

To reconnect the last paired device

Your Bluetooth device is retained as a paired device when the

soundbar goes to standby mode. Next time you switch to the

Bluetooth source, the soundbar reconnects the last paired

device automatically.

To connect to another Bluetooth device

1. In the Bluetooth source, press and hold on the soundbar or

on the remote control until the status indicator ashes blue.

→The previously paired device is cleared from the soundbar.

→The soundbar enters the Bluetooth pairing mode. The

status indicator ashes blue.

www.jbl.com

English

2. Follow Step 3 under “Connect a Bluetooth device”.

• If the device has ever been paired with the soundbar, rst

unpair “JBL Bar 2.0” on the device.

NOTES:

−The Bluetooth connection will be lost if the distance between the

soundbar and Bluetooth device exceeds 33 ft (10 m).

−Electronic devices may cause radio interference. Devices that

generate electromagnetic waves must be kept away from the

soundbar, such as microwaves and wireless LAN devices.

6 PLAY

6.1 Power-on/Auto standby/Auto wakeup

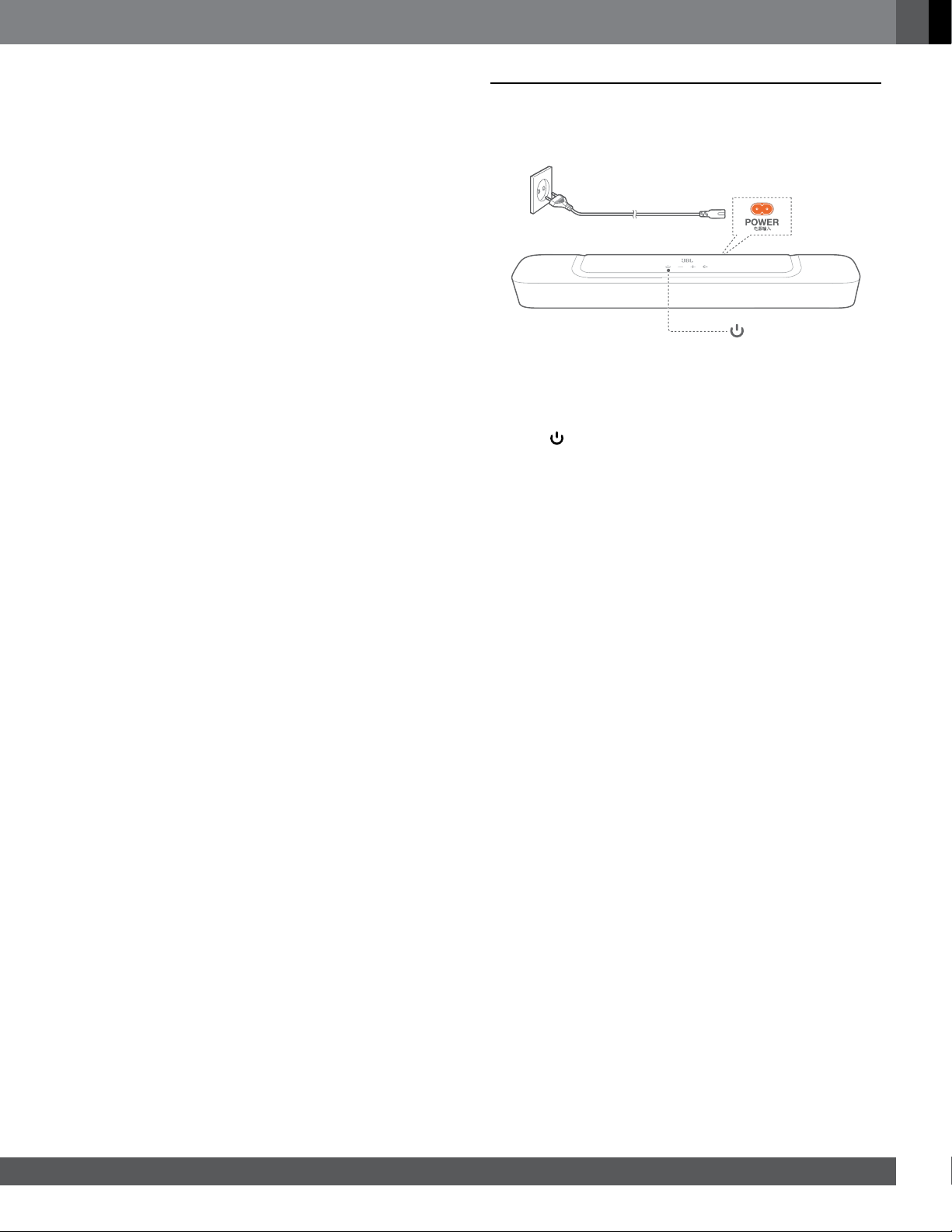

Switch on

1. Connect the soundbar to power by using the supplied power

cord.

2. Press to switch on.

NOTES:

−Use the supplied power cord only.

−Before switching on the soundbar, make sure that you have

completed all other connections (See “TV connection” in the

“Connect” chapter).

Auto standby

If the soundbar is inactive for more than 10 minutes, it will switch

to standby mode automatically. Next time you switch on the

soundbar, it returns to the last selected source.

Auto wakeup

In standby mode, the soundbar will wake up automatically when

• the soundbar is connected to your TV through the HDMI

ARC connection and your TV is switched on;

• the soundbar is connected to your TV through an optical

cable and audio signals are detected from the optical cable.

1010

6.2 Play from the TV source

With the soundbar connected, you can enjoy TV audio from the

soundbar speakers.

HDMI ARC

OPTICAL

1. Make sure that your TV is set to support external speakers

and the built-in TV speakers are disabled. Refer to the owner’s

manual of your TV for more information.

2. Make sure that the soundbar has been properly connected

to your TV (See “TV connection” in the “CONNECT” chapter).

3. To select the TV source, press on the soundbar or TV on

the remote control.

→The status indicator turns solid white.

• In the factory settings, the TV source is selected by

default.

NOTES:

−If the soundbar is connected to your TV through both an HDMI

cable and an optical cable, the HDMI cable is selected for the TV

connection.

6.2.1 TV remote control setup

To use your TV remote control for both your TV and the soundbar,

check that your TV supports HDMI-CEC. If your TV does not

support HDMI-CEC, follow the steps under “TV remote control

learning”.

HDMI-CEC

If your TV supports HDMI-CEC, enable the functions as instructed

in your TV user manual. You can control the volume +/-, mute/

unmute, and power on/standby functions on your soundbar

through the TV remote control.

TV remote control learning

1. On the soundbar, press and hold and +until the status

indicator ashes white twice.

→You enter the TV remote control learning mode.

2. Within 15 seconds, do the following on the soundbar and your

TV remote control:

a) On the soundbar: press one of the following buttons: +,

-, +and - together (for the mute/unmute function), and .

b) On your TV remote control: press the desired button.

→When the status indicator ashes white twice on the

soundbar, the function of the soundbar button is learnt

by your TV remote control button.

3. Repeat Step 2 to complete the button learning.

4. To exit the TV remote control learning mode, press and hold

and + on the soundbar until the status indicator ashes

white twice.

→The soundbar returns to the last selected source.

6.3 Play from the Bluetooth source

Through Bluetooth, stream audio from your Bluetooth device to

the soundbar.

1. Check that the soundbar has been properly connected to

your Bluetooth device (See “Bluetooth connection” in the

“CONNECT” chapter).

2. To select the Bluetooth source, press on the soundbar or

on the remote control.

3. Start audio play on your Bluetooth device.

4. Adjust the volume on the soundbar or your Bluetooth device.

Otros manuales para BAR 2.0 ALL-IN-ONE

Tabla de contenidos

Otros manuales de Sistema de altavoces de JBL

JBL

JBL MS28 Manual de usuario

JBL

JBL EON515XT/230 Manual de usuario

JBL

JBL PROJECT K2 S5800 Manual de usuario

JBL

JBL Project K2.S5500 Manual de usuario

JBL

JBL 4344 MKII Manual de usuario

JBL

JBL Simply Cinema SCS200.5 Manual de usuario

JBL

JBL Harman BAR 2.1 DEEP BASS Manual de usuario

JBL

JBL DSC260 Manual de usuario

JBL

JBL SCS 178 Center Manual de usuario

JBL

JBL JRX225 Manual de usuario

JBL

JBL CINEMA SB120 Manual de usuario

JBL

JBL Simply Cinema SCS260.5 Manual de usuario

JBL

JBL 560GTI Manual de usuario

JBL

JBL JRX215 Manual de usuario

JBL

JBL Harman CINEMA SB160 Manual de usuario

JBL

JBL CINEMA SB250 Manual de usuario

JBL

JBL Authentics L8 Manual de usuario

JBL

JBL ESC 360 Manual de usuario

JBL

JBL ES80 Manual de usuario

JBL

JBL CONTROL ONE AW Manual de usuario

JBL

JBL Simply Cinema SCS 140 Manual de usuario

JBL

JBL Northridge E50 Manual de usuario

JBL

JBL CM52 Manual de usuario

JBL

JBL CS1500 Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
