Jaga BRIZA 12 Manual de usuario

INSTALLATION INSTRUCTIONS: BRIZA  / HH: WALL AND CEILING

BRIZA 12: STAND

ALONE / BUILT-IN

Jaga reserves the right to change product specification at any time in line with our policy of continuous

improvement and innovation.

CONTENT

D  ........................................................................................ 

USED SYMBOLS................................................................................................................. 

WARNINGS AND SAFETY................................................................................................ 

GENERAL INFORMATION................................................................................................ 

JAGA BRIZA  - O  ............................................................................... 

T .................................................................................................................. 

INSTALLATION.................................................................................................................... 

START UP ............................................................................................................................. 

OON VALVE SETS......................................................................................................... 

O ............................................................................................ 

MAINTENANC................................................................................................................... 

WARRANTY.......................................................................................................................... 

INSTRUCTIONS TO DISMANTLE THE UNIT .............................................................. 

+ ()   

Jaga N.V.

Verbindingslaan 

B- Diepenbeek

[email protected]

www.jaga.be

80 80

Important info

The BRIZA  must be installed and connected by a certified

installer in accordance with these installation instructions and the

applicable local regulations. Read this manual carefully to ensure

the device will be installed properly. Please follow these instruc-

tions and file them somewhere safe! The device must always be

accessible so maintenance can be performed. Fully complying with

the contents of this manual is the only way to ensure that failures

are prevented and the device will work without malfunctioning.

Always wear personal protective equipment.

The guarantee is considered void when:

malfunctions or damage occur due to non-compliance with the installation, cleaning, or usage

instructions provided by the manufacturer.

the device is used or handled in an incorrect, improper, and/or irresponsible manner.

incorrect or non-professional repairs and defects arise due to external factors.

you repair the device.

devices are installed in a manner that makes the devices difficult to access.

before starting the fancoil the room must be dry and dust free, this can cause serious damage to

the motor and heat exchanger.

ENEN

USED SYMBOLS

the DANGER sign warns the operator and maintenance personnel about risks that may

cause death, physical injury, or immediate or latent illnesses of any kind.

DANGER: ELECTRICAL HAZARD

DANGER: SHARP EDGES

DANGER: HOT SURFACES

DANGER: MOVING PARTS

ATTENTION: IMPORTANT WARNING

the ENVIROMENTAL SAFEGUARD sign provides instructions on how to use the unit in an

environmentally friendly manner.

DECLARATION OF CONFORMITY

JAGA N.V. - Verbindingslaan 16 - B 3590, declares under its sole responsibility that the

product to which this declaration relates:

is in conformity with the following standards or documents provided that these are used in

accordance with our instructions:

Following the provision of Directives as amended:

BRIZA 12, BRIZA 22

- Low Voltage 2014/35/EC

- EMC 2014/30/EC

- Machinery 2006/42/EC

NBN EN 60335-1 based on EN 60335-1:2012 + A11:2014

NBN EN 60335-2-80 based on EN 60335-2-80:2003 + A 1 :2004 + A2:2009

CEO JAGA N.V.

Jan Kriekels

26/03/2018

WARNINGS AND SAFETY

HANDLING GUIDELINES:

DANGER!

Movement of the unit must be performed with care, in order to avoid damage to the external struc-

ture and to the internal mechanical and electrical components. Also make sure that there are no

obstacles or people along the route, in order to prevent the risk of impact, crushing or tipping the

lifting device. The unit has sharp edges; use gloves during installation/adjustment.

All the operations listed below must be carried out in accordance with current health and safety

regulations, with reference to the equipment used as well as the procedures followed. Before com-

mencing handling operations, ensure that the lifting device has the required capacity for the unit in

question.

The units can be moved or lifted by hand or by means of a suitable truck. If the unit weighs more than

 kg and is to be handled manually, this must be carried out by two persons: however, it is recom-

mended to use a truck. If several units need to be moved at the same time, it is advisable to put the

units in a container and lift them by means of a crane or similar vehicle.

Storage conditions:

Packaged units can be stored by stacking a maximum of four on top of eache other and must be

stored in a dry area.

Technical spaces and positioning:

IMPORTANT

Incorrect positioning or installation of the unit may amplify noise levels and vibrations generated

during operation.

PACKAGING AND COMPONENTS

Follow these instructions to remove the packaging:

–check for any visible damage

–open the packaging

–check if the manual is in the package

–remove the packaging material and dispose it in the appropriate collection points or recycling

facilities, in compliance with the local regulations.

SAFEGUARD THE ENVIRONMENT

Dispose of the packaging materials in compliance with the national or local legislation.

DANGER!

Do not leave the packaging within reach of children.

GENERAL INFORMATION

Device description:

Jaga Briza  are fan coils for the treatment of air in indoor environments.

Declared conditions of use:

The unit is not designed to be installed in wet areas (IEC EN --).

DANGER!

the unit is only to be installed in domestic or similar environments.

it is prohibited to insert objects through the air inlet and outlet vents.

IMPORTANT!

–- the unit will function correctly only if the instructions for use are strictly followed, if the specified

clearances are complied with during installation, as well as the use restrictions indicated in this

manual.

–- an installation that does not include the recommended free spaces, resulting in difficulty in mainte-

nance and reduced performance.

–- pay the utmost attention to the signs and symbols located on the appliance.

Identification of the unit:

The units are equipped with a label sharing the serial number plate on the right side of the unit (on

the left if the connections are on the right side of the unit).

Functioning limits:

Installation that does not meet the operating limits specified relieves Jaga N.V. from liability concern-

ing damage to objects and persons.

–mains voltage EU:  V AC-  fase -  Hz.

mains voltage US-Canada: V AC - Hz.

–maximum water inlet temperature: °C.

–maximum exchanger pressure:  bar.

–power supply voltage:  V DC ± %.

Information regarding unintended use:

The unit has been designed and constructed solely and exclusively to function as an air treatment

terminal unit with ducting or panelling; any other use is strictly forbidden. Installing the unit is an

explosive environment is prohibited.

Decommissioning:

When the unit is not used for long periods of time, it must be disconnected from the mains by ope-

ning the mains switch of the system, set in place by the installer.

If the unit is not used during the winter period, the water contained in the system may freeze. All the

water in the circuit must be drained on time. Alternatively, a suitable quantity of anti-freeze liquid

should be mixed with the water.

Restart after prolonged shutdown:

Before starting up again:

–clean or replace the air filter.

–clean the exchanger.

–clean or unclog the drain of the condensate tray.

–bleed the water system.

–it is advisable to run the unit at maximum speed for serveral hours.

JAGA BRIZA 12 - OVERVIEW PARTS

CEILING

WALL

Casing*

* for wall- and ceiling unit

Dynamic Low-HO hydrophilic heat exchanger

Hydraulic connection -pipe /"G

(Eurocone)

Condensate drain (ceiling built-in)

Electrical connection

Condensate drain

(Option for ceiling built-in)

Condensate drain pan

(standard for wall model)

Tangential fan

The direction of the aire flow is determined by

the shape of the grille fins. Fit the grille so that

the airflow is sent into the room.

Stainless stell grate

Mounting holes

Frame made of reinforced galvanised

steel plate

Dynamic outlet grille*

*Condensate drain pan: standard for wall units / Option for ceiling unit

A: Supply

R: Return

TECHNICAL DATA

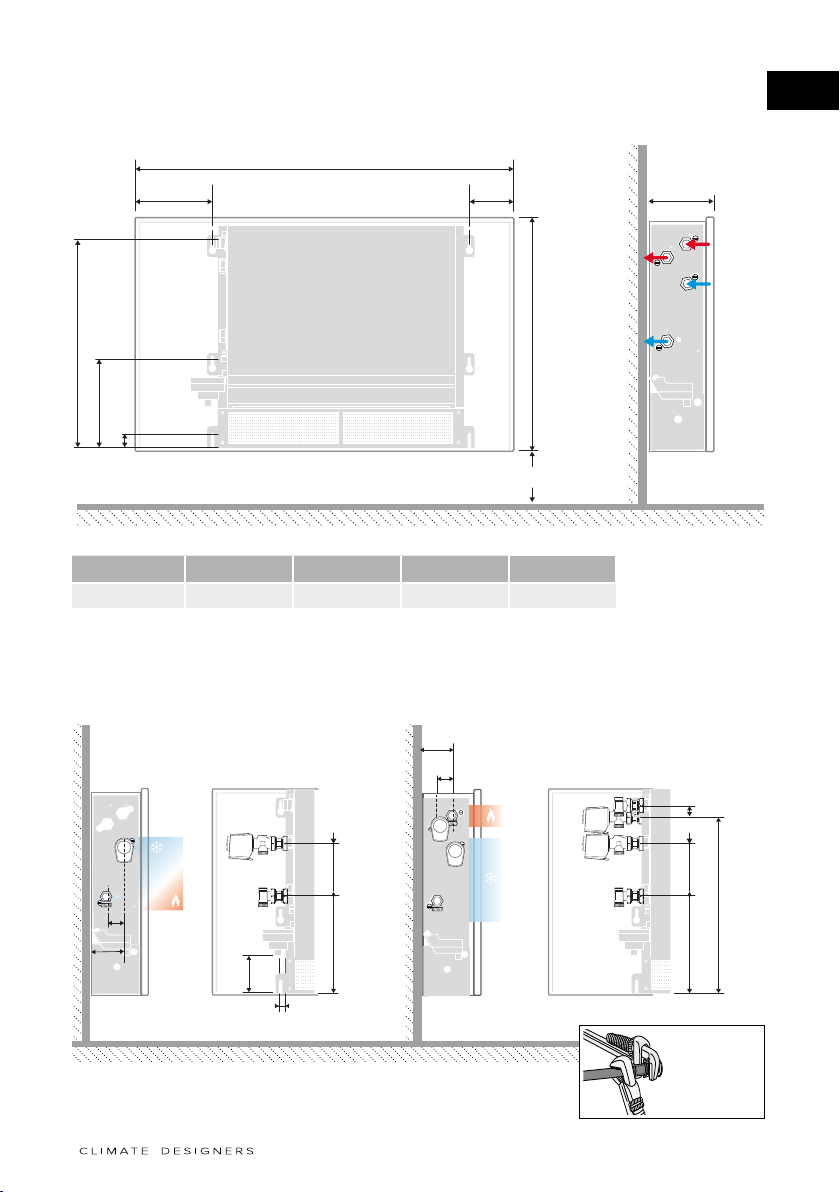

WALL- AND CEILING UNIT: BRIZA 041

Dimensions

WALL- AND CEILING UNIT: BRIZA 041 - HYDRAULIC CONNECTIONS 2-PIPE EN 4-PIPE

Dimensions

MODEL T T T T

L (CM)    

min. 10

13.7

35.2

20.8

17.7 9.3

7.3

4.5

2.8

3.9

812.5

48.2

20.8

min. 10

7.9

3.9

8.3

4.6

13.7

2.3

2.75

7.3

4.4

min. 10

13.7

35.2

20.8

17.7 9.3

7.3

4.5

2.8

3.9

812.5

48.2

20.8

min. 10

7.9

3.9

8.3

4.6

13.7

2.3

2.75

7.3

4.4

Stop hydraulic

connection

during

assembly

*Condensate drain pan: standard for wall units / Option for ceiling unit

A: Supply

R: Return

WALL- AND CEILING UNIT BUILT-IN: BRIZA 038

Dimensions

WALL- AND CEILING UNIT BUILT-IN: BRIZA 038 - HYDRAULIC CONNECTIONS 2-PIPE EN 4-PIPE

Dimensions

MODEL T T T T

L (CM) , , , ,

*: drill dimensions

min. 10

11.7

L-2.5

35.2 38

20.8

L-2.5

7.3

4.5

2.8

3.9

2.3

87.5 7.5

7.8

3.8

48.2

20.8

min. 10

8.3

4.6

11.7

7.3

4.4

2.75

min. 10

11.7

L-2.5

35.2 38

20.8

L-2.5

7.3

4.5

2.8

3.9

2.3

87.5 7.5

7.8

3.8

48.2

20.8

min. 10

8.3

4.6

11.7

7.3

4.4

2.75

Stop hydraulic

connection

during

assembly

*Condensate drain pan: standard for wall units / Option for ceiling unit

A: Supply

R: Return

WALL- AND CEILING UNIT: BRIZA 055

Dimensions

WALL- AND CEILING UNIT: BRIZA 055 - HYDRAULIC CONNECTIONS 2-PIPE EN 4-PIPE

Dimensions

MODEL T T T T

L (CM)    

min. 10

13.7

35.2

20.8

17.7 9.3

7.3

4.5

2.8

3.9

812.5

48.2

20.8

min. 10

7.9

3.9

8.3

4.6

13.7

2.3

2.75

7.3

4.4

min. 10

13.7

35.2

20.8

17.7 9.3

7.3

4.5

2.8

3.9

812.5

48.2

20.8

min. 10

7.9

3.9

8.3

4.6

13.7

2.3

2.75

7.3

4.4

Stop hydraulic

connection

during

assembly

Otros manuales para BRIZA 12

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Calentador de Jaga

Jaga

Jaga Eyecatchers Iguana Wall Manual de usuario

Jaga

Jaga Eyecatchers Iguana_Aplano Plus Manual de usuario

Jaga

Jaga Micro Canal Manual de usuario

Jaga

Jaga Eyecatchers heatwaveextralarge Manual de usuario

Jaga

Jaga DBH 10 Manual de usuario

Jaga

Jaga DBH-SET Manual de usuario

Jaga

Jaga LOW-H20 Energy Savers Manual de usuario

Jaga

Jaga TWINE BT Manual de usuario

Jaga

Jaga Maxi WT 2020 Manual de usuario

Jaga

Jaga BRIZA 041 Wall Manual de usuario

Jaga

Jaga BRIZA 12 Manual de usuario

Jaga

Jaga BRIZA 12 - JFCC Manual de usuario

Jaga

Jaga Eyecatchers Aristocrat Manual de usuario

Jaga

Jaga Sani-Ronda Manual de usuario

Jaga

Jaga BRIZA 041 Manual de usuario

Jaga

Jaga Aurora H52-TYPE11 Manual de usuario

Jaga

Jaga STRADA HYBRID BMS MODUS Manual de usuario

Jaga

Jaga FREEDOM Manual de usuario

Jaga

Jaga MINI DYNAMIC CANAL Manual de usuario

Jaga

Jaga LINEA PLUS Manual de usuario

Jaga

Jaga Micro Canal Manual de usuario

Jaga

Jaga KNOCKONWOOD Manual de usuario

Jaga

Jaga BRIZA RAD 041 Manual de usuario

Jaga

Jaga Maxi FT 2020 Manual de usuario

Manuales populares de Calentador de otras marcas

oventrop

oventrop Regucor Series Manual de usuario

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manual de usuario

ELMEKO

ELMEKO ML 150 Manual de usuario

BN Thermic

BN Thermic 830T Manual de usuario

KING

KING K Series Guía

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guía de inicio rápido

Well Straler

Well Straler RC-16B Manual de usuario

EUROM

EUROM 333299 Manual de usuario

Heylo

Heylo K 170 Manual de usuario

Eterna

Eterna TR70W Manual de usuario

Clarke

Clarke GRH15 Manual de instrucciones

IRSAP

IRSAP The Radiator Company Ovali Manual de usuario

Empire Heating Systems

Empire Heating Systems WCC65 Manual de usuario

Wetekom

Wetekom 92 86 43 Manual de usuario

Desa

Desa SPC170-F Manual de usuario

Watlow

Watlow Watrod Electric Tubular Heaters Manual de usuario

Haverland

Haverland ECO-DRY GPS Series Manual de lista de piezas

Stelpro

Stelpro ASILVC2060 Series Manual de usuario
