Jacuzzi TREVI Manual de usuario

WHIRLPOOL

BATH

INSTALLATION

TREVI™FILL SPOUT

2-1/16"

25/32"

1-15/32" 7/32" DIA.

7/8" DIA.

TOWARD INTERIOR OF BATH

MOUNTING SUFACE

OF FILL SPOUT

2-1/2"

MAX.

INTERIOR EDGE OF BATH RIM

HOLE DRILLING GUIDE

(SEE TEMPLATE NEXT PAGE) INSTALLATION ON BATH

INSTALLATION

1. Drill a 7/8" diameter hole in the deck with a 1/4" diameter hole 13/16" (center to center) away from the 7/8" hole.

Drill the second hole so that the fill spout is oriented properly toward the bath. Use drilling template on next page.

2. Install set screw and fill spout washers.

3. Install fill spout through the 7/8" diameter hole while aligning the set screw to the 1/4" hole.

4. From the underside of the bath rim install the rubber washer, metal washer and nut as shown. Tighten the nut.

5. Connect water supply hose (not provided) from the mixer valve.

FILL SPOUT

BATH SHELL

RUBBER WASHER

METAL WASHER

SET SCREW

1/2" FLEXIBLE FAUCET

CONNECTOR (NOT

PROVIDED)

NUT

SET SCREW O-RING

FILL SPOUT WASHER

MOUNTING NUT

GASKET

BATH SHELL

MOUNTING NUT

GASKET

NUT

COMPRESSION

CONE

GROMMET

FLAT SEAT

NUT

TO FILL

SPOUT

MAXIMUM OF

ONE THREAD

BRASS WASHER

HOLE SIZE

FOR VALVE

1-1/4" DIA.

1/4" DIA.

Drilling Holes for Valves

Drill holes from the finished surface side of the unit very carefully, making sure they are the proper size. We

recommend that you drill pilot holes and then use the recommended drill size. Mount the valve as shown

HOT WATER

SUPPLY

COLD WATER

SUPPLY

ANTI-SIPHON VALVE SHOULD

BE AMINIMUM OF 6" ABOVE

RIM OF BATH

ANTI-SIPHON

VALVE

(NOT SUPPLIED)

BATH

RIM

IF SPOUT OPENING IS BELOW

BATH RIM, ANTI-SIPHON VALVE

SHOULD BE INSTALLED.

1" MIN.

1" MINIMUM

CODE REQUIREMENT

HEAD NUT

LOCK NUT

HANDLE

FLANGE

NUT

GASKET

NUT

VALVE BODY

COLD

COMPRESSION CONE

NUT

RUBBER

GROMMET

FLAT

SEAT

NUT

1/2"

COPPER

TEE

1/2" O.D.

COPPER ELL

1/2" O.D.

COPPER PIPE

1/2" COPPER

ELL

1/2" O.D.

COPPER

PIPE

VALVE BODY

HOT

ADAPTER

1/2" COPPER

TO 1/2” NPT

FAUCET HANDLE

ASSEMBLY NOT

INCLUDED WITH

FILLSPOUT

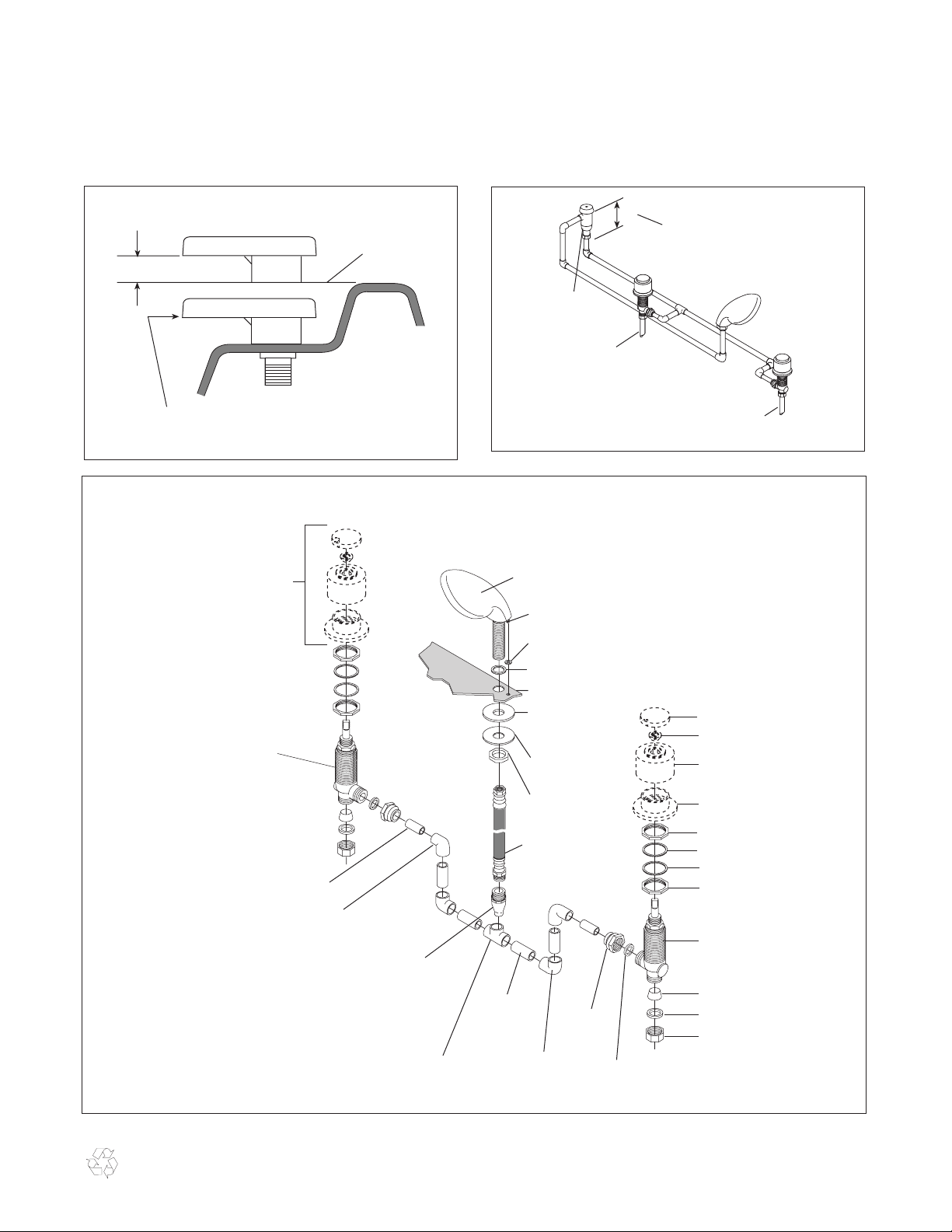

SUGGESTED TREVI PLUMBING SCHEME

(Pipe and fittings are not included)

BRASS WASHER

FILL SPOUT

BATH SHELL

RUBBER

WASHER

METAL

WASHER

SET SCREW

1/2" FLEXIBLE

FAUCET

CONNECTOR

(NOT PROVIDED)

NUT

SET SCREW O-RING

FILL SPOUT WASHER

Plumbing Code Requirements

WhentheWater RainbowFillSpoutismountedon thebathandthefill spoutopeningislessthan 1" abovethebath

rim,plumbing codeswill require theinstallation ofan anti-siphon valve. Locatethe anti-siphonvalve 6" abovethe rim

of the bath in a vertical position over a waterproof surface or fixture to allow for any possible water leakage through

the air vent. The valve must be installed with access for service.

Printed in the U.S.A.

Printed on Recycled Paper

HOLE DRILLING TEMPLATE

25/32"

7/8" DIA.

7/32" DIA.

MOUNTING SUFACE OF FILL SPOUT

TOWARD INTERIOR OF BATH

INTERIOR EDGE

2-1/2"

MAXIMUM

CAUTION

Since plumbing fittings may contribute detectable amounts of lead to water, the following notice is required by

California law (Proposition 65). "This product contains a chemical known to the State of California to cause birth

defects or reproductive harm." In normal use, any lead exposure can be minimized by allowing the water to run free

for several seconds before drinking.

IMPORTANT

Proper installation of the fill spout and compliance with local codes is the responsibility of the installer.

Jacuzzi Whirlpool Bath does not warrant connections of water supply fittings and piping or fill systems.

Nor is it responsible for damage to the bath which occurs during any installation procedure.
