How do I connect my Jabra wireless headset with the Jabra

Link 14201-10 to my Aastra desk phone so I have remote call

control using my headset?

Jabra Pro 920 Duo

Prerequisites

Jabra Link 14201-10

DHSG connection cable from Aastra

Connection:

1. Connect the AC adapter that is supplied with the headset to the

headset base, and connect the other end to an electrical outlet.

2. Connect the Jabra Link 14201-10 EHS cable with the red band to the

AUX interface on the headset base, and connect the end with the blue

band to the headset base socket that is marked with a phone icon.

3. Connect the Jabra Link 14201-10 EHS cable single end to the RJ45

adapter that is supplied with your Aastra DHSG cable kit.

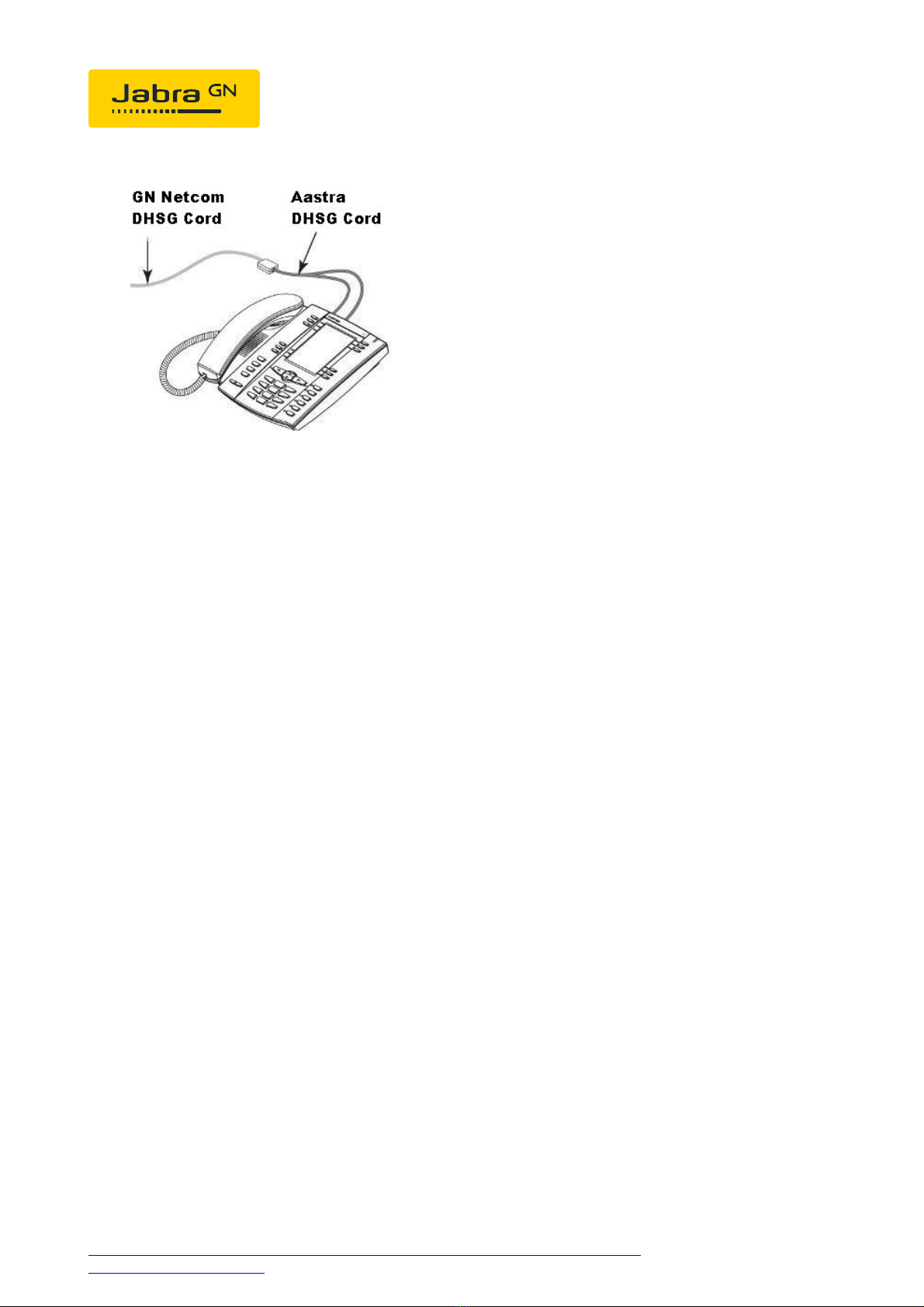

4. Connect the Aastra DHSG cable kit cord with the blue band to the

RJ45 adapter. Connect the Aastra DHSG cable kit cord with the green

band to the headset interface on the Aastra desk phone, and connect

the end with the yellow band to the socket for the Aastra phone

expansion module.

05/04/2021 09:29

https://www.jabra.fi/supportpages/jabra-pro-920/920-29-508-101/faq/4428a7d3-b71c-

4803-9020-b38c440a375b

Sivu 1 / 2

Configuration:

1. Ensure the audio mode is set to “Headset/Speaker”, and the DHSG

mode is enabled on your desk phone. Refer to your phone or IT support

for assistance.

2. Follow the setup instructions for your Jabra wireless headset. If the

headset base requires manual configuration, set the electronic hook

switch setting to “DHSG” and set the dial tone switch to position “A”.

3. Make a call to the headset. If the volume of your voice is too loud or

quiet to the person you are calling, adjust the headset microphone

volume until you achieve the optimum level.
