JA-63 “Profi“ User manual

Internet: www.jablotron.cz

Tel.: +420 483 559 999

fax: +420 483 559 993

Pod Skalkou 33

466 01 Jablonec nad Nisou

Czech Republic

Contents:

1Indicators ....................................................................................................................3

2Controlling the system...............................................................................................4

2.1 Arming..................................................................................................................5

2.2 Disarming .............................................................................................................6

2.3 Panic Alarm..........................................................................................................6

2.4 To stop ALARM....................................................................................................6

2.5 Home arming........................................................................................................7

2.6 Door opening........................................................................................................7

2.7 Alarm memory reading .........................................................................................7

2.8 Voice messages listening.....................................................................................7

2.9 Split system arming..............................................................................................7

2.10 Subsystem arming................................................................................................8

2.11 Appliance control..................................................................................................8

3User’s settings............................................................................................................8

3.1 New master code..................................................................................................8

3.2 User codes setting................................................................................................9

3.3 Internal clock setting.............................................................................................9

3.4 Automatic arming / disarming.............................................................................10

3.5 Bypass................................................................................................................10

4Telephone communicator programming................................................................11

4.1 Telephone communicator testing........................................................................11

4.2 Telephone numbers for voice message sending................................................11

4.3 Automatic SMS sending .....................................................................................12

5System testing..........................................................................................................13

6Battery replacement.................................................................................................13

7Enrollment of the control panel to UC-2xx modules............................................. 14

Alarm system JA-63 „PROFI“ - 2 - MGK51501

Note: features of this system can be substantially modified by programming

during installation. The installer should instruct the users how to operate and test

the system.

1 Indicators

The alarm system’s status is indicated on the keypad. There can be multiple

keypads in the system and in such a case all keypads will have identical

functions. A keypad’s LED indicators and display inform the user about the

conditions of the system.

LED indicators:

Alarm: alarm triggered by an intruder, smoke, gas etc

Tamper: opened cover, damaged detector, excessive

number of attempts to enter code, etc.

Fault: power loss, lost communication with a detector

etc., (view details by pressing N)

Battery: battery of the device specified on the display is

low. See battery replacement section.

information received from a wireless item or wireless

communication of the keypad in progress

Armed: continues = armed, slow blinking = exit delay,

fast blinking = entrance delay

Power: continues = AC power & back up battery O.K.,

blinking = failure (AC or back up battery), off = control

panel is not powered

88 display specifies event source:

wireless

detector 12 indicated event (Alarm, Tamper, Failure or

Battery) was caused by detector number 12

wired zone 2 indicated event (Alarm, Tamper, Failure or

Battery) was caused by wired zone number 2

wireless

controller 3

indicated event was caused by wireless

controller (remote control, keypad, Panic button)

number 3

Control panel indicated event (Tamper or Failure) was caused

by the control panel

Wireless siren indicated event (Tamper, Failure or Battery)

was caused by the outdoor wireless siren

Sub control

panel indicated event (Alarm, Tamper, Failure or

Battery) was caused by the sub control panel

Alarm system JA-63 „PROFI“ - 3 - MGK51501

Telephone line indicated event (Tamper or Failure) was caused

by the telephone line

digital bus indicated event (Tamper or Failure) was caused

by a device (keypad or PC) connected to the

digital bus

communication

failure wireless keypad lost connection with the control

panel

error self testing error – call installer

tab. 1

88 display specifies mode of the control panel:

user mode authorized supervisor can test, bypass zones, change

batteries, record voice messages, program tel.

numbers and adjust internal clock in this mode

home arming system is partially armed – particular detectors are

bypassed (someone remains in the house)

A section armed A section is armed (split system)

B section armed B section is armed (split system)

complete

arming system is completely armed

bypass warning that some detectors are bypassed –

indicated while arming

key pressed waiting for more data to complete the entry

programming

mode for installer programming and testing

tab. 2

2 Controlling the system

The system can by controlled by keypads, remote controls or by a PC with the

Comlink Software.

User codes

Can be used to arm and disarm the system or to reset an alarm. There can be up to

14 different user codes for individual users. The system stores to its memory which

code was used for which operation as well as the time &date of usage. This data can

go to a Central monitoring station and can also be viewed using a PC with Comlink

software.

All user codes are empty as a factory default and should be programmed by the

supervisor (see section 3.2).

Alarm system JA-63 „PROFI“ - 4 - MGK51501

Master code

Is an extra (15th) access code for the supervisor. It can operate the system and it

also allows for the programming of the other user codes and to enter the user mode

(see section 3).

Factory default master code is 1234. The supervisor should change it after

installation.

Service code

Is an extra code, used by the installer to enter the programming mode. End users

are not usually told this code.

If an invalid access code is entered more than four times in a given period of

time, it will trigger a Tamper alarm on the control panel.

2.1 Arming

On the keypad - enter your user code or press the fast arming button*.

On the JA-60D keypad enter F1 instead of the fast arming button.

On the remote control (RC-11) – press the A button

• system will beep once and the exit delay countdown will start

• ARMED indicator will flash during exit delay**

• you should leave the protected area within the duration of the exit delay

If there are 4 beeps while arming, the system is indicating an unusual situation

and the keypad will display the specific information:

ALARM and a zone number – the zone is not ready (opened door etc.),

check the indicated item.

b– some detectors are bypassed (done by supervisor, see part 3.5)

Note: supervisor can program an automatic arming for a desired time (for

example, the house will be armed automatically at 21:00 if left disarmed).

Automatic disarming is also programmable. See part 3.4 for details.

*Fast arming (without access code) can be disabled by the installer

** The JA-60F battery powered wireless keypad will stop indications 10sec after the most recent key

entry.

Alarm system JA-63 „PROFI“ - 5 - MGK51501

2.2 Disarming

On the keypad -enter your user code

On the remote control (RC-11) – press the B button

• system will beep twice

• if there are 3 beeps, important information is indicated and will be

displayed on the keypad. Examples:

o FAILURE LED is flashing – press the N key to view the cause

o ALARM LED and zone number is flashing = alarm in the memory.

Be careful and check the house.

• if you enter the premises when the system is armed, the entrance delay

countdown will start after you trigger a delayed detector (ARM LED will

flash and beeps will sound if programmed so*).

2.3 Panic Alarm

If you are in danger you can trigger the silent panic alarm to inconspicuously call

for help. While in Panic alarm mode the control panel can send a voice message,

an SMS message and data to a central monitoring station via a telephone line

(depends on installation settings).

Panic alarm can be triggered:

• On the keypad - press the panic key and then enter your

access code. On the JA-60D keypad enter F7.

On the remote control (RC-11) - press the A and B buttons

simultaneously. The remote control can be switched (by installer) to a

Panic mode, in which pressing of any button will trigger the Panic alarm.

• By pressing this large sized panic button, the RC-22 (can be installed

on the wall, under a desk etc.).

2.4 To stop ALARM

If an alarm is triggered when you are present, you can stop it by entering your access

code or by pressing button B on the remote control.

• Sending of voice and SMS messages will cease after the alarm is stopped. All

corresponding report codes (alarm triggering & stopping) will be sent to the

central monitoring station.

• If user does not stop the alarm, it will stop automatically after the programmed

period and the alarm memory indicator will activate. The control panel will

return to the same mode as before the alarm.

Alarm system JA-63 „PROFI“ - 6 - MGK51501

2.5 Home arming

The installer can program particular detectors so that they will be automatically

bypassed in the so called “Home” partial arming. This allows for people to stay in

the particular part of the house after arming. To arm partially:

• On the keypad press home arming button. On the JA-60D

keypad enter F2.*

• Home arming is not possible via the remote control (RC-11).

Hwill indicate the Home partial arming on the keypad.

To disarm a partially armed system -enter your user code or press the B button

on the remote control.

2.6 Door opening

An electrical door lock (if installed) can be controlled via the alarm system.

• Press the door opening button on the keypad to release the

lock. On the JA-60D keypad enter F3.*

2.7 Alarm memory reading

All events (arming, disarming, alarms, failures…) are recorded into the control

panel’s memory along with the time and date. The complete system history can be

viewed using a PC with Comlink software. Alarms and failures can also be viewed

on the keypad by entering:

F 4 - will show the last recorded alarm or failure*. Press key 4 multiple

times to go deeper in to the memory.

2.8 Voice messages listening

If the installer programmed voice message sending, you can check the recorded

message(s). The control panel’s built in speaker will play them after entering:

F 9 - all recorded voice messages will play back one by one*.

2.9 Split system arming

The system can be split by the installer into two independent sections (A,B) and

a shared section (corridors, stairs, a main door…). This allows for a particular user

to arm and disarm only a particular section of the house with his/her code or

remote control (exactly as in a non split system). Arming of sections A and B is

indicated by I I symbols on the keypad. The shared section will be armed

automatically when A and B sections are both armed.

*Installer can program that this feature will work only when the entry is followed by a user code.

Alarm system JA-63 „PROFI“ - 7 - MGK51501

With the master code the supervisor can arm and disarm both sections. If the

master code is entered, the system will arm (if completely disarmed) or disarm (if

any section is armed).

Entering F1 master code will control only section Aand F2 master code only

section B (this is true only when fast arming is disabled by the installer).

Note: partial Home arming is not possible if the system is split.

2.10 Subsystem arming

In a large building a sub control panel can be enrolled to the JA-63. The

subsystem reports all alarms and failures to the main system.

The installer can program if the systems will be armed and disarmed separately

(by their own codes and remote controls) or if the main control panel will rule the

sub control panel. Ask your installer for explanation on how to operate your

system if a sub control is panel installed.

2.11 Appliance control

The system can be used to control an electrical appliance (light, heating,

ventilation etc.). In such a case users can operate the device:

 Locally with keypad* – entering F81 (ON) or F80 (OFF). The JA-60D

keypad does not support this feature.

 Remotely by phone keypad or by SMS messages – the control panel

must be equipped with GSM communicator for this feature

*Installer can program that this feature will work only when the entry is followed by a user code.

3 User’s settings

Following section is designated for the system supervisor, who knows the

master code.

All programming sequences can be terminated before completed (by Nkey).

3.1 New master code

The master code is used by the supervisor. The factory default master code is

1234 and you should program your own four digits code. Code programming is only

possible when the system is disarmed.

To change an existing master code enter:

F 5 xxxx yyyy yyyy

where xxxx is the existing and yyyy is the new master code (new code must be

entered twice to avoid an error).

Example:

Existing code 1234 will change to 6723 entering: F 5 1234 6723 6723

Alarm system JA-63 „PROFI“ - 8 - MGK51501

3.2 User codes setting

There can be up to 14 different user codes for individual users. The system stores

to its memory which code was used for what event and when. This data can go to a

Central monitoring station as well and can also be viewed by a PC with Comlink

software.

All user codes are empty as a factory default and the supervisor should program

them entering:

F 6 xxxx yy zzzz

where xxxx is the master code, yy is the user code index (from 01 to 14) and

zzzz is the new user code.

Example:

If the master code is 1234 and the user 3 new code should be 5277 enter:

F 6 1234 03 5277

To delete a particular user code, enter 0000 as the new code (combination

0000 can not be used as a valid code).

Example:

If the master code is 1234 the user 3 code can be deleted by:

F 6 1234 03 0000

Notes:

• You can program new codes only when the system is disarmed.

• The supervisor should record the codes to the table on last page of this

manual (it should be kept hidden in a safe place).

• The JA-60D keypad has its own access codes, which can be different from

the other keypads in the system. See the JA-60D manual for details.

• If the system is split, the supervisor can change the user codes, but can

not change to which section the particular code belongs (only the installer

can change this).

3.3 Internal clock setting

The control panel has a built in real time clock. All events are stored to the event

memory including the time & date. The clock should be set after installation, but

the supervisor can set the clock while in the user mode.

To switch the control panel to the user mode enter F 0 master code. User

mode will be indicated by a Uon the keypad. To set the clock enter:

4 hh mm DD MM YY

where: hh = hours; mm = minutes; DD = day; MM = month and YY = year

Example: at 21:30 on March 19. 2005 enter: 4 21 30 19 03 04

To exit user mode press N.

Alarm system JA-63 „PROFI“ - 9 - MGK51501

Actions' table

a no splitting split

0 no action no action

1 arm all arm all

2 disarm disarm all

3 partial arming arm A

4 partial arming arm B

5 disarm disarm A

6 disarm disarm B

3.4 Automatic arming / disarming

The system can automatically arm and disarm for a requested period of a day.

While in the user more, up to ten instructions (time & action) can be programmed

in the period of one day.

To switch the control panel to the user mode enter F 0 master code. User

mode will be indicated by a Uon the keypad. To program automatic arming enter:

64 n a hh mm

where: n= instruction number from 0 to 9

a= action (see the actions' table)

hh = hours (from 00 to 23)

mm = minutes (from 00 to 59)

Example: to program an automatic complete

arming of the system at 21:15 everyday

enter: 64 0 1 21 15

Notes:

• If any automatic action is selected, it will be preformed everyday at the

programmed time, following the internal control panel clock.

• The automatic arming and disarming can be overridden manually anytime

(by a user code or a remote control)

• If the control panel is in the requested arming mode before the action

time, the programmed action will not change the arming

• Factory default setting - all instructions are set for no action

To exit user mode, press the N key.

3.5 Bypass

The supervisor can bypass (switch off) particular zones (potential sources of

alarms) while in the user mode. If a zone is bypassed, it can’t trigger an alarm.

To switch the control panel to the user mode enter F 0 master code. User

mode will be indicated by a Uon the keypad.

To set up bypass:

1. Press key 1 to open the bypass menu.

2. With key 1 and 7you can scroll all potential alarm sources (wireless

detectors are distinguished with the symbol ).

3. Select the source (detector, wired input…) which you want to bypass and:

a. either press key 2for 2 seconds to bypass the source for the next

arming period (confirmed by flashing Battery LED);

b. or press key 3for 2 seconds to bypass the source permanently

(confirmed by the Battery LED being permanently lit);

Alarm system JA-63 „PROFI“ - 10 - MGK51501

Otros manuales para JA-63 PROFI"

Tabla de contenidos

Otros manuales de Sistema de seguridad de jablotron

jablotron

jablotron JA-163A Manual de usuario

jablotron

jablotron OS-360A Manual de usuario

jablotron

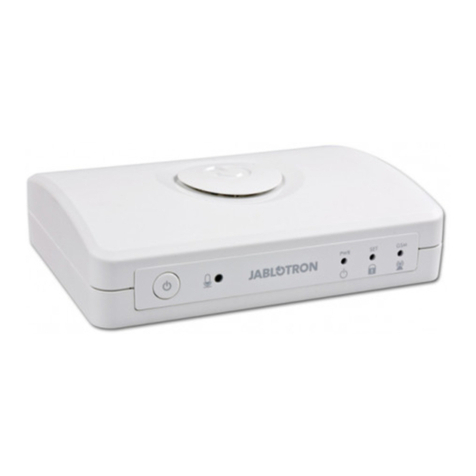

jablotron Azor Manual de usuario

jablotron

jablotron 100+ Manual de usuario

jablotron

jablotron JA60K Manual de usuario

jablotron

jablotron JA-151IR Manual de usuario

jablotron

jablotron 100 Manual de usuario

jablotron

jablotron JA-110A II Manual de usuario

jablotron

jablotron OS-310 FORTE Manual de usuario

jablotron

jablotron 100 Manual de usuario

jablotron

jablotron JA-16A RB Manual de usuario

jablotron

jablotron 100 Manual de usuario

jablotron

jablotron JA-11A Manual de usuario

jablotron

jablotron JA-162A-US Manual de usuario

jablotron

jablotron CA-2103 Athos Manual de usuario

jablotron

jablotron JA-60 "Comfort" Manual de usuario

jablotron

jablotron JA-63A Manual de usuario

jablotron

jablotron JA-163A Series Manual de usuario

jablotron

jablotron OS-311 FORTE Manual de usuario

jablotron

jablotron JA-162A Manual de usuario

jablotron

jablotron JA-80-Oasis Manual de usuario

jablotron

jablotron JA-162A Manual de usuario

jablotron

jablotron JA-10 Series Manual de usuario

jablotron

jablotron MAESTRO JA-65 Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario

jablotron JA-63 PROFI" Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas
