iVistaTablet WIRELESS TABLET Manual de usuario
Hardware Quick Start Guide
English / Deutsch / Français / Italiano /
Español / Nederlands/Português
1_EN.indd 1

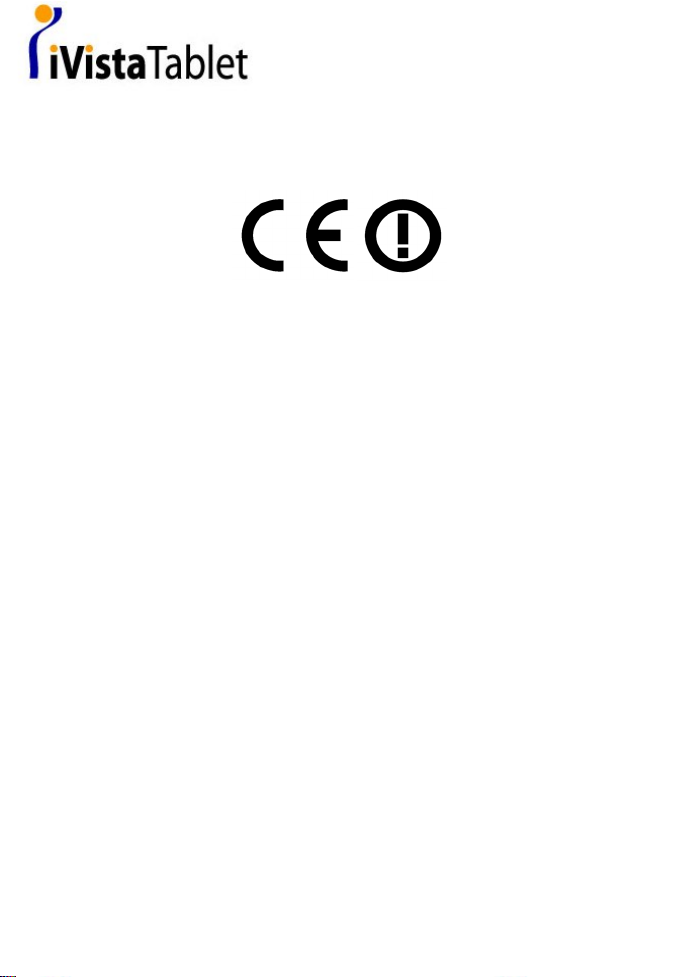

The R&TTE Directive
We, the manufacturer hereby declare that this equipment, model RCK-
T07 is in compliance with the essential requirements and other relevant
provisions of Directive 1995/5/EC.
FEDERAL COMMUNICATIONS
COMMISSION INTERFERENCE
STATEMENT
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
1_EN.indd 2
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
CAUTION:
Any changes or modications not expressly approved by the grantee of
this device could
void the user’s authority to operate the equipment.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an
uncontrolled environment.
The equipment must not be co-located or operating in conjunction with
any other antenna or transmitter.
●
●
●
●
1_EN.indd 3
English
Congratulation on purchase of Wireless Tablet
Wireless Tablet is a 2.4 G wireless solution table. Without complicated wireless
software installation, just install tablet driver and plug our wireless receiver
dongle to your PC and you use it freely any where. Moreover, Wireless
tablet support Windows Vista TM. If you do not want to use these extra hot
key, volume adjustment and Macro Key function, you can even do not need to
install any driver. Just follow this quick guide and enjoy your e-life with our Wireless
Tablet.
1. Package content
Tablet *1▲New boss pen*1▲Receiver dongle*1▲
Li-ion battery *1▲pen tip*2▲Pen tweezers*1▲
CD*2▲Quick guide*1▲Application manual*1▲
1_EN.indd 1
English
2
2. Hardware introduce
Tablet:
Front side
Pen slot
power button
LCD Volume adjustment circle
Active area
Macro key area
Page up/ Page down
Back side
Dongle storage Battery storage
1_EN.indd 2
English
Receiver Dongle
▪ Binding button
▪ LED
Pen
How to change battery
1. 2. 3.
1_EN.indd 3
English
4
How to change pen tip
1. 2.
3. LCD introduce
Power on: After press the power button 3 seconds, this icon is showed.
Battery Indicator : There are four levels battery indicator.
Active: Tablet will get into power saving mode if the pen is off the
active area 3 seconds later and this icon will be hidden.
Connecting: After you bind successful, the icon is showed. It means that
your Tablet have connected to PC successful.
Token right: It means that your tablet is authorized by the receiver
dongle to send the package.
1_EN.indd 4
English
The interaction between pen and tablet:
Blanking: Pen gets in to the detectable active area.
Still: Pen tip on the active area.
Volume adjustment indicator : you can use the pen on the volume
adjustment circle to adjust the volume.
Clockwise: adjust volume louder
Anticlockwise: adjust volume down
Tablet number : One receiver dongle can connect to more than one
wireless tablet. Therefore, if you connect more than one wireless Tablets,
you can distinguish which tablet it is.
4. Installation
Windows Vista Home Premium above
Wireless Tablet is a Windows Vista plug and Play device. You can
use the basic tablet function without installing any driver, just plug-
n- play. However, our patented macro key function provides you an
efcient and productive way to operate application. Moreover, the
hot key of Page up/Page down and volume adjustment circle will
require driver (included in Macro Key Manager). Therefore, you can
install Macro Key Manager to make the macro keys and these hot
keys work.
Windows 2000 / XP / Vista Home basic
Under Windows 2000 / XP / Vista Home basic, you have installed
driver (included in Macro Key Manager). Therefore, please install
Macro Key Manager before the device is plugged to your PC. Once
Macro Key Manager is installed successfully, Wireless Tablet can
work and the macro key and the hot keys work also.
●
●
●
●
●
●
1_EN.indd 5
English
6
5. Star Use
Plug receiver dongle to your PC
Press at least 3 seconds to power on Wireless Tablet
Press the biding button on the back side of the tablet and biding
button of the receiver dongle at the same time.
The LCD of Tablet will blank and the blue LED of receiver
dongle blank also.
Once the binding is successful, the number on the LCD will show
000 to 001 or others (if binding more than one Wireless Tablet).
Since there are power saving design with our pen, please always
have our pen to tip on any area of the tablet rst to wake up the
pen before you start use tablet.
Check it the information of LCD indictor is display correctly.
If yes, you can start to use it freely.
1.
2.
3.
4.
5.
6.
7.
8.
1_EN.indd 6
English
6. Specication
Solution Wireless 2.4G RF
Dimension 278*282*20mm
active area 7.84”*5.92”
Resolution 2000lpi
Report rate 120 rpst
Pen pressure 1024 levels
Macro key 16( top of active area)
Hot key Page up / page down
LCD type TN LCD
LCD size 17.7*40.9mm
LCD Icon content
battery status – 4 levels; charged; /
connection mode ; connection power status/
volume status /Tablet number
Battery type Nokia BL5C Li-ion rechargeable battery
battery capacity 800mA
battery life 16 hrs continuing mode
power source USB charged
power button electrical power button
power consumption max 50 mA( operation mode )
Receiver dongle Yes
1_EN.indd 7
