Huion KD200 Manual de usuario

KD200

Contents

Product Overview ...................................................... 2

Tablet Introduction .................................................... 2

Product and Accessories ................................................ 3

Product Connection .................................................... 5

Driver and Setting ..................................................... 8

Install Driver ........................................................ 8

Driver Interface Preview ................................................ 10

Pen Tablet Setting .................................................... 11

Digital Pen Setting .................................................... 18

Driver Setting ....................................................... 23

Diagnose .......................................................... 27

Digital Pen Basic Operation .............................................. 31

Specifications ........................................................ 35

Troubleshooting Solutions .............................................. 36

1 / 37

KD200

Product Overview

Tablet Introduction

Thanks for choosing HUION INSPIROY Keydial creative pen tablet. This is a

new generation of professional battery-free drawing tablet, which can greatly

improve your work efficiency of painting and creation, and full of fun. You can

freely painting and writing, depicting different lines and colors, just as the pen

writes on the paper, which brings you a real shock experience.

To give you a better understanding and using of your tablet, please read this

user manual carefully. The user manual only shows the information under

Windows, unless otherwise specified, this information applies to both

Windows and Mac systems.

2 / 37

KD200

Note: The pictures in the User Manual are for reference only.

Product and Accessories

Please see the detailed product introduction.

*Press Keys

3 / 37

KD200

1. Dial: While the Dial mode, features are programmable, with default

functions being canvas size adjustment, brush size adjustment and canvas

scrolling.

2. Long press to call up the function menu /Serve as Enter Button.

3. Press keys that are programmable on the driver.

4. Num Key: Switch the alternative functions of keys.

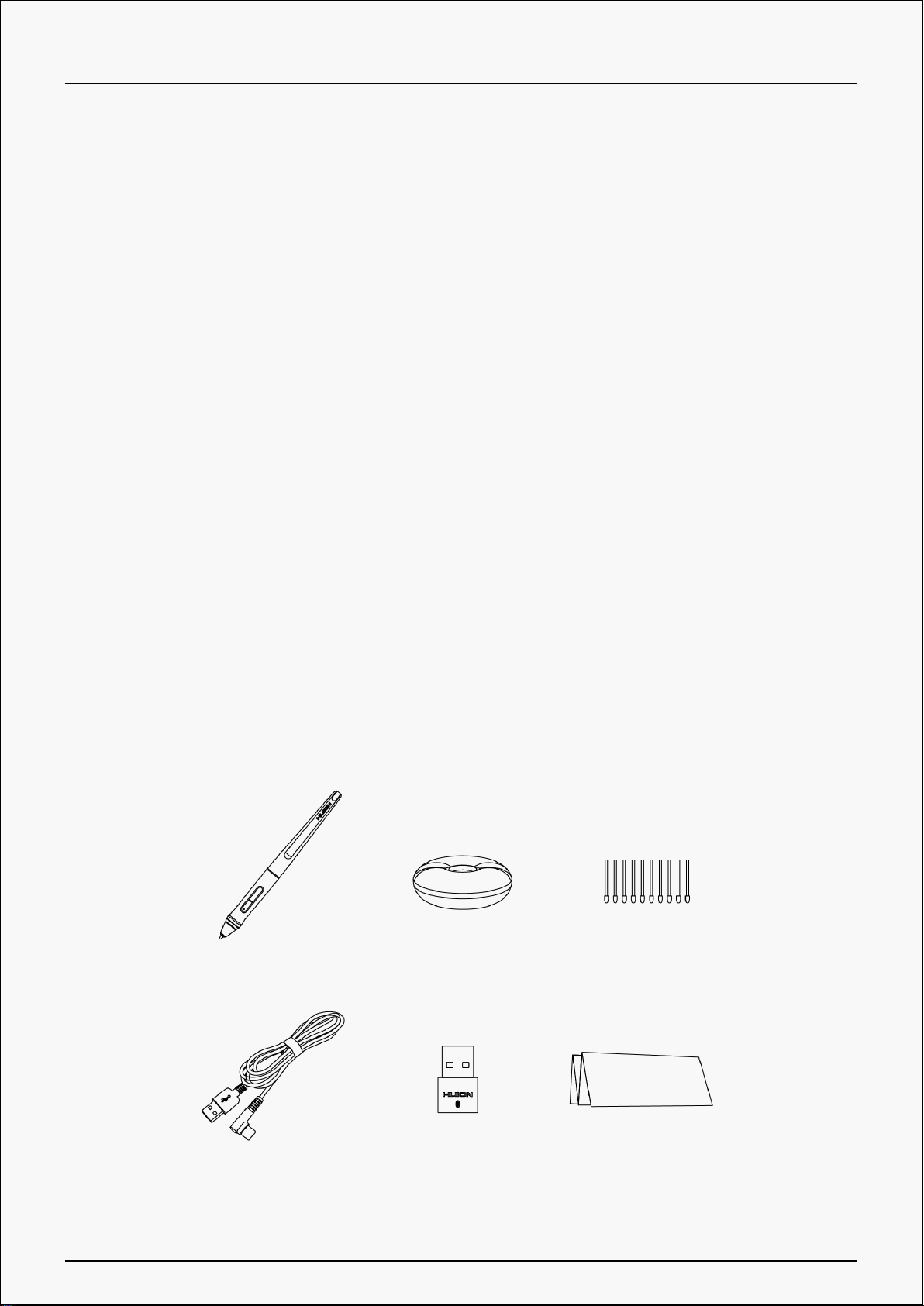

After unboxing your package, make sure that you have the following items:

Tablet*1

Battery-free Pen*1

Pen Holder*1

Replacement Nibs(Inside the Pen Holder)*10

USB Cable*1

Quick Start Guide*1

Warranty Card*1

4 / 37

KD200

Product Connection

The tablet supports the connection of a computer and a mobile phone.

Wired Connection, Bluetooth Connection and Navo Receiver Connection.

Imporantly, you can judge the status of the device by observing the color of

the light.

Indicator Color of light

Status of Mini keyboard

Bluetooth indicator Flash Blue Light

Pairing

Blue Light

Bluetooth Paired

Battery indicator Flash Red Light

Low Battery

Red Light

Charging

Green Light

Charged

5 / 37

KD200

Num indicator White Light

Alternative Functions of Keys are Activated

1. Wired Connection

Connect the tablet to your computer with USB cable. Please follow the steps below:

1. Take out the USB cable from the package, then connect tablet to your computer.

2. Please download the Pen Driver from our website:Driver-KD200.

3. Open the driver interface, the device picture will be displayed on the interface, indicating

that the tablet is successfully connected to the computer.You can start use the tablet.

See Section

2. Bluetooth Connection

PC and Android devices are supported to be paired with Bluetooth. Please follow the steps

below:

6 / 37

KD200

1. Activate Bluetooth on PC or any Android device.

2. Long press the power button for 2 seconds till the blue light flashes to power on the pen

tablet.

3. Have the device Inspiroy Keydial connected via Bluetooth pairing, Please hold the key

combos Shift+Ctrl+Start Command to adjust the imaging on your phone in case of display

distortion.

3. Nano Receiver Connection

A nano receiver is available for PC without Bluetooth. Please follow the steps below:

1. Long press the power button for 2 seconds till the blue light flashesto power on the pen

tablet.

2. Insert the nano receiver into the PC and a blue light will be on to indicate the connection

success.

7 / 37

KD200

Driver and Setting

Install Driver

1. Please choose the correct driver for your device from our website: Driver-KD200.

2. Click Driver-KD200 to download it.

3. Follow the instructions to complete the installation.

Note:

1. Before installing driver, please close all graphic software and antivirus program.

2. If you have installed other pen tablet driver, please uninstall it before you install this driver.

3. Please make sure your computer OS are as following: Windows 7 or later, macOS 10.12 or

later.

4. Run the tablet driver program and complete the installation according to the instruction.

After the download is successful, double-click to open the driver, Connect the device to your

computer.

If the connection fails, please reconnect the computer to the device, or restart the driver or

computer.

8 / 37

KD200

9 / 37

KD200

Driver Interface Preview

1. Pen Tablet

Pen Tablet function setting interface, the users can set the tablet function on this interface,

such as Press Key, Dial and Working Area.

See Section

2. Digital Pen

The users can set the Pen function on this interface. About Press Key, Mode selection,

Pressure Sensitivity Adjustment and Pressure Test.

See Section

3. Store

10 / 37
