IRiver T20 Manual de usuario

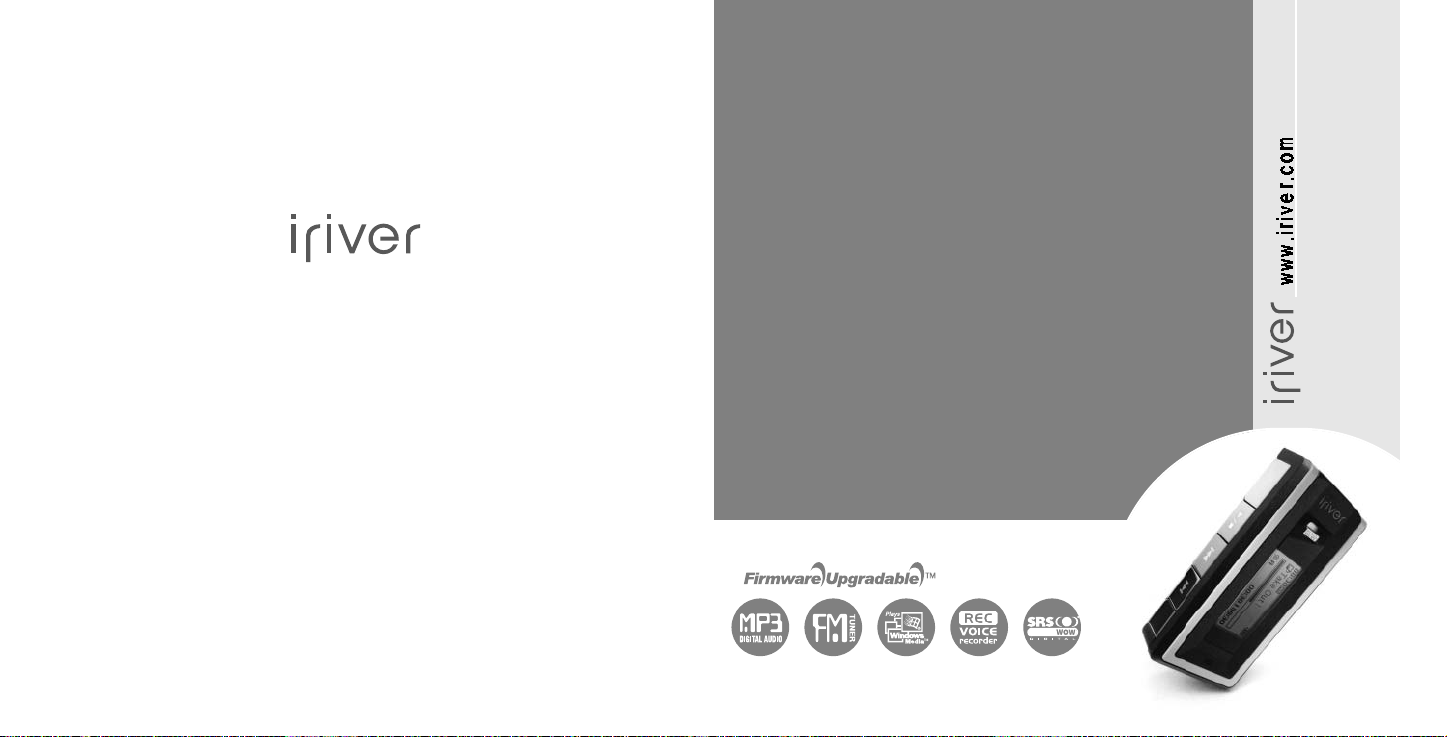

Quick Start Guide

T20

http://www.iriver.com

Contents

1-1

2-1

3-1

4-1

5-1

6-1

1-1

Charging the battery

1. Push the USB lever and pull out the USB connection port as below picture.

2. Connect the player to the PC.

3. “USB Connected” on the display is appeared, charging indicator is displayed.

1. Locating the controls

2. Connection

Your player may differ sightly from that shown in the illustrations.

1-2

Connecting to the PC

1. Push the USB lever and pull out the USB

connection port as below picture and

connect the player to the PC.

2. Open Windows Explorer and an additional

drive should be listed called “T20”.

"Safely Remove Hardware" from the PC

1. Select the “Safely Remove Hardware” after

clicking the “Safe To Remove Hardware” by

right-clicking your mouse.

2. Click the “Stop” after selecting the device to

remove, then click “OK”.

3. Click “Close” after confirming the Safely

Remove Hardware message.

(In case of Windows XP)

Mode/REC button

Volume - button

Volume + button

Hold Switch

LCD Screen

Microphone

Line In Jack

Earphone Jack

Neck Strap Connection Part

Play/Stop button

Previous/Fast Reverse button

Next/Fast forward button

USB Lever

USB connection port

1-4

3. Installation

1-3

Downloading from the PC

4. Basic Usage

Turning on/off the player

1. Turning on the player

Press the button to turn on the player.

Previous function mode will be displayed.

2. Turning off the player

Press and hold the button.

Turn off the player.

Selecting the function mode

1. Double click the iriver plus 2 icon on

the PC to start the manager program.

2. Select the files on the PC to transfer

totheplayer. Draganddroptocopyfilestothe

desired location on the player.

1. Press and hold button to display the

function mode screen.

2. Press

button to select the mode, then

press button to enter.

2. Click “OK” after selecting the language to

install.

3. If the “License Agreement” window appears,

click the “I Agree” to continue.

4. Click “Next” after selecting the components

to install.

5. Click “Install” after selecting the folder to

Install.

6. Click “Next” after selecting the file type to

begin the installation.

7. Click “Finish” after the installation is

completed.

iriver plus 2 installation

1. Insert the Installation CD into the CD-ROM drive. Installation starts automatically.

If the program installation process does not start automatically, double click the

“iriver2_setup_full.exe” file in the CD-ROM drive.

5. MUSIC

Playing a music file

1. While function mode screen, select the

[MUSIC] by using the , button, then

press button.

Previous music file will resume playback.

2. Press and hold button to display the

function mode screen.

Press , button to select [BROWSER]

mode, then press button to enter.

3. Press , , , button to select a

file in the file list screen then press

button to start playaback.

5. Skipping to previous/next file

During the music file playback, press ,

button to skip to the previous/next file.

: previous file : next file

6. Fast searching

Press and hold the ,button for fast-

forward or fast-reverse playback.

: fast-rewind : fast-forward

Release the button for normal playback.

1-5

4. Adjusting the volume

During the music file playback, press ,

button to adjust volume level.

: Decrease volume level.

: Increase volume level.

1-6

Listening to FM radio

(

Only for models including FM Radio function

)

6. FM RADIO

3. To change STEREO/MONO

Press the button to display FM Radio function

selection screen. Press the , button to

select [STEREO ON or STEREO OFF], then

press the button to confirm.

The station is changed to stereo or mono.

1. While function mode screen, select the

[FM RADIO] by using the , button,

then press button.

The previous station is displayed.

2. Press the , button to select your

desired station.

4. Saving an frequency-Automatically

Press the button to display FM Radio

function selection screen. Select the [AUTO

SAVE] by using the , button, then

press button.

5. Selecting preset memory

If PRESET is not displayed, first press the

button to enter PRESET mode.

Press the , button to select your

desired channel.

For details, see the User/Software Manual. www.iriver.com 1-8

7. RECORDING

To record *FM station

(

Only for models including FM Radio function

)

Recording voice

1. While function mode screen, select the

[RECORDING] by using the , button,

then press button.

The recording select screen is displayed.

2. Select the [VOICE] by using the ,

button, then press button.

The recording standby screen is displayed.

4. Press the button to stop recording.

The recorded file is saved as VOICEMMDD_XXX.

MP3 in the VOICE folder.

1-7

Recording from Line-In

To play a recorded file

1. While function mode screen, select the

[RECORDING] by using the , button,

then press button.

The recording select screen is displayed.

2. Select the [Line-In] by using the ,

button, then press button.

The recording standby screen is displayed.

3. Press the button to begin recording. 4. Press the button to stop recording.

The recorded file is saved as AUDIOMMDD_

XXX.MP3 in the RECORD folder.

1. While Recording standby mode, press

button to play recorded file.

Previous recorded file will begin playing back.

2. While [BROWSER] mode, select a recorded file in

the [RECORD] or [VOICE] folder by using the ,

, , button, then press button.

The selected file will begin playing back.

:tomoveup :tomovedown

: to enter the folder : to go the sub folder

1. Press the button to display FM Radio

function selection screen. Select the [RECOR

DING] by using the , button, then

press button to start recording.

2. Press the button to stop recording.

The recorded file is saved as TUNERMMDD_XXX.

MP3 in the RECORD folder.

3. Press the button to begin recording.

2-22-1

2-42-3

2-62-5

2-82-7
