Document ID: USM-0S4-009 Revision: 1.11
Made in U.S.A. www.iPGARD.com 1-800-284-2131
USER MANUAL
Advanced 4/8 Port Secure KM Switch
SA-KMN-4S-P 4-Port Secure KM with Audio and CAC Support
SA-KMN-8S-P 8-Port Secure KM with Audio and CAC Support
Release Date: July 3rd, 2018
Advanced 4/8 Port Secure KM Switch 2
TABLE OF CONTENTS
3
4
4
4
5
7
7
7
8
9
8
10
11
11
12
12
13
14
14
14
15
TECHNICAL SPECIFICATIONS___________________________________________________________
WHAT’S IN THE BOX?_________________________________________________________________
SECURITY FEATURES_________________________________________________________________
FRONT AND REAR___________________________________________________________________
INSTALLATION_______________________________________________________________________
INITIAL SETUP_______________________________________________________________________
SCROLL WHEEL KM SWITCHING________________________________________________________
HOTKEY COMMANDS_________________________________________________________________
DISPLAY TOPOLOGY CONFIGURATION____________________________________________________
LIMIT INPUT PORTS CONFIGURATION____________________________________________________
DISPLAY TOPOLOGY CONFIGURATION (8-PORT)____________________________________________
LIMIT INPUT PORTS CONFIGURATION (8-PORT)____________________________________________
CAC INSTALLATION: COMMON ACCESS CARD, SMART CARD READER__________________________
CAC PORT CONFIGURATION____________________________________________________________
AUDITING: Dumping the Event Log via User Menu Options___________________________________
RESET: Restore Factory Default_________________________________________________________
LED’s BEHAVIOR_____________________________________________________________________
SYSTEM OPERATION__________________________________________________________________
TROUBLESHOOTING__________________________________________________________________
TECHNICAL SUPPORT_________________________________________________________________
LIMITED WARRANTY STATEMENT________________________________________________________
Advanced 4/8 Port Secure KM Switch 3
TECHNICAL SPECIFICATIONS
USB
Signal Type USB 1.1 and 1.0 Keyboard and Mouse only.
USB 2.0 for CAC connection (P models only)
Type A to B SA-KMN-4S-P (8)
SA-KMN-8S-P (16)
User Console Interface (2) USB Type-A for keyboard and mouse connection only
(1) USB Type-A for CAC connection (P models only)
AUDIO
Input Interface (4)/(8) Connector Stereo 3.5mm Female
Output Interface (1) Connector Stereo 3.5mm Female
POWER
Power Requirements 12VDC 2A (minimum) power adapter with center-pin positive polarity. 8 port models
require a 12VDC 3A (minimum) power adapter with center-pin positive polarity.
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CERTIFICATIONS
Security Accreditation Common Criteria Validated To NIAP, Protection Prole PSS Ver. 4.0
OTHER
Emulation USB 1.1 and USB 2.0 Compatible
Control Front Panel Buttons
SA-KMN-4S-P
1 2 3 4ST1 ST2
CONSOLE
12VDC2.0A AUDIO
K/M
AUDIO AUDIO AUDIO AUDIO
K/M K/M K/M K/M
CAC
CAC CAC CAC CAC
IN-1IN-2IN-3IN-4
Figure 4-2: SA-KMN-4S-P Rear panel
Advanced 4/8 Port Secure KM Switch 4
WHAT’S IN THE BOX?
SA-KMN Unit 4/8-port Secure KM Switch
PS12VDC2A or
PS12VDC3A
12VDC 2A (minimum) power adapter with center-pin positive polarity. 8 port models
require a 12VDC 3A (minimum) power adapter with center-pin positive polarity.
User Manual
SECURITY FEATURES
Anti-Tamper Switches
Each model is equipped with internal Anti-Tamper switches, which sense attempts to open the device
enclosure. Once the system identies such an attempt, all the front panel LED’s will ash rapidly, the
internal buzzers will beep, and the unit will become useless by shutting off connection with all attached
PCs and peripherals disabling any functionality.
Tamper-Evident Seal
The enclosure of the unit is protected with a tamper-evident seal to provide a visual evidence if the unit has
been opened.
Protected Firmware
The controller of the unit has a special protection feature that prevents reprogramming or reading the
rmware.
High Isolation on USB Channels
Opto-isolators are used in the unit to keep USB data paths electrically isolated from each other, providing
high isolation and preventing data leakage between ports.
Secure EDID Emulation
The unit prevents unwanted and unsecure data to be transmitted through the DDC lines by means of
secure EDID learning and emulation.
Self-Test
A self-test is performed each times the KVM is powered on as part of its boot-up sequence. If the KVM
starts up correctly and is functional, the self-test has passed. However, if all Front Panel LED’s are on and
not ashing, the power up self-test has failed and all functions are disabled. Check if any of the front panel
port selection buttons are jammed. In this case, release the jammed button and recycle the power.
Advanced 4/8 Port Secure KM Switch 5
INSTALLATION
SYSTEM REQUIREMENTS
1. iPGARD Secure PSS is compatible with standard personal/portable computers, servers or thin-clients,
running operating systems such as Windows or Linux.
2. The peripheral devices that are supported by the KM are listed in the following table:
CONNECTING THE SA-KMN
1. Ensure that power is turned off or disconnected from the unit and the computers.
2. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB
ports of the unit.
3. Optionally connect a stereo audio cable (3.5mm to 3.5mm) to connect the audio output of the
computers to the AUDIO IN ports of the unit.
4. Connect a USB keyboard and mouse in the two USB console ports.
5. Optionally connect stereo speakers to the AUDIO OUT port of the unit.
6. Optionally connect CAC (COMMON ACCESS CARD, SMART CARD READER) to the CAC port in the user
console interface.
7. Power on the KM by connecting a 12VDC power supply to the power connector, and then turn on all the
computers.
Note: The computer connected to port 1 will always be selected by default after power up.
Note: You can connect up to 4 computers to the 4 port KM and up to 8 computers to the 8 port KM.

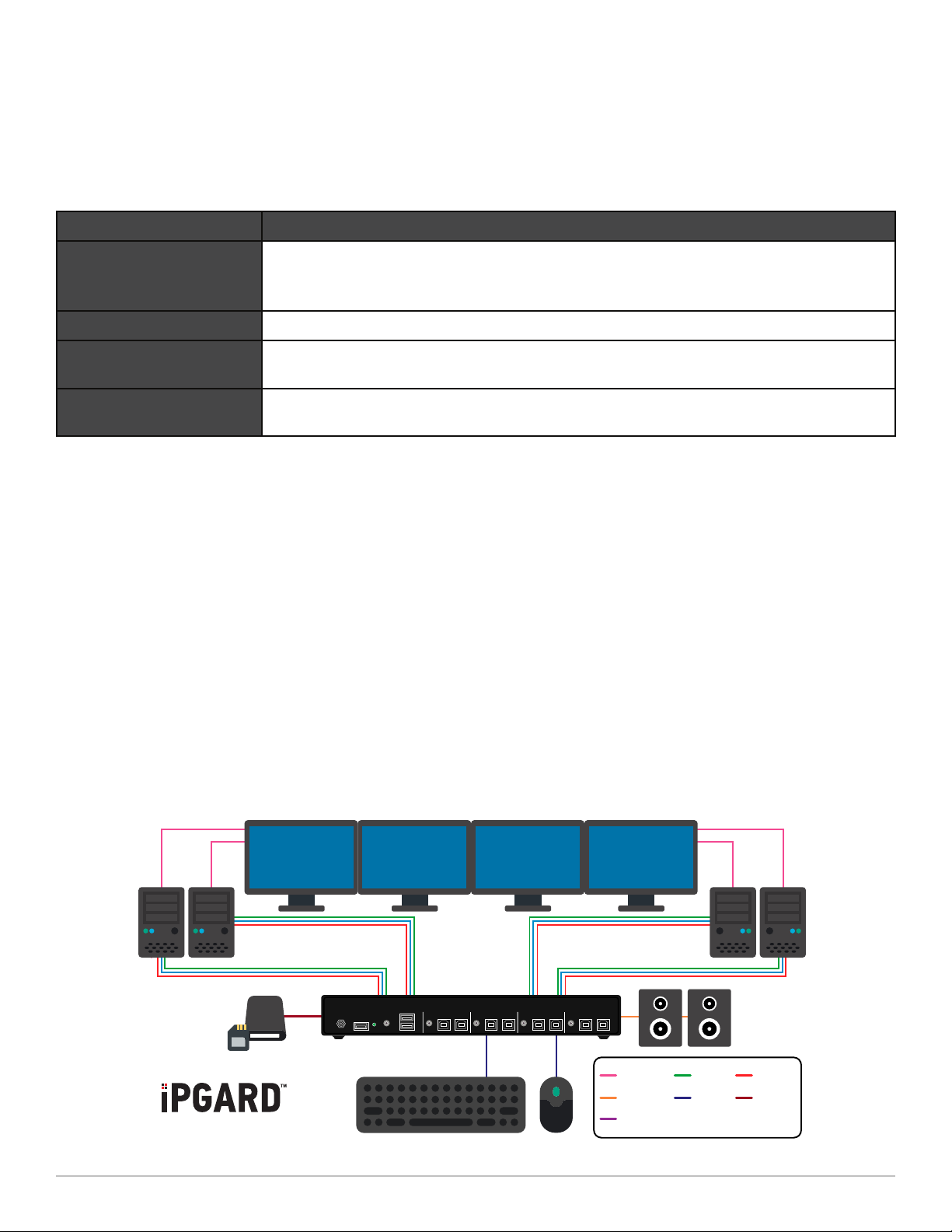

Figure 5-1: SA-KMN-4S-P
AUDIO OUT
VIDEO USB IN
USB OUT
CAC IN
CAC OUT
AUDIO IN
SA-KMN-4S-P
CONSOLE
12VDC2.0A AUDIO
K/M
AUDIO AUDIO AUDIO AUDIO
K/M K/M K/M K/M
CAC
CAC CAC CAC CAC
IN-1IN-2IN-3IN-4
Table 5-1
Console Port Authorized Devices
Keyboard
Wired keyboard and keypad without internal USB hub or composite device
functions, unless the connected device has at least one endpoint which is a
keyboard or mouse HID class.
Audio out Analog amplied speakers, Analog headphones.
Mouse/Pointing Device Any wired mouse or trackball without internal USB hub or composite device
functions.
User Authentication
Device
USB devices identied as user authentication (base class 0Bh, e.g. Smart-card
reader, PIV/CAC reader, Token, or Biometric reader)
Advanced 4/8 Port Secure KM Switch 6
INSTALLATION (Continued)
IMPORTANT WARNINGS - For security reasons:
• This product does not support wireless devices. Do not attempt to use a wireless keyboard or a
wireless mouse with this product.
• This product does not support keyboards with integrated USB hubs or USB ports. Only use
standard (HID) USB keyboards with this device.
• This product does not support microphone audio input or line input. Do not connect any
microphones or headsets with microphones to this device.
• Connection of authentication devices (CAC) with external power sources is prohibited.
+
Click the Mouse Wheel Twice
Move the mouse to the
direction of the target
computer screen
Advanced 4/8 Port Secure KM Switch 7
INITIAL SETUP
After connecting all devices to the SA-KMN, a display topology conguration and display mode must be
chosen. By default, SA-KMN is congured to a topology with 4 screens arranged horizontally starting with
port 1 on the most left-hand side.
The installation setup must match one of SA-KMN’s predened display topology conguration. This can be
selected through keyboard hotkey commands. Please refer to the “Display Topology Conguration” for the
available display topologies.
SCROLL WHEEL KM SWITCHING
HOTKEY COMMANDS
Cursor control of selected channels allows switching between computers through the use of simple mouse
clicks and gestures. No device driver is required. Simply press the scroll wheel twice and then move the
mouse in the direction of the channel you desire to switch to.
The Hotkey command is a keyboard sequence used to trigger an action on the SA-KMN through the use of
the keyboard connected on the USB port of the SA-KMN. To activate the hotkey sequence, press the CTRL
key twice and then enter the desired hotkey commands.
Note: All commands can use upper and/or lower case characters
Note: Display Topology species the number of horizontal columns. The number of vertical rows is
calculated in the software by 4/n columns.
Figure 7-1
Table 7-2
COMMANDS HOTKEYS
Display Topology (multiple rows) CTRL + CTRL + H(1—4), (1-8) for SA-KMN-8P
Limit Input Ports (one row only) CTRL + CTRL + W(1—4), (1-8) for SA-KMN-8P
Cursor Rolling (roll past display borders up, down,
left, and right) CTRL + CTRL + O(0—OFF) or (1—ON)
Advanced 4/8 Port Secure KM Switch 8
DISPLAY TOPOLOGY CONFIGURATION
LIMIT INPUT PORTS CONFIGURATION
The SA-KMN has a congurable display topology conguration that can be easily activated through keyboard
hotkeys. No software or drivers are required to congure the display topology.
Note: Hotkey CTRL + CTRL command allows for multiple rows.
Hotkey Commands: CTRL, CTRL W(X) commands (allows one row only):
Note: Limit Input Ports commands reset Display Topology conguration
Note: Port 4 N/A
Note: Ports 3, 4 N/A
Note: Port 2-4 N/A
(1) Hotkey Command: “CTRL + CTRL + H+ 4+ ENTER”
CTRL + CTRL + W+ 4+ ENTER
CTRL + CTRL + W+ 3+ ENTER
CTRL + CTRL + W+ 2+ ENTER
CTRL + CTRL + W+ 1+ ENTER
(2) Hotkey Command: “CTRL + CTRL + H+ 2+ ENTER”
(3) Hotkey Command: “CTRL + CTRL + H+ 3+ ENTER”
(4) Hotkey Command: “CTRL + CTRL + H+ 1+ ENTER”
1234
1234
1 2
3 4
123
123
1 2
1
2
3
4
1
Each of the cells shown represents
a display or multiple displays from
a computer.
Advanced 4/8 Port Secure KM Switch 9
DISPLAY TOPOLOGY CONFIGURATION (8-PORT)
The 8-Port Secure KM Switch has a congurable display topology conguration that can be easily activated
through keyboard hotkeys. No software or drivers are required to congure the display topology.
Note: Hotkey CTRL + CTRL + H+ (X) command allows for multiple rows.
Each of the cells shown represents a display or
multiple displays from a computer.
Notes: Cursor control of selected channels can only
be used in
Single-Head display mode.
- Multi-Head display mode switching must be used if
any of the eight computers have multiple displays.
(1) Hotkey Command: “CTRL + CTRL + H+ 4+ ENTER”
(3) Hotkey Command: “CTRL + CTRL + H+ 2+ ENTER”
(4) Hotkey Command: “CTRL + CTRL + H+ 1+ ENTER”
(2) Hotkey Command: “CTRL + CTRL + H+ 3+ ENTER”
1234
5678
1 2
3 4
5 6
7 8
1
2
3
4
5
6
7
8
123
456
Advanced 4/8 Port Secure KM Switch 10
Hotkey Commands: CTRL + CTRL + W + (X) commands (allows one row only):
Note: Limit Input Ports commands reset Display Topology conguration
Note: Port 8 N/A
Note: Port 4-8 N/A
Note: Ports 7, 8 N/A
Note: Ports 3-8 N/A
Note: Port 6-8 N/A
Note: Port 5-8 N/A
Note: Port 2-8 N/A
CTRL + CTRL + W+ 8<CR>
CTRL + CTRL + W+ 4<CR>
CTRL + CTRL + W+ 7<CR>
CTRL + CTRL + W+ 3<CR>
CTRL + CTRL + W+ 6<CR>
CTRL + CTRL + W+ 2<CR>
CTRL + CTRL + W+ 5<CR>
CTRL + CTRL + W+ 1<CR>
12345678
1234
1234567
123
123456
1 2
12345
1
LIMIT INPUT PORTS CONFIGURATION (8-PORT)
Otros manuales para SA-KMN-4S-P
1
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Cambiar de IPGARD
IPGARD
IPGARD SDHN-4D-P Manual de usuario
IPGARD
IPGARD SDVN-2D Manual de usuario
IPGARD
IPGARD SA-HDN-4D Manual de usuario
IPGARD
IPGARD SDPN-2S Manual de usuario
IPGARD
IPGARD SDPN-2S-P Manual de usuario
IPGARD
IPGARD SA-DPN-2S Manual de usuario
IPGARD
IPGARD SA-DPH-4Q-P Manual de usuario
IPGARD
IPGARD SDVN-8S Manual de usuario
IPGARD
IPGARD SA-KMN-4S-P Manual de usuario
IPGARD
IPGARD SDMN-4S-P Manual de usuario
IPGARD
IPGARD SA-DMN-DP-P Manual de usuario
IPGARD
IPGARD SA-DVN-2S Manual de usuario
IPGARD
IPGARD SDVN-1S-P Manual de usuario
IPGARD
IPGARD SA-DVN-1S-P Manual de usuario
IPGARD
IPGARD SKMN-4S Manual de usuario
IPGARD
IPGARD SKMN-8S Manual de usuario
IPGARD
IPGARD DPMST-4S-P Manual de usuario
IPGARD
IPGARD SA-DVN-8S Manual de usuario
IPGARD
IPGARD SA-DPH-4Q-P Manual de usuario
IPGARD
IPGARD SA-DVN-4D Manual de usuario
