IOGear GCS1808i Manual de usuario

Quick Start Guide

GCS1808i / GCS1816i

PART NO. Q1315 / Q1316

www.iogear.com

8/16-Port IP Based KVM

•For best results, we recommend the computer at least a P III 1 GHz

processor, and screen resolution is set to 1024x768

•For best results, we recommend an Internet connection speed of at

least 128 kbps

•Browsers must support 128 bit data encryption

•To run the Windows®client, DirectX 8.0 or higher

•To run the Java client, Sun’s Java Runtime Environment (JRE) 6,

Update 3, or higher

•To run the Log Server, Microsoft Jet OLEDB 4.0 driver installed

(or higher)

1 x GCS1808i / GCS1816i IP Base KVM

2 x Custom KVM Cable Sets (1 x PS/2; 1 x USB)

1 x Console Cable

1 x Firmware Upgrade Cable

1 x Foot Pad Set (4 pcs)

1 x Power Adapter

1 x Mounting Kit

1 x Quick Start Guide

1 x Installation CD

1 x Warranty Card

Console

• 1 VGA monitor capable of displaying the highest resolution provided

by any computer in the installation

• 1 USB or PS/2 Mouse

• 1 USB or PS/2 Keyboard

Computer

• Video graphics card with an HDB-15 port

• Either a TypeAUSB port and USB host controller

• A 6-pin mini-DIN keyboard and mouse ports

Requirements

Package Contents

Front View:

1. Port Selection Switches and LEDs

2. Reset Switch

3. USB Port

4. Firmware Upgrade Recovery Switch

5. Firmware Upgrade Port

6. Power LED

GCS1808i

GCS1816i

Overview

321 4 5 6

Rear View:

1. KVM Port Section

2. Grounding Terminal

3. Cable Tie Slot

4. Power Jack

5. LAN Port

6. Console Port

GCS1808i

GCS1816i

Overview

32 4 5 6

Rack Mounting

1. Remove the two screws at the

front or the rear.

2. Screw the two mounting brackets

into the sides of the unit at the

front or the rear.

3. Slide the unit into the front or rear

of the rack and secure it to

the rack.

Single Station Installation

To set up a single station installation refer to the diagram, and do the

following:

1. Ground the GCS1808i / GCS1816i by connecting one end of the

grounding wire provided with your switch to the grounding terminal,

and the other end of the wire to a suitable grounded object.

2. Using the console cable provided with your switch, connect a USB

or PS/2 keyboard, mouse and monitor to the GCS1808i / GCS1816i

console port.

3. Use the KVM cable sets to connect

any KVM port to the keyboard,

video and mouse ports of

the computer you are

installing.

4. Plug the power adapter

cable into the

GCS1808i / GCS1816i

power jack, and then plug the

power adapter into an AC power outlet.

After all the equipment has been connected up, power on the computers.

Hardware Installation

Port Selection

GCS1808i / GCS1816i installation provides three methods to obtain

instant access to any computer in your installation:

Manual

For manual port selection, simply press the Port Selection Switch that

corresponds to the device you wish to access.

OSD/GUI

The GCS1808i / GCS1816i

provides two menu driven

interfaces to the port selection

procedure:

• A text-based OSD

(On Screen Display),

when you log in from a

local console

•AGUI (Graphical User

Interface) when you log in remotely over the Internet

All procedures start from the OSD Main Screen. To pop up the Main

Screen, press [Scroll Lock] twice.

Note: [Scroll Lock] is the default OSD hotkey. You can optionally

change the Hotkey to the [Ctrl] key.

The login screen appears:

Enter a valid Username and Password to continue:

Note: The default username is administrator, the default password is

password. The first time you log in, you must use these defaults. For

security purposes, we strongly recommend that you change the default

password to something unique.

Operation

Hotkey Summary Table

The following table summarizes Hotkey operations on the GCS1808i /

GCS1816i:

Hotkey

All Hotkey operations begin by invoking Hotkey Mode. Invoking Hotkey

Mode takes three steps:

1. Hold down the Num Lock key

2. Press and release the minus key

3. Release the Num Lock key

[Num Lock] + [ - ]

Note:

1. The sequence uses the default hotkey invocation method. If you

selected the alternate hotkey invocation keys you would use [Ctrl]

and [F12] instead.

2. The Minus (or F12) key must be released within one half second,

otherwise Hotkey invocation is automatically cancelled.

[Num Lock] + [ - ]

[Ctrl] + [F12]

[A] [Enter]

Invokes Auto Scan mode. When Auto Scan

mode is in effect, [P] or left-click pauses auto-

scanning. When auto-scanning is paused,

pressing any key or another left-click resumes

auto-scanning.

[B]

Toggles the Beeper On / Off

[Esc] or [Spacebar]

Exits hotkey mode

[F1]

Set Operating System to Windows®

[F2]

Set Operating System to Mac

[F3]

Set Operating System to Sun

[F5]

Performs a keyboard / mouse reset on the

target computer.

[H]

Toggles Hotkey invocation keys

[Port ID] [Enter]

Switches access to the computer that

corresponds to that Port ID

[R] [Enter]

Administrator only hotkey. It returns the

switch’s settings to their default values.

[T]

Toggles the OSD Hotkey between [Ctrl] [Ctrl]

and [Scroll Lock] [Scroll Lock]

[←]

Invokes Skip Mode and skips from the current

port to the first accessible port previous to it.

[→]

Invokes Skip Mode and skips from the current

port to the next accessible port

[↑]

Invokes Skip Mode and skips from the current

port to the last accessible port of the previous

Station.

[↓]

Invokes Skip Mode and skips from the current

port to the first accessible port of the next

Station.

Browser Login

To log in from an Internet browser from a remote computer via IP, do

the following:

1. Open your browser and specify the IP address of the GCS1808i /

GCS1816i you want to access in the browser’s URL location bar.

Note:

1. For security purposes, a login string may have been set by the

administrator. If so, you must include a forward slash and the login

string along with the IP address when you log in.

for example: 192.168.0.60/GCS1816i

2. The GCS1808i / GCS1816i default setting is for DHCP if it fails to

find a DHCP server, after one minute it uses a default IPAddress:

192.168.0.60. You can use the local console OSD (Network Page) to

set the IPAddress to what you like.

If you don’t know the IP address and login string, ask yourAdministrator.

2. If a Security Alert dialog box appears, accept the certificate – it can be

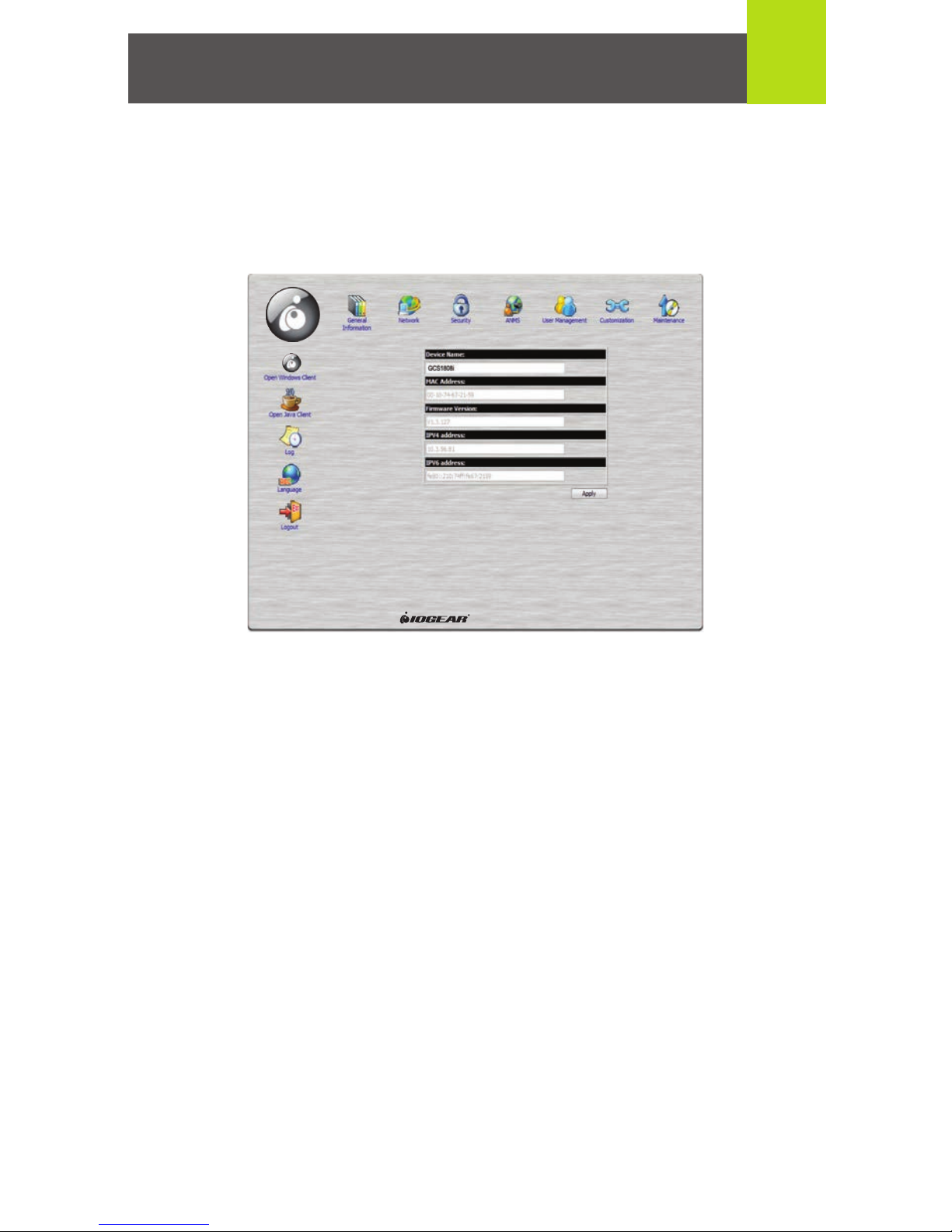

trusted. The GCS1808i / GCS1816i login page appears.

Note: If you are the Administrator and logging in for the first time, use

the default Username: administrator, and the default Password:

password. For security purposes, we strongly recommend you remove

these and give yourself a unique Username and Password.

Note:

1. For security purposes, a login string may have been set by the

administrator. If so, you must include a forward slash and the login

string along with the IP address when you log in.

for example: 192.168.0.60/GCS1816i

2. The GCS1808i / GCS1816i default setting is for DHCP if it fails to

find a DHCP server, after one minute it uses a default IPAddress:

192.168.0.60. You can use the local console OSD (Network Page) to

set the IPAddress to what you like.

If you don’t know the IP address and login string, ask yourAdministrator.

2. If a Security Alert dialog box appears, accept the certificate – it can be

trusted. The GCS1808i / GCS1816i login page appears.

Note: If you are the Administrator and logging in for the first time, use

the default Username: administrator, and the default Password:

password. For security purposes, we strongly recommend you remove

these and give yourself a unique Username and Password.

Compliance Information

FCC Statement

This product has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This product generates, uses, and can radiate radio

frequency energy. If this product is not installed and used as directed it

may cause harmful interference to radio communications. Operating

this product in a residential area will likely cause harmful interference

which will require correction by the user at his/her personal expense.

CE Compliance

This device has been tested and found to comply with the following

European Union directives: Electromagnetic Capability (2004/108/EC),

Low Voltage (2006/95/EC) and R&TTED (1999/5/EC).

Note:

For complete instructions, please download the user manual

from www.iogear.com/support/dm or refer to the included

installation CD.
