Quick Start Guide
GUD310
PART NO. Q1345
www.iogear.com
met(AL)™ Vault Dock
USB 3.0 Docking Station with Built-In HDD Enclosure
1 x GUD310 Docking Station
1 x USB 3.0 Type A to Type B Cable
1 x DVI to VGA Adapter
1 x DC 12V Power Adapter
1 x Software CD
4 x HDD Mounting Screws
1 x Screw Driver
1 x Quick Start Guide
1 x Warranty Card
Package Contents
System Requirements
Operating System
• Windows®7, Windows®8, Windows®8.1
• Mac OS X 10.6+
System Memory
• Minimum: 2GB RAM
• Recommended: 4GB RAM or more when doing video playback
System Hardware
• USB 3.0 port
• Intel Core 2 Duo 2.0 GHz or better (Intel Core i5 Quad Core 2.4GHz or
better recommended for video playback)
• Microsoft DirectX 10 (Windows®8.1) / DirectX 9 (Windows®7 or
Windows®8) or later graphics device with WDDM driver
• 30MB of free disk space
1
Front/Side
1. Headphone
2. Microphone
3. Power Indicator
4. USB 3.0 Ports
5. USB Fast Charging Ports
6. HDD Indicator
7. 2.5” HDD Tray
8. Power Switch
Back
1. Gigabit LAN Port
2. DVI Port
3. HDMI Port
4. USB 2.0 Ports
5. DC-In Port
6. USB 3.0 Upstream Port
7. USB 3.0 Ports
Overview
Operating System
• Windows®7, Windows®8, Windows®8.1
• Mac OS X 10.6+
System Memory
• Minimum: 2GB RAM
• Recommended: 4GB RAM or more when doing video playback
System Hardware
• USB 3.0 port
• Intel Core 2 Duo 2.0 GHz or better (Intel Core i5 Quad Core 2.4GHz or
better recommended for video playback)
• Microsoft DirectX 10 (Windows®8.1) / DirectX 9 (Windows®7 or
Windows®8) or later graphics device with WDDM driver
• 30MB of free disk space
2
USB 3.0
USB 3.0 IN
DC 12V
USB 3.0
OFF
ON
DVI
LAN
I
O
HDMI
USB2.0
USB2.0
USB3.0
HDD
USB
1
2
3
4
7
6
1
5 6 7
2
3
4
8
5

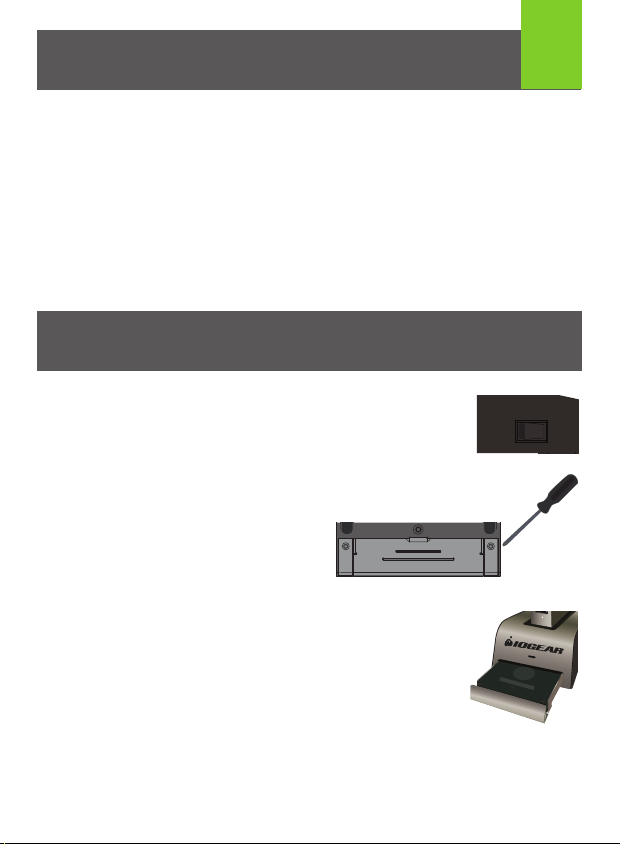

Assembling the SATA 2.5” HDD Enclosure
1. Check that the Power Switch is at the OFF position.
2. At the bottom of the Docking Base, use a screwdriver to
remove the screws from the rear
panel of the front drive tray.
3. Slide the drive tray out of the enclosure housing.
Software Installation
Hardware Installation
3
Before connecting the Docking Station, install drivers using the provided
CD. If your PC/Notebook/Mac does not have a CD drive, go to the link
below to download the latest drivers:
www.displaylink.com/support/downloads.php
1. Select Drivers for either Windows or Mac and then double-click the
Setup.exe or DisplayLink.dmg
2. Follow the on-screen instructions until the installation is complete.
Restart the computer when prompted.
ON OFF
O
_
x
x
x
USB3.0
HDD
USB
4. Insert the 2.5” SATA HDD into the drive tray. Ensure that
the screw guides on the left and right side of the HDD
are aligned on the drive tray. Fasten the HDD to the drive
tray by inserting and tightening the screws.
5. Gently slide the drive tray with HDD back into
the housing.
6. Install the rear panel screws back on. Assembly
is now complete.
Connecting the Docking Station to a Computer
1. Check that the Power Switch is at the OFF position.
2. Insert the main unit to the Docking Base.
3. Using the included USB 3.0 Type A to Type B cable, connect the Type B
end into the docking station’s USB 3.0 Upstream Port.
Connect the Type A end to
your computer or laptop.
4
1. Select Drivers for either Windows or Mac and then double-click the
Setup.exe or DisplayLink.dmg
2. Follow the on-screen instructions until the installation is complete.
Restart the computer when prompted.
ON OFF
O
_
USB3.0
HDD
USB
USB3.0
USB3.0 IN
DC12V
USB3.0
OFF
ON
DVI
LAN
I
O
HDMI
USB2.0
USB2.0
HDD
USB3.0
USB
External Monitor Settings: Windows
5
4. Connect the docking station to a power source using the included
power adapter.
5. Connect video cables, audio cables, USB devices or USB charging
cables to the docking station.
6. Turn the power switch to ON position.
Option 1: Extend Mode
1. Click the DisplayLink icon in the bottom right corner to
open the DisplayLink Manager Menu.
2. Roll the mouse cursor over IOGEAR USB 3.0 Dock to
bring up the Manager Menu.
3. Select Extend.
USB3.0
USB3.0 IN
DC12V
USB3.0
OFF
ON
DVI
LAN
I
O
HDMI
USB2.0
USB2.0
6
4. Connect the docking station to a power source using the included
power adapter.
5. Connect video cables, audio cables, USB devices or USB charging
cables to the docking station.
6. Turn the power switch to ON position.
4. The monitor is now extended in the direction it was the last time the
display was in this mode. For more control, select Extend To and
choose one of the options. This puts the device into Extend Mode, and
places it to the Left/Right/Above/Below the main monitor.
Option 1: Extend Mode
1. Click the DisplayLink icon in the bottom right corner to
open the DisplayLink Manager Menu.
2. Roll the mouse cursor over IOGEAR USB 3.0 Dock to
bring up the Manager Menu.
3. Select Extend.
Option 2: Mirror Mode
1. Click the DisplayLink icon in the bottom right corner to open
the DisplayLink Manager Menu.
2. Roll the mouse cursor over IOGEAR USB 3.0 Dock to bring
up the Manager Menu.
3. Select Mirror.
4. The resolution, color depth, and refresh rate of
the primary screen are copied on to the monitor
connected to the docking station.

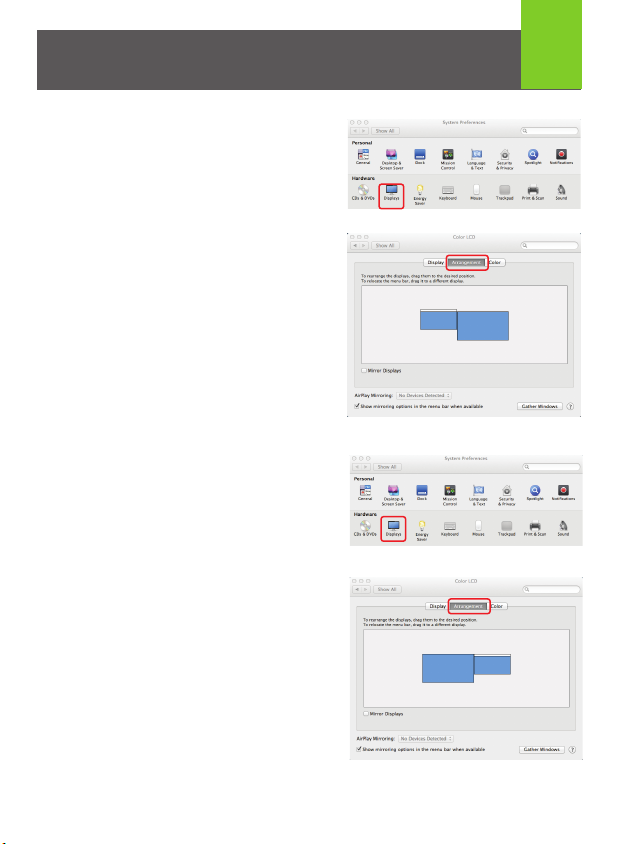

External Monitor Settings: Mac OS X 7
4. The monitor is now extended in the direction it was the last time the
display was in this mode. For more control, select Extend To and
choose one of the options. This puts the device into Extend Mode, and
places it to the Left/Right/Above/Below the main monitor.
Option 2: Mirror Mode
1. Open System Preferences and
click Displays.
Option 1: Extend Mode
1. Open System Preferences and
click Displays.
2. Click on Arrangement.
3. Click the box marked Mirror Displays.
2. Click on Arrangement to change
the position of the displays
currently connected.
Compliance Information
FCC Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential setting. This product generates, uses, and can radiate radio
frequency energy and, if not installed and used as directed, it may cause
harmful interference to radio communications.
CE Compliance
This device has been tested and found to comply with the following
European Union directives: Electromagnetic Capability (2004/108/EC),
Low Voltage (2006/95/EC) and R&TTED (1999/5/EC).
IC Statement
Canada, Industry Canada (IC) Notices
Complies with the Canadian ICES-003 Class B specifications.
Declaration of Conformity and related documents can be downloaded
directly from our website:
http://www.iogear.com/product/GUD310/certifications
Contact
Limited Warranty
WE’RE HERE TO HELP YOU!
NEED ASSISTANCE SETTING UP THIS PRODUCT?
Make sure you:
1. Visit www.iogear.com for more product information
2. Visit www.iogear.com/support for live help and product support
iogear.custhelp.com
support@iogear.com
www.iogear.com
19641 Da Vinci, Foothill Ranch, CA 92610
Warranty Information
This product carries a 3 Year Limited Warranty. For the terms and
conditions of this warranty, please go to
http://www.iogear.com/support/warranty
Register online at http://www.iogear.com/register
Important Product Information
