IOGear GBS301 Manual de usuario

Bluetooth to Serial Adapter

Quick Start Guide

GBS301

PART NO. Q1229

1. DIP Switches

2. Status LED

3. Power Jack

4. RS-232 interface

Introduction

Factory Settings

When using the Bluetooth serial adapter with your serial devices,

you must make sure that all the settings below match on both

devices; otherwise, you may encounter problems communicating.

Below are the factory default settings of this unit:

Encryption = disabled

Authentication = enabled

PIN key = 1234

Baud rate = selection from dip switch

Stop bits = 1

Parity = none

NOTE: If your serial device requires you to change any of the

default settings, consult the Advanced Configuration section of

the User Manual for more details.

Operation

Start Here!

DIP Switches

Switches 1-3

DIP Switches 1, 2, and 3 are used to configure the baud rate.

NOTE: Most computer serial ports only support baud rate up to

115200. For higher baud rates, you may need to install a

high-speed serial card in your computer. In addition, if you need

to set a lower baud rate for your application, see the Advanced

Configuration section in the User manual.

Switch 4

DIP Switch 4 is used to set the serial adapter as master or slave:

0DVWHUPRGH6ZLWFK216ODYHPRGH6ZLWFK2))Switch 2 Switch 3 Baud Rate

Table 1

Switch 1

OFF

9600

19200

38400

57600

115200

230400

460800

921600

Master Mode

If you are interconnecting two IOGEAR Bluetooth adapters,

you must set one of them to master and the other to slave.

Slave Mode

Keep in mind that Bluetooth software applications (like

Widcomm) will only be able to discover and connect to slave

devices.

Therefore, if you are connecting this unit to a serial device to

be accessed by a Bluetooth-enabled PC/PDA at the other

end, make sure to set the IOGEAR Bluetooth serial adapter to

slave mode.

Connecting Bluetooth serial adapter with

Bluetooth-enabled device

The Bluetooth serial adapter has built-in dip switches for fast

and easy configuration.

If you would like to change any of the default settings, consult

the Advanced Configuration section in the User Manual.

Bluetooth enabled laptop

Serial Device

(hand-held scanner)

wireless signal

330 ft range

IOGEAR’s

Bluetooth to Serial

Adapter

(GBS301)

Basic Configuration

Using table 1, set the baud rate on the Bluetooth serial adapter

by using the on-board DIP switches. Make sure that this baud

rate matches with that used by your serial device.

If you are unsure what baud rate your serial device uses, please

consult the manufacturer of that product.

Plug in the Bluetooth serial adapter to your serial device. If your

device has a male RS232 interface, use the included null

modem adapter.

When using the Bluetooth serial adapter with a Bluetooth-

enabled device (PC/PDA), you must set the Bluetooth serial

adapter in slave mode (Switch 4 = Off).

Step. 1

Set baud rate

Step. 2

Step. 3

Set device mode

Plug in

Step. 4

Power ON

Plug in the power cable to your Bluetooth serial adapter; the blue

LED will start blinking after approximately fifteen (15) seconds.

Once the blue LED is blinking once every 2-3 seconds, this

indicates that the Bluetooth serial adapter is in discovery mode;

in other words, ready to accept a Bluetooth connection.

Use your Bluetooth software to search for Bluetooth devices in

range. Once the Bluetooth serial adapter is detected, pair to

it. If prompted for a PIN code, enter “1234” (without the

quotes).

Once paired, establish a connection using the Bluetooth serial

port profile (SPP). If you’re not sure how to do this, please

consult the documentation for your Bluetooth

hardware/software.

Once you have established a Bluetooth serial port connection,

the blue LED will turn off. You’re done!

Step. 5

Pair and Connect

Interconnecting two IOGEAR Bluetooth

serial adapters

When using two IOGEAR Bluetooth serial adapters, there are

two methods you can use to pair and connect them:

1 Auto-pairing

2. Back-to-Back

Pairing Procedure

NOTE: If you have previously paired to the Bluetooth serial

adapter(s), make sure to follow the unpairing procedure

described in the User Manual before attempting to connect to

a new device.

wireless signal

330 ft range

GBS301 connects

to a laptop serial port

GBS301 connects

to a printer serial port

Method 1 Auto-Pairing

The Bluetooth serial adapter (master only) has the capability to

search and automatically connect to another Bluetooth serial

adapter (slave). Follow the steps below:

1. Set one serial adapter to Master (Switch 4 = On), and

the other to Slave (Switch 4 = Off).

2. Set matching baud rates as needed

3. Power On both serial adapters and wait approximately

fifteen (15) seconds

s%OXH/('RQVODYHDGDSWHUZLOOVORZO\EOLQNRQFHevery 2-3 seconds)

s%OXH/('RQPDVWHUDGDSWHUZLOOUDSLGO\EOLQN4. Wait approximately two minutes for the serial adapters

to automatically pair and connect

5. Upon successful connection, the blue LED on both

adapters will turn off and remain off

6. You’re done!

NOTE: Once you have paired both Bluetooth serial

adapters, if you turn them off, please allow approximately

sixty (60) seconds when turning them back on to

re-establish a connection.

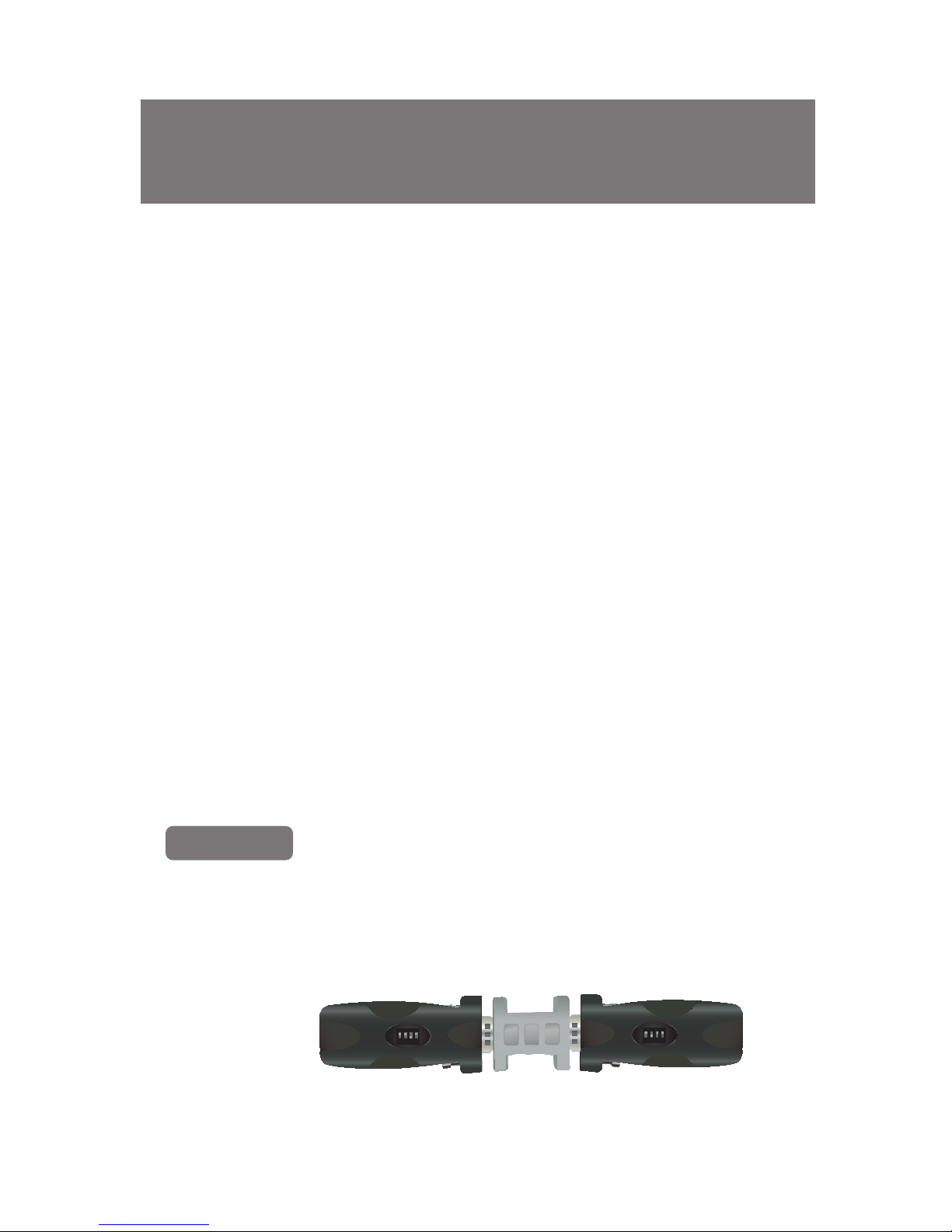

Method 2 Back to Back Pairing

Follow this procedure to pair two

(2) IOGEAR Bluetooth Serial Adapters.
