User’s Manual
XC-RF850 Reader
Invengo Information Technology Co., Ltd.
Thank you for using Invengo’s RFID products!
We are glad that you’ve chosen XC-RF850 UHF RFID reader.
We hope our product will make your daily tasks at work easier!
Thank you for using Invengo’s RFID products!
We are glad that you’ve chosen XC-RF850 UHF RFID reader.
We hope our product will make your daily tasks at work easier!
Foreword
This user manual is intended for using with XC-RF850 FCJ/FCW/FLJ/FLW
This manual provides information on product application, maintenance, repair and other
features for users and maintenance staff of the products.
The version of this manual is V1.0, with revision record as follows:
19th Jan 2015 Initial draft V1.0
or are Invengo’s trademarks.
All introduction and explanation on the product features, as well as the functions and other
related information, written in this manual, are the latest and accurate as at time of print.
The company reserves all rights to make any correction or amendment to this manual without
prior notice, and shall bear no responsibility for these actions.
Main content
Product Overview
Reader Installation and Commissioning
DEMO User Guide
Routine maintenance and service
Transportation and storage
Packaging and Inspection
After-sale service
Safety Instructions
Warning sign
Improper handling may cause damage to health.
Improper handling may result in equipment damage.
Notication sign
If ignored, it may result in unsuccessful operation.
If ignored, it may result in undesired effect.
Content
1 Product Overview.........................................................................1
1.1 Brief introduction........................................................................................... 1
1.2 Main usage and application range ............................................................... 1
1.3 Product certicate.......................................................................................... 2
1.4 Applicable regions and frequency bands.................................................... 3
1.5 Operation condition....................................................................................... 3
1.6 Safety and protective measures................................................................... 3
1.7 Main functions................................................................................................ 4
1.8 Technical parameters .................................................................................... 4
1.9 Dimensions..................................................................................................... 5
1.10 Weight ........................................................................................................... 5
2 Reader installation and commissioning ....................................6
2.1 Unboxing instruction..................................................................................... 6
2.2 Installation requirement ................................................................................ 6
2.3 Panel description ........................................................................................... 7
2.3.1 I/O and communication patch panel ..................................................................... 7
2.3.2 RF connector panel ............................................................................................ 10
2.3.3 LED display panel .............................................................................................. 11
2.4 Commissioning preparation ........................................................................11
2.4.1 Personal computer Require................................................................................. 11
2.4.2 Reader interface software ................................................................................... 12
2.4.3 External antenna ................................................................................................. 12
2.5 Safety during installation ............................................................................ 14
2.5.1 External RF cable................................................................................................ 14
2.5.2 Power and communication interface cable ......................................................... 15
2.5.3 I/O control port cable.......................................................................................... 17
2.6 Equipment installation................................................................................. 19
2.7 Common scenario during commissioning ............................................... 24
2.8 Inspection and acceptance ......................................................................... 25
3 DEMO user guide........................................................................26
3.1 Preparation and examination...................................................................... 26
3.2 Demo software ............................................................................................. 26
3.2.1 Demo software installation ................................................................................. 26
3.3 Demo software operation............................................................................ 31
3.3.1 Demo initialization ............................................................................................. 31
3.3.2 Connection .......................................................................................................... 31
3.3.3 Reader conguration........................................................................................... 33
3.3.4 Antenna choice.................................................................................................... 34
3.3.5 Scanning conguration ....................................................................................... 34
3.3.6 Tag operation ...................................................................................................... 35
3.3.8 GPIO ................................................................................................................... 36
3.3.9 Operation mode................................................................................................... 38
3.3.10 Version Enquiry ................................................................................................ 39
4 Routine maintenance and service ............................................40
4.1 Routine maintenance................................................................................... 40
4.2 Troubleshooting and solution..................................................................... 40
5 Transportation and storage.......................................................43
5.1 Transport requirements............................................................................... 43
5.2 Storage requirements.................................................................................. 43
6 Packaging and Inspection .........................................................44
6.1 Packaging ..................................................................................................... 44
6.2 Inspection ..................................................................................................... 44
7 After-sales service......................................................................46
7.1 Other matters................................................................................................ 46
User’s Manual
XC-RF850 Reader 1
1 Product Overview
1 Product Overview
1.1 Brief introduction
XC-RF850 is a high performance UHF RFID reader. It is compatibale with
ISO18000-6C protocol, has operating frequency between 902.75MHz -
927.25MHz, excellent security and performance. The reader also has a sleek
design and is very easy to install.

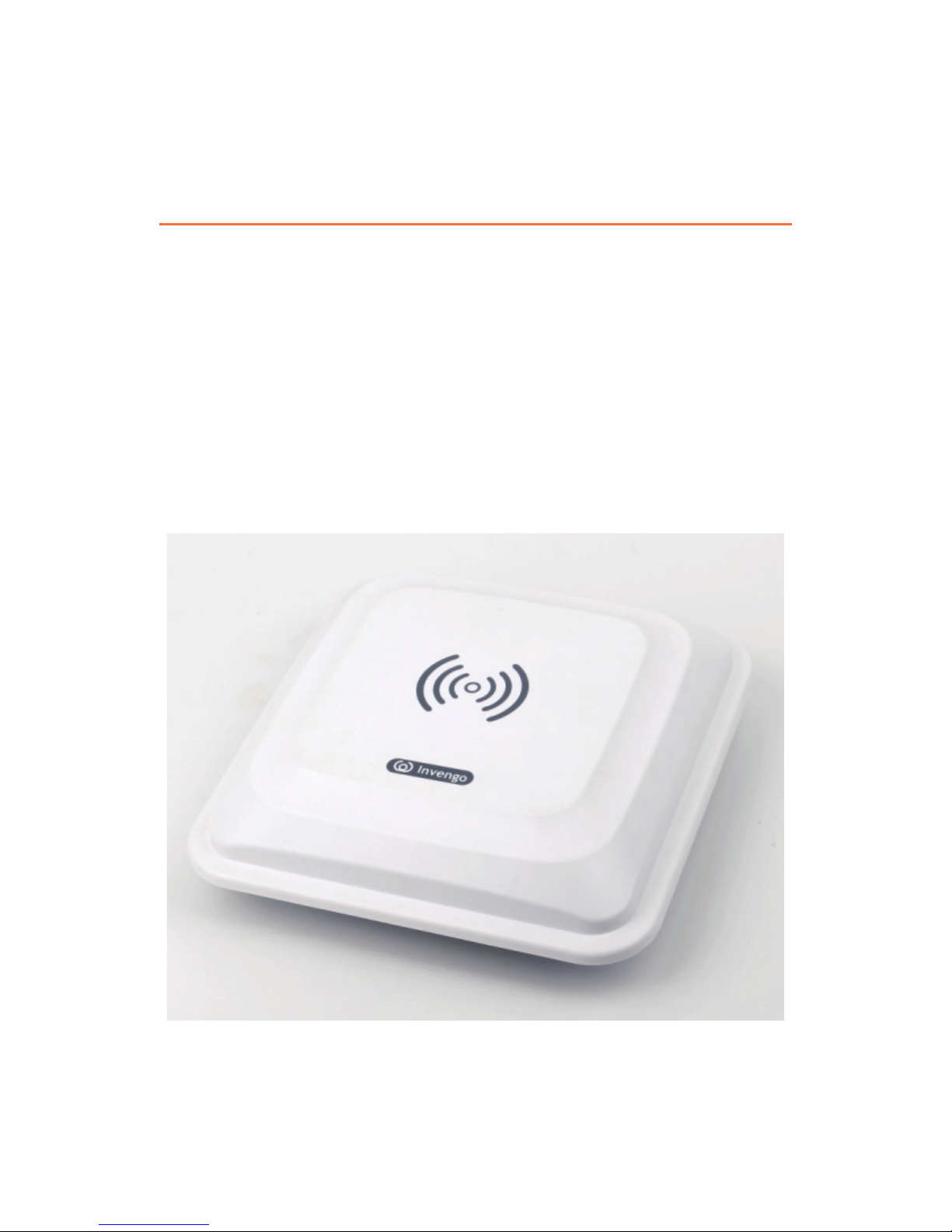

Figure 1-1 XC-RF850 reader
XC-RF850 reader is compatible with the tag under ISO18000-6C protocol standards,
capable of conducting wireless communication with the tag through antenna, and
perform reading and writing operation on tag ID code and memory data.
1.2 Main usage and application range
XC-RF850 reader is a high performance UHF reader, compatible with the
ISO18000-6C tags. In addition to a built-in circular polarization antenna or a
built-in linear polarized antenna, the XC-RF850 reader provides one external
antenna port, which allows cost-effective external antenna solutions.
Compared to similar products in the market, the XC-RF850 reader has the
advantages of compact appearance, exible installation, high protection level,
and can meet the requirement of customer’s dual antenna application.
XC-RF850 reader can meet a variety of application needs, especially in parking
lot management and electronice toll collection.
User’s Manual
XC-RF850 Reader 2
1.3 Product certicate
FCC Certicate
1 Product Overview
