DESCRIPTION

The lateral lock-out kit is used in environments where it is

not desirable to be able to quickly remove the lateral pads.

INSTALLING/REMOVING LATERAL

LOCK-OUT KIT (FIGURE 1)

Installing

1. Place the lateral pad in the mounting bracket and ad-

just if necessary. Refer to the Silhouette Owner's

Manual part number 1080355 for installation/adjustment

instructions.

2. Take the O-ring and push it over the quick-release but-

ton on the lateral mounting bracket so that the O-ring

fits entirely in the groove between the bracket and the

button.

Removing

1. To restore the quick-release functionality to the Silhou-

ette®lateral, remove the O-ring with tweezers or a

paperclip.

Lateral Mounting

Bracket

O-ring

Quick-Release Button

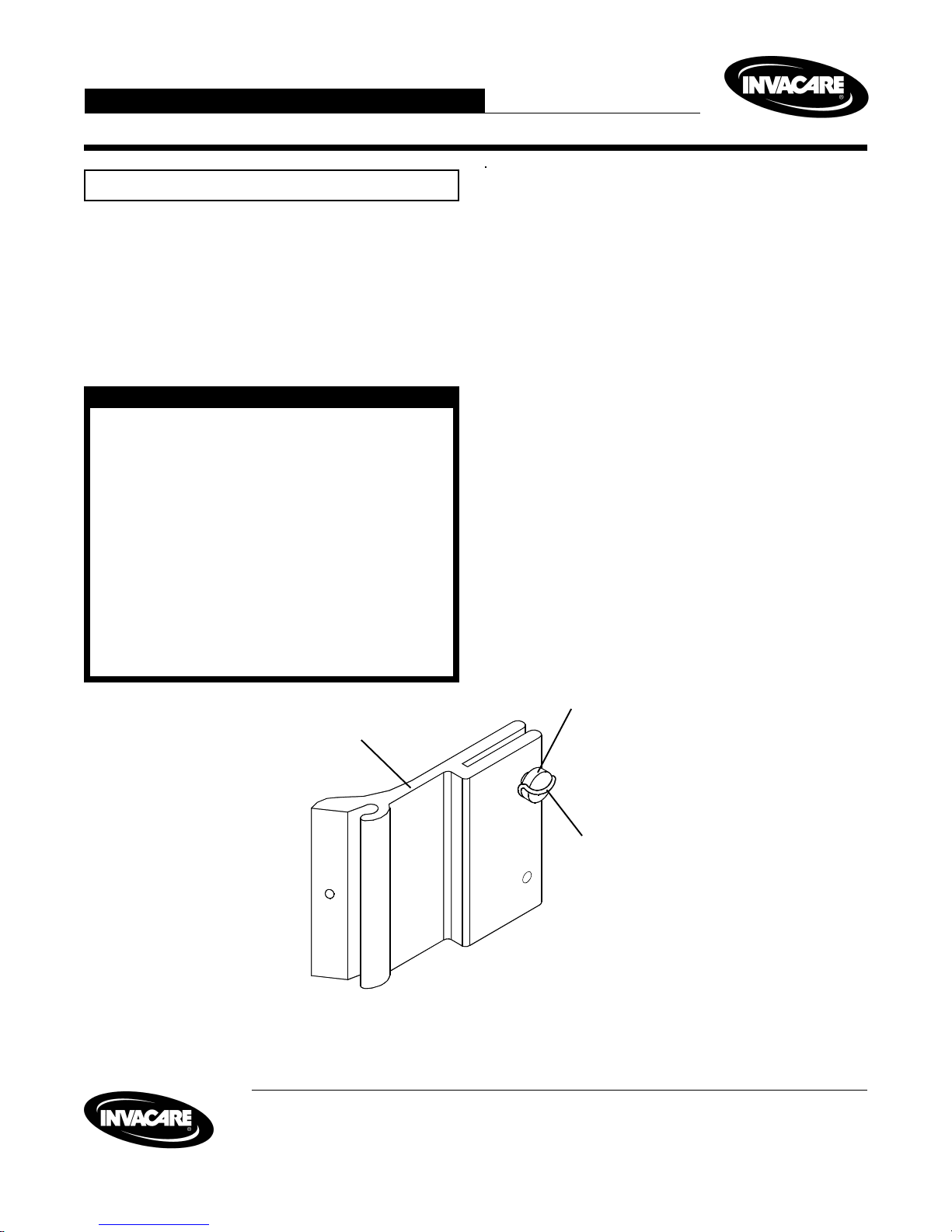

FIGURE 1 - INSTALLING/REMOVING LATERAL LOCK-OUT KIT

Silhouette® Lateral Lock-out Kit

Assembly, Installation and Operating Instructions

Kit Part No. 3002801

Invacare Corporation www.invacare.com

SA Canada

One Invacare Way 5970 Chedworth Way Invacare i a regi tered trademark of Invacare Corporation.

Elyria, Ohio USA Mi i auga, Ontario ©

1999 Invacare Corporation

44036-2125 L5R 3T9, Canada

800-333-6900 800-668-5324 Form No. 99-112 Part No. 0900103 Rev (2) 11/99

SAVE THESE INSTRUCTIONS

NOTE: Check all parts for shipping damage before us-

ing. In case of damage, do not use. Contact the dealer

for further instructions.

SAFETY SUMMARY

Thefollowingreccommendationsaremadeforsafe

installation and use of the Silhouette Lateral Lock-

outKit: GENERAL WARNINGS

DO NOT install this equipment without first

reading and understanding this instruc-

tion sheet. If you are unable to under-

stand these Warnings, Cautions and In-

structions, contact a healthcare profes-

sional, dealer or technical personnel if

applicable before attempting to install

this equipment - otherwise, injury or dam-

age may occur.

Your therapist and physician should be

consulted if you have any questions re-

garding individual limitations and needs.
