(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

OOWWNNEERR’’SSMMAANNUUAALL

Krystal Clear™

Model 633

Filter Pump

IMPORTANT

SAFETY RULES

Read, Understand, and Follow all

Instructions Carefully before

Installing and using this Product.

IIMMPPOORRTTAANNTT!!

DO NOT RETURN PRODUCT TO STORE

To purchase parts and accessories or to obtain non-technical assistance,

Visit www.intexcorp.com

For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):

1-800-234-6839

Monday through Friday, 8:30am to 5:00pm Pacific Time

Don’t forget to try these other fine Intex products: Pools, Pool Accessories,

Inflatable Pools and In-Home Toys, Airbeds and Boats available at fine

retailers or visit our website.

For illustrative purposes only.

109**-R0-0909

109

SAVE THESE INSTRUCTIONS Page 2

(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

TTAABBLLEEOOFFCCOONNTTEENNTTSS

Warnings.......................................................................... 3

Parts List & Reference.................................................... 4-6

Set Up Instructions......................................................... 7-9

Operating Instructions.................................................... 10-11

Pool Care and Chemicals............................................... 11-12

Long Term Storage.......................................................... 12

Troubleshooting Guide................................................... 13

Common Pool Problems................................................. 14

General Aquatic Safety................................................... 15

Limited Warranty............................................................. 16

Pool Safety Sign.............................................................. 17

Intex Service Center Locations...................................... 18

109

SAVE THESE INSTRUCTIONS Page 3

(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

SSAAFFEETTYYRRUULLEESS

This product is for use with storable pools only. Do not use with permanently-installed

pools. A storable pool is constructed so that it is capable of being readily disassembled

for storage and reassembled to its original integrity. A permanently-installed pool is

constructed in or on the ground or in a building such that it cannot be readily

disassembled for storage.

CAUTION

WARNING

• To reduce the risk of injury, do not permit children to use this product. Always

supervise children and those with disabilities.

• Risk of electric shock. Connect this product only to a grounding type receptacle

protected by a ground-fault circuit interrupter (GFCI). Contact a qualified electrician

if you cannot verify that the receptacle is protected by a GFCI.

• Do not bury electrical cord. Locate cord where it will not be damaged by lawn

mowers, hedge trimmers, and other equipment.

• To reduce the risk of electric shock, replace damaged cord immediately. Use a

qualified electrician to replace the cord.

• To reduce the risk of electric shock, do not use extension cords, timers, plug

adaptors or converter plugs to connect unit to electric supply; provide a properly

located outlet.

• Assembly and disassembly by adults only.

• Do not attempt to plug in or unplug this product while standing in water or when

your hands are wet.

• Do not use an appliance leakage current interrupter (ALCI) in place of a GFCI

since the ALCI will not protect people.

• Position this product away from pool to prevent a child from climbing on pump to

access the pool.

• Children must stay away from this product and electrical cord(s).

• Do not operate this product when pool is occupied.

• Always unplug this product from the electrical outlet before removing, cleaning,

servicing or making any adjustment to the product.

• This product is intended to be used only for the purposes described in the manual!

FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN

PROPERTY DAMAGE, ELECTRIC SHOCK, ENTANGLEMENT OR

OTHER SERIOUS INJURY OR DEATH.

These product warnings, instructions and safety rules provided with the product represent

some common risks of water recreation devices and do not cover all instances of risk and

danger. Please use common sense and good judgement when enjoying any water activity.

IMPORTANT SAFETY RULES

Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.

READ AND FOLLOW ALL INSTRUCTIONS

109

SAVE THESE INSTRUCTIONS Page 4

(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

PPAARRTTSSLLIISSTT

13 14 15

11 12

PARTS LIST

NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to scale.

109

SAVE THESE INSTRUCTIONS Page 5

(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

PPAARRTTSSRREEFFEERREENNCCEE

PARTS REFERENCE

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

When ordering parts, be sure to quote the model number and part numbers.

NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to

scale.

REF. NO. DESCRIPTION QTY. SPARE PART NO.

THREADED FILTER HOUSING COLLAR

AIR RELEASE VALVE/SEDIMENT RELEASE VALVE

VALVE O-RING

FILTER HOUSING COVER

FILTER HOUSING O-RING

FILTER CARTRIDGE (59905)

AIR RELEASE VALVE B (WITH O-RING)

PUMP HOSE WITH NUTS

10491

10460

10264

10490

10492

10725

10493

109

SAVE THESE INSTRUCTIONS Page 6

(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

PPAARRTTSSRREEFFEERREENNCCEE

PARTS REFERENCE (continued)

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

NOTE: Drawings for illustration purpose only. May not reflect actual product. Not to

scale.

11 12 13 14 15

11 12 13 14 16

REF. NO. DESCRIPTION QTY. SPARE PART NO.

PLUNGER VALVE (HOSE O-RING & STEP WASHER INCLUDED)

HOSE O-RING

STEP WASHER

STRAINER NUT

FLAT STRAINER RUBBER WASHER

THREADED STRAINER CONNECTOR

ADJUSTABLE POOL INLET NOZZLE

STRAINER GRID

10747

10262

10745

10256

10255

10744

11074

10253

109

SAVE THESE INSTRUCTIONS Page 7

(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

SSEETT--UUPPIINNSSTTRRUUCCTTIIOONNSS

1. Grasp the strainer and plunger valve

mechanism.

2. In a counter-clockwise motion unscrew

plunger valve union from the threaded

strainer connector (14). Be careful not to

lose the step rubber washer (11). Place

the plunger valve on the ground in a safe

place (see drawing 1).

3. In a counter-clockwise motion unscrew

the strainer nut (12) from the threaded

connector (14). Leave the flat

washer (13) on the connector (14).

4. Install the strainer and plunger valve at the

lower position of pool outlet (marked "+").

From the inside of the pool liner insert

the connector (14) into one of the pre-cut

holes with the washer remaining on the

connector to be placed against the inside

of the liner wall.

5. With the flat side of the strainer nut (12)

facing the outside wall of the liner in a

clockwise motion screw the strainer nut (12)

back onto the threaded connector (14)

(see drawing 2). Before assembly, lubricate

the threads with a petroleum jelly.

6. Finger tighten the strainer grid (16) and

the strainer nut (12) onto the threaded

connector (14).

7. Grasp the plunger valve assembly. Make

sure the step washer (11) is in place.

8. In a clockwise motion screw the plunger

valve union back onto the threaded

connector (14) (see drawing 3).

9. Examine the plunger valve to see if the

handle is pushed fully down to the "0/1"

position. If not, then grasp the handle at

the top and push down turning the

handle in a clockwise direction until the

plastic protruding notch anchors in

the "0/1" position. This will prevent

water from flowing out during filling

(see drawings 4.1 & 4.2).

The strainer grid prevents large objects from jamming and/or damaging the

filter pump and the plunger valve assembly prevents water from flowing into

the filter pump while the filter cartridge is being placed or cleaned. If your

pool has inflatable top ring, install the strainer, nozzle and plunger valve

before inflating the pool liner top ring.

4.1

4.2

13 14 16

INSIDE

LINER WALL

INSIDE

LINER

WALL

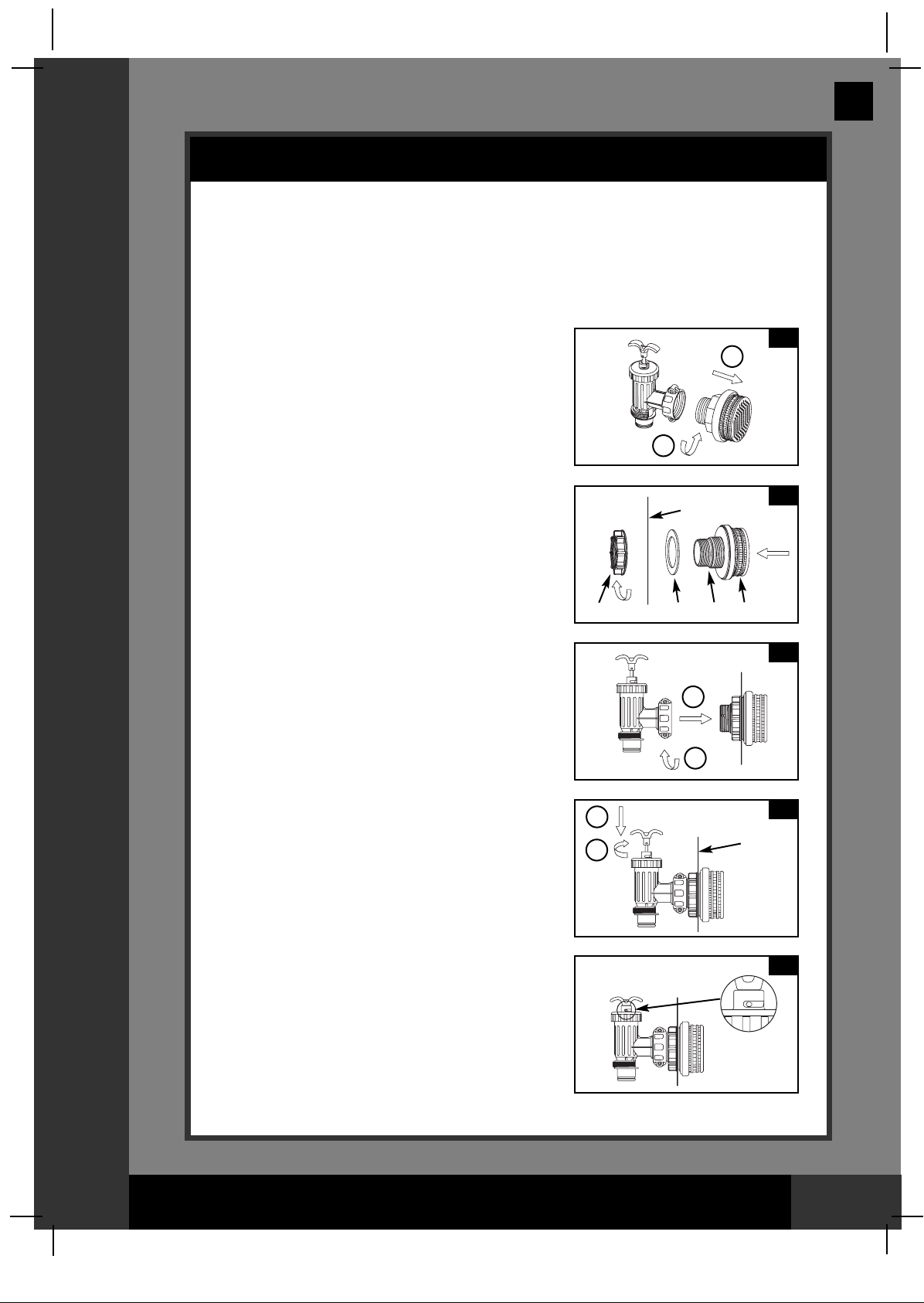

POOL OUTLET - STRAINER & PLUNGER VALVE SET-UP

109

SAVE THESE INSTRUCTIONS Page 8

(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

POOL INLET - NOZZLE & PLUNGER VALVE SET-UP

SSEETT--UUPPIINNSSTTRRUUCCTTIIOONNSS

8.1

8.2

INSIDE

LINER

WALL

POOL

13 14 15

INSIDE

LINER WALL

WATER

FLOW

1. Grasp the nozzle and plunger valve

mechanism.

2. In a counter-clockwise motion unscrew

plunger valve union from the threaded

strainer connector (14). Be careful not to

lose the step rubber washer (11). Place

the plunger valve on the ground in a safe

place (see drawing 5).

3. In a counter-clockwise motion unscrew

the strainer nut (12) from the threaded

connector (14). Leave the flat washer (13)

on the connector (14).

4. Install the nozzle and plunger valve at the

upper position of pool inlet. From the inside

of the pool liner insert the connector (14)

into one of the pre-cut holes with the

washer remaining on the connector to be

placed against the inside of the liner wall.

5. With the flat side of the strainer nut (12)

facing the outside wall of the liner in a

clockwise motion screw the strainer nut (12)

back onto the threaded connector (14) (see

drawing 6). Before assembly, lubricate the

threads with a petroleum jelly.

6. Finger tighten the adjustable pool inlet

nozzle (15) and the strainer nut (12) onto

the threaded connector (14).

7. Grasp the plunger valve assembly. Make

sure the step washer (11) is in place.

8. In a clockwise motion screw the plunger

valve union back onto the threaded

connector (14) (see drawing 7).

9. Examine the plunger valve to see if the

handle is pushed fully down to the "0/1"

position. If not, then grasp the handle at

the top and push down turning the handle

in a clockwise direction until the plastic

protruding notch anchors in the "0/1"

position. This will prevent water from

flowing out during filling (see drawings 8.1

& 8.2).

10. Adjust the direction of nozzle head pointing

away from the pool outlet for a better

circulation result (see drawing 9).

11. The pool liner is now ready to fill with

water. Consult the above-ground-pool

owner’s manual for filling instructions.

109

SAVE THESE INSTRUCTIONS Page 9

(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

SSEETT--UUPPIINNSSTTRRUUCCTTIIOONNSS

FILTER PUMP HOSE CONNECTION SET UP

1. Remove the Krystal Clear™ filter pump and hoses from the packaging.

2. Place the filter pump in a location for hose (8) connections to the plunger valve

assemblies.

Note: Some regional regulations may require the filter pump to be

mounted on a stationary platform. There are two mounting holes located

in the pump base for this reason. Consult your local authorities for

filter-pump mounting requirements.

3. Grasp the two pump hoses (8) and connect the hose nuts to the filter pump.

4. In a counter-clockwise motion unscrew the threaded filter housing collar (1)

from the filter housing. Place it in a safe place.

5. The Filter Pump is an airtight system. In a counter-clockwise motion turn both

air release valves (2 & 7) 1 - 2 turns to open.

DO NOT remove air release valves as water will expel with force if the

motor is turned on and injury may occur.

6. Grasp and remove the filter housing cover (4). Check to see if a cartridge is

inside the housing. If yes, replace the cover, finger tighten the housing collar (1)

back onto the filter housing.

7. Gently finger tighten the sediment release valve located at the bottom of the

housing to be sure that water does not leak out.

8. When the pool is filled connect the hose from the bottom of the filter housing to

the highest strainer assembly. The hose connection is made at the bottom of

the plunger valve assembly. Use the hose nut to attach the hose.

9. Connect the 2nd hose to the middle of the motor housing and to the remaining

liner connection.

WARNING

Position this product away from pool to prevent a child from climbing the

pool.

WATER LEVEL

ADJUSTABLE POOL

INLET NOZZLE

PLUNGER VALVE

ASSEMBLY

HOSE NUT

OUTLET HOSE

INSIDE

LINER WALL

STRAINER GRID

FILTER HOUSING

COLLAR

FILTER CARTRIDGE

INSIDE

FILTER HOUSING

COVER

AIR RELEASE

VALVE

MOTOR

HOUSING

HOSE O-RING

POWER CORD

INLET HOSE OUTSIDE

LINER WALL

(ILLUSTRATION NOT TO SCALE)

109

SAVE THESE INSTRUCTIONS Page 10

(109) MODEL 633 FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 09/26/2008

English

OOPPEERRAATTIINNGGIINNSSTTRRUUCCTTIIOONNSS

FILTER CARTRIDGE CLEANING OR REPLACEMENT

1. Make sure the filter pump switch is "OFF". The switch is located on the motor

housing.

2. Connect the power cord to a GFCI protected electrical outlet.

It is recommended that the filter cartridge be replaced at least

every 2 weeks.

1. Make sure the filter pump is turned off, and disconnect the power cord from the

electrical outlet.

2. Close both plunger valves. Grasp a plunger valve handle. Turn the handle

counter-clockwise, push down until it stops and then turn it clockwise until the

plastic protruding notch anchors in the "0/1" position. Repeat for the 2nd

plunger valve. This prevents the water from flowing out of the pool.

3. Gently turn the top air release valve 1-2 turns in a counter-clockwise direction.

This will allow the housing cover to be easily removed.

4. In a counter-clockwise direction remove the filter housing collar (1). Place it in a

safe location.

5. Remove the housing cover (4).

6. Remove the "OLD" filter cartridge.

7. Examine the inside of the filter housing.

3. Grasp a plunger valve handle. Turn the handle counter-clockwise, pull up until

it stops, and then turn it clockwise until the metal protruding notch anchors in

the "0/1" position. Repeat for the 2nd plunger valve. This opens the valves to

allow water to flow into the filter pump.

4. With water flowing into filter pump, the water pressure will allow the air trapped

inside to escape from the air release valves (2 & 7). When all the air has

escaped water will flow out of the valves (2 & 7). When this occurs gently finger

tighten the valves (2 & 7) in a clockwise direction.

5. Turn the switch "ON". The filter pump is now filtering the water.

6. Operate the filter pump until the desired water clarity is obtained.

To prevent air lock, open the lower plunger valve (connected inlet hose)

first and then the upper plunger valve (connected outlet hose). Open air

release valves, wait until water starts to flow out of the air release valves,

close air release valves.

IMPORTANT

Risk of electric shock. Connect this product only to a grounding type

receptacle protected by a ground-fault circuit interrupter (GFCI). Contact a

qualified electrician if you cannot verify that the receptacle is protected by

a GFCI.

WARNING

OPERATING INSTRUCTIONS

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Bomba de piscina de Intex

Intex

Intex SF80220 Manual de usuario

Intex

Intex Krystal Clear C600 Manual de usuario

Intex

Intex Krystal Clear SF90110-1 Manual de usuario

Intex

Intex krystal clear 602 Manual de usuario

Intex

Intex Krystal Clear SF10110 Manual de usuario

Intex

Intex SF60220RC Manual de usuario

Intex

Intex Krystal Clear SF15110 Manual de usuario

Intex

Intex 128376NP Manual de usuario

Intex

Intex Krystal Clear 636G Manual de usuario

Intex

Intex SF20110 Manual de usuario

Intex

Intex Krystal Clear CS8221 Manual de usuario

Intex

Intex Krystal Clear 634RC Manual de usuario

Intex

Intex 128366NP Manual de usuario

Intex

Intex Krystal Clear 602G Manual de usuario

Intex

Intex DP30110 Manual de usuario

Intex

Intex Krystal Clear 635T Manual de usuario

Intex

Intex SF90110T Manual de usuario

Intex

Intex 128638GS Manual de usuario

Intex

Intex Krystal Clear 604 Manual de usuario

Intex

Intex ECO15220-1 Manual de usuario

Intex

Intex Krystal Clear C1000 Manual de usuario

Intex

Intex ECO20220 Manual de usuario

Intex

Intex Krystal Clear 638R Manual de usuario

Intex

Intex CS15220 Manual de usuario

Manuales populares de Bomba de piscina de otras marcas

TIP

TIP STEAM 35000 INV Diagrama de cableado

Jacuzzi

Jacuzzi J-HI27C Manual de usuario

PoolRite

PoolRite SQI 400 Manual de usuario

Pentair

Pentair IntelliComm Manual de usuario

Calpeda

Calpeda NMP Manual de usuario

WilTec

WilTec 50374 Manual de usuario

Evolution

Evolution Evoflow Storm Eco-V Manual de usuario

AquaTools

AquaTools AT240701 Manual de usuario

Sibo

Sibo AquaForte RD352 Manual de usuario

CLS

CLS VICTORIA PLUS SILENT Manual de usuario

Pond One

Pond One Piranha 800 Manual de usuario

Hayward

Hayward VSP Manual de usuario

Resol

Resol DeltaSol B Pro Manual de usuario

Evolution Aqua

Evolution Aqua UniTech Perfect 5000 Manual de usuario

Outside Living Industries

Outside Living Industries Ubbink Heatermax Pool Guía de inicio rápido

CPI

CPI Olympic 2P1815 Manual de usuario

Flotec

Flotec FP6121-01 Manual de usuario

Pentair

Pentair ONGA LEISURETIME LTP400 Manual de usuario
