Evaluation Board Manual

R34UZ0012EU0101 Rev.1.01 Page 1

The ISL73041SEHEV1Z evaluation board evaluates

the performance of the radiation-hardened

ISL73041SEH 12V half-bridge GaN FET driver in an

open-loop Buck configuration. The

ISL73041SEHEV1Z evaluation board includes the

GaN FET half-bridge driver, Renesas GaN FETs, and

a Buck converter power stage inductor and output

capacitors.

For more information about the ISL73041SEH, refer

to the ISL73041SEH Datasheet.

Features

▪4.75V to 13.2V VDD power supply range

▪300kHz to 1MHz PWM frequency range (external

component limited)

▪Bridge voltage (V_BUS) range: Up to 13.2V

▪5V max recommended buck output voltage

(external component limited)

▪Buck output load current up to 25A

Specifications

▪Number of layers: 4

▪PCB copper weight: 2oz

▪Board revision: C

Figure 1. Application Diagram ISL73041SEH Driving GaN FET Half Bridge

ISL73041SEH

Half

Bridge

Driver

PVCC LDO

4.5V to 5.5V

VOUT

VDD

PWM

VBUS

PHS

RDU

RDL

4.75V to 13.2V

BOOT

Dead Time

Control

ISL73041SEHEV1Z

R34UZ0012EU0101 Rev.1.01 Page 2

Jun 21, 2023

ISL73041SEHEV1Z Evaluation Board Manual

Contents

1. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Quick Start Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.2 Changing Power Inductor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.3 Changing Power GaN FETs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.4 Changing Programmable Dead Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.5 Changing the GaN FET Gate Drive Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Board Design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Layout Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Schematic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

2.3 Bill of Materials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

2.4 Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3. Typical Performance Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4. Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

5. Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

R34UZ0012EU0101 Rev.1.01 Page 3

Jun 21, 2023

ISL73041SEHEV1Z Evaluation Board Manual

1. Functional Description

1.1 Quick Start Instructions

1. Verify that the following jumpers are installed:

▪JP1 ‒Install LED indicator for FLTb fault status

▪JP2 ‒2-3 position for 2.12kΩ(10ns dead time); DNP for 10kΩ(50ns dead time);

▪JP3 ‒2-3 position for 2.12kΩ(10ns dead time); DNP for 10kΩ(50ns dead time)

▪JP4 ‒Install for FB = PVCC = 4.5V

▪JP5 ‒2-3 position for EN = VDD

▪No other jumpers should be populated

2. Apply 4.75V to 13.2V from VDD to GND. Check for voltage on AVCC = 5.0V and PVCC = 4.5V. FLTb LED

should be green.

3. Apply 5V to 13.2V from V_BUS to GND.

4. Apply a 0V to 5V, 500kHz signal with a duty cycle of D = ton/Ts to PWM input.

5. Measure voltage at V_OUT. It should be D×V_BUS, where D is the duty cycle of the PWM signal. Renesas

recommends keeping V_OUT below 5V.

1.2 Changing Power Inductor

The ISL73041SEHEV1Z is populated with a 0.22µH inductor on the L1 footprint targeted for 500kHz to 1MHz

switching frequency. The inductor used is a Coilcraft XAL1010-022. If the user requires using a lower switching

frequency and maintaining a similar ripple current, a larger inductance must be used. The L2 footprint is overlaid

on L1 and is physically larger to accommodate a larger inductance value with similar saturation current rating.

1.3 Changing Power GaN FETs

The ISL73041SEHEV1Z is configured with a Renesas ISL70020SEH 40V GaN FET for the high side and two

ISL70020SEH GaN FET in parallel for the low side, intended for low-duty cycle operation. Renesas also offers

100V and 200V GaN FETs in the same package. The user may change out these GaN FETs depending on their

rDS(ON) requirements.

1.4 Changing Programmable Dead Time

The ISL73041SEH driver offers 6.5ns-50ns programmable dead-time for the PWM inputs. Rising edge delays on

UG and LG are independently programmable through a resistor on the RDU and RDL pins. See Figure 11 and

Figure 12 to help choose the select resistor for the required dead time.

1.5 Changing the GaN FET Gate Drive Voltage

The gate drive voltage for the GaN FETs is set by the PVCC LDO internal to the ISL73041SEH. The PVCC LDO

has a programmable range of 4.5V to 5.5V with the option to short the FB pin to PVCC to set PVCC = 4.5V using

internal resistor dividers. If the user requires a different PVCC voltage, set the external feedback resistors using

Equation 1. For the GaN FETs, Renesas recommends keeping the PVCC gate drive voltage to 4.5V.

(EQ. 1)

PVCC 1.2V R12

R13

-----------1+





=

R34UZ0012EU0101 Rev.1.01 Page 4

Jun 21, 2023

ISL73041SEHEV1Z Evaluation Board Manual

2. Board Design

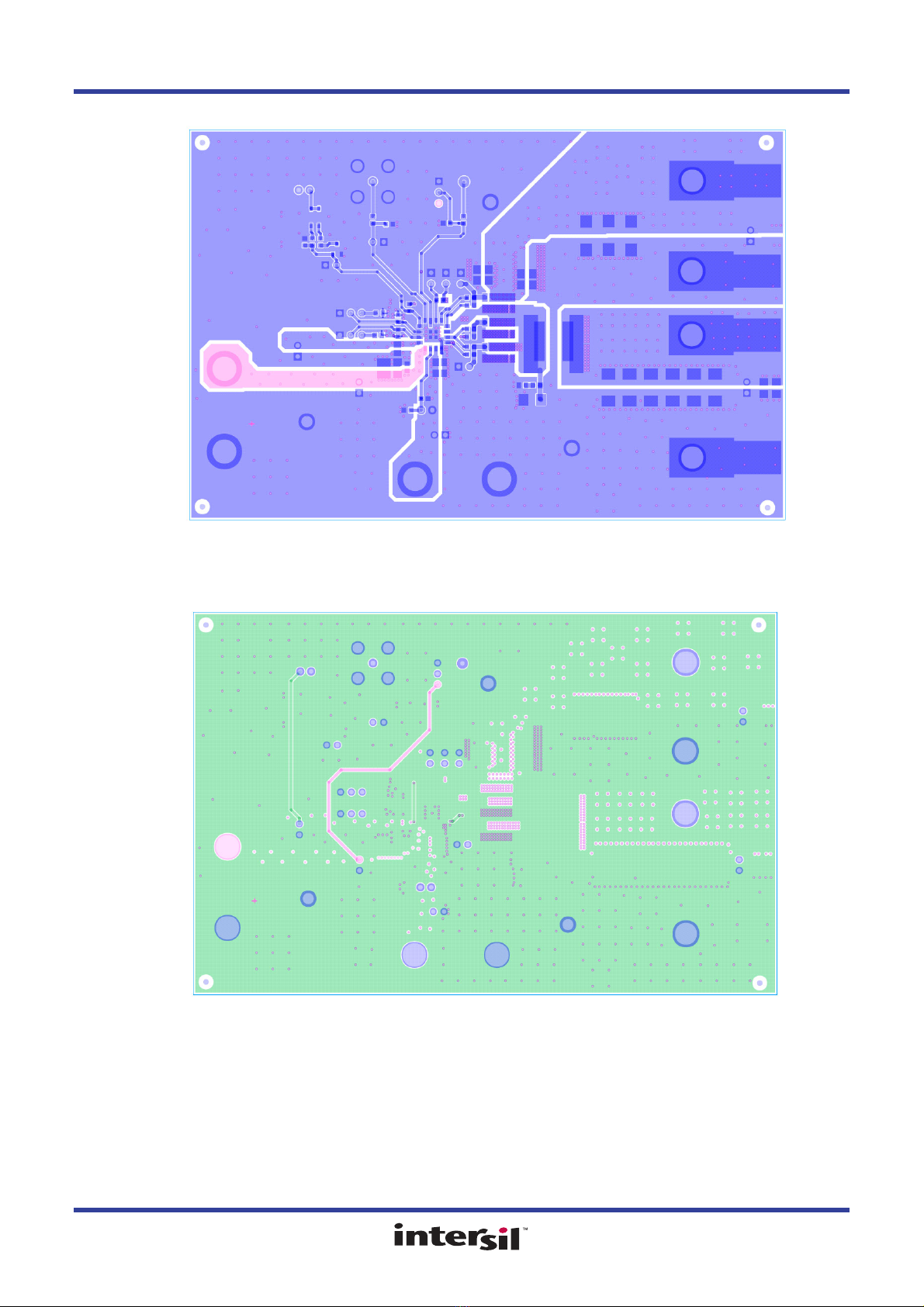

Figure 2. Evaluation Board (Top)

Figure 3. Evaluation Board (Bottom)

R34UZ0012EU0101 Rev.1.01 Page 5

Jun 21, 2023

ISL73041SEHEV1Z Evaluation Board Manual

2.1 Layout Guidelines

PCB design files are available on the website to study or incorporate into your design.

▪Use a multi-layer PCB with 2-ounce (70µm) copper outer layers to maximize PCB current capacitor and thermal

handling.

▪Place low ESR X7R grade or better ceramic capacitors for high-frequency decoupling as close to the package

pins as possible. These include the capacitors between VDD-SGND, AVCC-SGND, PVCC-PGND, and

BOOT-PHS.

▪Place the RDU and RDL dead-time control resistors close to their respective pins and connect them to SGND

through the PCB GND plane.

▪Connect the PGND pin and four bottom EPADs of the package to the top layer GND plane of the PCB. To

further improve thermal performance, place at least four vias in the GND plane under the package EPAD to

another internal GND plane to dissipate heat.

▪Place the ISL73041SEH as close as possible to the half-bridge power GaN FET to minimize trace inductance

and high current loop area between driver output and GaN FET gate.

▪The PGND pin and low-side FET source should be connected commonly through the PCB GND plane. Route

the PHS pin to the switch node of the half-bridge power stage with a short and wide trace to minimize

inductance and loop area.

▪For the low-side drive, the PVCC capacitor, PVCC and PGND pins, low-side driver gate outputs, low-side FET

gate, and GND plane form a current loop during FET turn on and turn off. For the high-side drive, the bootstrap

capacitor, BOOT and PHS pins, high-side driver gate outputs, high-side FET gate, and switch node form a

current loop during FET turn on and turn off. Keep these loops short, wide, and avoid overlapping with other

sensitive signals.

▪Size the phase node of the half-bridge (high-side FET source and low-side FET drain) area to handle the

current and thermal dissipation from the FETs and switching load. The phase node copper area usually ends up

being a significantly large shape. In addition, the phase node is where high voltage and high dv/dt switching

occurs. In general, there are two layout practices for handling the phase node. One recommendation is to

remove any conductors (including ground) that overlap the phase node on the adjacent layer of the PCB. The

other recommendation is to repeat the phase node shape on every layer of the PCB. Both methods minimize

the capacitive coupling of noise into the GND plane and prevent any sensitive analog signals from being routed

underneath the phase node and causing unintentional common mode noise.

R34UZ0012EU0101 Rev.1.01 Page 6

Jun 21, 2023

ISL73041SEHEV1Z Evaluation Board Manual

2.2 Schematic Diagram

Figure 4. ISL73041SEHEV1Z Board Schematics

UPDATED BY:

TITLE:

DATE:

REV.MASK#

FILENAME:

TESTER

DATE:

HRDWR

SHEET

DRAW N

BY:

RELEASED BY:

ENGINEER:

RICHARD KOVACS

1/18/2022

1 OF 1

06/14/2021RICHARD KOVACS

TIM LOK

ISL73041SEHEV1Z

DNP

AVCC

DNP

VDD GND

PWM

GND

VBUS

DNP

GND

DNP

PVCC

VOUT

DNP

AVCC

VDD

AVCC

VDD

J11

4.7UF

C33

10UF

100UF

C20

28K

R12

J13

TP3

330UF

C14

330UF

C21

0.1UF

J16

680

4.7UF

C26

1UF

RED

GRN

@diodes.ssl_lxa3025igc(chips):page3_i22

0.22UH

R10

Default

BA1

575-6

10K

100UF

C22

TP2

4.7UF

C38

SUB

ISL70020SEHML

2N7002L

C27

330UF

R15

6.1UH

JP4

C10

330UF

4.7UF

C35

330UF

C23

4.7UF

C39

4.7UF

C28

R14

10K

100UF

C15

BA3

575-6

Default

C11

100UF

C34

4.7UF

R19

680

330UF

C29

R17

330UF

C16

R11

100K

Default

BA2

575-6

330UF

C12

10K

4.7UF

C36

R18

TBD

4.7UF

C30

R16

2.7K

100UF

C17

EP2

EP1

AVCC

RDL

RDU

FLTB

PWM

BOOT

UGH

UGL

PHS

LGH

LGL

EP4

EP3

PGND

PVCC

VDD

ISL73041SEHVL

EP2

EP1 EP4

EP3

JP1

4.7UF

C37

SUB

ISL70020SEHML

2.2UF

C24

4.7UF

2.7K

R20

DNP

C31

330UF

TBD

C18

330UF

JP2

J12

J15

SUB

ISL70020SEHML

C25

330UF

JP5

JP3

J10

0.1UF

4.7UF

C32

TBD

C19

330UF

10.2K

R13

J14

Default

575-6

BA4

1UF

TP4

TP1

100UF

C13

100K

UNNAMED_3_BANANAJACK_I93_IN1

UNNAMED_3_BNC4G_I48_IN1

UNNAMED_3_CONN2_I 100_IN2

UNNAMED_3_CONN2_I102_IN2

UNNAMED_3_CONN2_I139_IN2

UNNAMED_3_CONN2_I147_IN2

UNNAMED_3_CONN2_I33_IN2

UNNAMED_3_CONN2_I40_IN2

UNNAMED_3_CONN2_I 41_IN2

UNNAMED_3_CONN2_I57_IN2

UNNAMED_3_ISL70020SEH_I 2_4

UNNAMED_3_ISL73041SEH_I4_1

UNNAMED_3_ISL73041SEH_I 4_11

UNNAMED_3_ISL73041SEH_I 4_12

UNNAMED_3_ISL73041SEH_I 4_14

UNNAMED_3_ISL73041SEH_I4_15

UNNAMED_3_ISL73041SEH_I 4_4

UNNAMED_3_ISL73041SEH_I 4_5

UNNAMED_3_ISL73041SEH_I4_8

UNNAMED_3_JUMPER2_I29_IN2

UNNAMED_3_JUMPER3_I42_IN3

UNNAMED_3_JUMPER3_I43_IN3

UNNAMED_3_ NCHANNEL_I 135_D

UNNAMED_3_SMCAP_I98_A

UNNAMED_3_SMRES_I15_B

UNNAMED_3_SMRES_I5_B

UNNAMED_3_SMRES_I6_B

R34UZ0012EU0101 Rev.1.01 Page 7

Jun 21, 2023

ISL73041SEHEV1Z Evaluation Board Manual

2.3 Bill of Materials

Qty Reference Designator Description Manufacturer Manufacturer Part

PWB-PCB,

ISL73041SEHEV1Z, REVC,

ROHS

Imagineering Inc ISL73041SEHEV1ZREVCPCB

2C4,C7

CAP, SMD, 0805, 1.0µF,

25V, 10%, X7R, ROHS TDK C2012X7R1E105K

12 C24, C26, C28, C30,

C32-C39

CAP, SMD, 1206, 4.7µF,

25V, 10%, X7R, ROHS TDK C3216X7R1E475K

1C2

CAP, SMD, 1210, 10µF, 25V,

10%, X7R, ROHS TDK C3225X7R1E106K

1C3

CAP, SMD, 1206, 2.2µF,

50V, 10%, X7R, ROHS Murata GRM31CR71H225KA88L

1C6

CAP, SMD, 0603, 0.1µF,

16V, 10%, X7R, ROHS Murata GCM188R71C104KA37D

1C5

CAP, SMD, 0603, 0.1µF,

25V, 10%, X7R, ROHS Yageo CC0603KRX7R8BB104

0C1,C9

CAP, SMD, 0603, DNP-

PLACE HOLDER, ROHS

0C8

CAP, SMD, 0805, DNP-

PLACE HOLDER, ROHS

3 C11, C13, C15

CAP-TANT, SMD,

7.3×4.3mm, 100µF, 25V,

20%, 40mΩat 100MHz,

ROHS

Kemet T521D107M025ATE040

6C10, C12, C14, C16, C18,

C19

CAP-TANT, SMD,

7.3×4.3×4, 330µF, 10V,

20%, 5mΩ, TIN, ROHS

Kemet T530X337M010ATE005

1L2

COIL-PWR INDUCT,

AEC-Q200, SMD,

11.3×10mm, 0.22µH, 20%,

98.8A, ROHS

Coilcraft XAL1010-221MEB

3 TP1, TP3, TP4

CONN-DBL TURRET, TH,

0.218x0.109 PCB MNT,

TIN/BRASS, ROHS

Keystone 1502-2

1J5

CONN-BNC,

RECEPTACLE, TH, 4

POST, 50Ω,

SILVERCONTACT, ROHS

Amphenol 31-5329-51RFX

1TP2

CONN-MINI TEST POINT,

VERTICAL, WHITE, ROHS Keystone 5002

4 BA1-BA4

CONN-JACK, MINI

BANANA, SDRLESS,

NICKEL/BRASS, 0.175

PLUG, ROHS

Keystone 575-6

3 JP2, JP3, JP5

CONN-HEADER, 1×3,

BREAKAWY 1×36, 2.54mm,

ROHS

BERG/FCI 68000-236HLF

R34UZ0012EU0101 Rev.1.01 Page 8

Jun 21, 2023

ISL73041SEHEV1Z Evaluation Board Manual

2JP1,JP4

CONN-HEADER, 1×2,

RETENTIVE, 2.54mm,

0.230×0.120, RoHS

BERG/FCI 69190-202HLF

11 J1, J2, J3, J4, J6, J7, J8,

J9, J10, J11, J12

CONN-HEADER, TH, 2×1,

BRKAWY, 0.100inCENTER,

0.230×0.200in, ROHS

Samtec TSW-102-08-F-S

1D1

LED, SMD, 3×2.5mm, 4P,

RED/GREEN, 12/20MCD,

Lumex SSL-LXA3025IGC-TR

3Q1-Q3

IC-PROTO, RAD HARD,

40V GAN FET, 4P, CLCC,

ROHS

Renesas Electronics

America ISL70020SEHL/PROTO

1U1

IC-RAD LIGHT GaN FET,

HALF BRIDGE DRIVER,

14P, CLCC, ROHS

Renesas Electronics

America ISL73041SEHL/PROTO

1Q4

TRANSISTOR-MOS, N-

CHANNEL, SMD, SOT23,

60V, 115mA, ROHS

On Semiconductor 2N7002LT1G

2R5,R6

RES-AEC-Q200, SMD,

0603, 680Ω, 1/10W, 1%, TF,

ROHS

Vishay/Dale CRCW0603680RFKEA

0R20

RESISTOR, SMD, 0603,

0.1%, MF, DNP-PLACE

HOLDER

8 R9, R10, R14-R19 RES, SMD, 0603, 0Ω,

1/10W, TF, ROHS Venkel CR0603-10W-000T

3R2,R4,R8

RES, SMD, 0603, 10K,

1/10W, 1%, TF, ROHS Venkel CR0603-10W-1002FT

1R13

RES, SMD, 0603, 10.2K,

1/10W, 1%, TF, ROHS Yageo 9C06031A1022FKHFT

2R1,R3

RES, SMD, 0603, 2.7K,

1/10W, 1%, TF, ROHS Venkel CR0603-10W-2701FT

1R12

RES, SMD, 0603, 28K,

1/10W, 1%, TF, ROHS Venkel CR0603-10W-2802FT

0R7,R11

RES, SMD, 0603, DNP-

PLACE HOLDER, ROHS

4 Four corners

SCREW, 4-40X1/4in,

PHILLIPS, PANHEAD,

STAINLESS, ROHS

BUILDING FASTENERS PMSSS 440 0025 PH

4 Four corners

STANDOFF, 4-40X3/4in,

F/F, HEX, ALUMINUM, 0.25

OD, ROHS

Keystone 2204

4 J13-J16

HDWARE, MTG, CABLE

TERMINAL, 6-14AWG,

LUG&SCREW, ROHS

BERG/FCI KPA8CTP

1 Place assy in bag BAG, STATIC, 6X8,

ZIPLOC, ROHS Uline S-2262

0C17, C20, C22

(T521D107M025ATE040)

DO NOT POPULATE OR

PURCHASE

Qty Reference Designator Description Manufacturer Manufacturer Part

R34UZ0012EU0101 Rev.1.01 Page 9

Jun 21, 2023

ISL73041SEHEV1Z Evaluation Board Manual

2.4 Board Layout

0C21, C23, C25, C27, C29,

C31

DO NOT POPULATE OR

PURCHASE

0 D2 (B120B) DO NOT POPULATE OR

PURCHASE

0 L1 (XAL1580-612MEB) DO NOT POPULATE OR

PURCHASE

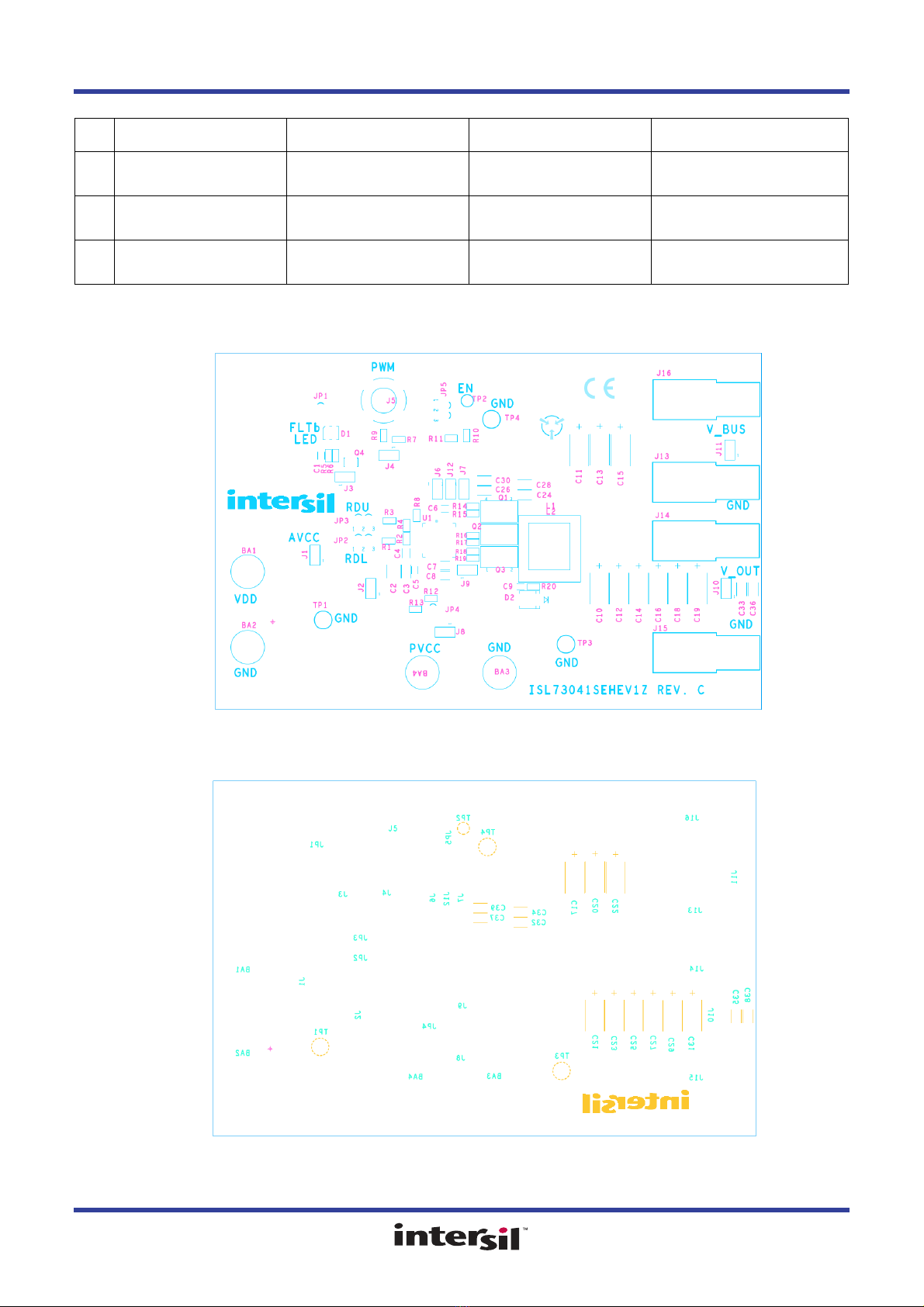

Figure 5. ISL73041SEHEV1Z Top Assembly Layer

Figure 6. ISL73041SEHEV1Z Bottom Assembly Layer

Qty Reference Designator Description Manufacturer Manufacturer Part



R34UZ0012EU0101 Rev.1.01 Page 10

Jun 21, 2023

ISL73041SEHEV1Z Evaluation Board Manual

Figure 7. ISL73041SEHEV1Z Layer 1

Figure 8. ISL73041SEHEV1Z Layer 2



Tabla de contenidos

Otros manuales de Placa madre de Intersil

Intersil

Intersil JESD204B Manual de usuario

Intersil

Intersil ISL54200EVAL1Z Manual de usuario

Intersil

Intersil ISL70001ASEHEV1Z Instrucciones de instalación y funcionamiento

Intersil

Intersil ISL8202MEVAL1Z Manual de usuario

Intersil

Intersil ISL70002SEHEVAL3Z Manual de usuario

Intersil

Intersil ISL54059EVAL1Z Manual de usuario

Intersil

Intersil ISL6296 Instrucciones de instalación y funcionamiento

Intersil

Intersil ISL78171EVAL1Z Manual de usuario

Intersil

Intersil ISL97683 Manual de usuario

Intersil

Intersil ISL32741EVAL1Z Manual de usuario

Intersil

Intersil ISL85003EVAL2Z Manual de usuario

Intersil

Intersil ISL70040SEHEV2Z Manual de usuario

Intersil

Intersil ISL8014AEVAL2Z Instrucciones de instalación y funcionamiento

Intersil

Intersil ISL59442EVAL1 Manual de usuario

Intersil

Intersil ISL97656IRTZEVALZ Instrucciones de uso

Intersil

Intersil ISL6442 Manual de usuario

Intersil

Intersil ISL70321SEHEV Z Series Manual de usuario

Intersil

Intersil ISL28023EVAL1Z Manual de usuario

Intersil

Intersil ISL32740EVAL2Z Manual de usuario

Intersil

Intersil ISL6298EVAL2 Instrucciones de uso

Intersil

Intersil ISL6252AEVAL2Z Manual

Intersil

Intersil ISL91108IIA-EVZ Manual de usuario

Intersil

Intersil ISL8011EVAL1Z Manual de usuario

Intersil

Intersil ISL62381 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
