Internode TG-789 Manual de usuario

TG-789 Broadband Gateway

Quick Setup Guide

Before you get started

Make sure you have an email or SMS from us advising that

your internet service is provisioned and ready to use.

Dear Internode Customer,

We are pleased to advise that your Internode broadband

service is now provisioned. Please quote Service ID A1234567

if you need to contact us for support.

Your Internode broadband is ready to use.

Username: [email protected]

For support call 13 66 33. Ref: A1234567

What are you setting up today?

How to ﬁnd out which type of internet you have:

Check your email and/or SMS from us about your internet order

or check the service details section of your customer invoice

TECHNOLOGY TYPE / PRODUCT TECHNOLOGY TYPE / PRODUCTSTART ON PAGE... START ON PAGE...

NodePhone (VoIP)19

Standard ADSL2+ 11

Naked ADSL2+ 6

NBN™Fibre to the Premises (FTTP)9

NBN™Fibre to the Node/Building (FTTN/B)

NBN™Fibre to the Curb (FTTC)

NBN™Hybrid Fibre-Coaxial (HFC)

Fibre Estates (OptiComm or OPENetworks) 12

NBN™Wireless 10

WiFi 18

1 2 4 6 83 5 7 9 10

STATUS WAN INTERNET WPS ETHERNET2.4GHz

WiFi

5GHzUSB WIRELESS

BUTTON

PHONE

Get to know your modem’s lights

Light State Meaning

STATUS Off Modem has no power.

Red Modem is ofﬂine.

Green Modem is online.

Orange Modem is rebooting or powering up.

Flashes during ﬁrmware upgrade.

WAN Off No connection or modem has no power.

Green Modem has a connection. Flashes

during connection activity.

Internet Off Modem has no power.

Red Modem is ofﬂine.

Green Modem is online. Flashes during

connection activity.

Wireless 2.4GHz

or 5GHz

Off WiFi off/disabled or modem has no power.

Green WiFi enabled. Flashes during WiFi

activity and when rebooting.

Light State Meaning

WPS Off WPS not in use or modem has no power.

Red WPS connection failed - try again.

Green WPS connection successful.

Orange WPS search mode on or WPS

connection in progress. Flashes.

Ethernet Off Nothing connected to LAN ports

or modem has no power.

Green Ethernet connection to any LAN port.

Flashes during connection activity.

USB Off No USB device detected.

Green USB device detected. Flashes

during connection activity.

NodePhone Off VoIP disabled or modem has no power.

Green VoIP enabled. Flashes during calls.

WiFi Button N/A A button you can press to turn

WiFi capability on/off.

123 4

Power Cable

Plug into a power outlet

Plug in for NBN™ FTTN/FTTB and Naked ADSL

Phone Cable

Plug into handset

(Optional)

1. Using the power cable supplied, connect your modem’s Power

port to a power outlet. Press the Power button on the back of

the modem to turn it on.

2. Use the supplied Phone cable to connect your modem’s grey

DSL port directly to the phone socket on the wall (remove any

other phone or fax devices). Do not use a line ﬁlter.

3. If you wish to use your VoIP phone service, connect a phone

handset to your modem’s Phone1 port.

4. You can use an additional Ethernet cable to connect your

computer to any of your modem’s 4 LAN ports. Alternatively,

follow the steps later in this guide to connect devices via WiFi.

Turn to Page 14 to continue setup.

Phone Cable

Plug into the phone

socket on the wall

Ethernet Cable

Plug into your computer’s

Ethernet Port (Optional)

Plug in for NBN™ FTTC

1. Using the power cable supplied, connect your modem’s Power

port to a power outlet. Press the Power button on the back of

the modem to turn it on.

2. Use the supplied Ethernet cable to connect your modem’s

red WAN port to the yellow GATEWAY port on your NBN™

Connection Device.

3. If you wish to use your VoIP phone service, connect a phone

handset to your modem’s Phone1 port.

4. You can use an additional Ethernet cable to connect your

computer to any of your modem’s 4 LAN ports. Alternatively,

follow the steps later in this guide to connect devices via WiFi.

Turn to Page 14 to continue setup.

Ethernet Cable

Plug into your computer’s

Ethernet Port (Optional)

Phone Cable

Plug into handset

(Optional)

Power Cables

Plug into 2 power outlets

NBN™ Connection Device

Connects to your modem via

Ethernet to the WAN Port

Phone Cable

Plug into the phone

socket on the wall

123 4

Before you get started...

If you received a new NBN™ Connection Box along with your modem, please follow its

setup guide to get it plugged in and turned on before you set up your modem.

Plug in for NBN™ HFC

1. Using the power cable supplied, connect your modem’s Power

port to a power outlet. Press the Power button on the back of

the modem to turn it on.

2. Use the supplied Ethernet cable to connect your modem’s red

WAN port to the UNI-D 1 port on your NBN™ Connection Box

(note that some boxes may have one yellow LAN port instead).

3. If you wish to use your VoIP phone service, connect a phone

handset to your modem’s Phone1 port.

4. You can use an additional Ethernet cable to connect your

computer to any of your modem’s 4 LAN ports. Alternatively,

follow the steps later in this guide to connect devices via WiFi.

Turn to Page 14 to continue setup.

Ethernet Cable

Plug into your computer’s

Ethernet Port (Optional)

Phone Cable

Plug into handset

(Optional)

Power Cables

Plug into 2 power outlets

Cable Socket

Connects to NBN™

Connection Box

NBN™ Connection Box

Connects to your modem via

Ethernet to the WAN Port

Before you get started...

If you received a new NBN™ Connection Box along with your modem, please follow

its setup guide to get it plugged in and turned on before you set up your modem.

123 4

Ethernet Cable

Plug into your computer’s

Ethernet Port (Optional)

Phone Cable

Plug into handset

(Optional)

POW ER

UNI-V1 UNI-V1

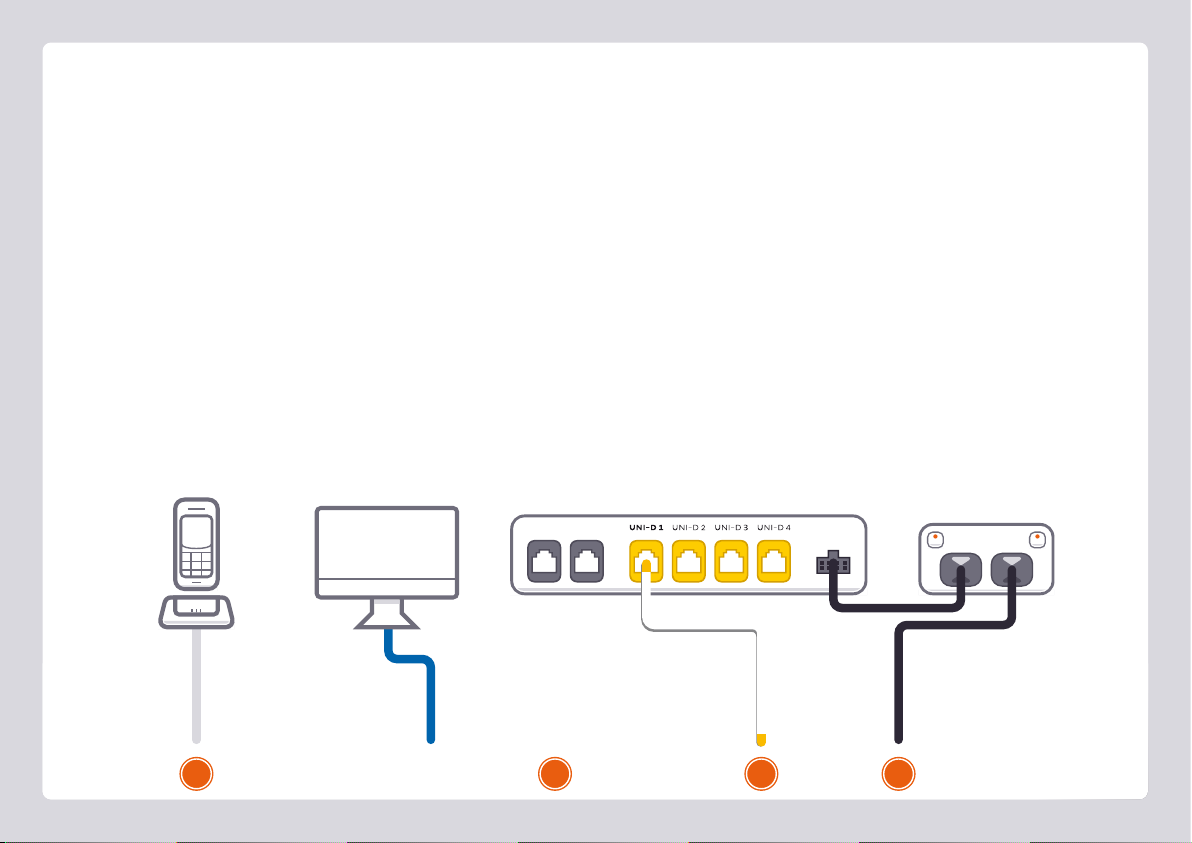

Plug in for NBN™ Fibre to the Premises

NBN™ Connection Box

Connects to your modem via

Ethernet to the WAN Port

1. Using the power cable supplied, connect your modem’s Power

port to a power outlet. Press the Power button on the back of

the modem to turn it on.

2. Use the supplied Ethernet cable to connect your modem’s red

WAN port to the UNI-D 1 port on your NBN™ Connection

Box. If UNI-D1 doesn’t work, try each UNI-D port before

contacting us for a hand.

Power Cables

Plug into 2 power outlets

3. If you wish to use your VoIP phone service, connect a phone

handset to your modem’s Phone1 port.

4. You can use an additional Ethernet cable to connect your

computer to any of your modem’s 4 LAN ports. Alternatively,

follow the steps later in this guide to connect devices via WiFi.

Turn to Page 14 to continue setup.

1243

POW ER

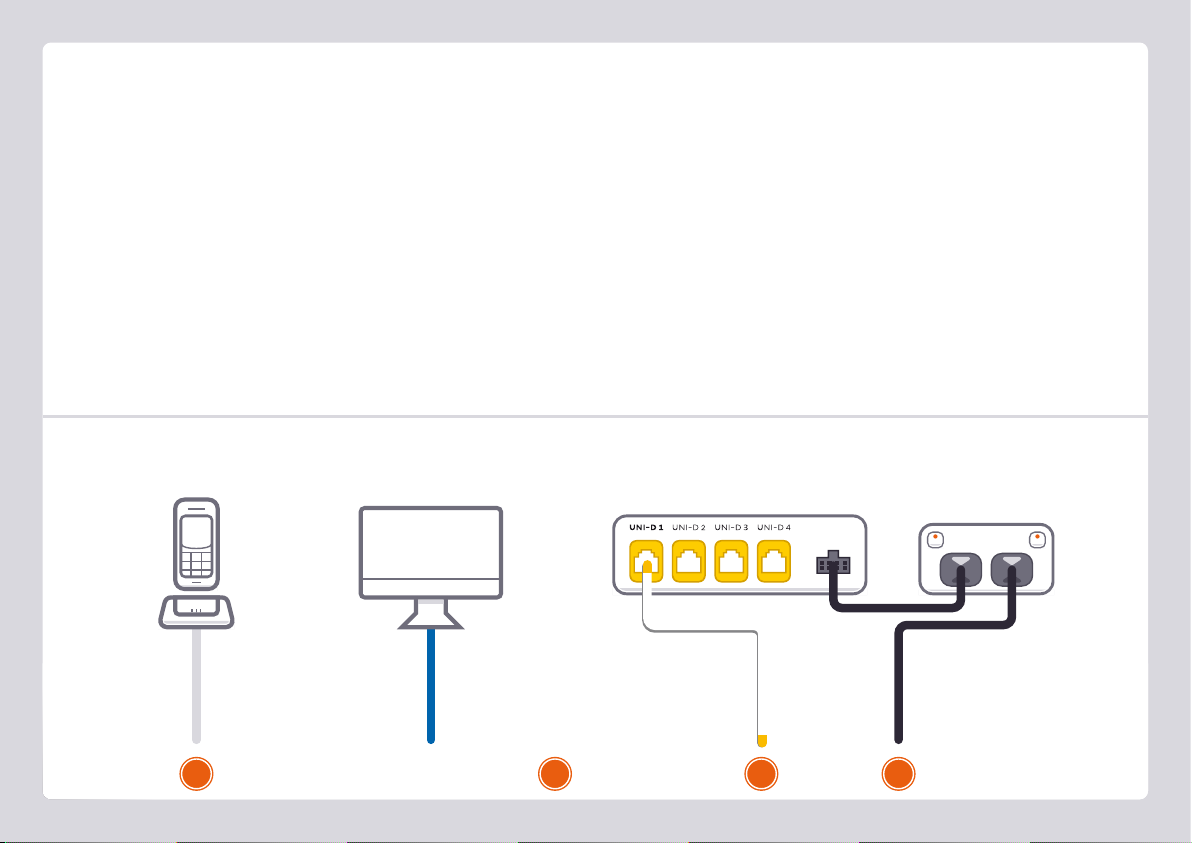

Plug in for NBN™ Wireless

1. Using the power cable supplied, connect your modem’s Power

port to a power outlet. Press the Power button on the back of

the modem to turn it on.

2. Use the supplied Ethernet cable to connect your modem’s red

WAN port to the UNI-D 1 port on your NBN™ Connection

Box. If UNI-D1 doesn’t work, try each UNI-D port before

contacting us for a hand.

3. If you wish to use your VoIP phone service, connect a phone

handset to your modem’s Phone1 port.

4. You can use an additional Ethernet cable to connect your

computer to any of your modem’s 4 LAN ports. Alternatively,

follow the steps later in this guide to connect devices via WiFi.

Turn to Page 14 to continue setup.

Ethernet Cable

Plug into your computer’s

Ethernet Port (Optional)

Phone Cable

Plug into handset

(Optional)

Power Cables

Plug into 2 power outlets

NBN™ Connection Box

Connects to your modem via

Ethernet to the WAN Port

123 4
