Intermec ColorCoder 901 Manual de usuario

ColorCoder 901

Color Label Printer

P/N 1-960405-02

Edition 3

September 1998

Cutter Installation Instructions

Intermec ColorCoder 901 – Installation Instructions

Introduction The Intermec ColorCoder 901 Cutter can easily be fitted on any

ColorCoder 901 printer and is used to automatically cut off the

paper after printing. This optional device is an alternative to using

the standard manual cutter when producing large volumes of tags.

Thecutteriscontrolledfromtheprinter,butrequiresamainsoutlet

(100–240V AC) of its own.

Warning!

The cutter can also be used to cut backing paper between labels,

but great care most be taken to avoid cutting into the adhesive,

whichwilleventuallyclogthecuttingshears.Thereby,themotor

may be damage by overloading.

When unpacking the cutter kit, check that the following parts are

contained in the package, in addition to this booklet:

The power supply is provided with a mains cable according to

European 240V AC standard. Mains cables for US and UK

standardoutletscanbeorderedseparatelyfromyourlocalIntermec

distributor.

CUTTER

ColorCoder 901 Cutter

Installation Instructions

Edition 3, September 1998

Part No. 1-960405-02

Mains Cable

Mountings Screws

Mounting PlateCutter Unit

Unpacking

Grounding Plate

M3 x 4 2 pcs.

M4 x 25 2 pcs.

M3 x 6 3 pcs.

M4 x 8 2 pcs.

Intermec ColorCoder 901 – Installation Instructions

CUTTER, cont'd.

Main Parts

In this illustration, the top of the cutter unit has been opened to provide better view.

Knob (for processing paper jams)

Handle (for processing paper jams)

Grounding Screw

LED Lamp

Main Switch

Cover

AC Inlet

Interface Cable Delivery Slot

Intermec ColorCoder 901 – Installation Instructions

CUTTER, cont'd.

Installation Install the cutter on the Intermec ColorCoder 901 printer in

accordance with the following procedure.

Caution!

Before starting the installation, check that the power to both the

printer and the cutter is turned off.

1. Removethetwoscrewsonthecoveronthedelivery(left)side

of the printer, or remove the manual cutter if fitted.

2. Openthefrontcoveroftheprinter.ThenopenthePHSunitby

raising the green grip.

3. Attach the cutter's grounding plate to the bracket1as shown

below using the two M3 x 4 screws included in the kit.

Continued!

Remove Screws

(2 pcs)

Screws M3 x 4

(2 pcs)

Bracket

1/. Some printers may not be fitted with

suchabracket.Inthiscase,donotmount

thegroundingplate.Thiswillnotimpair

the function of the cutter.

Intermec ColorCoder 901 – Installation Instructions

CUTTER, cont'd.

Installation, cont'd. 4. Attach the cutter's mounting plate to the printer using five

screws included in the kit (2 pcs M4 x 25 + 3 pcs M3 x 61).

5. The functions of the various parts on the mounting plate are

shown in the illustration below. The adjusting screws have

been adjusted at factory before shipment, but may need to be

readjusted in connection with eliminating an oblique cutting

angle, see page 13.

6. Hang the cutter unit on the hooks (illustrated above), so the

tabs on each side of the cutter become aligned with the holes

on the mounting plate.

Holes for mounting cutter

Hooks with

Adjusting Screws

Screws M4 x 25

(2 pcs)

Screws M3 x 6

(3 pcs)

Continued!

1/. Printers not fitted with any bracket

(seestep3)do nothaveanyholes forthe

threescrewsatthebottomofthemounting

plate. In this case, omit these screws.

This will not impair the function of the

cutter.

Intermec ColorCoder 901 – Installation Instructions

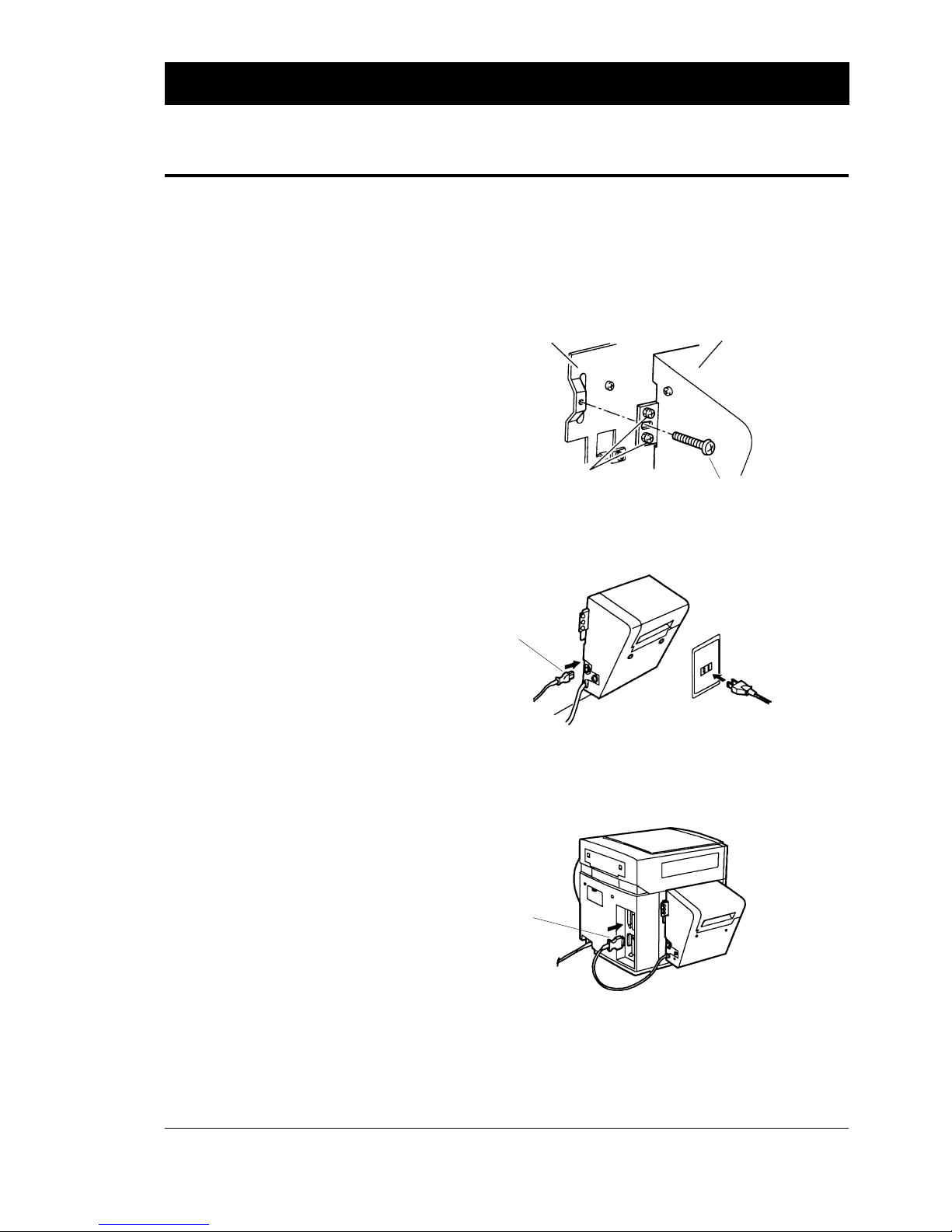

7. Affix the cutter by means of the two M4 x 8 screws included

in the delivery – one through each tab.

(Theadjustingscrewsare factoryadjusted.Donotchangethe

adjustment unless in case of oblique cutting).

8. Connect the mains cord to cutter unit and then to a 230V AC

mains outlet.

9. Connecttheinterfacecabletotheconnectormarked“Option”

on the back of the printer.

CUTTER, cont'd.

Installation, cont'd.

Connect here!

Mounting Plate

Adjusting Screws

(cut angle)

Cutter Unit

Screws M4 x 8 (2 pcs)

Intermec ColorCoder 901 – Installation Instructions

CUTTER, cont'd.

Printer Settings

Continued!

Setting up the printer to use the automatic cutter involves two

operations to be performed on the printer's control panel:

• Setting the output option to “Use”.

• Settingthecutinterval,i.e.numberoflabelsprintedbetweeneach

cutting operation.

Notethat thesesettings willbe deleted,unless theyare savedusing

a “NVRAM SAVE” operation, see the ColorCoder 901 User's

Manual.

1. Afterinstallingthecutterontheprinter,turnonthepowertothe

cutter.

Notethatyoumustalwaysturnonthepowertothecutterbefore

you switch on the printer, since the printer's software can only

detect the presence of a cutter at power-up.

2. Turn on the power to the printer. A message appears on the

display panel:

3. Press the <On line> key.

4. Press the <Menu> key.

5. Pressthe<Cursorright>key four(4)times,untilthismessage

is displayed:

6. Press the <Enter> key.

7. Press the <Cursor right> key twice.

READY

OFF LINE

PAPER TYPE

MAINTENANCE

TEST PRINT

PARAM. SET.

Setting the Output Option

Intermec ColorCoder 901 – Installation Instructions

CUTTER, cont'd.

Setting the Output Option,

cont'd. 8. Press the <Enter> key.

9. Press the <Cursor right> key twice.

10. Press the <Enter> key.

11. Press the <Cursor right> key.

12. Press the <Enter> key to select the “USE” option.

13. Press the <Menu> key repeatedly until this message appears:.

14. From this menu, you can proceed by setting the Cut Interval as

described on next page.

OUTPUT OPT.

*NOT USE

USE

DISPLAY MODE

OFF LINE

DATE & TIME SET.

Intermec ColorCoder 901 – Installation Instructions

Setting the Cut Interval

CUTTER, cont'd.

Continuingfromthepreviouspage,proceedasfollows.Thedisplay

panel shows:

1. Press the <Menu> key.

2. Press the <Cursor right> key twice.

3. Press the <Enter> key.

4. Press the <Cursor right> key.

5. Pressthe<Enter>key.Thedefaultvalue,orpreviouslyentered

value, is displayed.

The default value “99999” cuts off the paper after the last copy

in the batch has been fed out.

6. Press the <Cursor right> key. A cursor will appear under the

first digit:

7. Thedigitindicated bythe cursorcan beincrementedonestepat

a time by pressing the <Menu> key and decremented by

pressingthe<Enter>key.Thecursorcanbemovedleftorright

by means of the <Cursor left> and <Cursor right> keys

respectively. Set the value according to how many labels you

want to print before the cutter cuts off the paper1.

OFF LINE

CUT INTERVAL

PAPER SET.

PAPER TYPE

CUT INT. =99999

Continued!

1/. Intervals:

00000 will not be accepted.

00001 cuts after each copy.

00002 cuts after every second copy.

etc.

Ifthe intervalvalueexceeds thenumber

ofcopies in the batch, thecutter will cut

off the paper after the last printed copy.

PRINT PAGES SET.

CUT INT. =99999

CUT INT. =00025

Intermec ColorCoder 901 – Installation Instructions

8. Setall digits. When the cursor is positioned at the extreme right

digit of the value, press the <Cursor right> key and the cursor

disappears.

9. Press the <Enter> key.

10. Pressthe <Menu>keyrepeatedly, until thismenuis displayed:

11. Press the <On line> key.

12. Youarenowback atthe“READY”menuandcanstart printing

and cutting labels. However, remember that the cut interval

value will not be saved after power-off, unless you perform a

“NVRAM SAVE” operation as described in the ColorCoder

901 User's Manual.

Carry out printing and cutting operations using the “Test Print”

or ”Mem. Card Print” routines described in the User's Manual,

using 102 x 76 mm (4 x 3") label paper. If the cutting does not

occur at the right place, e.g. between labels, you can adjust the

cutting position as described on next page.

Setting the Cut Interval,

cont'd.

CUTTER, cont'd.

MARGIN SET.

OFF LINE

READY

Continued!

CUT INT. =00025
