Intermec SR60 Manual de usuario

SR60

Scanner

Lecteur

Сканер

Escáner

Quick Start Guide

Guide de démarrage rapide

Краткое руководство

Guía de comienzo rápido

Contents

SR60 Scanner Quick Start Guide . . . . . . . . . . . . . . . . . . . . . 3

Lecteur SR60 Guide de démarrage rapide. . . . . . . . . . . . . . 10

Сканер SR60 Краткое руководство . . . . . . . . . . . . . 18

Escáner SR60 Guía de comienzo rápido . . . . . . . . . . . . . . . 25

SR60 Scanner Quick Start Guide

What Is the Intermec SR60?

The Intermec SR60 is a laser scanner that is available in a

standard range (SR) version or extended long-range (XLR)

version. The XLR version allows you to scan bar code labels from

as far away as 11 m (36 ft) depending on the labels you are using.

Unpacking Your SR60

After unpacking your new SR60 scanner, check the contents of

the shipping box to make sure that you have everything that you

ordered. The scanner shipping box contains these items:

Contact your local Intermec representative if anything is missing

or damaged.

Items Not Provided

• Scanner cable. (Only included with certain kits.)

• Power supply. You need to purchase a power supply if you are

using an RS-232 cable with external power required.

Cable (Only included with certain kits.)

SR60 Scanner

Documentation

SR60

Scanner

Lecteur

Сканер

Escáner

Quick Start Guide

Guide de démarrage rapide

Краткое руководство

Guía de comienzo rápido

Installing the SR60

1Turn off your PC.

2Attach the scanner cable to the base of the SR60.

3Connect the other end of the cable to your PC.

Do not try to remove the end cap, because it will

damage your scanner.

4Turn on your PC.

5Verify that your scanner works by scanning a sample bar code.

Follow these tips for best scanning results:

• Make sure the scanner is at a slight angle to the bar code.

• Make sure the laser beam crosses the entire bar code.

• If you have the XLR version, make sure you are at least

122 cm (4 ft) from the bar code.

Note: If your system does not provide power to the

scanner, you need to attach a power supply to the

scanner cable and plug the other end into a wall

outlet.

*s s*

*s s

*s s*

*s s

Here is a sample Code 39 bar code label to scan:

*TEST*

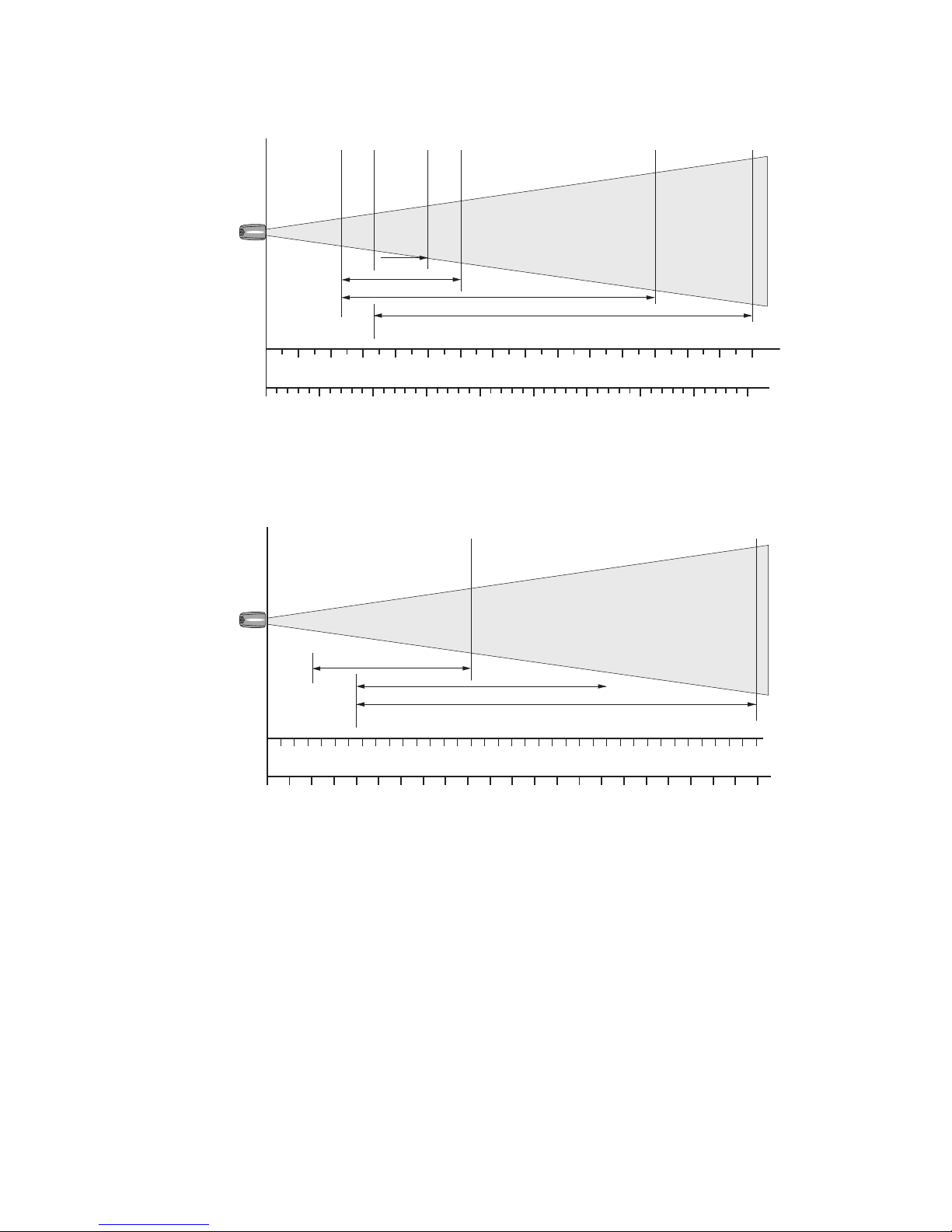

Understanding the Scanning Range

To achieve optimum scanning results with the SR60 scanner, you

need to hold the scanner a specific distance from the bar code.

Use the following depth of field charts to understand the

scanning specifications. In these charts, a “mil” represents the

minimum bar code element width.

SR60 SR Depth of Field Chart

Note: Specifications are subject to change without

notice.

Paper Labels (SR decoded model, Code 39)

Front of Scanner

15 mil

10 mil

Centimeters

Feet

10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170

2345

20 mil

40 mil

55 mil

7.5 mil

5 mil

SR60 XLR Depth of Field Charts: XLR measurements are based on XLR

models set with a 10° scan angle width.

The SR60 ships with these bar code symbologies enabled:

•Code39

•Code128

• Interleaved 2 of 5

Paper Labels (XLR decoded model, Code 39)

40 mil

20 mil

Centimeters

Feet

Front of scannerFront of scanner

12345678910 11 12 13 14 15

45040035030025020015010050

55 mil

Reective Labels (XLR decoded model, Code 39)

70 mil

40 mil

Centimeters

Feet

11001050100095090085080075070065060055050045040035030025020015010050

2345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36

100 mil

15 mil

Troubleshooting

Use the following table to troubleshoot some common problems

you may encounter with the SR60 scanner.

Where to Go For More Information

After you make sure that the SR60 works correctly, you may need

additional information to help you use the scanner in your

system. Refer to the following document for more information:

•SR60 Scanner Programmer’s Reference Manual

(P/N 937-004-xxx)

You can also download this manual and other supporting

documentation from the Intermec web site.

To download documents

1Visit the Intermec web site at www.intermec.com.

2Click Service & Support > Manuals.

3In the Select a Product field, choose SR60 Scanner to open

the PDF files.

SR60 Problems and Possible Solutions

Problem Possible Solutions

No power to the

scanner.

Try these possible solutions:

• Make sure the cable is securely attached to

your SR60 and to the PC.

• Make sure that your host PC is turned on.

Power Off the Terminal (POT) cables

require that the PC be turned on.

Scanner is not

scanning bar codes.

• Scan a known good bar code to make sure

that it is a problem with the bar code.

• If the bar codes are poor quality, you may

want to modify the programmable settings

for advanced decoding. For help, see the

SR60 Programmer’s Reference Manual

(P/N 937-004-xxx).

• Make sure the bar code symbology you are

trying to scan is enabled on the SR60.

To order printed versions of these manuals, contact your local

Intermec representative or distributor. If you experience any

problems with your printer, please visit our Product Support web

site at intermec.custhelp.com to search for product specific

information.

Electrical ratings: 4.0 to 14.0 VDC, 13.9 W

Lecteur SR60 Guide de démarrage rapide

En quoi consiste le SR60 d’Intermec ?

Le SR60 d’Intermec est un lecteur de codes-barres laser offert dans

une version à portée standard (SR) ou extra-longue (XLR). La

version à extra-longue portée (XLR) permet de lire les codes-barres

jusqu’à 11 m de distance, selon les étiquettes utilisées.

Déballage de votre SR60

Après avoir déballé votre nouveau lecteur SR60, vérifiez le contenu

du carton d’expédition pour vous assurer d’avoir tout ce que vous

avez commandé. Le carton d’expédition du lecteur contient les

articles suivants :

S’il manque quoi que ce soit ou si un article est endommagé,

contactez le représentant Intermec le plus proche.

Câble (Fournis seulement avec certains ensembles.)

Lecteur SR60

Documentation

SR60

Scanner

Lecteur

Сканер

Escáner

Quick Start Guide

Guide de démarrage rapide

Краткое руководство

Guía de comienzo rápido
