Intermec ScanImage 1470B Manual de usuario

1470B Imager

Quick Start Guide

ii 1470B Imager Quick Start Guide

Intermec Technologies Corporation

Corporate Headquarters

6001 36th Ave. W.

Everett, WA 98203

U.S.A.

www.intermec.com

The information contained herein is proprietary and is provided solely

for the purpose of allowing customers to operate and service Intermec-

manufactured equipment and is not to be released, reproduced, or used

for any other purpose without written permission of Intermec.

Information and specifications contained in this document are subject

to change without prior notice and do not represent a commitment on

the part of Intermec Technologies Corporation.

The word Intermec, the Intermec logo, Norand, ArciTech, CrossBar,

Data Collection Browser, dcBrowser, Duratherm, EasyCoder,

EasyLAN, Enterprise Wireless LAN, EZBuilder, Fingerprint, i-gistics,

INCA (under license), InterDriver, Intermec Printer Network

Manager, IRL, JANUS, LabelShop, Mobile Framework, MobileLAN,

Nor*Ware, Pen*Key, Precision Print, PrintSet, RoutePower, TE 2000,

Trakker Antares, UAP, Universal Access Point, and Virtual Wedge are

either trademarks or registered trademarks of Intermec Technologies

Corporation.

Throughout this manual, trademarked names may be used. Rather

than put a trademark (™or ®) symbol in every occurrence of a

trademarked name, we state that we are using the names only in an

editorial fashion, and to the benefit of the trademark owner, with no

intention of infringement.

There are U.S. and foreign patents pending.

Contents

1470B Imager Quick Start Guide iii

Contents

Unpacking the Imager ......................................................... 5

Configuring the Imager ....................................................... 6

Keyboard Wedge Interface..................................... 6

Serial/RS-232 Interface.......................................... 8

Scanning a Label................................................................ 10

Where to Go From Here ................................................... 11

Useful Bar Codes............................................................... 11

Test Bar Codes .................................................................. 12

Regulatory Statements ....................................................... 15

iv 1470B Imager Quick Start Guide

1470B Imager Quick Start Guide 5

Unpacking the Imager

When you remove the imager from its box, save the box and

shipping material in case you need to ship or store the imager.

147XU07.eps

1470B Imager Shipping Box Contents

The imager shipping box contains:

• 1470B Imager (standard or high density)

• CD with Visual Menu and QuickView

• 1470B Imager Quick Start Guide (P/N 067055)

You can also order these optional accessories:

• Power supply and power cords

• Battery pack

• Communication cables for a keyboard wedge interface,

RS-232 interface, 241X terminal, or 700 Series computer

• Holder or scanner stand

• 1470/1471 Imager User’s Manual (P/N 067054)

6 1470B Imager Quick Start Guide

Configuring the Imager

You need to program the imager for your interface before you

can transmit bar code data to your computer. You can configure

the imager for:

• a keyboard wedge interface. See the next section, “Keyboard

Wedge Interface.”

• a serial port (RS-232) interface. RS-232 is the default

configuration; however, you still need to program the imager

for the RS-232 interface. See “Serial/RS-232 Interface” on

page 8.

Note: The RS-232 interface is only compatible

with applications that can retrieve data from the

computer’s COM port.

Keyboard Wedge Interface

1 Connect the power supply (4 to 9V) to the keyboard wedge

interface cable and plug in the power supply.

Or, charge and install the battery pack in the imager.

The imager beeps twice.

147XG06.eps

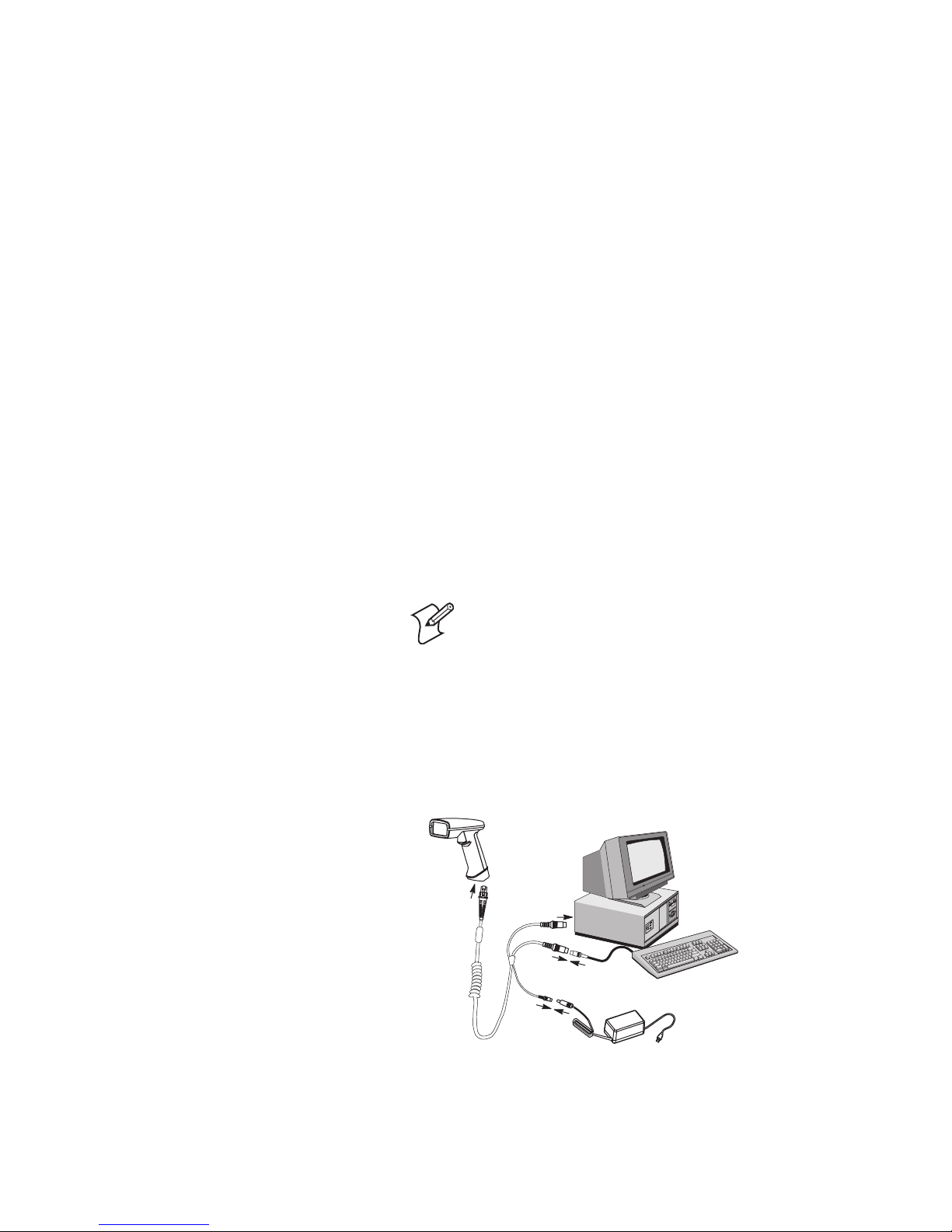

Keyboard Wedge Interface: This illustration shows connecting the

power supply, but you can also charge and install the battery pack in the

imager.

1470B Imager Quick Start Guide 7

2 Connect the keyboard wedge interface cable to the imager.

Note: Do not connect the cable to your computer

yet.

3 Scan these bar codes in order:

Terminal ID

Save

The imager beeps twice during the configuration process.

4 Turn off power to the computer.

5 Disconnect the keyboard cable from the back of the

computer.

6 Connect the computer and the keyboard to the keyboard

wedge interface cable.

7 Turn on power to the computer and wait for it to boot.

8 Open a keyboard application, such as Notepad.

8 1470B Imager Quick Start Guide

9 Scan the following test bar code to make sure that the imager

works.

Code 39 Test Bar Code

BC321

The imager should beep once, and “BC321” should appear in

the keyboard application.

The imager is now connected and ready to communicate with

your computer. To program the 1470 for other keyboard wedge

interfaces, see “Terminal Interface” in Chapter 3 of the

1470/1471 Imager User’s Manual.

Serial/RS-232 Interface

1 Connect the power supply (4 to 9V) to the serial interface

cable and plug in the power supply.

Or, charge and install the battery pack in the imager.

The imager beeps twice.

147XG07.eps

Serial/RS-232 Interface: This illustration shows connecting the power

supply, but you can also charge and install the battery pack in the imager.

1470B Imager Quick Start Guide 9

2 Connect the serial interface cable to the imager.

Note: Do not connect the cable to your computer

yet.

3 Scan these bar codes in order:

Terminal ID

Save

The imager beeps twice during the configuration process.

4 Turn off power to the computer.

5 Connect the serial interface cable to the computer.

6 Turn on power to the computer.

7 Open your application.

10 1470B Imager Quick Start Guide

8 Scan the following test bar code to make sure that the imager

works.

Code 39 Test Bar Code

BC321

The imager should beep once, and “BC321” should appear in

your application.

The imager is now connected and ready to communicate with

your computer. To program the communication parameters for

a serial interface, see “Communication Settings” in Chapter 3 of

the 1470/1471 Imager User’s Manual.

Scanning a Label

The imager’s view finder projects a bright red aiming beam that

corresponds to the imager’s horizontal field of view. The aiming

beam should be centered over the bar code, but it can be

positioned in any direction for a good read.

Linear Bar Code 2D Matrix Bar Code
