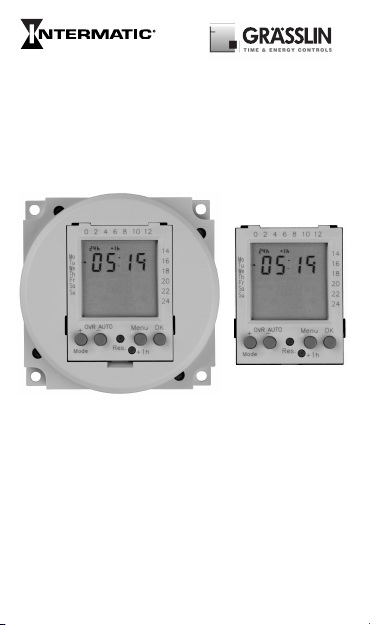

Intermatic GrasslinFM1D20 Series Manual de usuario
Instruction Manual
20 memories time switches
1
page
Safety precautions ..................................................................... 2
Program structure ...................................................................... 3
OK
reset
Symbols, keys ............................................................................. 5
Menu
Prog
Setting the timer ........................................................................ 6
Setting 24h or am/pm clock, time and weekday ..................... 7
Prog.
Pre-set programs ....................................................................... 9
P0x
prog
Selecting pre-set programs P01 to P03....................................10
P--
prog
User defined programs .............................................................. 11
del
Deleting programs ..................................................................... 15
+1h
Daylight Savings time .................................................................. 16
Automatic
Warranty ...................................................................................... 18
operation / fixed ON / fixed OFF .............................17

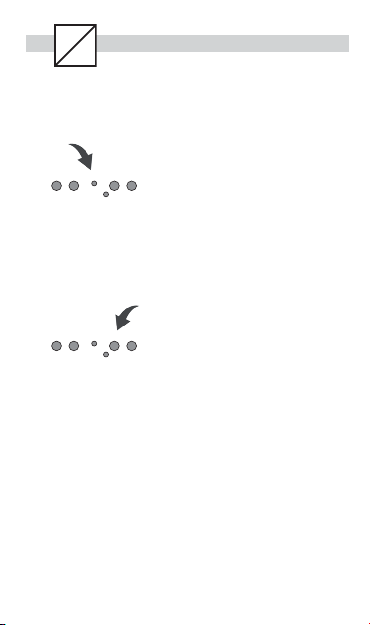

Safety precautions
· The connection and installation of electrical devices may only be
carried out by a qualified electrician.
· Interventions in and changes to the device result in the voiding of
the warranty claim.
· Observe your national regulations and the respective safety
provisions.
· Switch-off commands have priority over switch-on commands.
2
Set time: Format 24h or am/pm
24h blinking, using +/- to select, then OK
Set time: Hour
Hour blinking, using +/- to select, then OK
Set time: Minute
Minute blinking, using +/- to select, then OK
Set time: Day
Monday blinking, using +/- to select, then OK
Set Program: P01 / P02 /
P03 or P--
Using +/- to select, then OK
to set ON/OFF times
or
press Menu to terminate
programming
P01-03, P--
Set switching times:
First free memory location
blinks.
Press ''-''to go back one
memory location.
Press OK for setting the
switching times
Prog01
Set switching times:
First free memory location
blinks.
Press OK for setting the
switching times
First installation setting Review/adjust
Menu
OKMenu
Note:
P01-03
are pre-set
3
Press Reset Button
Set switching ON time: Hour
Hour blinking, using +/- to select, then OK
Set switching ON time: Minute
Minutes blinking, using +/- to select, then OK
Set switching ON time: Days
Mo-Su blinking, using +/- to select, then OK
Set switching OFF time: Hour
Hour blinking, using +/- to select, then OK
Set switching OFF time: Minute
Minutes blinking, using +/- to select, then OK/Menu
A maximum of 20 memory locations
can be occupied
10 switching ON times
10 switching OFF times
Menu
RUN
4
5
OK
reset
Mo
Tu
We
Th
Fr
Sa
Su
14
16
18
20
22
24
+ - Menu OK
Res.
+1h
: Overview of daily switching program
: Setting of 24h or am/pm
: Summer/winter clock changes
: Weekday display
: Switching status display ON/OFF
+/-
: Adjustment keys: By pressing the key longer than 2 sec. you
can adjust the timer in steps of 5 units
Res.
: Reset
Menu
: By pressing the menu key programming is terminated and
the system reverts to automatic operation
OK
: Confirmation of programming
OVR AUTO
Menu
Prog
6
Setting of this programmable timer is depending of the user preference to
use pre-set programs or defining own programming.
Using Pre-set programs (first time installation)
Using
Reset
key you can adjust the
following values:
24h or am/pm: see pg 6
Time (hour and
minutes): see pg 6
Week day: see pg 7
Pre-set programs
P01 to P03: see pg 7
User defined programming by Menu mode
Using
Menu
key you can adjust /
review the following values:
24h or am/pm: see pg 6
Time (hour and
minutes): see pg 6
Week day: see pg 7
Programs P--: see pg 7
+ - Menu OK
Res.
+1h
+ - Menu OK
Res.
+1h
OVR AUTO
Mode
OVR AUTO
Mode
7
Sequence to follow after selecting programming by pre-set programs or
Menu mode.
Mo
Tu
We
Th
Fr
Sa
Su
14
16
18
20
22
24
Set display format 24h or am/pm
Select 24h or am/pm (
+/-
)and con-
firm with
OK
.
1 1 2
Mo
Tu
We
Th
Fr
Sa
Su
14
16
18
20
22
24
Set hour
Select hour (
+/-
)and confirm
with
OK
.
1 1 2
+ - Menu OK
Res.
+1h
OVR AUTO
Mode
+ - Menu O
K
Res.
+1h
OVR AUTO
Mode
8
Mo
Tu
We
Th
Fr
Sa
Su
14
16
18
20
22
24
Set week day
Select week day (
+/-
)and confirm
with
OK
.
1 1 2
Set minutes
Select minutes (
+/-
)and confirm
with
OK
.
1 1 2
Mo
Tu
We
Th
Fr
Sa
Su
14
16
18
20
22
24
+ - Menu OK
Res.
+1h
OVR AUTO
Mode
+ - Menu OK
Res.
+1h
OVR AUTO
Mode
