Intercoax ECP-2808RM Manual de usuario
User Manual
version 1.7
Ethernet over Coax / UTP Managed Receiving Switch
ECP-2808RM / ECP-2816RM / EUP-2808RM / EUP-2816RM
Network Solution Provider
High-Speed, Long distance Ethernet and PoE Extender
Network Solution Provider
High-Speed, Long distance Ethernet and PoE Extender
Contents
Precaution and Safety Guidelines
1. Product Overview
2. Hardware Installation
3. Product Specifications
4. Management Software Configuration
5. Troubleshooting
6. Warranty Policy
7. Regulatory and Certificates
8. Customer supports
1 - 1. Introduction
1 - 2. Features
1 - 3. Package Contents
2 - 1. Front Panel
2 - 2. Rear Panel
2 - 3. LED Indication
2 - 4. Configuration Instruction
2 - 4 - 1. Prepare devices and materials
2 - 4 - 2. Hardware installation
2 - 4 - 3. Joining instruction
2 - 4 - 4. Label the configured network group
2 - 5. Transmission distance & Bandwidth by distance
2 - 6. Typical Installation
3 - 1. Technical Specifications
4 - 1. Overview
4 - 2. System Requirements
4 - 3. Getting started
4 - 3 - 1. ECP MANAGER LITE
4 - 3 - 2. ECP MANAGER
4 - 4. Configuration Windows
4 - 4 - 1. System Summary
4 - 4 - 2. General Window
4 - 4 - 2 - 1. Easy View
4 - 4 - 2 - 2. List View
4 - 4 - 2 - 3. Receiver Overview
4 - 4 - 2 - 4. Join & Node Control
4 - 4 - 2 - 5. Node Monitor
4 - 4 - 2 - 6. Power
4 - 4 - 2 - 7. Multicast
4 - 4 - 2 - 8. Settings
4 - 4 - 3. ECP Config Window
4 - 4 - 3 - 1. Group Configuration
4 - 4 - 3 - 2. ECP Configuration
4 - 4 - 4. SNMP Window
4 - 4 - 5. Admin Window
4 - 4 - 5 - 1. Administrator
4 - 4 - 5 - 2. System Config
4 - 4 - 6. Logout Window
5 - 1. Hardware
5 - 2. Software
17
18
21
39
41
3
4
5
6
7
8
13
15
16
40
Network Solution ProviderPage 03 of 41
High-Speed, Long distance Ethernet and PoE Extender
Precaution and Safety Guidelines
• Please install the device following the installation guide.
• Reed all warnings.
• Warning - Do not touch the device and cable with wet hands.
• Warning - Clean this apparatus only with a dry cloth.
• Warning - Please do not put the products on anything electrical conductive (screwdrivers, coins, iron, etc.)
and not put them around water.
• Warning - Do not install near any heat sources such as radiators, heat registers, stoves
or other apparatus that produce heat.
• Warning - Do not use for other purposes.
• Warning - Do not put the signal lines (Coax, UTP) in the same conduit as high voltage wiring
• Do not put any sticker or paint on it.
• Indoor use only.
• Please use only attachments or accessories specified by the manufacturer.
• Unplug the device during a lightning storm or when the device is not used for a long time.
(i. e. Connecting analog camera to BNC connector)
• Do not connect analog cameras to BNC connectors(B-Linx Port) on this devices (ECP Series only)
• Do not connect any IP devices to RJ45 connectors (T-Linx Port) on this devices (EUP Series only)
• When the unit is not working properly, please contact dealer or customer service.
• Please do not disassemble the unit by yourself.
• If this device emits smoke, abnormal noise, or a strange odor, please turn off
the power switch, unplug the AC power cord immediately, and contact dealer or customer service.

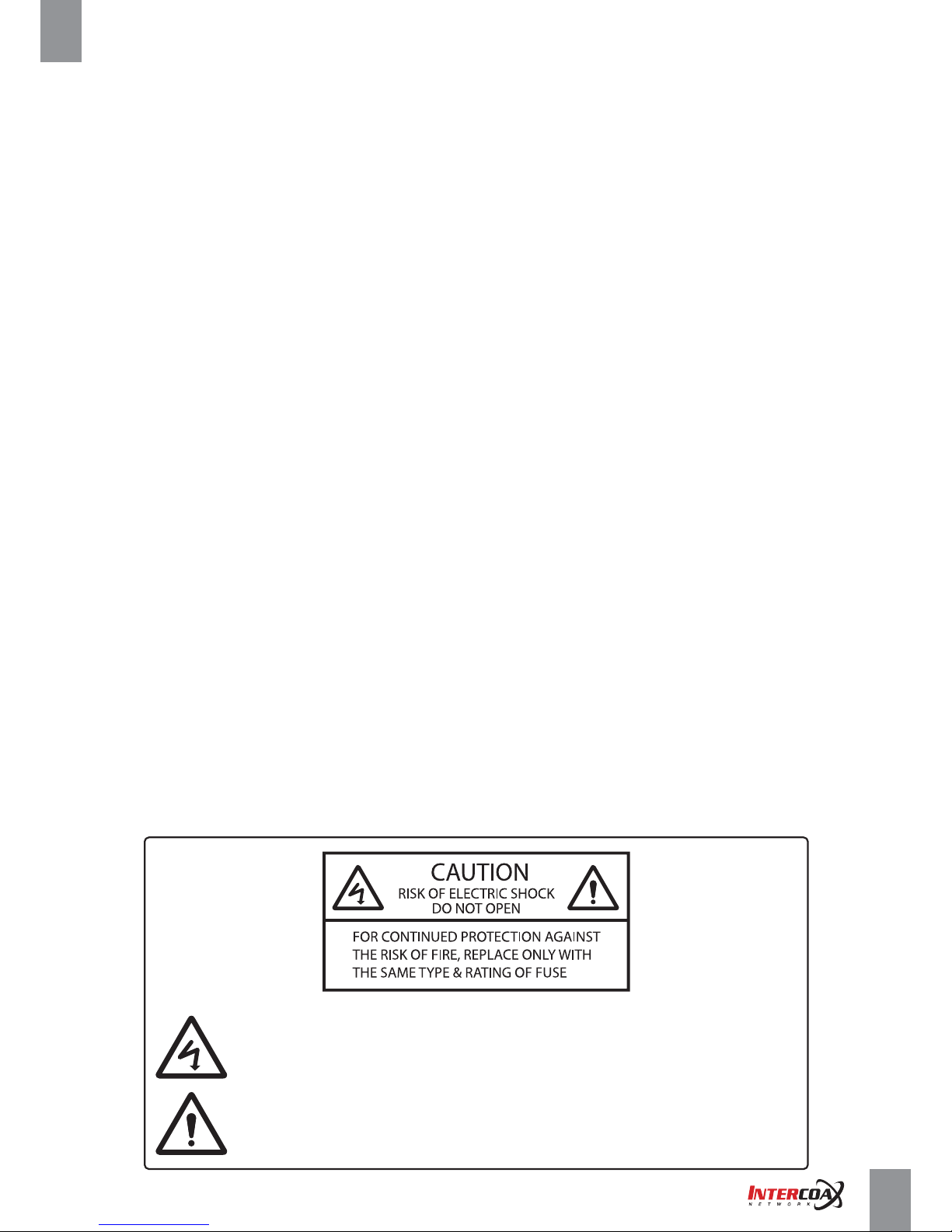

The lightning flash with arrowhead symbol within an equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient magnitude to constitute a risk
of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the product.
Network Solution ProviderPage 04 of 41
High-Speed, Long distance Ethernet and PoE Extender
1. Product Overview
1-1. Introduction
The All-New Intercoax ECP/EUP-2808RM/2816RM Series is 19” rack mountable managed Long Distance Ethernet
and PoE over Coax/UTP Receiving Switches.
ECP/EUP-2808RM/2816RM series are capable of connecting more than 8/16 ECP Transmitters even
with Daisy-Chain connection and also support PoE powered devices such as IP cameras.
Data rates up to 1Gbps are achievable, making these devices the ideal choice in new or legacy installations
where existing Coax/UTP cable is re-deployed as part of an upgrade from Analog to IP cameras.
ECP/EUP-2808RM series have built-in 320 Watt power supply and ECP/EUP-2816RM series
have built-in 640 Watt power supply (*Dual power supply of 320W + 320W for power sharing and redundancy)
PoE up to 60W per port is available.
Browser based GUI manages all connected IEEE1901-HPAV standard devices.
Furthermore, the world first innovative “Intercoax ECP Manager”software allows managing multiple
of ECP/EUP-2808RM/2816RM series remotely from the central management office
• Ethernet & PoE transmission over Coax / UTP cable
• Complies to IEEE1901-HPAV standard
• Extended transmission distance up to 2,400m
• PoE/ PoE+/ Extra PoE up to 60W (PoE++) per B-Linx port & T-Linx port
• Total management software, “Intercoax ECP Manager", supported
• Friendly Graphic User Interface with EasyView
• Remote Join & Unjoin, Change joining password
• Remote power reset by each port
• Real-time monitoring of power consumption for each port
• Multicast Setting with IGMP Query & Report Generator
• SNMP ready
• VLAN ready
• Port Locking for for extra secured network connectivity
• Alarm LED & buzzer and notification on ECP Manager
• Scheduled event reporting and alert reporting to designative users
• Back up & Restore of configuration
• Auto Power Short Protection
• B-Linx & T-Linx Smart Device Detection for safe power transmission
• 320W (8 port) / 640W (16 port) Built-in Power Supply
• Built-in crosstalk canceling technology
• Support multiple configuration (Daisy Chain, Star, Ring, Etc.) on each port
• Gigabit SFP and Copper uplink port
• 19-inch(1U) rack mountable design
1-2. Features
1-3. Package Contents
Bracket
AC Power code
ECP-2816RM
(ECP-2808RM / EUP-2808RM / EUP-2816RM) Quick Installation Guide
2
4
3
56 7 8
56 7 8
56 7 8
1
2
15 6
3
3
3
4
4
4
7 8
Network Solution ProviderPage 05 of 41
High-Speed, Long distance Ethernet and PoE Extender
2. Hardware Installation
2-1. Front Panel
EUP-2816RM
ECP-2816RM
EUP-2808RM
ECP-2808RM
1. B-Linx Ports (1~8 / 1~16) :
Connect Intercoax ECP Transmitters or IEEE1901-HPAV standard devices by coaxial cable with BNC male connector.
2. T-Linx Ports (1~8 / 1~16) :
Connect Intercoax ECP Transmitters or IEEE1901-HPAV standard devices by UTP cable with RJ45 male connector.
3. Smart B-Linx / T-Linx Detection On <-> Off :
B –Linx / T-Linx Detection mode On/Off switch
Detection Mode ON: Detects B-Linx & T-Linx devices before supplying power over Coax.
Detection mode OFF: By-pass detection, classification and power management checks
[Caution]
Do not connect analog cameras or network devices on BNC or RJ-45 port directly if Smart
B-Linx / T-Linx detection switch is OFF, it may cause a serious damage to the device connected.
Network Solution ProviderPage 06 of 41
High-Speed, Long distance Ethernet and PoE Extender
2
INPUT: 100~240VAC 50/60 Hz 5A
Model : ECP-2816RM
Default IP : 192.168.4.17
Intercoax Co., Ltd
www.intercoax.com
MAC Address #1
MAC Address #3
H/W Version 1.01
MAC Address #2
MAC Address #4
Serial Number
4. Join (1-4, 5-8, 9-12, 13-16) :
Hidden button to create new Network group with ECP Transmitters
- Press the button with a paper clip and hold for 2 seconds for Joining (Create new password)
- Press the button with a paper clip and hold for 15 seconds for Unjoining (Remove the existing password)
※Please note the joining instruction on Page 11
5. Buzzer On <-> Off :
Move the switch left or right to buzzer sound on or off.
6. Factory Reset :
The hidden factory reset button
Press and hold for 10 seconds the reset button to restore to its original factory settings.
7. SFP :
Connect an SFP module for uplink data (1000 Base-FX GBIC slot)
8. Link :
Connect an RJ45 Ethernet cable for uplink data (10/100/1000 BaseT)
2-2. Rear Panel
1. Power ON/OFF Switch
2. Power Connector
The connector is for 100~240V AC power inputs 50Hz/60Hz
1
Network Solution ProviderPage 07 of 41
High-Speed, Long distance Ethernet and PoE Extender
2-3. LED Indication
EUP-2816RM
2
ECP-2816RM
213 4 6
5
3 4 6
5
EUP-2808RM
2
ECP-2808RM
213 4 6
5
3 4 6
5
NO
1
2
3
4
5
- Short circuit or over current
protection is working
- ECP/EUP
transmitter linked properly
- Transmitting Data Via Coax / UTP
- Factory reset is progressing
Blinking
- Transmitting Data
Green: 10/100
Amber: 1000
- No device connected
on B-Linx / T-Linx port
- Unjoined ECP device is connected
- Device in normal operation
- SFP Link is down
- No device connected on SFP port
Off
- Uplink (Copper) is down
- Power OFF
6
B-Linx / T-Linx
(1~8 / 1~16)
Join
(1~4 / 5~8,
9~12, 13~16)
Alarm
SFP Link
LED Indication
LINK
PWR
On
- ECP/EUP Transmitter is connected
- Power over coax / UTP
working properly
- System boot-up
- Alarm is detected
- Transmitting Data
- Power ON
•
•
•
•
Network Solution ProviderPage 08 of 41
High-Speed, Long distance Ethernet and PoE Extender
2-4. Configuration Instruction
2-4-1. Prepare devices and materials
• Ethernet over Coax /UTP Receiving Switch (ECP-2808RM, EUP-2808RM, ECP-2816RM, EUP-2816RM)
• ECP-Transmitters (ECP-2801, ECP-2701, ECP-9501, ECP-8401, ECP-8301, EUP-2801, EUP-8401,etc)
• EUP-Transmitters (EUP-8401T, EUP-2601T, EUP-2801T & All ECP-Transmitters with BTE-02)
• RJ-45 patch cord
• Short Coax cable or 4 pairs UTP cable (at least 4 cables for joining)
• Password label (if it is necessary)
• Paper clip (If it is necessary for pressing joining button)
• Network Switch and PC (OS: Window 7 or later)
2-4-2. Hardware Installation
1. Apply power to the receiving switch
2. Use short coax or UTP cables to connect the receiving switch and the ECP/EUP-Transmitters
3. The blue power LED and B-Linx & T-Linx LED of the receiving switch will be ON.
4. The blue power LED of the ECP/EUP-Transmitters will be ON.
Network Solution ProviderPage 09 of 41
High-Speed, Long distance Ethernet and PoE Extender
5. The green join LED of the receiving switch and ECP-Transmitters will blink regularly if both devices are already joined
with same network password.
6. If the green Join LED is OFF on both receiving switch and ECP-Transmitter, joining work should be necessary
for network communication.
7. Connect ECP-Transmitters to IP Camera
( IP it is PoE IP Camera, Please select PoE Switch ‘ON’ from ECP Transmitters)
8. Connect the receiving switch to Network switch and PC using RJ45 Patch cord.
[Note]
All ECP/EUP products have the same network password as factory default mode
to support plug & play configuration between ECP/EUP Series.
[Note]
For joining work, please refer to the joining instructions on page 11.
Network Solution ProviderPage 10 of 41
High-Speed, Long distance Ethernet and PoE Extender
Rackmount Bracket Installation Guide
1. Remove the 3 of factory installed screws from both sides of managed switch and keep these screws
as they will be used to attach the new rack mount brackets. (See Picture 1 & 2)
2. Using these screws, attach the supplied rackmount bracket to the managed switch (Carefully check LEFT
and RIGHT side brackets, see pictures 3 & 4).
Rack Mount Instructions
1. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature
of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an environment compatible
with the maximum ambient temperature (Tma) specified by the manufacturer.
2. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of airflow required
for safe operation of the equipment is not compromised.
3. Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading.
4. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit
and the effect that overloading of the circuits might have on overcurrent protection and supply wiring.
Picture 1 Picture 2
Picture 3 Picture 4
Otros manuales para ECP-2808RM
3
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Cambiar de Intercoax
Intercoax
Intercoax FLX-1008 Manual de usuario
Intercoax
Intercoax ECP-101T Manual de usuario
Intercoax
Intercoax ECP-2808RM Manual de usuario
Intercoax
Intercoax HPS-01 Manual de usuario
Intercoax
Intercoax EUP-2816RM Manual de usuario
Intercoax
Intercoax HPS-1008 Manual de usuario
Intercoax
Intercoax ECP-2808RM Manual de usuario
Intercoax
Intercoax 2816RM-ECP Manual de usuario
Intercoax
Intercoax ECP-2808RM Manual de usuario
Intercoax
Intercoax HPS-01 Manual de usuario
