Inter-m PA-9336 Manual de usuario

OPERATING MANUAL

PUBLIC ADDRESS POWER

AMPLIFIER

PA-9336

UNPACKING AND INSTALLATION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

This symbol is intended to alert the user to the

presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric

shock to persons.

This symbol is intended to alert the user to the

presence of important operation and main-

tenancy (servicing) instructions in the literature

accompanying the appliance.

Caution: To prevent electric shock do not use this (polarized) plug

with an extension cord, receptacle or other outlet unless

the blades can be fully inserted to prevent blade ex-

posture.

Attentions: Pour prévenir les chocs électriques ne pas utilizer cette

fiche polarisée avec un prolongateur, une prise de

courant on une autre sortie de courant, sauf si les

lames peuvent étre insérées à fond sans en laisser

aucune partie à découvert.

Although it is neither complicated to install nor difficult to operate your PA amplifier, a few minutes

of your time is required to read this manual for a properly wired installation and becoming familiar

with its many features and how to use them. Please take a great care in unpacking your amplifier

and do not discard the carton and other packing materials. They may be needed when moving

your set and are required if it ever becomes necessary to return your set for service.

Never place the unit near radiators, in front of heating vents, in excessively humid or dusty

location to avoid early damage and for your years of quality use. Connect your complementary

components as illustrated in the following page.

FEATURES

• THERMAL PROTECTION & AUTOMATIC IDLING CIRCUITRY

To insure stability and reliability against over-current and over-heating, thermal protection

circuitry is provided. In addition, automatic idling circuit is provided to protect against thermal

run-away.

• BALANCED INPUT

A balanced input is provided to reduce hum picked up from a long distance input cable and to

avoid ground loop problem when you build the system.

• GAIN ADJUSTMENT

You can adjust the input gain from –12dB to 0dB (1V) by using of input gain adjust control.

• USE OF EMERGENCY BATTERY

You can operate this PA amplifier by using emergency battery for unexpected AC power failure.

• COMPACT SIZE

For valuable saving in rack space and slim exterior view, this amplifier is designed with a

compact size of 3µ.

FRONT PANEL CONTROLS

1. POWER INDICATING LED

This LED indicates power is turned ON.

2. POWER SWITCH

Pressing this switch to ON will make the power indicating LED ON and supply the power to

unit.

3. OUTPUT LEVEL INDICATORS

These LEDs indicates the output level of this amplifier. Be sure not to operate the unit with the

clip LED ON continuously (RED).

4. PROTECTION INDICATOR

This LED indicates the condition of the protection circuit. When the protection LED is “ON” the

amplifier is not operating normally (power on delay, overheating and limiting), please check

the INPUT/OUTPUT condition of the amplifier.

5. FAN

The fans should be kept free of all obstructions and be accessible to cool fresh air when

possible. It is important that the fans be used in a dust free environment.

PUBLIC ADDRESS POWER AMPLIFIER

PA-9336

POWER

OFF

CLIP

-10dB

-40dB

OUTPUT&PROTECTION

PROT

3 2

4 1

REAR PANEL CONTROLS

1. SPEAKER OUTPUT TERMINALS

These terminals are for connection of speaker lines to deliver power output to speakers.

Impedance (voltages) of 4Ω, 8Ω, 70V and 100V are provided for convenience. In any case,

use the speakers whose combined impedance is equal to or higher than the rated output

impedance of amplifier.

2. INPUT JACKS

These input jacks and terminals are for the balanced input signal. You can connect amplifiers

in parallel by using XLR jack.

3. LEVEL ADJUST CONTROL

This control is for adjusting the level of amplifier from –12dB to 0dB with the reference input

sensitivity of 0dB (1V). Rotating the control clockwise increases the level and counter-

clockwise decreases the level.

4. FUSE HOLDERS

These fuse holders contain AC. Replace them with the same type fuse when they are blown

out. If they continuously blow, stop replacing fuses and refer servicing to qualified personnel.

Impedance 4Ω8Ω13.6Ω

Output Voltage 38V 53V 70V

Impedance 4Ω13.6Ω27.8Ω

Output Voltage 38V 70V 100V

• USA/CANADA & Associated Version • EC & Associated Version

31V(4Ω)

70V(21Ω)

100V(41Ω)

COM

OUTPUT

AC INPUT

230V 50Hz, 380W

HPF

OFF

0dB

INPUT(ADJ)

-12dB

DC INPUT

24V

FRAME

FLOAT

GROUND

LIFT

BALANCED

INPUT

1V/10KΩ

LINK

FUSE : T6.3AL/250V

S/N

MODEL NO;PA-9336

PUBLIC ADDRESS

POWER AMPLIFIER

MADE IN KOREA

OUTPUT POWER:360W

1 3

8 972645

5. AC INLET

This terminal is connected AC input cord.

6. HIGH-PASS FILTER SWITCH

This switch is for activating the High-pass Filter circuit, to protect speakers from excessive low

frequency power demands. The –3dB frequency of the High-pass Filter is 400Hz.

7. EARTH LINK SWITCH

This slide switch provides for separation of “safety” earth and “signal” earth to prevent from

hum loops.

8. DC INPUT TERMINALS

These terminals are for connecting DC power supply of battery, Connect red colored terminal

to positive lead of battery and black colored one to negative lead of battery.

9. VENTILATOR

This ventilator releases an heated air occurred inside the set.

Be careful so that this ventilator is not closed by any obstruction.

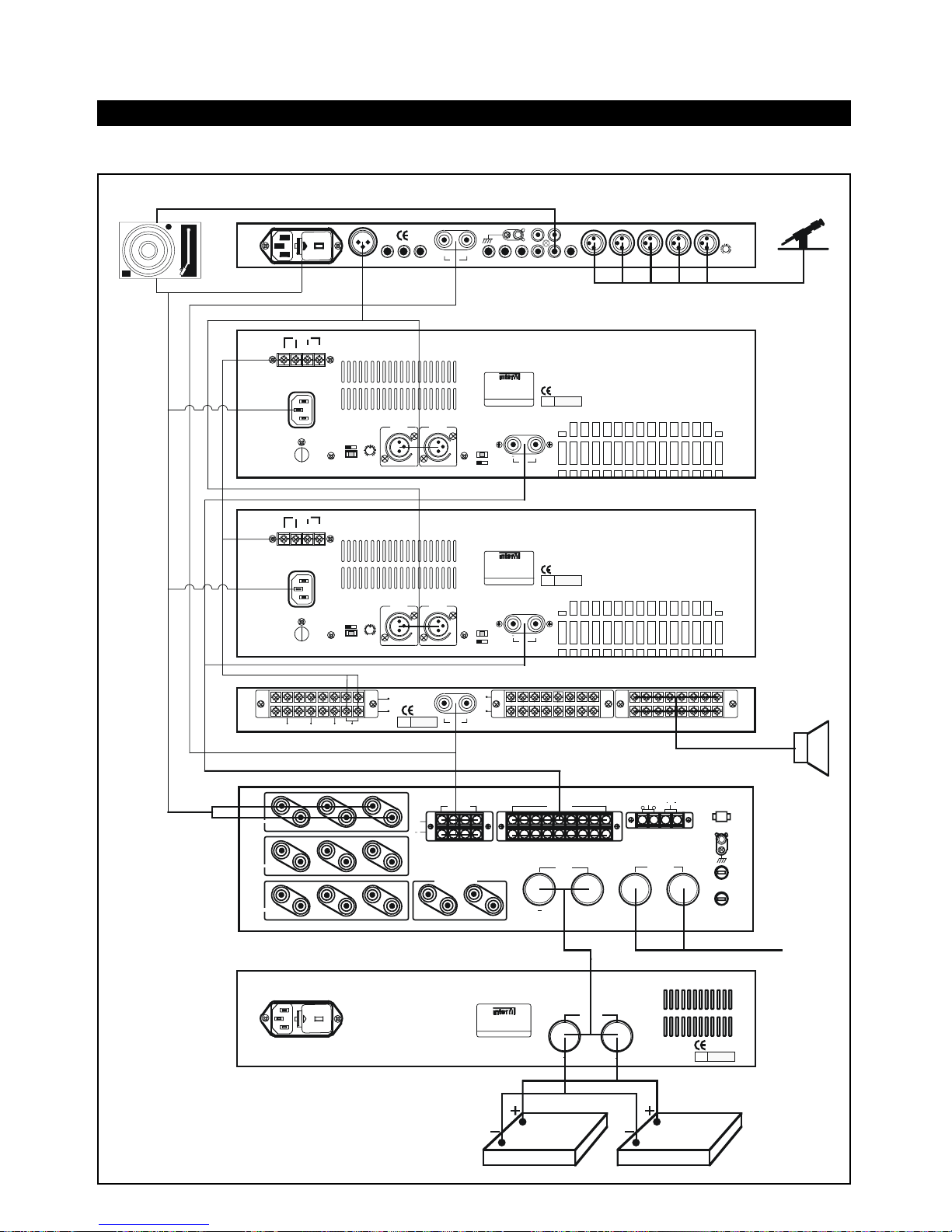

CONNECTIONS

31V(4Ω)

70V(21Ω)

100V(41Ω)

COM

OUTPUT

AC INPUT

230V 50Hz, 380W

HPF

OFF

0dB

INPUT(ADJ)

-12dB

DC INPUT

24V

FRAME

FLOAT

GROUND

LIFT

BALANCED

INPUT

1V/10KΩ

LINK

FUSE : T6.3AL/250V

S/N

MODEL NO;PA-9336

PUBLIC ADDRESS

POWER AMPLIFIER

MADE IN KOREA

OUTPUT POWER:360W

CH8

CH7

CH6

CH5

CH4

CH3

CH2

CH1

DC INPUT

24V

CH16

CH15

CH14

CH13

CH12

CH11

CH10

CH9

AMP IN 1

AMP IN 2

ALL

GROUP 1

GROUP 2

TIMER

REMOTE

(+)

(-)

(+)

(-)

S/N

LINE OUT

REC

DC INPUT

24V

OUT

GND

TUNER

DECK

AUX

PHONO

MIC6

MIC5

MIC4

MIC 33

MIC2

MIC1

MUTE

230

CHIME

MIXER

~AC INPUT 230V

50Hz

FUSE

T200mAL/250V

31V(4Ω)

70V(21Ω)

100V(41Ω)

COM

OUTPUT

AC INPUT

230V 50Hz, 380W

HPF

OFF

0dB

INPUT(ADJ)

-12dB

DC INPUT

24V

FRAME

FLOAT

GROUND

LIFT

BALANCED

INPUT

1V/10KΩ

LINK

FUSE : T6.3AL/250V

S/N

MODEL NO;PA-9336

PUBLIC ADDRESS

POWER AMPLIFIER

MADE IN KOREA

OUTPUT POWER:360W

SHOCK HAZARD DO

NOT OPEN. NO USER SERVICEABLE

PARTS INSIDE.DO NOT EXPOSE

UNIT TO RAIN OR MOISTURE

WARNING;

RISQUE DE CHOC ELECTRIQ-

UE NE PAS OUVRIR.

AVIS;

CAUTION; REPLACE WITH THE

SAME TYPE FUSE AS INDICATED. UTI-

LISER UN FUSIBLE DE RECHANGE DE

MEME TYPE.

230

AC INPUT: 220V,60Hz 139VA

FUSE: 1A/250V

MODEL NO;PB-92O7A

BATTERY CHARGER

MADE IN KOREA

( )

S/N

BATTERY IN

EMERGENCY

AC FUSE

2A/250V

DC FUSE

7A/250V

BATTERY

INPUT

(+)

( )

AC INPUT

230V/50Hz,217VA

GND

(+)

( )

UNSWITCHED

DC OUTPUT 24V

DC OUT 24V

(RACK ONLY)

SWITCHED

5A MAX

(AMP ONLY)

SWITCHED DC OUT 24V

REMOTE

SWED 1 (2000W)

SWED 2 (2000W)

SWED 3 (2000W)

UNSWED (700W)

BATTERY

DC 24V

BATTERY

DC 24V

AC CORD

TURN TABLE

PP-9113

PA-9336

PS-9116

PD-9359

MIC

SPEAKER

PB-9207A

SPECIFICATIONS

ELECTRICAL

Rated output (THD 1%) ........................................................................................360W (RMS)

4Ω(38V)

8Ω(53V)

13.6Ω(70V)

27.8Ω(100V)

Input Sensitivity/Impedance ...............................................................................1V/10KΩ, BAL

T.H.D (at 1KHz, Rated Output) ............................................................................Less than 1%

Frequency Response (+1/–3dB) ..........................................................................70Hz~20KHz

S/N..................................................................................................................Better than 95dB

H.P.F ..................................................................................................................–3dB at 400Hz

Input Level Adjustment ...........................................................................................–12dB~0dB

GENERAL

Power Source .................................................................AC 110V~240V, 50Hz/60Hz, DC 24V

Weight (Net) ......................................................................................................................21Kg

Dimensions ................................................................................482(W) 132(H) 280(D)mm

Specifications and design subject to change without notice for improvements.

MADE IN KOREA
