Intellinet 524070 Manual de usuario

WIRELESS

802.11n

PC CARD

QUICK

INSTALL

GUIDE

MODEL 524070

INT-524070-QIG-0108-01

INTRODUCTION

Thank you for purchasing the INTELLINET NETWORK SOLUTIONS

™

Wireless 802.11n PC Card, Model 524070.

This Quick Install Guide presents the basic steps required to set up and

operate this device. For more detailed instructions and specications,

refer to the user manual 1) on the CD enclosed with this product; 2) on

the Web site listed below; or 3) in some cases, printed and enclosed

with this product. Contact your INTELLINET NETWORK SOLUTIONS

dealer with comments or questions.

NOTE: Some screen images have been modied to t the format of this guide.

INSTALLATION

1. Insert the Wireless 802.11n PC Card logo-side up

into an empty PCMCIA slot of your

computer. You can insert the card

when the computer is on or off.

NOTE: Don’t force the card into

the slot. If the card doesn’t slide

into the slot smoothly, remove it and try inserting it again.

2. When the message

“Windows needs to

install driver software

for your Network

Controller” displays,

click “Don’t show this

message again for

this device” to

continue with the

installation.

3. Insert the enclosed driver CD in the CD-ROM drive and run the “Setup.

exe” program in the “Driver” folder. When the license agreement screen

displays, click “Yes” to continue with the card’s software installation.

NOTE: If Windows displays the message “An unidentied program

wants access to your computer,” select “Allow.”

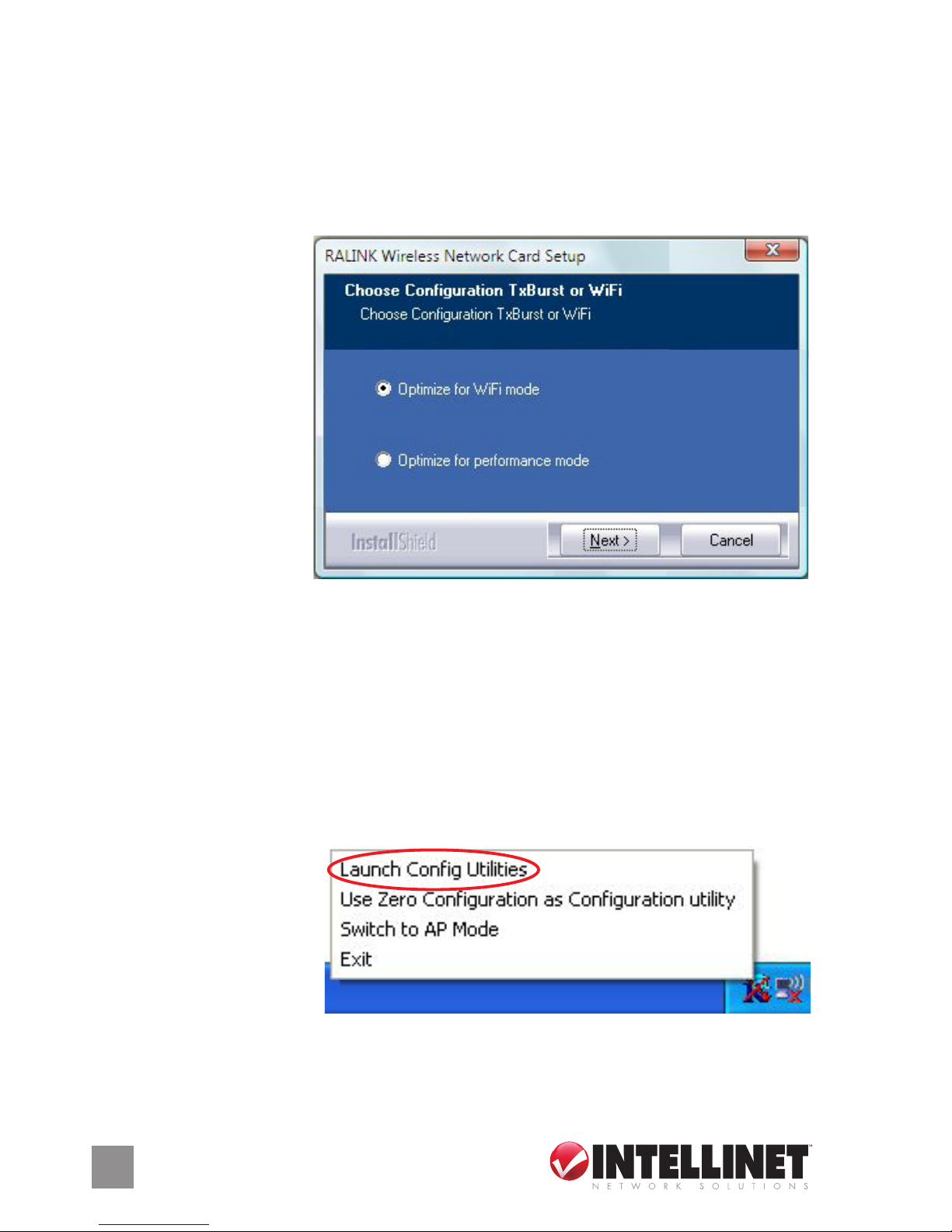

4. When the Choose Conguration TxBurst or WiFi screen displays, select

“Optimize for WiFi

mode” for wireless

compatibility. To

enhance wireless

performance, you

can select “Optimize

for performance

mode”; however, in

this mode wireless

compatibility isn’t

guaranteed. (Refer

to the user manual

for details of performance mode.) Once either option has been chosen,

click “Next” to continue with the software installation. NOTE: If the

Found New Hardware screen displays again, ignore it and wait for the

next screen.

5. When the “Setup has nished installing” message displays, click “Finish”

to complete the driver installation.

Connecting to a Wireless Access Point

1. After completing the

driver installation, the

wireless conguration

utility icon displays

in the lower-right

corner of your

Windows desktop. Right-click on the icon and select “Launch Cong

Utilities” from the pop-up menu.

2. The conguration utility will automatically scan for wireless access

points, and all those found will be displayed (see above). Select an

access point and click “Connect.” NOTE: If the wireless access point

you want to connect to doesn’t show here, click “Rescan.”

3. If the SSID (the “service

set identier,” or name of

wireless access point) you

want to connect is hidden,

a “Please enter SSID”

prompt will display. Enter

the SSID, then click “OK.”

NOTE: The SSID entered

must be identical to the SSID setting of the wireless access point.

4. If the wireless access point uses encryption (see above), a WEP password

or WPA preshared key needs to be entered. (Obtain whichever is

needed from the owner of the wireless access point you want connected.)

Once the correct entry is made, click “OK.” If the value entered here is

wrong, you will not be able to connect to the wireless access point.

NOTE: Authentication Type is automatically selected and should not

be changed.

5. If the wireless access point is successfully connected, a “Connected”

message displays at the lower-left corner of the wireless conguration

utility window. Click “OK” to exit.

NOTE: For advanced settings and other features of this Wireless 802.11n

PC Card, refer to user manual on the enclosed CD.

INTELLINET NETWORK SOLUTIONS™offers a complete line

of active and passive networking products.

Ask your local computer dealer for more information or visit

www.intellinet-network.com.

SOLUTIONS

All products mentioned are trademarks or registered trademarks of their respective owners.
