1. Foreword

Thank you for purchasing the IS-D CR Actuator. This manual explains the structure, correct operation and maintenance

of the IS-D CR Actuator. Please read this manual carefully before using the actuator. For more complete information on

operating the actuator, please refer to the controller operating manual.

2. Outline

A shield and evacuation system enables the new ISD-CR actuators to maintain a Class 10 level. A thin stainless steel

shield is used to keep particles generated inside the actuator from migrating to the outside environment. In addition,

any particles that are generated are purged from the system through a standard vacuum connector port which has

been designated for quick and easy hookup to a vacuum source.

3. Safety Precautions

3-1 Basic Operating Instructions

•Please do not attempt to use or operate the actuator in any manner not indicated in this manual or the

controllermanual.

• Please be sure to use only the cable provided by IAI to connect the actuator and controller.

• Please do not allow people within the moving range of the unit when it is in operation or when the power is

ON since this is dangerous.

3-2 Maintenance and Inspection

• When doing maintenance and inspection work, always shut down the controller power first.

• When doing inspection, make sure that no one can inadvertently turn the power ON.

• Make sure that a sign indicating work in progress is clearly visible.

• If several persons are working, be sure to watch out for each other's safety. In particular, check before

turning power ON or OFF and let others know if you are doing work involving axis movement.

IS-D CR Actuator

Page 2

4. Warranty

All ISD-CR Series actuators are individually tested on a clean bench located within a class 10 cleanroom. They are

sealed and packed within a class 10 cleanroom before shipment. Data is fully assembled for each CR Series and can

be provided upon request. Currently, there is no industry standard to measure cleanliness. In general, particles are

measured in the area of operation. However, this type of measurement method can be influenced by the capacity of

the cleanroom itself. Therefore, the ISD-CR Series of Intelligent Actuator satisfactorily meets Class 10 ratings, but is

not absolutely guaranteed.

4-1 Warranty Period

The warranty period is one year after IAI America ships the unit.

4-2 Scope of Warranty

If a breakdown occurs within the period specified above and is due to the manufacturer's error, we will

repair the unit at no cost. However, the following items are not covered by this warranty.

wFaded paint or other changes that occur naturally over time.

wConsumable components that wear out with use.

wUnit seems to be noisy or similar impressions that do not affect machinery performance.

wDamage resulting from improper handling by the user or lack of proper maintenance.

wAny alterations made by other than IAI or its representatives.

wBreakdowns caused by using controllers made by other manufacturers.

wAny damages caused by fire and other natural disasters or accidents.

The warranty pertains to the purchased product itself and does not cover any damages that might arise from a

breakdown of the supplied product. Any repairs will be done at our factory. Even if the product is still covered

under the warranty period, we will assess a separate charge for sending technicians to the customer's site.

IS-D CR Actuator

Page 3

5. Names of the Parts

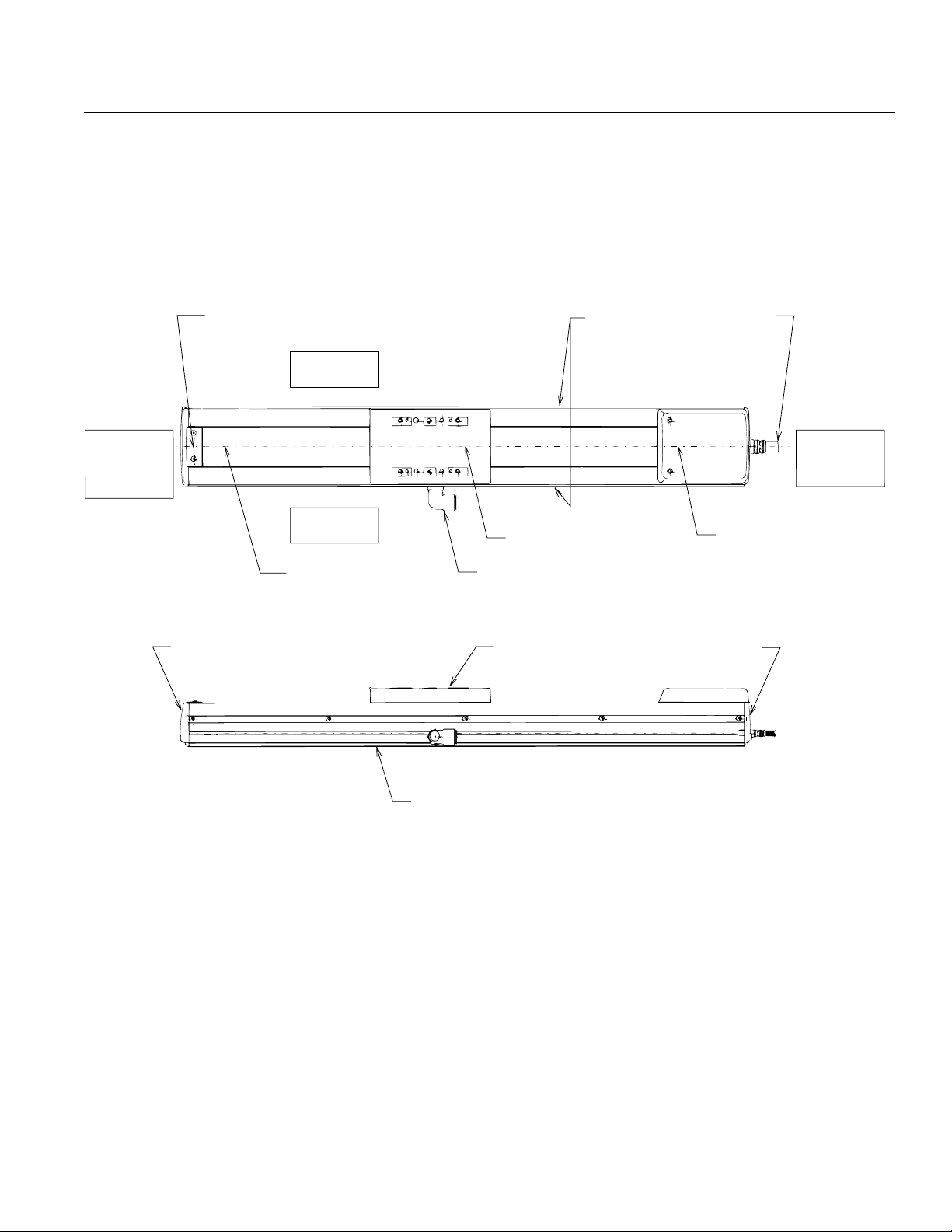

The name of the actuator parts are indicated below. The left and right sides are indicated by looking at the actuator

from the motor end with the actuator set down horizontally. Front end means the side opposite the motor end.

Sheet stopper plate Side cover Cable

Slider cover Motor cover

Stainless sheet

Left Side (L)

Suction coupling

Front cover

Base

Slider Rear cover

Right Side (R)

Reversed

motor side

(front area) Motor side

IS-D CR Actuator

Page 4

6. Transporting, Handling

6-1 Handling the Packed Unit

Unless there are special instructions, the system is shipped with each axis packed separately. Please take care

that the shipping box is not dropped or subjected to strong impact during transport.

• The operator should not carry heavy shipping boxes by himself.

• If the shipping box is left standing, it should be in a horizontal position.

• Do not climb on top of the shipping box.

• Do not place heavy objects on top of the shipping box.

6-2 Handling the Actuator After It is Unpacked

Lift the actuator up by the base to remove it from the packing. Never grab the stainless sheet area.

• When carrying the actuator, take care not to bump it. Take particular care with the front cover, motor housing

and the encoder cover.

• Do not exert excessive force on any part of the actuator. Take particular care with the screw cover and cable.

• Please do not apply any excessive force onto each part of the actuator. In particular, please do not apply

any force onto the stainless sheet or pull the cables.

!! Warning !! Never grab the stainless sheet area!

* Please refer to Section 5 regarding the names of the actuator parts.

IS-D CR Actuator

Page 5

7. Operating and Storage Environment

7-1 Operating Environment

The actuator should be set up in an environment which meets the following criteria:

wAvoiddirect sunlight.

wAvoid radiant heat from strong heat sources such as a furnace.

wAmbient temperature should be 0 ~ 40º C.

wThe humidity should be less than 85% and there should be no condensation.

wAvoid exposure to corrosive or combustible gases.

wThe area should have very little dust and be suitable for normal assembly operations.

wAvoid exposure to oil mist or fluids used in cutting.

wThe unit should not be subject to vibrations greater than 0.3G.

wAvoid surroundings with extreme electromagnetic waves, ultraviolet rays and radiation.

In general, the environment should be one in which an operator can work without protective gear.

7-2 Storage Environment

The storage environment should be similar to the operating environment. In addition, you must take precautions

against condensation if the unit is to be stored for a long period of time. Unless there are special instructions, we

do not include moisture absorption agents when shipping the unit. If you are storing the unit where condensation

might occur, then you must treat the entire packing or treat the unit itself after it is unpacked to prevent conden-

sation. The unit can withstand up to 60ºC during a short storage interval but only up to 50ºC if the storage period

is longer than one month.

IS-D CR Actuator

Page 6

8. Installation

We'll describe the installation process using a single axis unit.

8.1 Installing the Main Body

In this section, we will explain the mounting method for a single axis application.

!! Warning !!

!! Since the tap is a stopper hole, please be careful when setting the bolt length. Inadequate

bolt usage may cause tap hole breakdown as well as lead to lack of intensity in actuator

mounting, thus lowering precision and may cause an accident.

Machine Type Tap diameter Tap Effective length A

Small M6 17mm 70mm

Medium M8 20mm 90mm

Large M8 20mm 120mm

Tap effective length

Tap diameter

IS-D CR Actuator

Page 7

• There are tapped holes in the slider where you can affix the payload. To do this, follow the mounting

procedure used for the main body.

• If you are anchoring the slider and moving the main body, attach the slider using the tapped holes.

• The slider has two reamed holes which are used to reproduce the correct positioning when dismounting and

reattaching the slider. Use only one of the holes when fine adjustments to the perpendicularity are required.

8.2 Attaching the Slider Carrying the Payload

Slider Tap Hole Diameter and Reamer Diameter

Machine Type Tap diameter Tap depth A B C Reamer Hole Reamer Depth

Small M6 13mm 70mm --- 60mm φ6H10 10mm

Medium M6 18mm --- 70mm 80mm φ6H10 10mm

M8 18mm 90mm --- φ6H10 10mm

Large M8 20mm 120mm 90mm 105mm φ6H10 10mm

Reamer Hole

Tap Hole

Tabla de contenidos

Otros manuales de Controladores de Intelligent Actuator

Intelligent Actuator

Intelligent Actuator ROBO Cylinder RCP Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Siemens

Siemens OpenAir GMA 1 Series Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario
