Thank you for buying an Intel® Server System. The following information will help you

assemble your Intel® Server System and install components.

If you are not familiar with ESD [ElectroStatic Discharge] procedures used during

system integration, see the complete ESD procedures described in your Service Guide.

This guide and other supporting documents are located on the web at:

http://www.intel.com/p/en_US/support/.

Intel® Server System R1000SP Family

Quick Installation User's Guide

G64256-003

(This page is intentionally left blank.)

General Installation Process ........................................................................................................ 2

Reference ............................................................................................................................................ 11

System Overview .............................................................................................................................. 1

Preparing the System ...................................................................................................... 2

Remove the Top Cover .................................................................................................... 2

Remove the Air Duct ........................................................................................................ 2

Remove Processor Heatsink ........................................................................................ 2

Install the Processor ........................................................................................................ 3

Install Processor Heatsink ............................................................................................. 4

Install Memory Modules .................................................................................................. 4

Install Hard Drives .............................................................................................................. 5

Install Optical Drive ............................................................................................................ 7

Install the Air Duct ............................................................................................................. 7

Remove Add-in Card Riser Assembly ...................................................................... 7

Install Add-in Card .............................................................................................................. 7

Install Add-in Card Riser Assembly ........................................................................... 8

Install Rack Handles .......................................................................................................... 8

Install Intel® I/O Expansion Module (optional) ..................................................... 8

Install Intel® RAID C600 Upgrade Key (optional) ............................................... 8

Install Intel® Remote Management Module 4 (optional) ................................ 8

Install Intel® RAID Smart Battery (optional) ......................................................... 9

Replace Fixed Power Supply Module (optional) ............................................... 9

Replace Redundant Power Supply Module (optional) ..................................... 9

Replace Power Supply Module (optional) .............................................................. 9

Install Bezel (optional) .................................................................................................... 10

Install the Top Cover ........................................................................................................ 10

Finishing Up ......................................................................................................................... 10

Software ............................................................................................................................... 10

Table of Contents

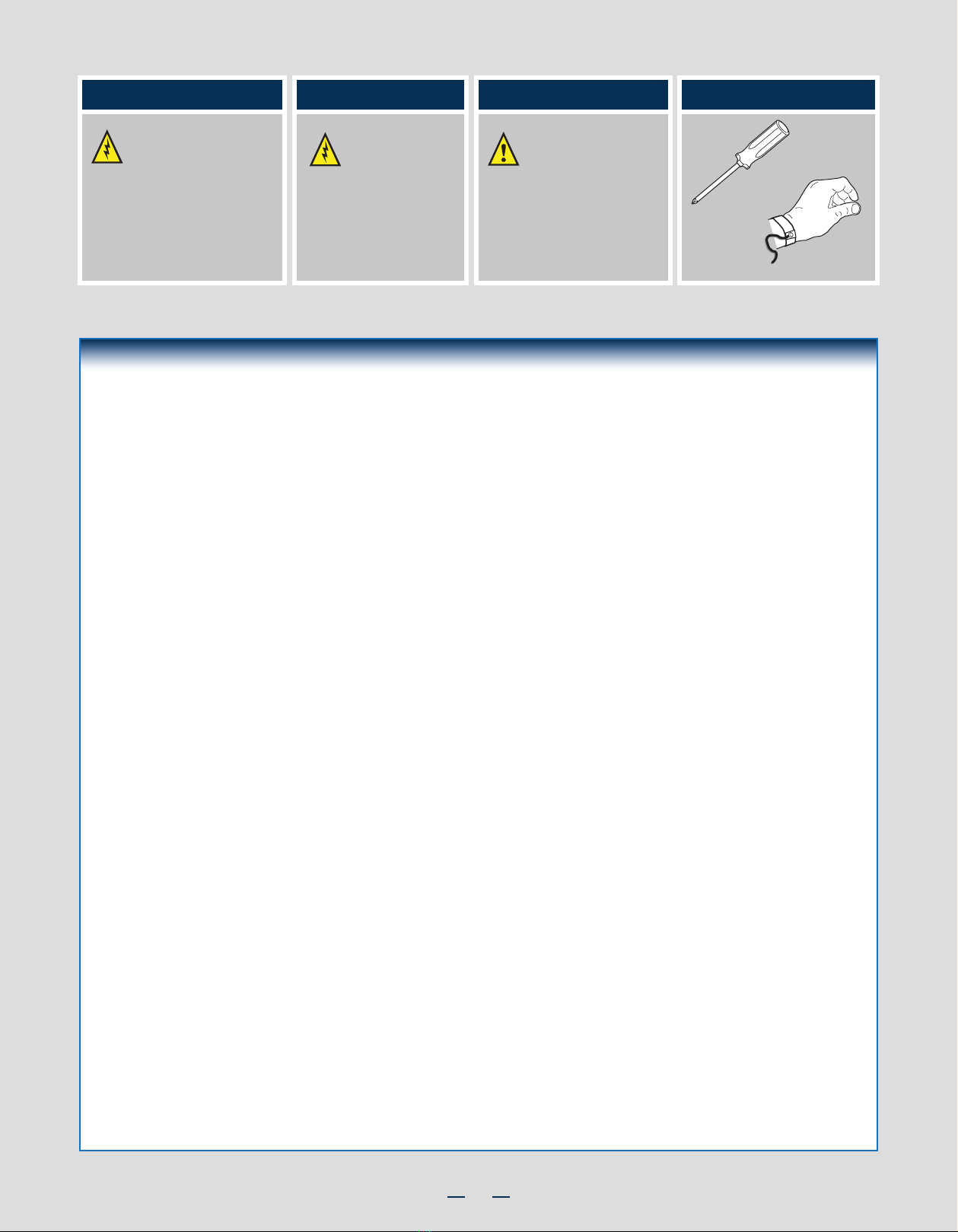

Warning

Read all caution and safety

statements in this document

before performing any of the

instructions. Also see the Intel

Server Board and Server Chassis

Safety Information document at:

http://www.intel.com/support/

motherboards/server/sb/cs-010770

.htm for complete safety information.

Warning

Installation and service

of this product is to be

performed only by

qualified service personnel

to avoid risk of injury from

electrical shock or energy

hazard.

Caution

Observe normal ESD

[Electrostatic Discharge]

procedures during system

integration to avoid possible

damage to server board and/or

other components.

Tools Required

Anti-static

wrist strap

Phillips*

screwdriver

Intel®is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. *Other names and brands may be claimed as the

Thermal Operation and Conﬁguration Requirements

To keep the system operating within supported maximum thermal limits, the system must meet the following operating and configuration

guidelines:

• Ambient in-let temperature cannot exceed 35 ºC and should not remain at this maximum level for long periods of time.

Doing so may affect long term reliability of the system.

•DIMM Population on CPU: Install DIMMs the in order; Channels A, B, and C. Start with 1st DIMM slot (blue) on each channel.

•All hard drive bays must be populated. Hard drive carriers either can be populated with a hard drive or supplied drive blank.

•The air duct must be installed at all times.

•The system top-cover must be installed at all times.

System Fans

Memory Slots

Riser Slot

Server Board

Air Duct

CPU

Power Supply

Hard Drive Bays

Front Control Panel

System Features and Components

* 3.5" Hard Drive Bay system as shown

Useful Information:

• The SCU1 (4-7) port requires an Intel® RAID C600 Upgrade Key installed to be functional.

System Overview

Intel® Server System R1000SP Family

Remove the Top Cover

Remove the four screws.

Slide cover back and lift upward.

General Installation Process

The installation instructions in this section are for common components of Intel® Server System

R1000SP family.

Minimum Hardware Requirements

•Memory Type:

Minimum of one 1GB DDR3 1066/1333 MHz ECC UDIMM/RDIMM

•Processor: Intel®Xeon®processor E5-2400 product family

•Hard Disk Drives: SATA

For a complete list of compatible processors, heatsinks, and memory, see

http://www.intel.com/p/en_US/support/ (post-production only)

To avoid integration difﬁculties and possible board damage, your system must meet

the following minimum requirements:

Preparing the System

Observe normal ESD (Electrostatic Discharge)

procedures.

Place your Intel®Server System on a ﬂat anti-static

surface to perform the following integration procedures.

Observe ESD procedures before reaching inside to make

server board connections or install components.

Remove the Air Duct

Remove the air duct by

lifting straight up.

IMPORTANT!

Before proceeding

further, check your

Intel®Server System

for disconnected or

loose cables and

components that

may have occurred

during shipping.

Remove Processor Heatsink

The heatsink is attached to the server board / processor socket with captive fasteners.

Lift the heatsink straight up.

CAUTION: The heatsink has thermal interface material (TIM) on the underside

of it. Use caution so that you do not damage the thermal interface material.

Use gloves to avoid sharp edges.

Using a #2 Phillips* screwdriver, loosen the four screws located on the

heatsink corners in a diagonal manner using the following procedure:

Using a #2 Phillips* screwdriver, start with screw 1 and loosen it by

giving it two rotations and stop. (IMPORTANT: Do not fully loosen.)

Proceed to screw 2 and loosen it by giving it two rotations and stop.

Similarly, loosen screws 3 and 4.

Repeat steps A and B by giving each screw two rotations each time

until all screws are loosened.

TIM

Chassis Front

General Installation Process

E. Close Load Plate and Socket Lever

Close the socket lever and ensure that

the load plate tab engages under the

socket lever when fully closed.

With your ﬁnger, push down on the

load plate as shown.

D. Install the Processor

CAUTION: The underside

of the processor has

components that may damage

the socket wires if installed

improperly.

DO NOT DROP processor

into the socket!

Processor must align

correctly with the socket

opening before installation.

Components

Orient the processor with the socket

so that the orientation notches

on the processor align with the

two orientation posts on the socket.

Install the processor as shown.

Orientation Posts

Orientation Notches

Close the load plate all

the way as shown.

Install the Processor ...continued

Cautions:

1. When opening a socket,

DO NOT TOUCH the gold

socket wires.

A. Open the

Socket Lever

Rotate the lever open all

the way.

B. Open the

Load Plate

Open the load plate as shown.

Push the lever handle down

and away from the socket

to release it.

Push the rear tab with your

ﬁnger tip to bring the front end

of the load plate up slightly.

Remove the Processor

Protective Cover

2. When unpacking a pro-

cessor, hold by the edges

only to avoid touching the

gold contact wires.

Take the processor out of

the box and remove the

protective shipping cover.

5Install the Processor

General Installation Process

7Install Memory Modules

DDR3 DIMM Memory Identiﬁcation:

Other

Memory

DDR3

CAUTION: Observe normal ESD (ElectroStatic

Discharge) procedures to avoid possible damage to

system components.

DIMM notch and socket bump must align as shown below.

AIRFLOW

Chassis Front

TIM

CAUTION:

Do not

over-tighten

fasteners.

Note: Heatsink styles may vary.

Remove the protective ﬁlm on the TIM if present.

CAUTION: The heatsink has thermal interface

material (TIM) on the underside of it. Use caution so

that you do not damage the thermal interface material.

Use gloves to avoid sharp edges.

BAlign heatsink ﬁns to the front and back of

the chassis for correct airﬂow.

Airﬂow goes from front-to-back of chassis.

Each heatsink has four captive fasteners and

should be tightened in a diagonal manner using

the following procedure:

Using a #2 Phillips* screwdriver,

start with screw 1 and engage screw

threads by giving it two rotations

and stop. (Do not fully tighten.)

Proceed to screw 2 and engage screw

threads by giving it two rotations and

stop. Similarly, engage screws 3 and 4.

Repeat steps C and D by giving each

screw two rotations each time until

each screw is lightly tightened up to

a maximum of 8 inch-lbs torque.

6Install Processor Heatsink

Install Memory Modules ...continued

Memory Conﬁgurations and Population Order:

Intel®Server Board S1400SP

DIMM_C2

DIMM_C1

DIMM_B2

DIMM_B1

DIMM_A2

DIMM_A1

CPU Socket

Note: For additional memory conﬁgurations, see the Service Guide on the Intel®Server Deployment & Management DVD that accompanied

your Intel®Server System, or go to:

http://www.intel.com/p/en_US/support/ (post-production)

Memory sizing and conﬁguration is supported only for qualiﬁed DIMMs approved by Intel®. For a list of supported memory, go to:

http://serverconﬁgurator.intel.com/sct_app.aspx (post-production)

For the best performance, a minimum of three DIMMs per CPU is recommended, populated in the blue slot of each memory channel.

General Installation Process

Install Memory Modules ...continued

To Install DIMMs:

CAUTION: Avoid touching contacts

when handling or installing DIMMs.

Open both DIMM socket levers.

Note location of alignment notch.

IMPORTANT! Visually check that each latch is fully closed and correctly engaged with each DIMM edge slot.

Push down ﬁrmly on the DIMM until it snaps into place and both levers close.

Insert DIMM making sure the connector edge of the DIMM aligns correctly with the slot.

2.5" HDD

2.5" Hard Drive Carrier (For system with 2.5" hard drive bay only)

Hard Drive Numbering Diagram

Drive 0 Primary

8 x 2.5" hard drive bay as shown

Remove the drive carrier by pressing the

green

latch

to unlock.

Pull out the black lever and slide the carrier out.

Remove the four screws securing the plastic drive blank

from the 2.5” HDD carrier.

Disengage the plastic drive blank from the HDD carrier.

Remove the plastic drive blank from the 2.5” HDD carrier.

Install the hard disk drive using the four screws as shown. Make Sure

that the connector end of the drive matches the backplane connector.

With the lever open, insert the hard disk drive assembly into the chassis,

then push in the lever to lock it into place.

CAUTION: If you do not

install all drives, empty drive

bays must be occupied by

carriers with plastic drive

blank provided to maintain

proper system cooling.

8Install

Hard Drives

General Installation Process

2.5" HDD

Install

Hard Drives ...continued

3.5" Hard Drive Carrier (For system with 3.5" hard drive bay only)

Hard Drive Numbering Diagram

Drive 0 Primary

Remove the drive carrier by pressing the green button and opening

the lever.

Slide the carrier out.

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

Remove the four screws securing the HDD interface bracket and remove

the HDD interface bracket.

Install 2.5” Hard Drive as option:

3.5´´ HDD

Install the hard disk drive using the same four screws as shown. Make

sure the connector end of the drive matches the backplane connector.

With the lever open, insert the hard disk drive assembly into the chassis.

Push in the lever to lock it into place.

4 x 3.5” hard drive bay as shown

CAUTION: If you do not

install all drives, empty drive

bays must be occupied by

carriers with plastic drive

blank provided to maintain

proper system cooling.

d1 d4

d2 d3

Install the HDD interface bracket

from top. Secure the bracket with

three screws as shown.

Slide the 2.5” HDD into the

bracket to align the screw holes

with the right and the left rail.

Break off the tab on the

HDD interface bracket.

Secure the hard disk drive using

the four screws for 2.5” HDD.

Bottom

View

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

TOP

BREAK OFF TAB

BEFORE MOUTING

2.5´´ HARD DRIVE

0 1 2 3

Otros manuales para R1000SP

Tabla de contenidos

Otros manuales de Servidor de Intel

Intel

Intel R1000BB Family Manual de usuario

Intel

Intel MFSYS25V2 Manual de usuario

Intel

Intel SR1500AL - Server System - 0 MB RAM Manual de usuario

Intel

Intel E80367-001 Manual del propietario

Intel

Intel SRPL8 Manual de usuario

Intel

Intel P4000RP Manual de usuario

Intel

Intel SR1530HSH - Server System - 0 MB RAM Manual de usuario

Intel

Intel SR1630BC - Server System - 0 MB RAM Guía de configuración

Intel

Intel SR9000MK4U - Server System - 0 MB RAM Guía del usuario

Intel

Intel MFSYS25V2 Manual de usuario

Intel

Intel S7000FC4UR - Server System - 0 MB RAM Manual de usuario

Intel

Intel R1304BTSSFAN Manual de usuario

Intel

Intel P4304BT series Manual de usuario

Intel

Intel R2000WT Guía de configuración rápida

Intel

Intel M20MYP1UR Manual de usuario

Intel

Intel SR1520ML - Server System - 0 MB RAM Manual de usuario

Intel

Intel GS-SR168 Guía del usuario

Intel

Intel S9200WK Series Manual de usuario

Intel

Intel TIGH2U - Carrier Grade Server Instrucciones de funcionamiento y seguridad

Intel

Intel H2000WP Manual de usuario

Intel

Intel SR2612UR - Server System - 0 MB RAM Manual de usuario

Intel

Intel SC5650HCBRP Manual del propietario

Intel

Intel SR6850HW4M Manual de usuario

Intel

Intel SR1560SF - Server System - 0 MB RAM Manual de usuario

Manuales populares de Servidor de otras marcas

HP AlphaServer ES47 Manual de usuario

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

HP ProLiant Gen9 Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

HP Integrity rx2600 Guía de instalación

Milestone

Milestone Husky IVO 350T Manual de usuario
