ISP2150

Congratulations on the purchase of your new Intel®ISP2150 system. This Quick Start introduces you to

your new system, guides you through rack kit installation, and helps you get the system started.

The following procedures describe how operate the system’s front bezel, which covers the front panel

controls and indicators. For a description of the front panel features, refer to Front Panel Controls and

Indicators.

Opening and Closing the Front Bezel

With the bezel open you have access to all

of your system's front panel functions and

indicators. With the bezel closed you can

protect critical functions and still view the

system's indicators.

To open the bezel, do the following:

1. Stand in front of the chassis and grasp

the edges of the bezel from each side.

2. Gently pull the bezel towards you

until it begins to separate from the

chassis.

3. As the bezel separates from the

chassis, allow it to swing to its open

position situated below the chassis.

To close the bezel, gently raise it upwards.

The hinging mechanism will guide the

bezel into the correct position where it will

snap shut.

ISP2150 2U Rack Server Platform Quick Start Guide 9

Locking and Unlocking the Front Bezel

The bezel can be locked and unlocked to prevent unwanted access to the system.

To lock the bezel:

1. Remove the keys from inside the bezel (they should be taped to the inside).

2. Close the bezel and insert the key into the lock. Turn the lock counterclockwise until it stops (about a

quarter turn). The bezel is now locked and cannot be opened.

To unlock the bezel, insert the key into the lock and turn the lock clockwise until it stops (about a quarter

turn). The bezel is now unlocked and can be opened again.

Attaching and Removing the Front Bezel

The front bezel can be installed or removed from the system.

To attach the bezel:

1. With the LED light tunnels located at the top of the bezel, push in the arms on either side of the bezel

far enough so that the tabs on the ends of the arms can be inserted into the holes in the chassis.

2. Insert the tabs into the holes in the handles on the chassis. Make sure the tabs on each side of the

bezel are completely in the holes in the handles.

To remove the bezel:

1. With the bezel opened, gently push the metal hinge arms located on each side of the bezel in towards

the middle of the unit.

2. Push the arms far enough in so that the tabs on the end of the arms are completely out of the holes in

the handles on the chassis. The bezel should now be able to be removed.

3. The bezel should now be able to open and close easily and completely.

Installation

Follow these instructions to get your sever to the point where you can load an operating system on it.

Open the Cover

1. Loosen the three screws on the rear of the system.

2. Pull the cover back and remove it from the chassis.

10 ISP2150 2U Rack Server Platform Quick Start Guide

Installing a Microprocessor

The server supports up to two Intel®Pentium®II or Pentium III processors (with 100 MHz system bus).

If you are installing two processors, make sure they are the same speed, voltage, and stepping.

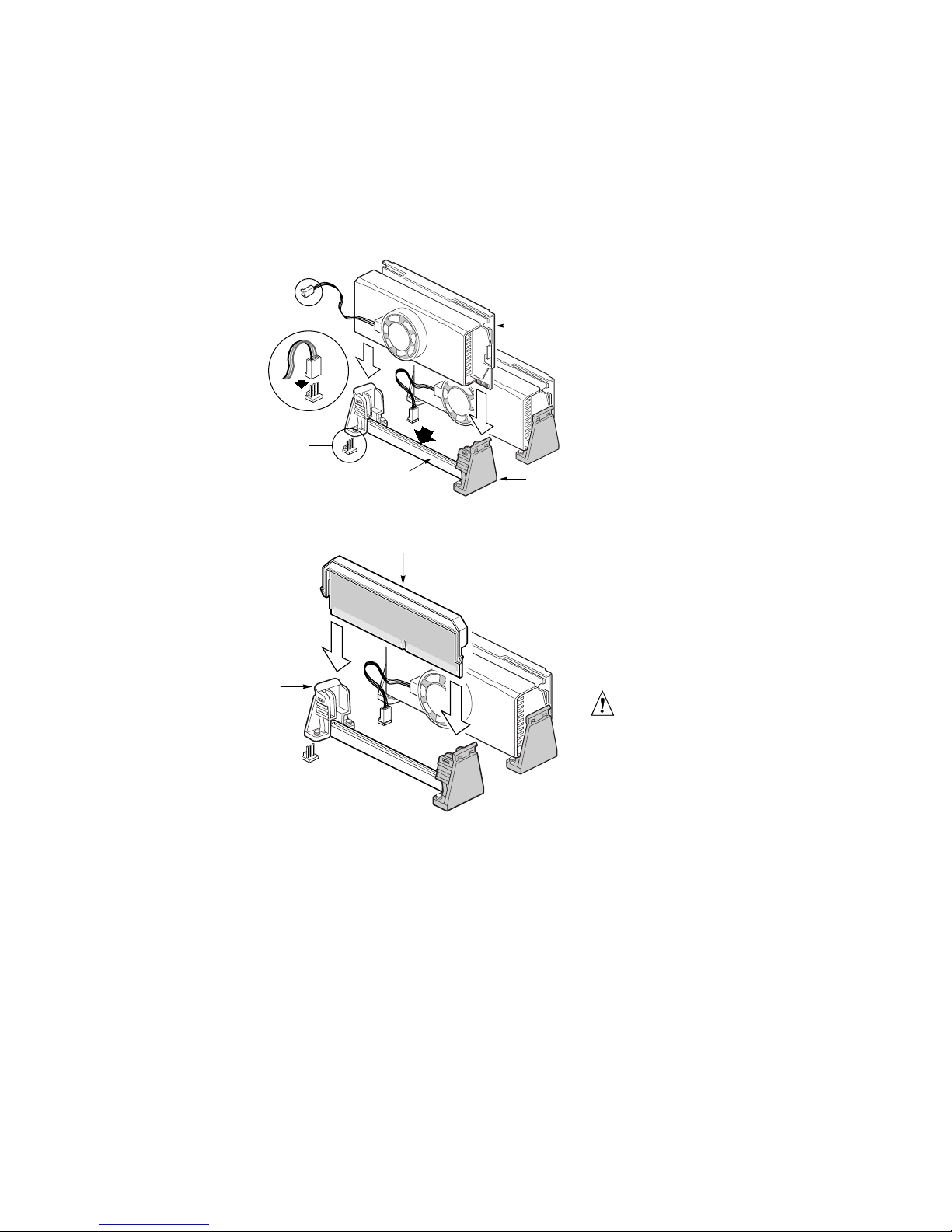

OM09315

OM09328

1. Remove the new processor from its

anti-static package and place it on a

grounded, static free surface or

conductive foam pad.

2. Attach the small end of the power

cable to the fan connector on the

S.E.C. cartridge, then attach the large

end (B) to the 3-pin connector on the

server board.

3. Orient the processor so that the heat

sink faces the I/O connectors. Slide

the processor into the retention module.

Push down firmly, with even pressure

on both sides of the top, until the

processor is seated.

4. To lock in the processor, push the

latches inward on the retention module

until they click into place. The latches

must be secured for proper electrical

connection of the processor.

5. After you have installed the processor,

you must configure its speed in BIOS

set-up.

CAUTION, Single-Processor

Configurations

If you install only one processor in a

system, it must go in the primary

connector (closest to the DIMM

sockets). With a single-processor

configuration, you must install a

termination board and termination

latch assembly (A) in the empty

secondary connector (B) to ensure

proper operation of your system. A

termination board is provided with

your system.

ISP2150 2U Rack Server Platform Quick Start Guide 11

Installing Memory

OM09318

The server only supports 100 MHz

PC/100-compliant SDRAM.

•Install from 32 MB to 2 GB of

unbuffered memory, using up to four

single or double-banked DIMMs

•Install from 32 MB to 2 GB of

registered memory, using up to four

single or double-banked DIMMs

12 ISP2150 2U Rack Server Platform Quick Start Guide

Installed DIMMs must be the same speed and either all registered or all unbuffered. For a list of supported

memory, call your service representative or visit the Intel Support website:

http://support.intel.com/support/motherboards/server/l440gx/compat.htm

CAUTION

Use extreme care when installing a DIMM. Applying too much pressure can damage the socket.

DIMMs are keyed and can be inserted in only one way.

Mixing dissimilar metals may cause later memory failures resulting in data corruption. Only install

DIMMs with gold-plated edge connectors in gold-plated sockets.

To install your memory:

1. Open your server.

2. Holding the DIMM only by its edges, remove it from its anti-static package.

3. Orient the DIMM so that the two notches in the bottom edge of the DIMM align with the keyed

socket.

4. Insert the bottom edge of the DIMM into the socket, and press down firmly on the DIMM until it

seats correctly.

5. Gently push the plastic ejector levers on the socket ends to the upright position.

6. Repeat the steps to install each DIMM.

7. Ensure that no cables are protruding from the server chassis and then close the server.

8. Connect all external cables and the power cord to the server.

9. Turn on the monitor and then the server.

Tabla de contenidos

Otros manuales de Servidor de Intel

Intel

Intel R1000WT Series Guía del usuario

Intel

Intel R1000WF Series Manual de usuario

Intel

Intel R1000BB Family Manual de usuario

Intel

Intel SR1530CL - Server System - 0 MB RAM Manual de usuario

Intel

Intel SR870BN4 - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel R2000SC Manual de usuario

Intel

Intel SR1530AHLX - Server System - 0 MB RAM Manual de usuario

Intel

Intel SRPM8 Manual de usuario

Intel

Intel ISP1100 - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel SR2100 Manual de usuario

Intel

Intel SC5650-DP Manual de usuario

Intel

Intel NSC2U - IP Network Server Manual de usuario

Intel

Intel SR1625UR - Server System - 0 MB RAM Manual de usuario

Intel

Intel SR2300 - FRONT BEZEL BLK Guía de configuración

Intel

Intel SC5650BCDP Guía de configuración

Intel

Intel P4000RP Manual de usuario

Intel

Intel SRKA4 - Server Platform - 0 MB RAM Manual de usuario

Intel

Intel SC5650HCBRP Manual del propietario

Intel

Intel SR1630BC - Server System - 0 MB RAM Manual de usuario

Intel

Intel SBXL52 - Server Compute Blade Manual del propietario

Intel

Intel H2000G Series Manual de usuario

Intel

Intel SR1600UR - Server System - 0 MB RAM Manual de usuario

Intel

Intel S7000FC4UR - Server System - 0 MB RAM Manual de usuario

Intel

Intel SR1630BC - Server System - 0 MB RAM Guía de configuración

Manuales populares de Servidor de otras marcas

HP AlphaServer ES47 Manual de usuario

Dell

Dell PowerEdge R410 Manual de usuario

PowerNAS

PowerNAS CMA Manual de usuario

Supero

Supero FatTwin F617R3-FT Manual de usuario

MSI

MSI P1-109N-L70 Manual de usuario

Dell

Dell PowerEdge XE9640 Manual

Dell

Dell PS4100 Instrucciones de montaje

EtroVISION

EtroVISION EV3151 Manual de usuario

NEC

NEC Express5800/T110j Manual de usuario

HP ProLiant Gen9 Manual de usuario

Compaq

Compaq ProLiant 3000 Manual

Dell

Dell PowerEdge 3YPMN Manual de usuario

iRobo

iRobo IPC2U Manual de usuario

Nortel

Nortel 1000 Con?guration guide Manual de usuario

Asus

Asus AP7500 Manual de operación y mantenimiento

Avid Technology

Avid Technology AirSpeed 5000 Manual de usuario

HP Integrity rx2600 Guía de instalación

Milestone

Milestone Husky IVO 350T Manual de usuario
