Intel VIA K8T800 Manual de usuario

TRADEMARK

All products and company names are trademarks or registered

trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.0

August 20, 2003

VIAVIA

VIA K8T800K8T800

K8T800K8T800

K8T800 mainboard for AMDmainboard for AMD

mainboard for AMDmainboard for AMD

mainboard for AMD

Socket 754 based Athlon 64 processorSocket 754 based Athlon 64 processor

Socket 754 based Athlon 64 processor

User’User’

User’ss

ManualManual

Manual

$ &0,)

All manuals and user guides at all-guides.com

DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE

DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED

WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS

PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL

APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE

COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW OR

LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

All manuals and user guides at all-guides.com

EEE

80 Port Frequently Asked Questions

Below is a list of some basic POST Codes possible problems and solutions. For

more detailed information about POST Codes refer to Appendix D in this manual.

POST CO DE Problem Soluti on

FFh or CFh 1.BIOS chip inserted

incorrectly

2. Incorrect BIOS update

version

3. Mainboard problem

4. dd-on card inserted

incorrectly.

1. Reinsert the BIOS

chip

2. Download the correct

BIOS version update

from the manufacturer's

Web site.

3. Replace mainboard

4. Remove and replace the

add-on card

C1h - C5h 1. Memory module

inserted incorrectly

2. Memory compatibility

problem

3. Memory module

damaged

1. Reinsert memory

module

2. Replace memory

with correct type

3. Replace memory

module

2Dh 1. Error occured in VG

BIOS

2. VG card inserted

incorrectly

1. Replace VG card

2. Reinsert the VG

card

26h Overclock error Clear CMOS or press the insert

key to power on the system

07h - 12h 1. Init keyboard

controller error

2. RTC error

1. Ensure that the keyboard and

mouse are connected

correctly.

2. Replace the RTC battery.

Initial Keyboard

All manuals and user guides at all-guides.com

Table of Contents

Section 1 Introduction

Package Contents ................................................ 1-1

Overview

AthlonTM 64 Processor ......................................... 1- 2

Chipset Overview ................................................. 1- 2

Accelerated Graphics Port ................................... 1- 3

Ultra ATA66/100/133 ............................................ 1- 3

Hardware Monitoring ........................................... 1- 3

LAN (Optional)..................................................... 1- 3

Serial ATA ............................................................ 1- 3

Mainboard Form-Factor ....................................... 1- 4

I/O Shield Connector ............................................ 1- 5

Power-On/Off (Remote) ........................................ 1- 5

System Block Diagram .......................................... 1- 6

Section 2 Features

Mainboard Features ............................................. 2-1

Section 3 Installation

Mainboard Layout ............................................... 3- 2

Easy Installation Procedure

CPU Insertion ...................................................... 3-3

Jumper Settings .................................................... 3- 6

System Memory Configuration ............................ 3- 7

Expansion Slots .................................................... 3- 9

Device Connectors ............................................... 3- 11

STR (Suspend To RAM) Function....................... 3- 17

CPU Overheating Protection ................................ 3- 18

Page

All manuals and user guides at all-guides.com

Section 4 BIOS Setup

Main Menu........................................................... 4-1

Standard CMOS Setup ......................................... 4-2

Advanced BIOS Features..................................... 4-3

Advanced Chipset Features ................................ 4-7

Integrated Peripherals .......................................... 4-11

Power Management Setup ................................... 4-16

PNP/PCI Configuration Setup .............................. 4-20

PC Health Status .................................................. 4-22

Power BIOS Features............................................ 4-24

Defaults Menu ..................................................... 4-26

Supervisor/User Password Setting ...................... 4-27

Exit Selecting ........................................................ 4-28

Section 5 S-A A RAID Configuration

Introduction ......................................................... 5-1

Key Features ........................................................ 5-3

BIOS Configuration Utility ................................... 5-4

Section 6 Driver Installation

Easy Driver Installation ........................................ 6-1

Realtek Sound Manager Quick User-guide .......... 6-2

Appendix Appendix A

Realtek Media Player Users Guide ...................... A-1

Appendix B

Update Your System BIOS ................................... B-1

Appendix C

EEPROM BIOS Remover ..................................... C-1

Appendix D

POST Codes ........................................................ D-1

All manuals and user guides at all-guides.com

Page Left Blank

All manuals and user guides at all-guides.com

Introduction

Page 1-1

USERS

MANUAL

Section 1

INTRODUCTION

Package Contents

Contents

A. Mainboard

B. Users manual

C. Floppy drive cable

D. HDD ribbon cable

E. CD or diskette (drivers and

utilities

F. I/O Shield

G. S-ATA data and power cables

Deluxe Pack Items

H. S-ATA with Game port bracket

(for SATA3 ~ SATA6 connector only)

Other Optional Items

I. Extra USB2.0 port cable

If you need the other optional item,

please contact your dealer for

assistance.

All manuals and user guides at all-guides.com

Introduction

Page 1-2

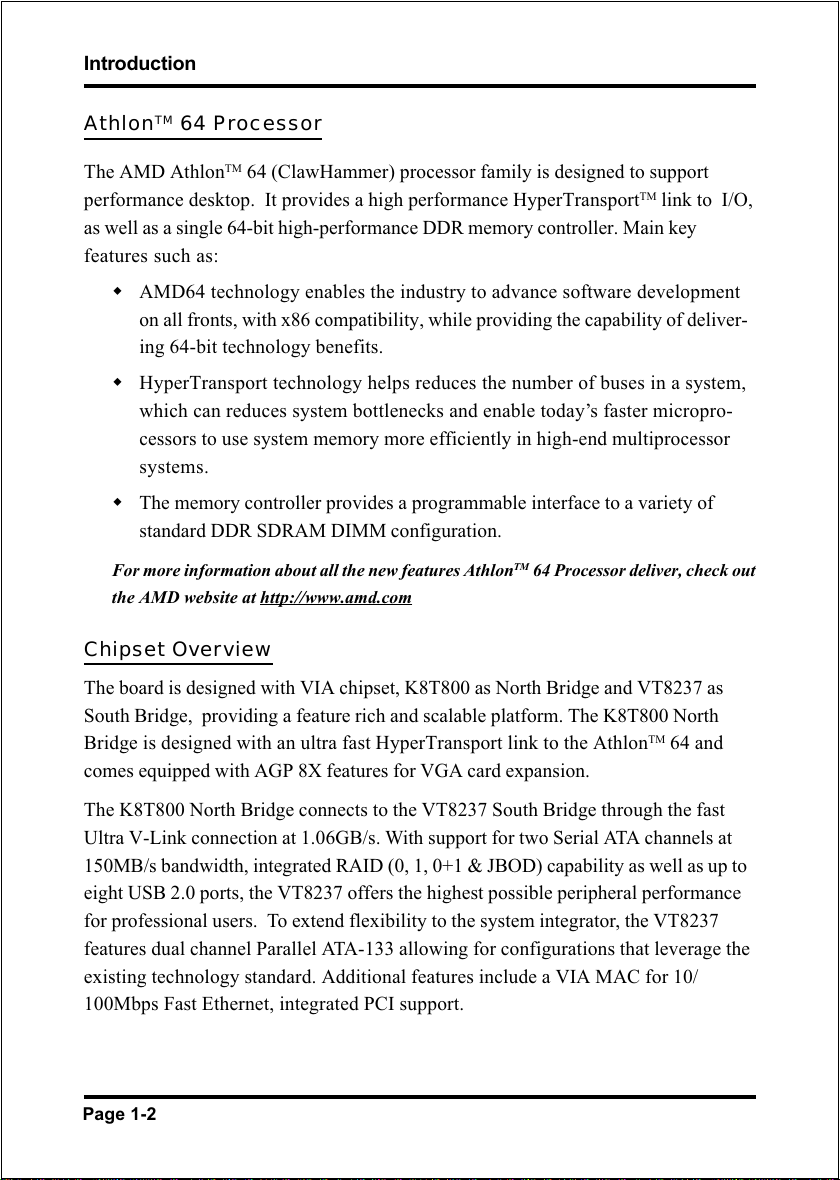

AthlonTM 64 Processor

The AMD AthlonTM 64 (ClawHammer processor family is designed to support

performance desktop. It provides a high performance HyperTransportTM link to I/O,

as well as a single 64-bit high-performance DDR memory controller. Main key

features such as:

AMD64 technology enables the industry to advance software development

on all fronts, with x86 compatibility, while providing the capability of deliver-

ing 64-bit technology benefits.

HyperTransport technology helps reduces the number of buses in a system,

which can reduces system bottlenecks and enable todays faster micropro-

cessors to use system memory more efficiently in high-end multiprocessor

systems.

The memory controller provides a programmable interface to a variety of

standard DDR SDRAM DIMM configuration.

For more information about all the new features AthlonTM 64 Processor deliver, check out

the AMD website at http://www amd com

Chipset Overview

The board is designed with VIA chipset, K8T800 as North Bridge and VT8237 as

South Bridge, providing a feature rich and scalable platform. The K8T800 North

Bridge is designed with an ultra fast HyperTransport link to the AthlonTM 64 and

comes equipped with AGP 8X features for VGA card expansion.

The K8T800 North Bridge connects to the VT8237 South Bridge through the fast

Ultra V-Link connection at 1.06GB/s. With support for two Serial ATA channels at

150MB/s bandwidth, integrated RAID (0, 1, 0+1 & JBOD capability as well as up to

eight USB 2.0 ports, the VT8237 offers the highest possible peripheral performance

for professional users. To extend flexibility to the system integrator, the VT8237

features dual channel Parallel ATA-133 allowing for configurations that leverage the

existing technology standard. Additional features include a VIA MAC for 10/

100Mbps Fast Ethernet, integrated PCI support.

All manuals and user guides at all-guides.com

Introduction

Page 1-3

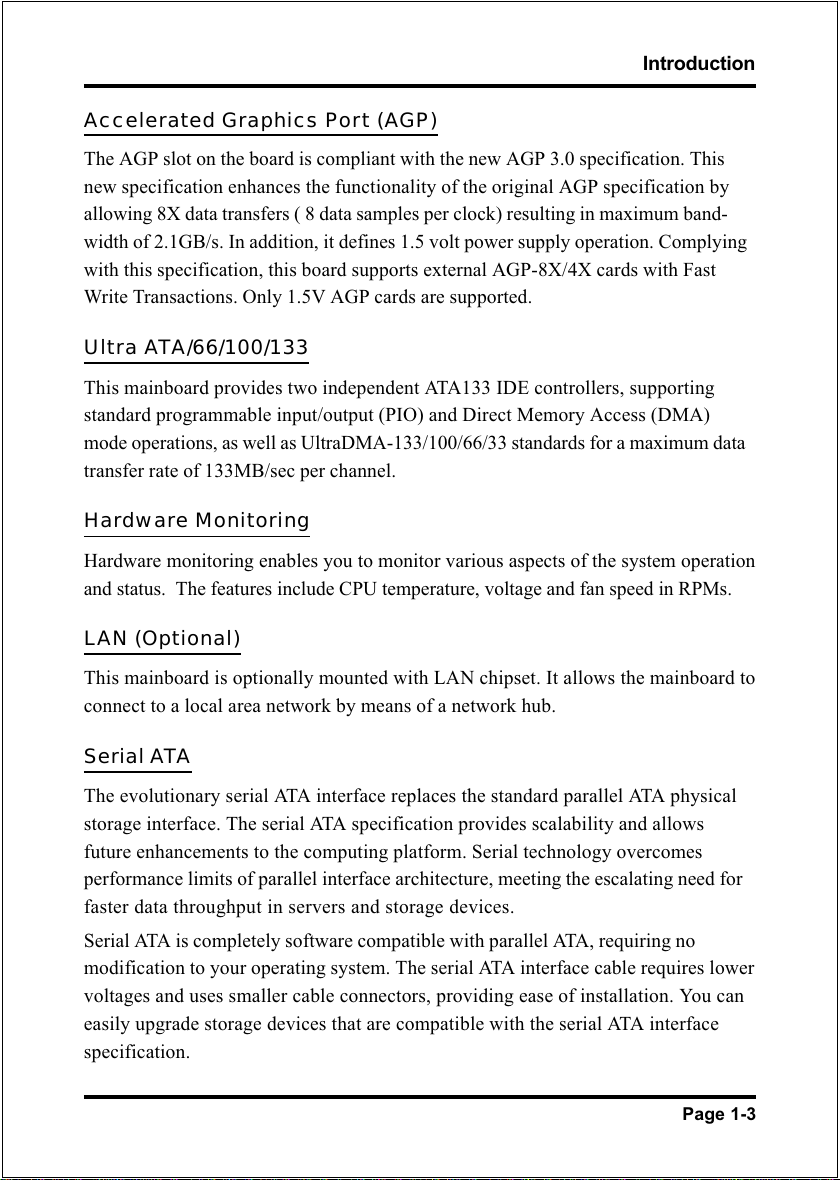

Accelerated Graphics Port (AGP)

The AGP slot on the board is compliant with the new AGP 3.0 specification. This

new specification enhances the functionality of the original AGP specification by

allowing 8X data transfers ( 8 data samples per clock resulting in maximum band-

width of 2.1GB/s. In addition, it defines 1.5 volt power supply operation. Complying

with this specification, this board supports external AGP-8X/4X cards with Fast

Write Transactions. Only 1.5V AGP cards are supported.

Ultra ATA/66/100/133

This mainboard provides two independent ATA133 IDE controllers, supporting

standard programmable input/output (PIO and Direct Memory Access (DMA

mode operations, as well as UltraDMA-133/100/66/33 standards for a maximum data

transfer rate of 133MB/sec per channel.

Hardware Monitoring

Hardware monitoring enables you to monitor various aspects of the system operation

and status. The features include CPU temperature, voltage and fan speed in RPMs.

LAN (Optional)

This mainboard is optionally mounted with LAN chipset. It allows the mainboard to

connect to a local area network by means of a network hub.

Serial ATA

The evolutionary serial ATA interface replaces the standard parallel ATA physical

storage interface. The serial ATA specification provides scalability and allows

future enhancements to the computing platform. Serial technology overcomes

performance limits of parallel interface architecture, meeting the escalating need for

faster data throughput in servers and storage devices.

Serial ATA is completely software compatible with parallel ATA, requiring no

modification to your operating system. The serial ATA interface cable requires lower

voltages and uses smaller cable connectors, providing ease of installation. You can

easily upgrade storage devices that are compatible with the serial ATA interface

specification.

All manuals and user guides at all-guides.com

Introduction

Page 1-4

Mainboard Form-Factor

This board is designed with ATX form factor - the latest industry standard for

chassis design. The ATX form factor is essentially a Baby-AT baseboard rotated

90 degrees within the chassis enclosure and a new mounting configuration for

the power supply. With these changes the processor is relocated away from the

expansion slots, allowing them all to hold full length add-in cards. ATX defines a

double height aperture to the rear of the chassis which can be used to host a

wide range of onboard I/O. Only the size and position of this aperture is defined,

allowing PC manufacturers to add new I/O features (e.g.; TV input, TV output,

joystick, modem, LAN, audio, etc. to systems. This will help systems integrators

differentiate their products in the marketplace, and better meet your needs.

 By integrating more I/O down onto the board and better positioning the hard

drive and floppy connectors, material cost of cables and add-in cards are

reduced.

 By reducing the number of cables and components in the system, manufac-

turing time and inventory holding costs are reduced and reliability will

increase.

 By using an optimized power supply, it's possible to reduce cooling costs

and lower acoustical noise. An ATX power supply, which has a side-

mounted fan, allows direct cooling of the processor and add-in cards making

a secondary fan or active heatsink unnecessary in most system applications.

PCI slots

Expandable I/O

Figure 2: Summary of ATX chassis features

CPU socket

Single chassis

fan for system

AT X

Power

Supply ATX power connectors

IDE connectors

AGP slot

3 1/2-inch

Bay

5 1/4-inch

Bay

Floppy

connector

All manuals and user guides at all-guides.com

Otros manuales para VIA K8T800

Tabla de contenidos

Otros manuales de Placa madre de Intel

Intel

Intel DP67BA Manual de usuario

Intel

Intel BLKDG965WHMKR Guía de configuración

Intel

Intel I865PE Manual de usuario

Intel

Intel D865PERL Manual de usuario

Intel

Intel DQ67EP Manual de usuario

Intel

Intel D945GCCR Manual de usuario

Intel

Intel BOXDG33TLM Guía de configuración

Intel

Intel BI440ZX Manual de usuario

Intel

Intel Z68 Manual de usuario

Intel

Intel G41 Express Chipset Manual de usuario

Intel

Intel DZ68ZV Manual de usuario

Intel

Intel S5520SC Manual de usuario

Intel

Intel 41210 Manual de usuario

Intel

Intel DG965MQ Manual de usuario

Intel

Intel D915PLWD Manual de usuario

Intel

Intel D201GLY2A - Desktop Board Motherboard Manual de usuario

Intel

Intel DCCP847DYE Manual de usuario

Intel

Intel D201GLY - Desktop Board Motherboard Manual de usuario

Intel

Intel DH67BL Manual de usuario

Intel

Intel S2600IP Guía de configuración

Intel

Intel D510MO Manual de usuario

Intel

Intel DH67BL Manual de usuario

Intel

Intel i915PL Manual de usuario

Intel

Intel D845PT Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
