Intel D845PT Manual de usuario

Intel®Desktop Boards

D845PT and D845BG

Quick Reference

This guide is written for technically qualified personnel with experience

installing and configuring desktop boards.

Before You Begin

Warning and Caution .......................................................................... 3

Safety and Regulatory Notice.............................................................. 3

Desktop Board Components

D845PT Board Components ............................................................... 4

D845BG Board Components............................................................... 6

Supported Components......................................................................... 8

Installation Steps

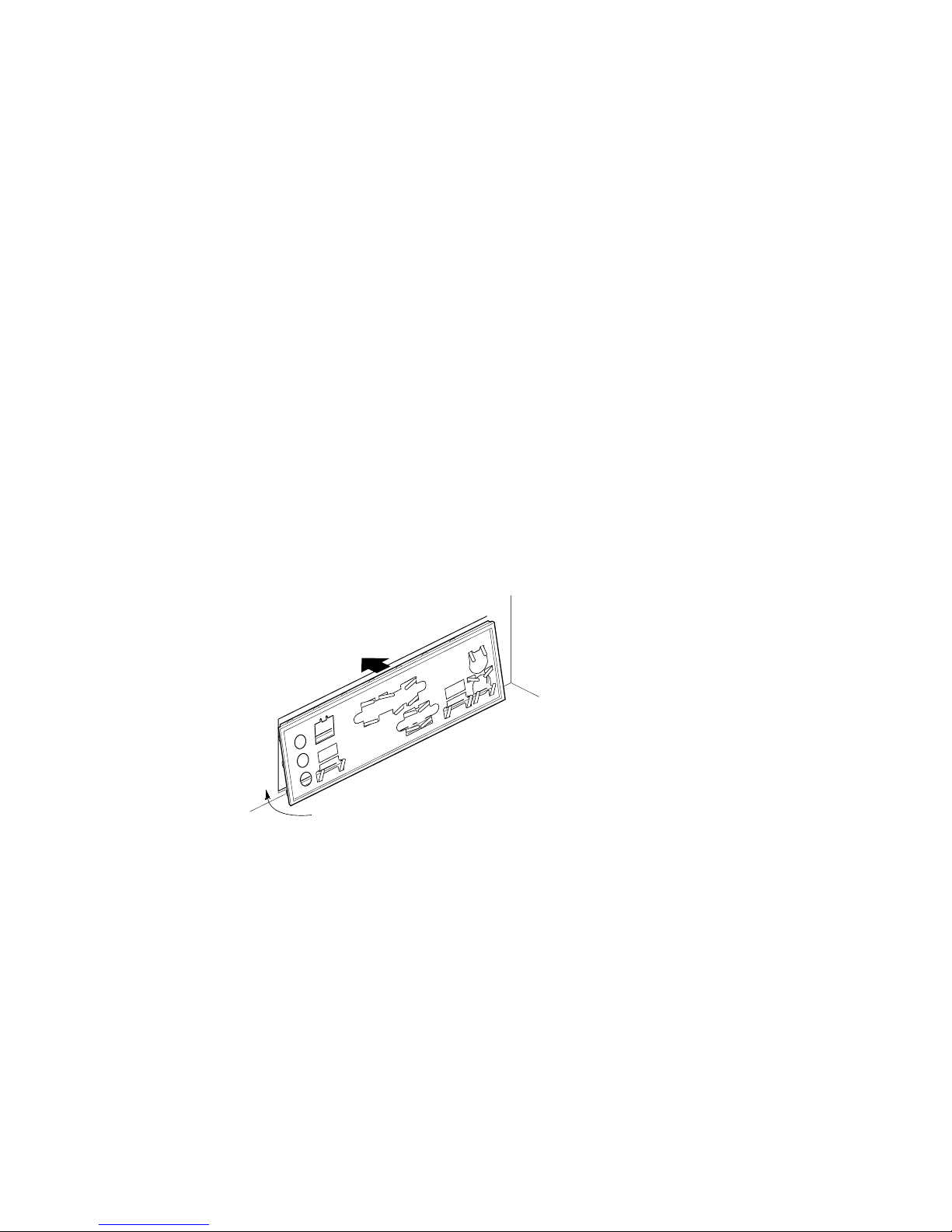

1 Installing the I/O Shield ................................................................. 9

2 Installing the Desktop Board......................................................... 10

3 Installing the Processor Fan Heatsink Base................................... 11

4 Installing the Processor ................................................................. 13

5 Installing the Processor Fan Heatsink ........................................... 13

6 Installing the Memory Modules .................................................... 13

7 Installing the AGP Card Retntion Mechanism .............................. 15

8 Installing an AGP Card ................................................................. 17

9 Connecting the Fans...................................................................... 17

10 Attaching the IDE Drives............................................................. 18

Setting the BIOS Configuration Jumper Block ............................... 19

Items on the Intel®Express Installer CD-ROM

• Product warranty

• Intel Express Installer

• Intel®Desktop Boards D845PT and D845BG Product Guide

• Software utilities and drivers

• Software license agreement

• Readme file

Part Number: A72166-001

 



(FUUJOH)FMQ

View or download product support information from Intel’s World Wide

Web site:

http://support.intel.com/support/motherboards/desktop/

Follow the link to your Intel Desktop Board for the following information:

x Known Issues and Solutions

x Software and Drivers (latest BIOS and driver updates)

x Compatibility (supported Intel®processors and memory information)

x Product Documentation

Technical Product Specification

Specification Update

If you can’t find the information you need on the Web, contact your point of

purchase. The Intel Web site also includes telephone numbers and billing

charges, if applicable, for Intel customer support.

INFORMATION IN THIS DOCUMENT IS PROVIDED IN CONNECTION WITH

INTEL®PRODUCTS. NO LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL

OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IS GRANTED

BY THIS DOCUMENT. EXCEPT AS PROVIDED IN INTEL’S TERMS AND

CONDITIONS OF SALE FOR SUCH PRODUCTS, INTEL ASSUMES NO

LIABILITY WHATSOEVER, AND INTEL DISCLAIMS ANY EXPRESS OR

IMPLIED WARRANTY, RELATING TO SALE AND/OR USE OF INTEL

PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO

FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR

INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL

PROPERTY RIGHT. INTEL PRODUCTS ARE NOT INTENDED FOR USE IN

MEDICAL, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS. INTEL MAY

MAKE CHANGES TO SPECIFICATIONS AND PRODUCT DESCRIPTIONS AT

ANY TIME, WITHOUT NOTICE.

The D845PT and D845BG desktop boards may contain design defects or errors

known as errata which may cause the product to deviate from published

specifications. Current characterized errata are available on request.

Contact your local Intel sales office or your distributor to obtain the latest

specifications and before placing your product order.

Copies of documents which have an ordering number and are referenced in this

document, or other Intel literature, may be obtained from Intel Corporation by

going to the World Wide Web site at: http://www.intel.com or by calling

1-800-548-4725.

Intel and Pentium are registered trademarks of Intel Corporation or its

subsidiaries in the United States and other countries.

†Other names and brands may be claimed as the property of others.

Intel Desktop Boards D845PT and D845BG 3

Quick Reference

Before You Begin

Warning and Caution

WARNING

Disconnect the board’s power supply from its ac power source

before you connect or disconnect cables, or install or remove any

board components. Failure to do this can result in personal injury or

equipment damage. Some circuitry on the desktop board can

continue to operate even though the front panel power switch is off.

CAUTION

Electrostatic discharge (ESD) can damage desktop board components.

Install the board at an ESD-controlled workstation. If such a workstation

is not available, wear an antistatic wrist strap or touch the surface of the

antistatic package before handling the board.

Safety and Regulatory Notice

See the Intel®Desktop Boards D845PT and D845BG Product Guide for all

applicable regulatory compliance statements, product certification markings, and

safety and electromagnetic compatibility (EMC) standards and regulations these

desktop boards are compliant with.

Replacement battery warning label provided: Place the label inside the chassis

in an easy-to-see location near the battery but not on the board itself.

Intended uses: This product was evaluated as information technology

equipment (ITE) for home or office use when installed into an appropriate

computer chassis. Other end uses or locations may require further evaluation.

✏ NOTE

The D845PT board layout was used in all illustrations unless otherwise

noted.

4 Intel Desktop Boards D845PT and D845BG

Quick Reference

Desktop Board Components

D845PT Board Components

OM12642

RO L

PMN

USB

Devices

USB

Devices

Line

2-pin alternate

power/sleep LED

connector

Ground

Reset

HD LED

Power LED

No Connection

+5V

16 15

continued

Intel Desktop Boards D845PT and D845BG 5

Quick Reference

D845PT Board Components (continued)

A. Analog Devices Inc.

AD1885 codec

B. AGP connector (1.5 V only)

C. CD-ROM connector (ATAPI)

D. Auxiliary line-in connector

(ATAPI)

E. 12 V processor core voltage

connector

F. Rear chassis fan connector

(tachometer input)

G. Intel®82845 Memory Controller

Hub (MCH)

H. Processor socket

I. Processor fan connector

(tachometer input)

J. DIMM sockets

K. Serial port B connector

L. Power connector

M. Secondary IDE connector

N. Primary IDE connector

O. Diskette drive connector

P. Firmware Hub (FWH)

Q. Intel®82801BA I/O Controller

Hub (ICH2)

R. BIOS configuration jumper block

S. SCSI hard drive activity LED

connector

T. Speaker

U. Chassis intrusion connector

V. Front chassis fan connector

W. Front panel USB connector

X. Battery

Y. PCI bus add-in card connectors

Z. Communication and Networking

Riser (CNR) (optional)

AA. Front panel audio connector

CAUTION

Many of the midboard and front panel connectors provide operating

voltage (+5 V dc and +12 V dc, for example) to devices inside the

computer chassis, such as fans and internal peripherals. These

connectors are not overcurrent protected. Do not use these connectors

for powering devices external to the computer chassis. A fault in the load

presented by the external devices could cause damage to the computer,

the interconnecting cables, and the external devices themselves.

6 Intel Desktop Boards D845PT and D845BG

Quick Reference

D845BG Board Components

OM12643

USB

Devices

USB

Devices

Line

ROL

PMN

2-pin alternate

power/sleep LED

connector

Ground

Reset

HD LED

Power LED

No Connection

+5V

16 15

continued

Intel Desktop Boards D845PT and D845BG 7

Quick Reference

D845BG Board Components (continued)

A. Analog Devices Inc. AD1885

codec

B. AGP connector (1.5 V only)

C. CD-ROM connector (ATAPI)

D. Auxiliary line-in connector

(ATAPI)

E. 12 V processor core voltage

connector

F. Rear chassis fan connector

(tachometer input)

G. Intel 82845 Memory Controller

Hub (MCH)

H. Processor socket

I. Processor fan connector

(tachometer input)

J. DIMM sockets

K. Serial port B connector

L. Power connector

M. Secondary IDE connector

N. Primary IDE connector

O. Diskette drive connector

P. Firmware Hub (FWH)

Q. Intel 82801BA I/O Controller

Hub (ICH2)

R. BIOS configuration jumper

block

S. SCSI hard drive activity LED

connector

T. Speaker

U. Chassis intrusion connector

V. Front chassis fan connector

W. Front panel USB connector

X. Battery

Y. PCI bus add-in card connectors

Z. Communication and Networking

Riser (CNR) (optional)

AA. Front panel audio connector

CAUTION

Many of the midboard and front panel connectors provide operating

voltage (+5 V dc and +12 V dc, for example) to devices inside the

computer chassis, such as fans and internal peripherals. These

connectors are not overcurrent protected. Do not use these connectors

for powering devices external to the computer chassis. A fault in the load

presented by the external devices could cause damage to the computer,

the interconnecting cables, and the external devices themselves.

8 Intel Desktop Boards D845PT and D845BG

Quick Reference

Supported Components

Processors

CAUTION

Failure to use an ATX12V power supply, or not connecting the additional

power supply lead to the D845PT or D845BG board may result in damage

to the desktop board and/or power supply.

For more information on the ATX12V power supply, refer to the Intel

Desktop Boards D845PT and D845BG Product Guide on the Intel

Express Installer CD-ROM.

The board supports the following processors:

Type

Designation

System Bus

Frequency

Intel®Pentium®4 processor in

the mPGA-478 pin package

1.4, 1.5, 1.6, 1.7, 1.8,

1.9, and 2.0 GHz

400 MHz

For the latest information on processors supported by the D845PT and

D845BG boards, refer to the Intel customer support World Wide Web site:

http://support.intel.com/support/motherboards/desktop

Memory Module Requirements

The boards supports system memory as defined below:

• Up to two 184-pin Double Data Rate (DDR) SDRAM Dual Inline

Memory Modules (DIMMs) with gold-plated contacts

• DDR200 and DDR266 SDRAM

• 64 Mbit, 128 Mbit, 256 Mbit, and 512 Mbit technologies for the

following memory configurations:

 64 MB (minimum)

 256 MB (64 Mbit technology)

 512 MB (128 Mbit technology)

 1024 MB (256 Mbit technology)

 2048 MB (512 Mbit technology)

✏NOTES

The D845PT and D845BG desktop boards have been designed to support

DIMMs based on 512 Mbit technology up to 2 GB, but this technology has

not been validated on these boards. For more information about the latest

list of tested memory, refer to the Intel customer support World Wide Web

site:

http://support.intel.com/support/motherboards/desktop/

• Unbuffered and non-registered single or double-sided DIMMs

Intel Desktop Boards D845PT and D845BG 9

Quick Reference

• Serial Presence Detect (SPD) memory

• Non-ECC and ECC DIMMs

• 2.5 V memory only

✏NOTES

All memory components and DIMMs used with the desktop boards must

comply with the PC SDRAM specifications. These include the PC

SDRAM Specification (memory component specific), the PC Unbuffered

DIMM Specification. To view or download these specifications, refer to

this Intel World Wide Web site:

http://www.intel.com/technology/memory/pcsdram/

For information about vendors that support these memory requirements,

refer to the D845PT and D845BG link on this Intel World Wide Web site:

http://support.intel.com/support/motherboards/desktop/

Installation Steps

1 Installing the I/O Shield

The board comes with an I/O shield. When installed in the chassis, the shield

blocks radio frequency transmissions, necessary to pass emissions (EMI)

certification testing, protects internal components from dust and foreign objects,

and promotes correct airflow within the chassis.

Install the I/O shield before installing the board in the chassis. Place the shield

inside the chassis as shown in the following figure. Press the shield into place so

that it fits tightly and securely. If the shield doesn’t fit, obtain a properly-sized

shield from the chassis supplier.

OM11543

10 Intel Desktop Boards D845PT and D845BG

Quick Reference

2 Installing the Desktop Board

CAUTION

Failure to use an ATX12V power supply, or not connecting the additional

power supply lead to the D845PT and D845BG boards may result in

damage to the desktop board and/or power supply.

For more information on the ATX12V power supply, refer to the Intel

Desktop Boards D845PT and D845BG Product Guide on the Intel

Express Installer CD-ROM.

Refer to your chassis manual for specific instructions on installing and removing

the board. Secure the board to the chassis standoffs using the screws.

The figure below shows the six mounting holes for the D845PT board.

OM12627

D845PT Board Mounting Holes

The figure below shows the eight mounting holes for the D845BG board.

OM12626

D845BG Board Mounting Holes

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Intel

Intel

Intel BLKDH67CL Guía de configuración

Intel

Intel DX79SI Manual de usuario

Intel

Intel D875PBZ - Desktop Board Motherboard Manual técnico

Intel

Intel Z68 Manual de usuario

Intel

Intel D945GCL Manual de usuario

Intel

Intel D915GMH Manual de usuario

Intel

Intel BX Manual de usuario

Intel

Intel D925XEBC2 Manual de usuario

Intel

Intel AN430TX - Motherboard - ATX Guía de configuración

Intel

Intel Desktop Board D2700DC Manual de usuario

Intel

Intel D865GLC Manual de usuario

Intel

Intel D845EPI Guía de inicio rápido

Intel

Intel DH61HO Manual de usuario

Intel

Intel BOXD845GLVAL - 845GL CEL/P4 400MHZ FSB UATX Manual de usuario

Intel

Intel i865-G Manual de usuario

Intel

Intel iSBC 80/30 Manual de usuario

Intel

Intel SE7210TP1-E - Socket 478 ATX Server... Manual de usuario

Intel

Intel Galileo Manual de usuario

Intel

Intel AIMB-742 Socket 478 Manual de instalación y operación

Intel

Intel DP67BG Manual de usuario

Intel

Intel D925XECV2 Manual de usuario

Intel

Intel DP55WG - Media Series P55 ATX Core i7 i5 LGA1156 Desktop... Manual técnico

Intel

Intel YM430TX Manual de usuario

Intel

Intel D915GMH Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
