Intel MB899 Manual de usuario

MB899

Intel ®CoreTM Duo/Solo 945GM

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0

ii MB899 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel® Core Duo and Intel® Core Solo processors are

registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MB899 User’s Manual iii

Table of Contents

Introduction....................................................... 1

Product Description............................................................ 1

Checklist............................................................................. 2

MB899 Specifications ........................................................ 3

Board Dimensions .............................................................. 4

Installations....................................................... 5

Installing the CPU............................................................... 6

Installing the Memory......................................................... 7

Setting the Jumpers............................................................. 8

Connectors on MB899...................................................... 11

BIOS Setup...................................................... 27

Drivers Installation...................................... 51

Intel Chipset Software Installation Utility........................ 52

VGA Drivers Installation.................................................. 54

AC97 Codec Audio Driver Installation............................ 56

LAN Drivers Installation.................................................. 57

Appendix........................................................... 59

A. I/O Port Address Map.................................................. 59

B. Interrupt Request Lines (IRQ) ..................................... 60

C. Watchdog Timer Configuration................................... 61

iv MB899 User’s Manual

IMPORTANT NOTE: When the system boots without the CRT being

connected, there will be no image on screen when you insert the

CRT/VGA cable. To show the image on screen, the hotkey must be

pressed (CTRL-ALT-F1).

THE MB899 MINI ITX MOTHERBOARD

INTRODUCTION

MB899 User’s Manual 1

Introduction

Product Description

The MB899 Mini ITX board incorporates the Mobile Intel® 945GM Express

Chipset for Embedded Computing, consisting of the Intel® 945GM Graphic

Memory Controller Hub (GMCH) and Intel® I/O Controller Hub 7-M

(ICH7-M), an optimized integrated graphics solution with a 533MHz and

667MHz front-side bus. Dimensions of the board are 170mm x 170mm.

The integrated powerful 3D graphics engine, based on Intel® Graphics Media

Accelerator 950 (Intel® GMA 950) architecture, operates at core speeds of up to

400 MHz. It features a low-power design, is validated with the Intel® Core Duo

and Intel® Core Solo processors on 65nm process. With dual channel DDR2

667MHz two DIMM socket on board, the board supports up to 4GB of DDR2

system memory.

Intel® Graphics supports a unique intelligent memory management scheme

called Dynamic Video Memory Technology (DVMT). DVMT handles diverse

applications by providing the maximum (224MB)availability of system memory

for general computer usage, while supplying additional graphics memory when a

3D-intensive application requests it. The Intel GMA 950 graphics architecture

also takes advantage of the high-performance Intel processor. Intel GMA 950

graphics supports Dual Independent Display technology.

The main features of the board are:

§Supports Intel® CoreTM Duo /Solo processors

§Supports up to 2.33GHz, 533MHz/667MHz FSB

§Two DDR2SDRAM DIMM, Max. 4GB memory

§Onboard 10/100 BaseT and Marvell PCI-Express Gigabit LAN

§Intel® 945GM Express VGA for CRT / LVDS

§2x SATA, 6x USB 2.0, 2x COM, Watchdog timer, 1394

§1x MiniPCI, 1x MiniPCI-E, 1x PCI,1xPCI-E(x1) slots, optional DVI

Optional daughter cards:

ID390: Chrontel 7308, supports 24 bit single or dual LVDS channel

ID390C: Chrontel, 7021, supports CRT

ID391: Chrontel 7307C, single DVI (connector on cable)

ID391D: Chrontel 7307C, dual DVI (connector on cable)

INTRODUCTIO

2MB899 User’s Manual

Checklist

Your MB899 package should include the items listed below.

•The MB899 Mini-ITX motherboard

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

•Cable kit (IDE, Serial port, Serial ATA)

INTRODUCTION

MB899 User’s Manual 3

MB899 Specifications

CPU Supported Intel® CoreTM Duo /Solo processors

CPU Voltage 0.700V ~1.5V(IMVP-6)

System Speed Up to 2.33GHz or above

CPU FSB 533MHz/667MHz FSB

Cache 2MB

Green /APM APM1.2

CPU Socket mPGA 478MT Socket

Chipset Intel 945GM Chipset

GMCH:82945GM 1466-pin Micro-FCBGA

ICH7M:82801GBM652-pin mBGA

BIOS Award BIOS, support ACPI Function

Memory DDR2 667/533 SDRAM DIMM x2 (w/o ECC function), Max. 4GB

VGA 945GMbuilt-in, supportsCRT,RCA,S-VIDEO,HDTV

SDVO (Dual CH) Through ID390 card (Chrontel 7308, 18+18 bits single/dual channel

LVDS, Chrontel 7021, CRT, RCA, S-VIDEO or HDTV)

Through ID391 card (Chrontel 7307C,DVI single or Dual)

LVDS LCD Panel 945GMbuilt-in, supports 18+18 bits, single or dual channel LVDS

LAN 1. ICH7M built-in 10/100BT MAC + Intel 82562ET PHY

2. Marvell 88E8053 PCI Express Gigabit LAN controller x1

USB ICH7M built-in USB 2.0 host controller, support 6ports

Serial ATA Ports ICH7M built-in SATA controller, supports 2ports

1394 TI TSB43LV22(dual port)

Parallel IDE ICH7Mbuilt-in one channel Ultra DMA 33/66/100,CF

Audio ICH7M Built-in Audio controller + AC97 Codec ALC655w/ 6 channels

(Line-out, Line-in, Mic.), SPDIF-OUT + NS LM4950 (8-ohm 2W stereo

audio power amplifier)

LPC I/O W83627EHF: COM1, COM2 (RS232), Slim FDC 1.44MB,IrDA x1 &

hardware monitor (3 thermal, 4 voltage monitor inputs, 2 fan headers)

Digital IO 4 in & 4 out

Keyboard/Mouse Supports PS/2 Keyboard/Mouse Connector

Expansion Slots PCI slot x1, PIC-E (x1) slot x1 and Mini PCI socket x1, Mini PCIe X1

Edge Connector PS/2 Connector x1 for keyboard/mouse

Gbit LAN RJ-45 + dual USB stack connector

10/100 LAN RJ45 + dual USB stack connector

DB9 x1 for COM 1; DB15 x1 for VGA

RCA Jack x1 +S-Video for TV-Out

SPDIF-OUT connector x1; 1394 Connector x1

RCA Jack 3x1 for Audio (Line-Out, Line-In & Mic)

Onboard Header/

Connector 40 pins box-header x1 for IDE1; 26 pins header x1 for Slim Floppy

CF Connector x1 @ solder side

10 pins pin-headerx1 for Digital I/O; 10 pins pin-header x1 for COM2

8 pins pin-header x 1 for USB 5,6; 5 pins pin-header x 1 for IrDA

DF13 Connector x2 for LVDS; 8 pins pin-header x1 for HDTV

7 pins pin-header x1 for audio Line-Out & Mic

4 pins pin-header x1 for built-in speaker; 7 pins pin-header x1 for 1394

SATA connector x2 for 2 SATA ports

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

System Voltage +5V, +3.3V, +12V, -12V, 5VSB (2A)

OthersModem Wakeup, LAN Wakeup

Board Size 170mm x170mm (Mini ITX)

INTRODUCTIO

4MB899 User’s Manual

[

Board Dimensions

INSTALLATIONS

MB899 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MB899 in order to set up a workable system. The

topics covered are:

Installing the CPU........................................................................ 6

Installing the Memory ..................................................................7

Setting the Jumpers ......................................................................8

Connectors on MB899 ...............................................................11

INSTALLATIONS

6MB899 User’s Manual

Installing the CPU

The MB899 board supports a Socket 478MT processor socket for Intel®

CoreTM Duo and Intel® CoreTM Solo processors

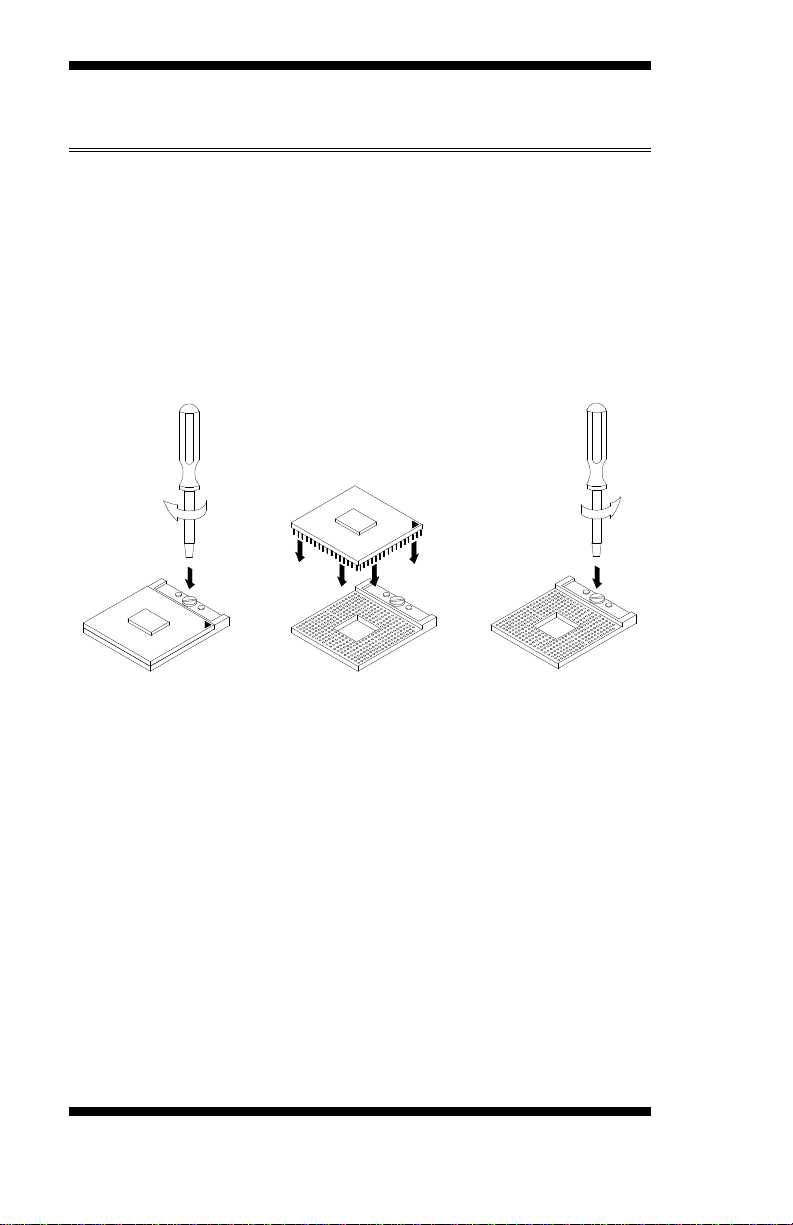

The processor socket comes with a screw to secure the processor. As

shown in the left picture below, loosen the screw first before inserting the

processor. Place the processor into the socket by making sure the notch

on the corner of the CPU corresponds with the notch on the inside of the

socket. Once the processor has slide into the socket, fasten the screw.

Refer to the figures below.

NOTE:

Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.
