Intel I815E Manual de usuario

I815E

Socket 370

Intel 815E Little Board

USER’S MANUAL

Version 1.1

ii I815E User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Celeron are registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

I815E User’s Manual iii

Table of Contents

Introduction...............................................................1

Product Description..........................................................1

Checklist...........................................................................2

Specifications....................................................................3

Board Dimensions.............................................................4

Installations ..............................................................5

Installing the CPU.............................................................6

Installing the Memory (DIMM) .........................................7

Setting the Jumpers...........................................................8

Connectors on I815E.......................................................12

BIOS Setup..............................................................25

Drivers Installation.................................................47

Appendix.................................................................75

A. I/O Port Address Map.......................................................75

B. Interrupt Request Lines (IRQ) .........................................76

iv I815E User’s Manual

A picture of the I815E Embedded Board

INTRODUCTION

I815E User’s Manual 1

Introduction

Product Description

I815E is a high-performance flexible embedded board based on the Intel

815E chipset that contains the Graphics and Memory Controller Hub

(GMCH), the I/O Controller Hub (ICH2) and the Firmware Hub (FWH).

It supports 66/100/133MHz system bus, up to 1.4GHz CPU speed,

integrated 2D/3D graphics accelerator, and PC100/PC133 SDRAM

modules. With the ICH2, it is able to support UDMA33/66/100, four

USB ports, and integrated LAN.

System memory is provided by one 168-pin DIMM socket that

accommodates SDRAM with a maximum capacity of 256MB. The

Award BIOS facilitates easy system configuration and peripheral setup.

Other advanced features include four USB ports, 256-level watchdog

timer (supported by LPC I/O IT8712), and IrDA interface.

INTRODUCTION

2I815E User’s Manual

Checklist

Your I815E package should include the items listed below.

•The I815E Embedded Little Board

•This User’s Manual

•1 IDE Ribbon Cable

•1 Floppy Ribbon Connector

•1 CD containing the following:

•Chipset Drivers

•Flash Memory Utility

INTRODUCTION

I815E User’s Manual 3

Specifications

Processor

Supported Socket 370 for Intel Celeron / Pentium III (FC-PGA),

533MHz~1.4GHz, 66/100/133MHz Bus Speed

Chipset Intel 815E Chipset

GMCH: 82815 544-PIN BGA

ICH2: 82801BA 360-PIN BGA

FWH

BIOS Award BIOS; supports ACPI

System Memory 1x DIMM socket supports up to 256MB capacity

PC100/PC133 DIMM modules supported

LPC I/O Chipset ITE IT8712 (keyboard controller is built-in)

I/O Features 1x FDD (up to 2.88MB, 3 Mode, LS120)

1x Parallel Port (EPP, ECP Port)

2x Serial Ports (1x RS232 and 1x RS232/422/485)

1x IrDA TX/RX Headers

Bus Master IDE 2x IDE interfaces for up to 4 devices; supports PIO Mode

3/4 or UDMA33/66/100 HDD, and ATAPI CD-ROM

VGA 815E integrated graphics

Shared memory

4MB display cache on board

VGA CRT connector on board

Pin header for optional TV-Out (CH7007) daughter board

with S-Video & RCA jacks

Audio ICH2 integrated audio with AC97 codec

LAN ICH2 integrated Ethernet controller

10Base-T / 100Base-TX protocol

Primary RJ-45 Ethernet connector on board

Secondary LAN

(Optional) Optional Intel 82559 Ethernet controller

10Base-T / 100Base-TX protocol

Optional Secondary RJ-45 Ethernet connector on board

USB Two USB ports on board

Another two USB ports supported by USB pin header

IrDA Pin header

Hardware

Monitoring Built-in IT8712

Monitors CPU/system temperature and voltages

Watchdog Timer

256-level Watchdog timer

P/S Connector ATX type power supply connector

Rear Side

Connectors PS/2 keyboard, PS/2 mouse, Primary RJ45 connector;

optional secondary RJ-45 connector, printer port, VGA

CRT, USBx2, serial Port, Microphone, speaker

Form Factor 5.25-inch SBC (Little Board)

Dimensions 203mm x 146mm (7.99” x 5.75”)

INTRODUCTION

4I815E User’s Manual

Board Dimensions

INSTALLATIONS

I815E User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the I815E in order to set up a workable system. The topics

covered are:

Installing the CPU.............................................................6

Installing the Memory (DIMM) .........................................7

Setting the Jumpers...........................................................8

Connectors on I815E.......................................................12

INSTALLATIONS

6I815E User’s Manual

Installing the CPU

The I815E board supports a Socket 370 processor socket for Intel

Pentium III and Celeron processors.

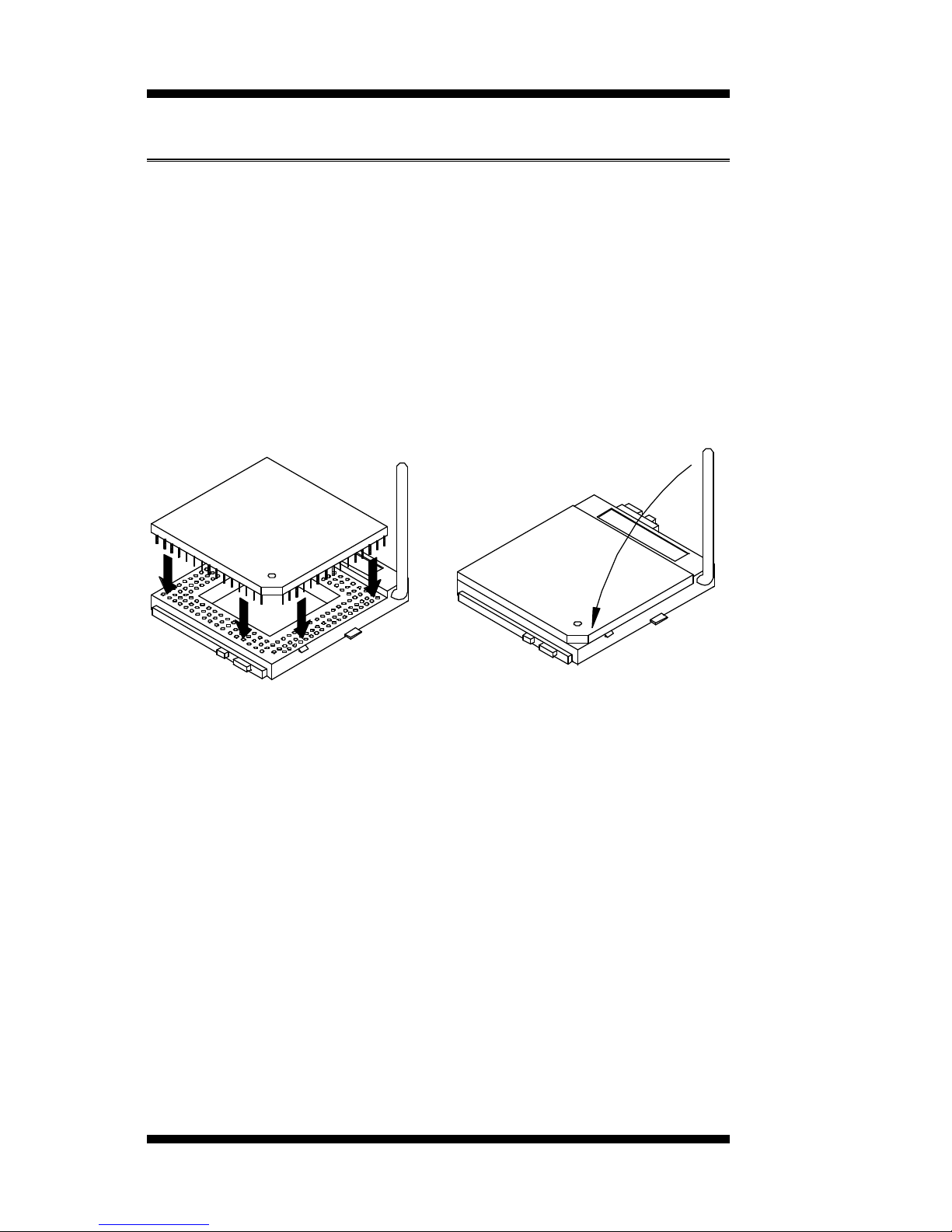

The Socket 370 processor socket comes with a lever to secure the

processor. Raise this lever to about a 90°angle to allow the insertion of

the processor. Place the processor into the socket by making sure the

notch on the corner of the CPU corresponds with the notch on the inside

of the socket. Once the processor has slide into the socket, return the lever

to the lock position. Refer to the figures below.

After you have installed the processor into the socket, check if the

jumpers for the CPU type and speed are correct.

NOTE:

Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.
