Intel G41 Express Chipset Manual de usuario

USER'S MANUAL

Intel G41 Express and ICH7 Chipset

Based

M/B for LGA775 Quad Core Ready

Intel Core Processor Family

Trademark:

* Specifications and Information contained in this documentation are furnished for information use only, and are

subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

NO. G03-MIP41TA-F

Rev: 2.0

Release date: May, 2011

CHAPTER 1 INTRODUCTION OF INTEL G41 MOTHERBOARD SERIES

1-1 FEATURES OF MOTHERBOARD .............................................................................1

1-1.1 SPECIAL FEATURES OF MOTHERBOARD...............................................2

1-2 SPECIFICATION.........................................................................................................3

1-3 ITEM CHECKLIST.......................................................................................................3

1-4 LAYOUT DIAGRAM....................................................................................................4

CHAPTER 2 HARDWARE INSTALLATION

2-1 INSTALL INTEL LAG775 SOCKET CPU...................................................................6

2-2 INSTALL MEMORY ....................................................................................................7

2-3 EXPANSION CARDS..................................................................................................7

CHAPTER 3 CONNCTORS, HEADERS & JUMPERS SETTING

3-1 CONNECTORS ...........................................................................................................8

3-2 HEADERS ...................................................................................................................10

3-3 JUMPER SETTING .....................................................................................................13

CHAPTER 4 USEFUL HELP

4-1 HOW TO UPDATE BIOS ............................................................................................14

4-2 TROUBLE SHOOTING...............................................................................................14

Environmental Protection Announcement

Do not dispose this electronic device into the trash while discarding. To minimize

pollution and ensure environment protection of mother earth, please recycle.

TABLE OF CONTENT

Chapter 1

Introduction of Intel G41 Motherboard Series

1-1 Features of Motherboard

The G41Express and ICH7 chipset motherboard series are based on Intel G41 Express

chipset and ICH7 chipset technology which supports the innovative 45nm and 65nm

Quad-Core, Dual-Core Intel®Core 2 Quad, Core 2 Duo processors, Intel®Pentium

Dual Core, Intel®Celeron Dual Core Conroe processors and Intel®Celeron 400

Conroe-L processors.

The G41 Express and ICH7 chipset Based motherboard series deliver the

revolutionary levels of performance enabling vivid, high-definition experiences and

multi-tasking responsiveness from state-of-the-art Intel dual-core and quad-core

technologies through the high bandwidth of dual channel DDRIII 800 / 1066MHz

system memories which are expandable to 8GB and the next generation PCI Express

interface for the latest AMD and NVIDIA graphics card . The G41 Express and ICH7

chipset motherboard series are absolutely the ultimate solution for game enthusiasts

and applications, and it also meets the demanding usage of computing of gaming,

multimedia entertainment and business applications.

The INTEL G41 Express and ICH7 chipset motherboard series are embedded with

ICH7 chipset of providing four serial ATA2 interface of 3.0 Gb / s data transfer rate for

four serial ATA devices.

The G41 Express and ICH7 chipset Based motherboard provides Gigabit LAN function

by using the PCI-E Gigabit LAN which supports 10M / 100M / 1Gbps data transfer rate.

Embedded 6-channel HD Audio Codec is fully compatible with Sound Blaster Pro®

standards that offer you with the home cinema quality and absolutely software

compatibility.

The G41 Express chipset based motherboard series offer one PCI-Express 2.0 x16 by

16 lane graphics slots which delivers up to 8Gbyte/sec data transfer rate at each

relative direction. One PCI Express 2.0 x1 I/O slot tackling the most demanding

multimedia tasks nowadays. Two 32-bit PCI slots guarantee the rich connectivity for

the I/O of peripherals.

Embedded USB controllers as well as capability of expanding to 8 of USB 2.0

functional ports delivering 480Mb/s bandwidth of rich connectivity, these

motherboards meet the future USB demands which are also equipped with hardware

monitor function on system to monitor and protect your system and maintain your

non-stop business computing.

Some special features---CPU Thermal Throttling/ CPU Smart Fan/ / CPU Vcore

Output OC-CON / 3D Audio (optional) in this motherboard are designed for power

user to use the over-clocking function in more flexible ways. But please be caution

that the over-clocking may cause the failure in system reliability. This motherboard

provides the guaranteed performance and meets the demands of the next generation

computing. But if you insist to gain more system performance with variety possibilities

of the components you choose, please be careful and make sure to read the detailed

descriptions of these value added product features, please get them in the coming

section.

1-1.1 Special Features of motherboard

CPU Thermal Throttling Technology (The CPU Overheat Protection

Technology)

To prevent the increasing heat from damage of CPU or accidental shutdown while at

high workload, the CPU Thermal Throttling Technology will force CPU to enter

partially idle mode from 87.5% to 12.5% according to preset CPU operating

temperature in BIOS (from 40℃to 90℃). When the system senses the CPU

operating temperature reaching the preset value, the CPU operating bandwidth will be

decreased to the preset idle percentage to cool down the processor. When at

throttling mode the beeper sound can be optionally selected to indicate it is in working.

CPU Smart Fan--- The Noise Management System

It’s never been a good idea to gain the performance of your system by sacrificing its

acoustics. CPU Smart Fan Noise Management System is the answer to control the

noise level needed for now-a-day’s high performance computing system. The system

will automatically increase the fan speed when CPU operating loading is high, after

the CPU is in normal operating condition, the system will low down the fan speed for

the silent operating environment. The system can provide the much longer life cycle

for both CPU and the system fans for game use and business requirements.

CPU Output Solid Capacitors (High-polymer Solid Electrolysis Aluminum

Capacitors)

CPU Vcore Input and Output of the motherboard adopts OC-CON solid capacitors to

make it possible for motherboard to work from 55 degrees Centigrade below zero to

125 degrees centigrade. OC-CON capacitors possess superior physical

characteristics to prolong product life ten times than corresponding motherboard

without capacitors every time working temperature increases 20 degrees. Life of

product of motherboard with solid capacitors declines only 10% of those without solid

capacitors as well under same conditions.

3D Audio(Optional for MIP41TA-IC series only)

OP with two-stage Butterworth filter and quadruple noninverting amplifier enhances

bass effect under the 100MHz range to perfect audio effect, brings you stunning

shock experience in video game, true-to-life simulated feeling when watching films

and the greatest touch as that in the concert.

1-2 Specification

Spec Description

Design zATX form factor,PCB size: 29.5x18.0cm

Chipset zIntel G41 Express Chipset

zIntel ICH7 chipset

CPU Socket

LGA775

zSupport 45nm and 65nm Quad-Core, Dual-Core Intel®

Core 2 Quad, Core 2 Duo processors, Intel®Pentium Dual

Core, Intel®Celeron Dual Core Conroe processors and

Intel®Celeron 400 Conroe-L processors 775-Land LGA

Package utilizes Flip-Chip Land Grid Array (FCLGA)

package processor

zSuggest the power of the CPU should below 95W

zSupport FSB Frequency 1333MHz

Memory Socket

zDDRIII Module socket x 2

zSupport 2pcs DDRIII 1066/1333 MHz DDRIII modules

expandable to 8 GB

zSupport Dual channel function

Expansion Slot z1pcs

*PCI-Express x16 by 16 lane slot

z1pcs

* PCI-Express x1

z2pcs

*32-bit PCI slot

Integrate IDE and

SATA2

zThe Intel ICH7 supports four Serial ATA ports provide 3.0

Gb/sec data transfer rate

Gigabit LAN

zIntegrated Gigabit LAN function.

zSupports Fast Ethernet LAN function provide

10Mb/100Mb/ 1Gb /s data transfer rate.

6-CH HD Audio z6-channel HD Audio Codec integrated

zAudio driver and utility included

BIOS zAward 8MB SMT Flash ROM

Multi I/O

zPS/2 keyboard and PS/2 mouse connectors

zSerial port connector x1

zUSB 2.0 port x 4 and headers x2

zRJ-45 LAN connector x1

zAudio connectorx1 (6-CH Audio)

zFront panel audio header x1

zParallel header x1

zFront panel header x1

zPower LED header x1

zSpeaker header x1

zHDMI-SPDIF header x1

1-3 Item Checklist

5Motherboard

5User’s Manual

5DVD for motherboard utilities

5SATA Cable

5I/O Back Panel Shield

1-4 Layout Diagram

Rear I/O Diagram

Internal Diagram for MIP41TA-IC Series Motherboard

ATX 12V Power Connector

Front Panel Header

ATX Powe

Connector

CPU Socket mPGA775

Power LED Header

DDRIII DIMMx2

USB Port

(USB2, USB3)

32-bit PCI Slot

B／MS Power ON

Jumper (JP1)

USB Por

Audio Connector

Front Panel

Audio Header

ATA100

IDE Connector

Serial-ATA2

Connector

CPU FAN

RJ-45 LAN

over USB Ports

PCI Express 2.0 x16 by 16 Lane

Parallel Header

Intel G41Express

Chipset

SYS FAN1 Header

PS2

KB/Mouse Ports

6-CH HD Audio

HDMI-SPDIF Header

Serial Port

ICH7 Chipset

3D Audio Button

PCI Express 2.0 x1

Gigabit LAN Chip

JBAT1

USB Ports

PS/2 Keyboard Port

MIC-IN

Serial Port

Line-IN

RJ-45 LAN Port

SWA Chip

Line-Out

Speaker Header

PS/2 Mouse Port

Internal Diagram for MIP41TA Series Motherboard:

Notice! Diagrams in the manual are for illustration and instruction purpose

only. Please refer to the board you purchased for actual specification.

ATX 12V Power Connector

Front Panel Header

ATX Powe

Connector

CPU Socket mPGA775

Power LED Header

DDRIII DIMMx2

USB Port

(USB2, USB3)

32-bit PCI Slot

B／MS Power ON

Jumper (JP1)

USB Por

Audio Connector

Front Panel

Audio Header

ATA100

IDE Connector

Serial-ATA2

Connector

CPU FAN

RJ-45 LAN

over USB Ports

PCI Express 2.0 x16 by 16 Lane

Parallel Header

Intel G41Express

Chipset

SYS FAN1 Header

PS2

KB/Mouse Ports

6-CH HD Audio

HDMI-SPDIF Header

Serial Port

ICH7 Chipset

PCI Express 2.0 x1

Gigabit LAN Chip

JBAT1

Speaker Header

Chapter 2

Hardware Installation

WARNING! Turn off your power when installing system components. Failure to

do so may cause severe damage to both your motherboard and the

components.

2-1 Install Intel LGA775 Socket CPU

This motherboard provides a 775-pin DIP, LGA775 Land Grid Array socket, referred

to as the LGA775 socket supports Intel Pentium 4 processor in the 775 Pin package

utilizes Flip-Chip Land Grid Array (FC-LGA) package technology.

The CPU that comes with the motherboard should have a cooling FAN attached to

prevent overheating. If this is not the case, then purchase a correct cooling FAN

before you turn on your system.

NOTED! 1.Be sure that there is sufficient air circulation across the processor’s

heat sink and CPU cooling FAN is working correctly, otherwise it

may cause the processor and motherboard overheat and damage,

you may install an auxiliary cooling FAN, if necessary.

2. We suggest to use CPU under 65W power consumption.

To install a CPU, first turn off your system and remove its cover. Locate the LGA775

socket and open it by first pulling the level sideways away from the socket then

upward to a 90-degree angle. Insert the CPU with the correct orientation as shown

below. The notched corner should point toward the end of the level. Because the CPU

has a corner pin for two of the four corners, the CPU will only fit in the orientation as

shown.

CPU LGA775 Socket

Colden Arrow

LGA775

When you install the CPU into the LGA775 socket, there’s no force required CPU

insertion; then presses the level to locate position slightly without any extra force.

2-2 Install Memory

The motherboards provide two 240-pin DDRIII DUAL INLINE MEMORY MODULES

(DIMM) sites for DDRIII memory expansion to maximum memory size of 8GB DDRIII

SDRAM.

Valid Memory Configurations of 2-DIMM Design Motherboard

Bank 240-pin DDR III DIMM PCS Maximum Capacity

Bank 0, 1 (DIMM1) DDRIII 800/1066/1333 Module X1 4GB

Bank 2, 3 (DIMM2) DDRIII 800/1066/1333 Module X1 4GB

Total System Memory (Max. 4GB) X2 8GB

Recommend DIMM Module Combination

1. One DIMM Module ----Plug in DIMM1

2. Two DIMM Modules---Plug in DIMM1 and DIMM2 for Dual channel function

Dual channel Limited!

1. Dual channel function only supports when 2 DIMM Modules plug in either both DIMM1

& DIMM2.

2. DIMM1 & DIMM2 must be the same type, the same size, and the same frequency for

dual channel function.

Generally, installing DDRIII modules to your motherboard is very easy, you can refer

to figure 2-4 to see what a 240-Pin DDRIII 800/DDRIII 1066/DDRIII 1333 SDRAM

module looks like.

DIMM1&DIMM2: Dual Channel

NOTE! When you install DIMM module fully into the DIMM socket the eject tab

should be locked into the DIMM module very firmly and fit into its indention

on both sides

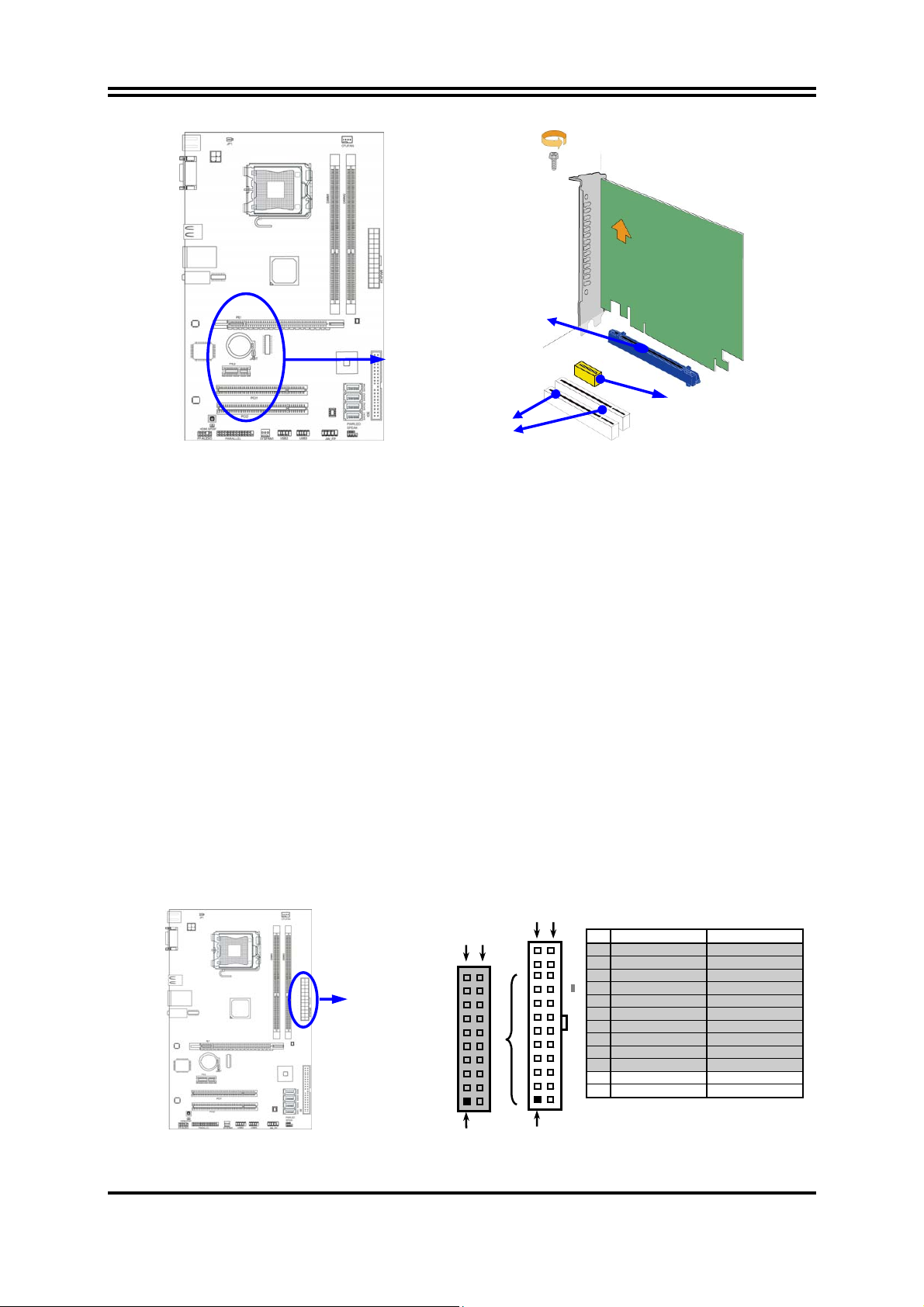

2-3 Expansion Cards

The G41 Express chipset based motherboard series offer one PCI-Express2.0 x16 by

16lane graphics slots which get 7 times of bandwidth more than AGP8X. This

graphics slot offers 8 Gbyte/sec data transfer rate at each relative direction and up to

16Gbyte/sec concurrent bandwidth at full speed. One PCI Express2.0 x1 I/O slot

tackling the most demanding multimedia tasks nowadays. Two 32-bit PCI slots

guarantee the rich connectivity for the I/O of peripherals.

Chapter 3

Connectors, Headers & Jumpers Setting

3-1 Connectors

(1) Power Connector (24-pinblock): ATXPWR

ATX Power Supply connector: This is a new defined 24-pins connector that

usually comes with ATX case. The ATX Power Supply allows using soft power

on momentary switch that connect from the front panel switch to 2-pins Power

On jumper pole on the motherboard. When the power switch on the back of the

ATX power supply turned on, the full power will not come into the system board

until the front panel switch is momentarily pressed. Press this switch again will

turn off the power to the system board.

** We recommend that you use an ATX 12V Specification 2.0-compliant power

supply unit (PSU) with a minimum of 350W power rating. This type has 24-pin

and 4-pin power plugs.

** If you intend to use a PSU with 20-pin and 4-pin power plugs, make sure that the

20-pin power plug can provide at least 15A on +12V and the power supply unit

has a minimum power rating of 350W. The system may become unstable or may

not boot up if the power is inadequate.

Pin 1

ROW1 ROW2

24-Pin

ROW1 ROW2

Pin 1

20-Pin

PIN ROW1 ROW2

1 3.3V 3.3V

2 3.3V -12V

3 GND GND

4 5V Soft Power On

5 GND GND

6 5V GND

7 GND GND

8 Power OK -5V

9 +5V (for Soft Logic) +5V

10 +12V +5V

11 +12V +5V

12 +3V GND

PCI-E 2.0 x16 Slot

PCI-E2.0 x1 Slot

32-bit PCI Slots

Otros manuales para G41 Express Chipset

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Intel

Intel

Intel DH61SA Manual de usuario

Intel

Intel BOXD915PLWDL - Desktop Board D915PLWDL Manual de usuario

Intel

Intel DH61DL Manual de usuario

Intel

Intel D945GCLF2D - Desktop Board With Integrated Atom Processor... Manual de usuario

Intel

Intel S1200BT Manual de usuario

Intel

Intel BOXD925XEBC2LK - Desktop Board D925XEBC2LK Manual de usuario

Intel

Intel D845GRG Manual de usuario

Intel

Intel BLKDH57JG Guía de configuración

Intel

Intel DH55HC Manual de usuario

Intel

Intel D865PCD Manual técnico

Intel

Intel DZ77GA-70K Manual de usuario

Intel

Intel DZ68AF Manual de usuario

Intel

Intel IQ80219 Manual de usuario

Intel

Intel LXD9781 Manual de usuario

Intel

Intel BLKDH55PJ Manual de usuario

Intel

Intel D865PCK Manual de usuario

Intel

Intel DP55WG - Media Series P55 ATX Core i7 i5 LGA1156 Desktop... Manual técnico

Intel

Intel cc820 Manual de usuario

Intel

Intel D915GLVG Manual de usuario

Intel

Intel DH57DD Manual de usuario

Intel

Intel DQ87PG Manual de usuario

Intel

Intel BOXD910GLDW - Desktop Board D910GLDW Manual de usuario

Intel

Intel D845PESV Manual técnico

Intel

Intel BLKDG31PR - 1333FSB DDR2 800 Audio Lan 4SATA uATX 10Pack... Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
