Intel

PRO/100

Mobile CardBus Adapters

Quick Installation Guide and

Modem Information Guide

For Type III Models without Cables

For Type II Models with Cables

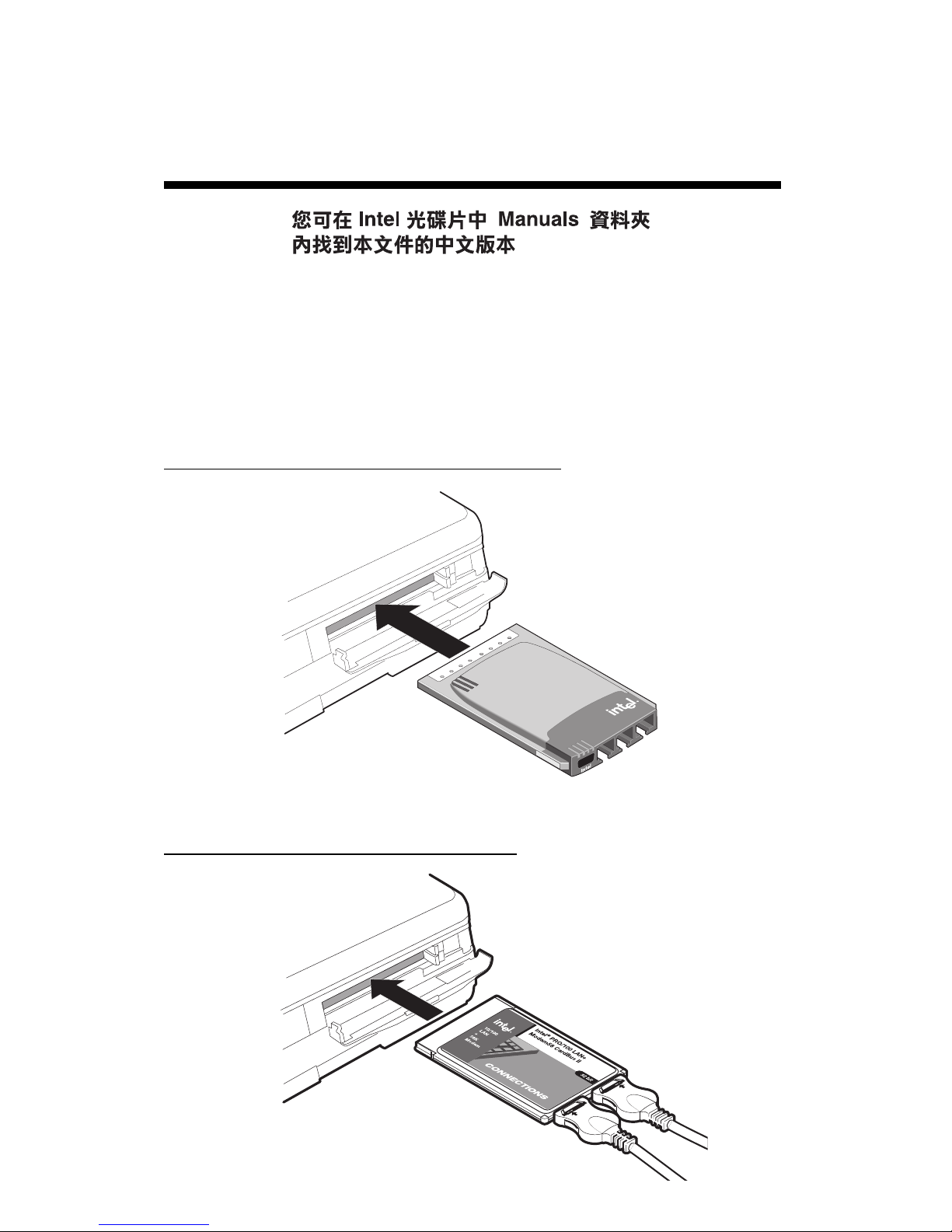

Hardware Installation — Type III Combo

Attach your phone line and LAN cable to the adapter as shown below.

Use the icons on the bottom of the adapter to correctly identify each

jack. Take care not to attach the phone line to the LAN connector. Fully

insert the adapter into a Type III slot or the bottom slot in a pair of Type

II CardBus slots.* See User's Guide for cell phone information.

Hardware Installation — Type III LAN Only

Attach your LAN cable to the adapter as shown in the diagram below.

Fully insert the adapter into a Type III slot or the bottom slot in a pair of

Type II CardBus slots.*

LAN CABLE

MODEM CABLE

PHONE CABLE

(OPTIONAL)

CELL PHONE/DATA PORT

PC-3890

Hardware Installation — Type II Combo

Attach the LAN and modem cables to the adapter as shown in the

diagram. Use the icons on the cables to correctly identify each cable.

Fully insert the adapter into a CardBus slot.* Attach network and

modem lines to the appropriate cables. Take care not to attach the phone

line to the LAN cable.

Hardware Installation — Type II LAN Only

Attach the LAN cable to the adapter as shown in the diagram below.

Fully insert the adapter into a CardBus slot.* Attach your network

twisted pair Ethernet RJ-45 cable to the PRO/100 cable.

LAN CABLE

MODEM CABLE

* Note: if the adapter won't fully insert, the slot may not be CardBus

compatible. Try a different slot or check your owner's manual.

LAN CABLE

Software Installation for Windows†98

Note: if your laptop computer does not have a CD-ROM drive, see

Making a Floppy Disk.

Type II Adapters Only

1 With Windows running, insert the PRO/100 Mobile adapter into the

CardBus slot and connect cables as shown in Hardware Installation.

2 Windows detects the adapter and displays the Add New Hardware

wizard. Click Next to continue. In this procedure, the LAN driver will

be installed first and then the modem driver (if you have the PRO/100

Combo adapter). If the New Hardware Found window does NOT

appear, you may need to enable CardBus support in your mobile

computer's BIOS. See your computer owner's manual for information.

3 On the next screen, Windows prompts for a driver search. Choose

"Search for the best driver (Recommended)" and click Next.

4 Insert the Intel CD or floppy disk and select the corresponding check

box. Click Next to continue. If necessary, specify the path to your CD-

ROM or floppy drive.

Note: When you insert the Intel CD to install drivers, an autorun file

displays an introductory screen with several buttons. This is not

part of the installation process, and you may close it or leave it

open for later reading.

5 The new dialog box displays the name of the adapter, depending on

the product you are installing. Choose "The updated driver (Recom-

mended)." Click Next.

6 Windows confirms the device name and location of the LAN driver

(NET82557.INF). Click Next to continue. Windows may prompt you

for the location of Windows networking files. Usually these are

located in c:\windows\options\cabs or on your Windows 98 installa-

tion CD.

7 A message confirming successful LAN driver installation appears.

Click Finish.

8 For most networks, you will need to configure properties for your

protocols, computer identification, and preferred servers. Contact your

network administrator for details if you need assistance.

9 If you have the LAN only adapter, restart your computer when

prompted and proceed to step 11.

If you have the Combo adapter, do not restart your computer yet.

When prompted to do so, click No and proceed to step 10.

10 Windows detects the modem portion of the adapter (PCI Serial

Controller) and repeats the wizard process above for the modem

(driver name is MDME100B.INF). At the end of this process, a small

dialog box appears stating "Your card has been successfully config-

ured." Click OK to close this dialog box.

11 If the New Hardware Found wizard is present, click Finish.

12 Restart the computer to complete installation.

If you are not in the U.S. or Canada, run the Country Identifier utility to

specify your location. The utility is located in the Intel Mobile program

group.

Type III Adapters Only

1 With computer power on, insert your new adapter as described in

Chapter 1.

2 Connect the network cable and modem cable if it is a combo card.

3 Windows detects the adapter. The Add New Hardware Wizard starts.

Follow the prompts in the wizard to install the drivers from the Intel

CD.

4 Restart your computer when prompted

5 If you are not in the U.S. or Canada, run the Country Identifier utility

to specify your location. The utility is located in the Intel Mobile

program group.

Run the Intel Setup program onthe Intel CD to install the Intel PROSet

utility.

For most networks, you will need to configure properties for your protocols,

computer identification, and preferred servers. Contact your network

administrator for details if you need assistance.

Software Installation for Windows Me

Note: if your laptop computer does not have a CD-ROM drive, see

"Making a Floppy Disk."

This Windows version was not fully released at the time the Intel CD was

finalized. The drivers on this CD have been tested with “Release Candidate”

versions of Windows Me.

Type II Adapters Only

1 With computer power on, insert your new adapter as described in

Chapter 1.

2 Connect the network cable and modem cable if it is a combo card.

3 Windows Me starts and detects the adapter. A default Windows LAN

driver installs first and then the default modem driver. Although these

drivers provide basic functionality, you’ll need to update them with

the drivers on the Intel CD. To update the drivers, continue this

procedure.

4 Right-click the My Computer Icon on the desktop and click Prop-

erties. Click the Device Manager Tab. This displays a list of devices.

5 Find the Network adapters icon and expand if necessary. Select the

Intel PRO/100 adapter and click Properties. Click the Driver Tab. The

driver date of 10/23/99 is shown. Click Update Driver.

6 Insert your Intel CD into your drive and wait a few moments for it to

spin up. The “Update Device Driver Wizard” starts. Select Automatic

Search and click Next to continue.

7 After a few moments, the wizard displays the LAN driver on the Intel

CD and automatically installs it. Click Finish.

8 Restart your computer when prompted.

9 Repeat steps 4 - 7 for the Modem. In the Device Manager, expand the

Modem listing and choose the Intel PRO/100 Mobile Combo adapter.

10 Restart your computer when prompted.

11 If you are not in the U.S. or Canada, run the Country Identifier utility

to specify your location. The utility is located in the Intel Mobile

program group.

Run the Intel Setup program onthe Intel CD to install the Intel PROSet

utility.

For most networks, you will need to configure properties for your protocols,

computer identification, and preferred servers. Contact your network

administrator for details if you need assistance.

Type III Adapters Only

1 With computer power on, insert your new adapter as described in

Chapter 1.

2 Connect the network cable and modem cable if it is a combo card.

3 Windows Me detects the adapter. The Add New Hardware Wizard

starts. Follow the prompts in the wizard to install the drivers from the

Intel CD.

4 Restart your computer when prompted

5 If you are not in the U.S. or Canada, run the Country Identifier utility

to specify your location. The utility is located in the Intel Mobile

program group.

Run the Intel Setup program onthe Intel CD to install the Intel PROSet

utility.

For most networks, you will need to configure properties for your protocols,

computer identification, and preferred servers. Contact your network

administrator for details if you need assistance.

Software Installation for Windows NT† 4.0

If you are also installing NT 4.0 at this time, you'll need to create a floppy

disk with drivers. See "Making a Floppy Disk" later in this document.

1 Before powering up your mobile computer, insert the PRO/100

Mobile adapter into the CardBus slot, as shown in the Hardware

Installation section.

2 With the adapter in the CardBus slot, power-up the computer, click

Start, click Settings, and select Control Panel. Control Panel opens.

3 Double-click the Network icon. The Network Settings window opens.

4 Click the Adapters tab. The Network Adapters window opens.

5 Click Add. The Select Network Adapter window opens.

6 Click Have Disk, insert the Intel CD and wait for the CD to fully spin

up. (The autorun screen may appear. Close the autorun.) Specify the

correct path for the CD. Click OK to continue.

7 The CardBus Resources window opens, displaying settings for

memory and interrupt values (the default interrupt is 10). If you are

installing the Combo adapter, a Modem tab also appears. Select values

for each setting. A single interrupt is shared for the LAN and modem

functions. (If your computer has card and socket services installed the

CardBus resources window does not appear; proceed to step 9.)

Note: In most circumstances, the default settings will properly

operate the adapter. However, some computers may require

changes to the defaults. Usually, only the IRQ setting needs

adjustment. See step 11 to verify settings.

8 Click OK. The Network Settings window redisplays.

9 Click Close. Complete any relevant dialog boxes that appear such as

TCP/IP settings. Contact your Network Administrator for help if

necessary.

10 When the Network Settings Change window opens, click Yes to

restart the computer.

11 To check the resources chosen in step 7, start PROSet by double-

clicking the Intel PROSet icon in Control Panel. If there are no

conflicts with the LAN settings, you’ll see the General tab with

adapter status information. If there is a resource conflict with another

device, PROSet displays a Troubleshooting tab with instructions.

Follow these instructions to choose different resources. Resources can

be changed by clicking the Advanced tab, CardBus Resources button

and choosing an interrupt and/or memory value. Close the PROSet

utility and restart when prompted.

Modem Setup (Combo Adapters Only)

1 After the computer has restarted, check the NT Event Log for any

possible Modem resource issues from step 7 above. You may need to

change resources if the log indicates a Modem problem. See step 11

above for changing resources. If no problems are noted, select

Modems from Control Panel.

2 At the Install New Modem screen make sure that the Don’t detect my

modem; I will select it from a list check box is NOT checked. Click

Next. NT will query the COM ports looking for the Intel modem.

Once the Intel modem is found, click Next. If a Standard Modem is

found, click Change. On the next screen, click Have disk. Type the

path to your CD-ROM drive and click OK.

3 At the Install New Modem screen, click OK. After confirming that

Intel PRO/100 Mobile Adapter appears in the dialog box, click Next.

Then, click Finish to complete the installation.

4 At the Modems Properties screen click Dialing Properties to set up

dialing properties (not necessary if a modem had been previously

installed). If necessary, change the maximum speed to 115,200. Click

Close when done.

If you are not in the U.S. or Canada, run the Country Identifier utility to

specify your location. The utility is located in the Intel Mobile program

group.

Windows 2000 Installation

Note: when you insert the Type II adapter, Windows 2000 detects the

controllers on the adapter and automatically installs drivers. Although these

drivers provide basic LAN and modem functionality, you should update the

drivers as described below. For Type III adapters, see the Type III proce-

dure that follows the Type II one below.

Type II Adapters Only

If you have the LAN-only Mobile adapter, follow steps 1 through 13. If

installing the Combo Mobile adapter, follow all steps below.

1 On the Windows desktop, right click My Computer.

2 Click the Hardware tab.

3 Click the Device Manager button.

4 Double-click the Network Adapters device. You'll see the Intel adapter

listed.

5 Right click the Intel adapter and click Properties. On the dialog that

appears, click the Driver tab.

6 Click the Update driver button. This starts the Upgrade Device Driver

Wizard. Click Next to start.

7 On the next screen select "Search for a suitable driver ...." Click Next.

8 On the next screen, uncheck all boxes except the CD-ROM drives one.

Insert the Intel CD and wait until the Autorun screen appears. Close

the Autorun screen by clicking the X in the upper right hand corner.

Click Next in the wizard.

9 The next screen indicates a driver was found. Be sure to check the

box at the bottom of the screen, called Install one of the other

drivers. Click Next to continue.

10 The next screen displays a list of drivers. Carefully examine the list.

Look in the "Provider" column and select the first driver with Intel as

the provider. The location column should indicate this driver is on

your CD-ROM drive. Click Next.

11 The drivers are copied to your computer. When the wizard reappears,

click Finish.

12 Close the Intel adapter Properties dialog by clicking Close.

13 If your adapter is a LAN only product you are done. If your adapter is

a combo product, proceed to step 14.

14 To update the modem driver, double-click the Modems device in the

Device Manager.

15 Right click the Intel modem and click Properties. On the dialog that

appears, click the Driver tab.

16 Repeat steps 6 through 12 above.

17 Close the Device Manager, and click OK on the System Properties

window to close it.

18 Modem users only, Go to Start, Programs, Intel PRO/100 Mobile

adapter.

19 Click Intel Country Identifier. The utility scans for modems. After a

few moments the country dialog appears.

20 Select your country from the pull-down list and click Save and then

Exit.

Run the Intel Setup program onthe Intel CD to install the Intel PROSet

utility.

Type III Adapters Only

1 With computer power on, insert your new adapter as described in

Chapter 1.

2 Connect the network cable and modem cable if it is a combo card.

3 Windows detects the adapter. The Add New Hardware Wizard starts.

Follow the prompts in the wizard to install the drivers from the Intel

CD.

4 Restart your computer when prompted

5 If you are not in the U.S. or Canada, run the Country Identifier utility

to specify your location. The utility is located in the Intel Mobile

program group.

Run the Intel Setup program onthe Intel CD to install the Intel PROSet

utility.

For most networks, you will need to configure properties for your protocols,

computer identification, and preferred servers. Contact your network

administrator for details if you need assistance.

Otros manuales para ETHEREXPRESS PRO/100

Tabla de contenidos

Otros manuales de Adaptador de Intel

Intel

Intel 2200BG Manual de usuario

Intel

Intel INTEL 10 GIGABIT AT2 SERVER ADAPTER Manual de usuario

Intel

Intel PRO1000 - MT Dual Port Server Adapter Manual de usuario

Intel

Intel PRO/1000 T Manual de usuario

Intel

Intel QLE7342 Manual de usuario

Intel

Intel ETHEREXPRESS PRO/100 Manual de usuario

Intel

Intel PRO 1000 PT DESKTOP ADAPTER Manual de usuario

Intel

Intel QuickAssist 8920SCC Manual de usuario

Intel

Intel CentrUser's Guideino Advanced-N + WiMAX 6250 Manual de usuario

Intel

Intel 1000BASE-T Manual de usuario

Intel

Intel Vectra VEi7 Manual de usuario

Intel

Intel PRO/Wireless 2011B LAN USB Device Manual de instalación y operación

Intel

Intel I350 Manual de usuario

Intel

Intel X520 SFP+ Manual de usuario

Intel

Intel X520-T2 Guía de referencia

Intel

Intel PCIe 2-Port 2.5G 4-Speed Manual de usuario

Intel

Intel Ethernet X520 10GbE Dual Port KX4 Mezz Manual de usuario

Intel

Intel RSP3TD160 Manual de instalación

Intel

Intel ETHEREXPRESS PRO/100 Manual de usuario

Intel

Intel 10 Gigabit AT Ethernet Server Adapter Guía de referencia

Intel

Intel PRO/1000 T Manual de usuario

Intel

Intel PROWIRELESS 3945ABG NETWORK CONNECTION Manual de usuario

Intel

Intel PRO/1000 PF Guía de referencia

Intel

Intel RS3P4TF160F Manual de instalación

Manuales populares de Adaptador de otras marcas

PCB Piezotronics

PCB Piezotronics 090B274 Manual de usuario

Auvidea

Auvidea J20 Manual del producto

Gossen MetraWatt

Gossen MetraWatt AT3-III E Manual de usuario

Akribis

Akribis ITF-21-BISS-MIT Manual de usuario

Tenda

Tenda W54U Manual de usuario

ROHO

ROHO AGILITY Manual de usuario

PROLiNK

PROLiNK WN2001 Manual de usuario

Hawking

Hawking HUF2 Manual de usuario

Airlink101

Airlink101 AWLC4030 Manual de usuario

NETGEAR

NETGEAR XAV101v1 - Powerline AV Ethernet Adapter Manual de usuario

Philips

Philips SWA4554S/10 Manual de usuario

JVC

JVC TS-C9D2B Manual de instrucciones

NETGEAR

NETGEAR A6100 Manual de usuario

D-Link

D-Link DWA-121 Manual de usuario

Philips

Philips SWA2037 Manual de usuario

Basalte

Basalte 0610-20 Manual de usuario

Yealink

Yealink EHS40 Manual de usuario

Balluff

Balluff BIC 1B0-IT1A7-Q40KFU-SM4A4A Manual de usuario
