Insignia NS-HTVMF0C Manual de usuario
2www.insigniaproducts.com

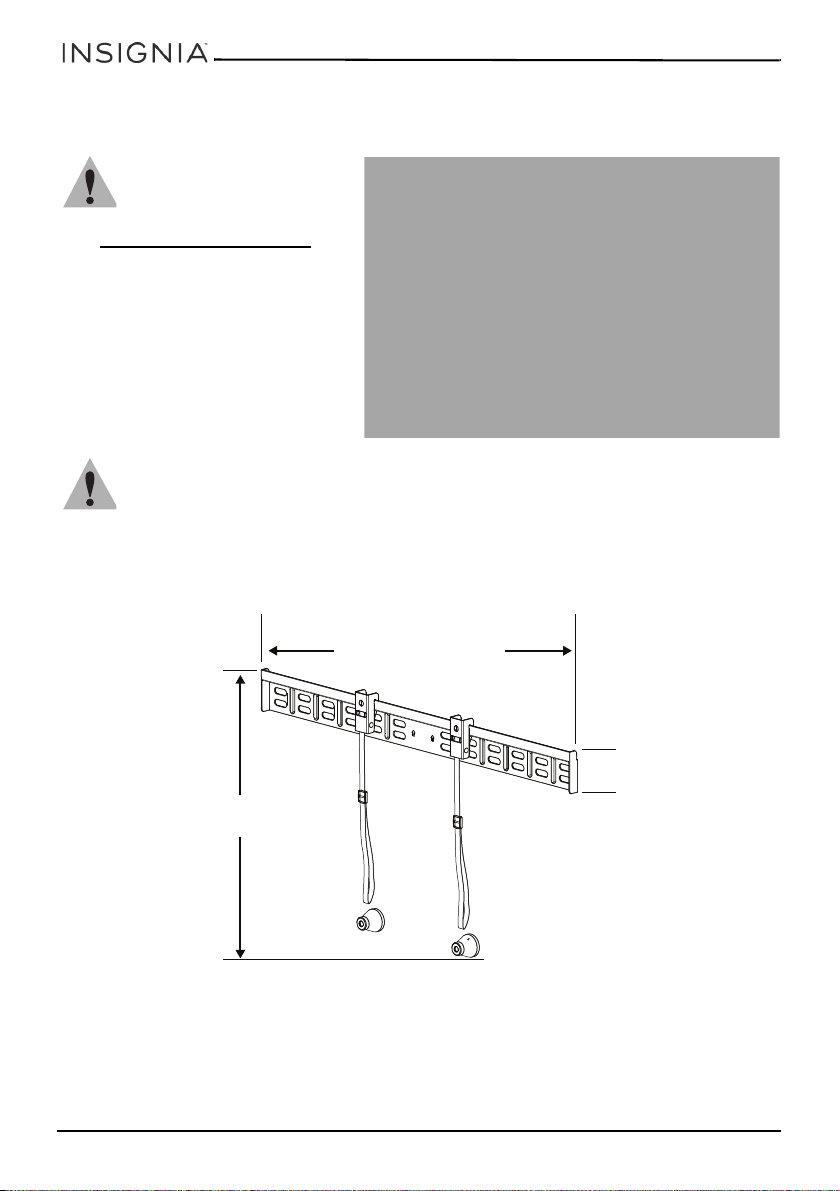

Safety information and specifications
CAUTION: IMPORTANT SAFETY
INSTRUCTIONS - SAVE THESE
INSTRUCTIONS - READ THE
ENTIRE MANUAL PRIOR TO USE
CAUTION: Do not use this product for any
purpose not explicitly specified by Insignia.
Improper installation may cause property
damage or personal injury. If you do not
understand these directions, or have doubts
about the safety of the installation, contact
Customer Service or call a qualified contractor.
Insignia is not responsible for damage or injury
caused by incorrect installation or use.
CAUTION: Do not exceed the maximum weight indicated.This mounting system is intended for use only
with the maximum weights indicated. Use with products heavier than the maximum weights indicated
may result in collapse of the mount and its accessories, causing possible injury.
The weight of yourTV must not exceed 100 lbs. (45.3 kg).The wall must be capable of supporting five times
the weight of yourTV and wall mount combined.
This product contains small items that could be a choking hazard if swallowed. Keep these items away from young
children!
Maximum TV weight: 100 lbs. (45.3 kg)
Screen size: 40 in. to 70 in. diagonal
Overall dimensions (H × W ):
17.0 × 25.6 in. (43.2 × 65 cm)
Wall-mount weight: 2.4 lb (1.1 kg)
We’re here for you
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S./Canada markets)
17.0 in. (43.2 cm)
2.97 in. (7.5 cm)
25.6 in. (65 cm)
FIXED-POSITION WALL MOUNT FOR TVs 40-70 in.
3
www.insigniaproducts.com
Tools needed
You will need the following tools to assemble your newTV wall mount:
ardware
Package contents
Make sure that you have all the hardware necessary to assemble your new TV wall mount:
10 Wall Plate (1) 1 TV Brackets (2) RWall Plate Template (1)
Edge-to-edge
stud finder
Level
Phillips screwdriver
Socket wrench with 1/2 in.
(13 mm) socket or adjustable
wrench
Measuring tape
Drill
7/32 in. (5.5 mm) wood drill
bit (for wood stud wall)
OR
3/8 in. (10 mm) masonry
drill bit (for solid concrete
or concrete block walls)
Hammer
Tape
Pencil Awl
Wallmount template
10 (1) 1 (2) R
4www.insigniaproducts.com
TV Hardware Bag
Note: Deleted ruler.
Label Hardware Qty.
22
34
44
54
64
TV Standoff
M6 × 12 mm
screw
M8 × 16 mm
screw
M8 × 20 mm
screw
M6 × 35 mm
screw
Label Hardware Qty.
74
84
94
11 2
12 2
M8 × 35 mm screw
M6/M8 washer
Spacers
5/16 in. × 2 3/4 in. lag bolt
Lag bolt washer
Concrete Installation Kit CMK1 (not included)
Contact customer service at 1-800-359-5520 to have these additional parts shipped directly to you.
C1 2
C2 2
C3 2
5/16 in. × 2 3/4 in. lag bolt
Lag bolt washer
Concrete anchors
FIXED-POSITION WALL MOUNT FOR TVs 40-70 in.
5
www.insigniaproducts.com
Installation instructions
STEP 1 - Determining whether your TV has a flat back or an
irregular or obstructed back
1Carefully place yourTV screen face-down on a cushioned, clean surface to protect the screen from
damages and scratches.
2If yourTV has a table-top stand attached, remove the stand. See the documentation that came with your
TV for instructions.
3Temporarily lay the TV brackets (1), oriented vertically, on the back of yourTV.
4Align the screw holes in theTV brackets with the mounting screw holes on your TV.
5Identify which type of back yourTV may have:
•Flat back: The brackets lay flush against the back of your TV and do not block any jacks.You do not need
spacers when assembling the wall mount.
•Obstructed back:The brackets block one or more of the jacks on the back of your TV. You will need
spacers when assembling the wall mount.
•Irregularly-shaped back:There is a gap between a bracket and some part of the back of your TV. You
will need spacers when assembling the wall mount.
6Remove the TV brackets (1).
6www.insigniaproducts.com
STEP 2 - Select screws, washers, and spacers
1Select the hardware for yourTV (screws, washers, and spacers). A limited number ofTVs come with
mounting hardware included. (If there are screws that came with the TV, they are almost always in the
holes on the back of the TV.) If you don't know the correct length of the mounting screws your TV
requires, test various sizes by hand threading the screws.
Select one of the following types of screws:
For a TV with a flat back:
M6 X 12mm screws (3)
M8 X 16mm screws (4)
M8 X 20mm screws (5)
For a TV with an irregular/obstructed back:
M6 X 35mm screws (6)
M8 X 35mm screws (7)
Select an M6/M8 washer (8) for each screw.
For an irregular or obstructed TV back, also use the spacers (9)
CAUTION: To avoid potential personal injuries and property damage, make sure that there are adequate
threads to secure the brackets to your TV. If you encounter resistance, stop immediately and contact customer
service. Use the shortest screw and spacer combination to accommodate your TV. Using hardware that is too long
may damage your TV. However, using a screw that is too short may cause your TV to fall from the mount.
2Remove the screws from the holes in the back of your TV.
3For a flat backTV, go to “STEP 3 - Option 1: Attaching the mounting hardware toTVs with a flat back“ on
page 7.
-OR-
For an irregular or obstructed back, go to “STEP 3 - Option 2: Attaching the mounting hardware to TVs
with irregular or obstructed backs”on page 8.
Screw is too
long
Screw fits
correctly
Screw is too
short
FIXED-POSITION WALL MOUNT FOR TVs 40-70 in.
7
www.insigniaproducts.com
STEP 3 - Option 1: Attaching the mounting hardware to TVs
with a flat back
1Align the left and rightTV brackets (1) with the upper screw holes on the back of the TV. Make sure that
the brackets are level.
2Install washers (8) and screws (3, 4, or 5) into the holes in the back of the TV.
3InstallTV standoffs (2) in the lower screw holes on the back of theTV using washers (8) and screws (3, 4,
or 5).
4Tighten the screws until they are snug against theTV brackets. Do not over tighten.
You’ l l need
Important: After attaching
the TV brackets, adjust the
straps (by sliding the buckle
up or down) so they are level
with the bottom of the TV.
2(2)
3 (4)
Phillips screwdriver
1 TV
brackets (2)
or
4 (4)
8(4)
5 (4)
Level
or
8www.insigniaproducts.com
STEP 3 - Option 2: Attaching the mounting hardware to TVs
with irregular or obstructed backs
1Place spacers (9) over the screw holes on the back of theTV.
2Align the left and rightTV brackets (1) with the upper screw holes on the back of the TV. Make sure that
the brackets are level.
3Place washers (8) over the holes in the TV brackets. Insert screws (6 or 7) through the washers,TV
brackets, and spacers.
4Install TV standoffs (2) in the lower screw holes on the back of the TV using washers (8), screws (6or 7),
and spacers (9).
5Tighten the screws until they are snug against theTV brackets. Do not over tighten.
You’ l l need
Important: After attaching the
TV brackets, adjust the straps (by
sliding the buckle up or down)
so they are level with the bottom
of the TV.
6 (4)
9(4)
1 TV
brackets (2)
8(4)
7 (4)
or
2(2) Phillips screwdriver
Level
FIXED-POSITION WALL MOUNT FOR TVs 40-70 in.
9
www.insigniaproducts.com
STEP 4 - Determine wall-mount location
Note:
• For more detailed information on determining where to drill your holes, visit our online height-finder
at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder
• Your TV should be high enough so your eyes are level with the middle of the screen. This is normally
40 to 60 in. from the ground.
1Measure the distance from the bottom of yourTV to the top of the one of theTV brackets you just
installed in step 3. This is measurement a.
2Measure the distance from the floor to where you want the bottom of theTV to be placed on the wall.
Keep in mind that the bottom of theTV should be placed above any furniture (such as entertainment
centers orTV stands). The TV should also be above items placed on top of the furniture (like a Blu-ray
player or cable box).This measurement is b.
3Add a + b then subtract 1.5 in. The total measurement is the height where you want the center of the
wall plate to be on the wall.
4Use a pencil to mark this spot on the wall.
You’ll need
A
B
a
b
Measuring tape
Pencil
10 www.insigniaproducts.com
STEP 5 - Option 1: Installing on a wood stud* wall
Note: Any drywall covering the wall must not exceed 5/8 in. (16 mm).
1Locate the stud. Verify the center of the stud with an edge-to-edge stud finder.
2Align the center of the wall plate template (R) at the height (a + b - 1.5 in.) you determined in the
previous step, make sure that it is level, then tape it to the wall.
3Drill two pilot holes through the template to a depth of 3 in. (75 mm) using a 7/32 in. (5.5 mm) diameter
drill bit, then remove the template.
4Align the wall plate (10) with the pilot holes, insert the lag bolts (11) through the lag bolt washers (12),
then through the holes in the wall plate.Tighten the lag bolts only until they are firm against the wall
plate.
CAUTION:
• Use only the upper slotted holes to mount the wall plate. Do not use the lower slotted holes.
• Install in the center of the studs. Do Not install in drywall alone.
