Inseego Wavemaker FW2010 Manual de usuario

Inseego WavemakerTM

5G Outdoor CPE FW2010

USER GUIDE

5G OUTDOOR CPE FW2010 USER GUIDE 2

INSEEGO COPYRIGHT STATEMENT

rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or

transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose

without the expressed written permission of Inseego Corp.

SOFTWARE LICENSE

Proprietary Rights Provisions:

Any software drivers provided with this product are copyrighted by Inseego Corp. and/or Inseego Corp.’s suppliers. Although

copyrighted, the software drivers are unpublished and embody valuable trade secrets proprietary to Inseego Corp. and/or

Inseego Corp. suppliers. The disassembly, decompilation, and/or Reverse Engineering of the software drivers for any purpose is

strictly prohibited by international law. The copying of the software drivers, except for a reasonable number of back-up copies

is strictly prohibited by international law. It is forbidden by international law to provide access to the software drivers to any

person for any purpose other than processing the internal data for the intended use of the software drivers.

U.S. Government Restricted Rights Clause:

The software drivers are classified as “Commercial Computing device Software” and the U.S. Government is acquiring only

“Restricted Rights” in the software drivers and their Documentation.

U.S. Government Export Administration Act Compliance Clause:

It is forbidden by US law to export, license or otherwise transfer the software drivers or Derivative Works to any country where

such transfer is prohibited by the United States Export Administration Act, or any successor legislation, or in violation of the

laws of any other country.

TRADEMARKS AND SERVICE MARKS

Inseego Corp. is a trademark of Inseego Corp., and the other trademarks, logos, and service marks (collectively the

“Trademarks”) used in this user manual are the property of Inseego Corp. or their respective owners. Nothing contained in this

user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Inseego Corp. or

any other Trademark displayed in this user manual without the written permission of Inseego Corp. or its respective owners.

MiFi® and the MiFi logo are registered trademarks of Inseego Corp.

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States

and/or other countries.

Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.

The names of actual companies and products mentioned in this user manual may be the trademarks of their respective owners.

Document Number: 14965395 Rev 1

5G OUTDOOR CPE FW2010 USER GUIDE 3

Contents

Introduction and Getting Started........................................................................................................................................4

Overview..................................................................................................................................................................................5

Key Features ..................................................................................................................................................................... 5

System Requirements...................................................................................................................................................5

Getting Started...................................................................................................................................................................... 6

Admin User Interface................................................................................................................................................................7

Overview..................................................................................................................................................................................8

Home Page........................................................................................................................................................................ 8

Side Menu ......................................................................................................................................................................... 9

Getting Help .....................................................................................................................................................................9

Admin Password .................................................................................................................................................................10

Changing the Admin Password...............................................................................................................................10

Managing Data Usage ......................................................................................................................................................11

Data Usage Page...........................................................................................................................................................12

Managing Settings.............................................................................................................................................................13

Preferences Tab.............................................................................................................................................................13

Software Update Tab ..................................................................................................................................................14

Backup and Restore Tab.............................................................................................................................................15

Advanced Tab ................................................................................................................................................................17

Viewing Info About the FW2010...................................................................................................................................25

Internet Status Tab.......................................................................................................................................................26

Internet Sessions Tab ..................................................................................................................................................28

Diagnostics Tab.............................................................................................................................................................29

Device Info Tab..............................................................................................................................................................30

GPS Tab ............................................................................................................................................................................31

Logs Tab...........................................................................................................................................................................32

Getting Support ..................................................................................................................................................................33

Customer Support Page.............................................................................................................................................33

Troubleshooting and Support ............................................................................................................................................34

Overview................................................................................................................................................................................35

Replacing your SIM Card..................................................................................................................................................35

Indicator LED........................................................................................................................................................................37

Resetting your Device.......................................................................................................................................................38

Resetting with the RESET Button............................................................................................................................38

Resetting from the Inseego Mobile App..............................................................................................................39

Resetting from the Admin Web UI .........................................................................................................................39

Resetting from Inseego Connect ............................................................................................................................39

Technical Support ..............................................................................................................................................................39

Product Specifications and Regulatory Information ..................................................................................................40

Product Specifications......................................................................................................................................................41

Device ...............................................................................................................................................................................41

Environmental ...............................................................................................................................................................41

Network Connectivity .................................................................................................................................................41

Security.............................................................................................................................................................................42

Regulatory Information....................................................................................................................................................43

Product Certifications and Supplier’s Declarations of Conformity...................................................................45

Energy Efficiency.................................................................................................................................................................47

Wireless Communications...............................................................................................................................................47

Limited Warranty and Liability.......................................................................................................................................48

Safety Hazards .....................................................................................................................................................................49

Glossary.......................................................................................................................................................................................50

5G OUTDOOR CPE FW2010 USER GUIDE 4

Introduction and Getting

Started

Overview

Getting Started

5G OUTDOOR CPE FW2010 USER GUIDE 5

Overview

The Inseego Wavemaker 5G Outdoor CPE FW2010 is the next-gen CPE solution that brings gigabit

wireless 5G data speeds to urban, suburban, and rural customers alike. The FW2010 operates in 4G LTE,

5G Sub-6GHz, and 5G millimeter wave (mmW) networks, and extends mmW network coverage with

high-gain, phased-array antenna elements that support bands n257, n258, n260 and n261. The FW2010

automatically connects to the best 4G or 5G cellular network available and provides up to 5Gbps data

connectivity to the existing in-building network.

Your FW2010 is installed by professional technicians to assure optimal performance.

Key Features

•High performance, high power antenna array supports up to 52dBm peak EIRP to extend the

mmW network coverage up to 6 kilometers.

•High performance Ethernet port provides up to 5Gbps symmetrical data rate to the in-building

network and supports Power-over-Ethernet (PoE) to the device.

•Designed to operate in extreme temperatures from -20°C to 60°C (-4 to 140°F) and has an

environmental rating of IP67 for water and dust ingress.

•Advanced security features, encryption, and third-party penetration testing to ensure protection

of customer data.

•Remote management with the Inseego ConnectTM platform enables remote device

management, diagnostics, performance monitoring, alerts, and much more.

•Inseego Mobile App, available on Apple and GooglePlay App stores, guides installers to find the

best location for 5G mmWave performance, and enables consumers to manage device settings

with their smartphone.

System Requirements

Admin Web UI operating systems supported include:

•Windows 10 and later

•MacOS 10.14 and later

•Linux® Ubuntu 18.04 LTS and later

5G OUTDOOR CPE FW2010 USER GUIDE 6

Getting Started

To turn on your FW2010 and connect a device:

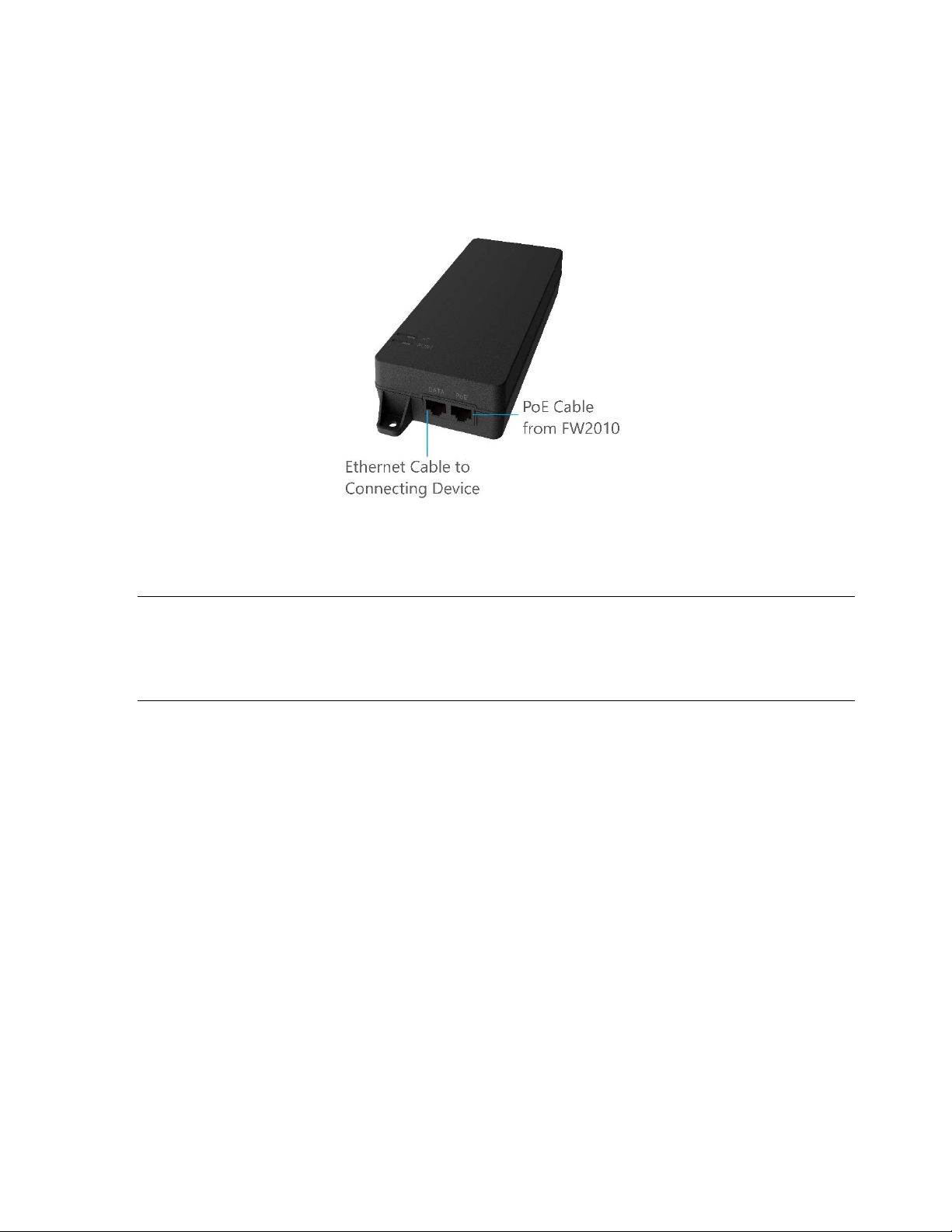

1. Check that the PoE cable from the FW2010 is in the PoE port on the PoE power injector and the

PoE power injector is plugged into an earthed AC outlet.

2. Insert one end of a Cat6A Ethernet cable into the Data port on the PoE power injector.

3. Insert the other end of the cable into the Ethernet port of the device you wish to connect.

WARNING!Use only the PoE power injector supplied with the FW2010. Unapproved power

supplies could cause overheating or fires, resulting in serious bodily injury, death, or property

damage. Do not defeat the safety purpose of a grounding-type plug. Use the PoE power injector

only in combination with an earth-socked outlet.

5G OUTDOOR CPE FW2010 USER GUIDE 7

Configuration

Overview

Admin Password

Managing Data Usage

Managing Settings

Viewing Info About the FW2010

Getting Support

5G OUTDOOR CPE FW2010 USER GUIDE 8

Overview

You can use multiple tools to configure and troubleshoot your FW2010:

•Admin Web UI – Provides a local gateway to configure and manage your FW2010. On a device

connected to your FW2010, open any Web browser and go to http://192.168.1.1. Select Sign

In (in the top-right corner of the screen), and enter the Admin Password (see Error!

Reference source not found. on page Error! Bookmark not defined.).

•Inseego Connect –Provides the fullest experience for monitoring and managing FW2010

devices from anywhere in the world with access to a web browser. Go to

connect.inseego.com to sign up for a free Inseego Connect account.

•Inseego Mobile App – Allows you to perform basic device monitoring and management.

Scan the QR code to install the Inseego Mobile App from AppStore or Google Play, or visit

https://inseego.com/inseego-connect-get-app to download the App.

This chapter provides the configuration options available for your FW2010. The configurations shown

are from the Admin Web UI, unless otherwise noted. Many options are also available with Inseego

Mobile App and Inseego Connect. Some configurations are available only with Inseego Connect, and

are marked as such.

Home Page

The Home page of the Admin Web UI is the local gateway to configuring and managing your FW2010.

It displays data usage and general status information.

5G OUTDOOR CPE FW2010 USER GUIDE 9

Side Menu

The Home page and each subscreen in the FW2010 Web User Interface includes a menu on the left,

which you can use to return to the Home page or jump to other pages. The current page is indicated

by a blue bar. A similar side menu is available when configuring devices with Inseego Connect.

Getting Help

Select the question mark (?) in the upper right-hand corner of a page to go to the Customer Support

page where you can access this User Guide and other information for the FW2010.

5G OUTDOOR CPE FW2010 USER GUIDE 10

Admin Password

The Admin password is what you use to sign into the FW2010 Admin Web UI. The default Admin

password is “Fast5G!”.

You are prompted to change the Admin password upon first login. Change the password to

something easy to remember, and set up a security question that will help you securely recover your

password if you forget what you changed it to.

Important: It is critical that you change the Admin password from the default to keep the device

and your network secure.

Changing the Admin Password

To change the Admin password:

1. From the Admin Web UI: Click the down arrow next to Sign Out in the top-right corner of any

Admin Web UI page and select Change Password.

From Inseego Connect: Select Device > Admin Password from the Configure side menu.

2. Enter your current Admin password, then enter a new password and confirm it.

3. Select a security question from the drop-down list and type an answer to question in the Answer

field. NOTE: Answers are case-sensitive.

4. Click Save Changes.

The next time you sign in to the FW2010 Web Interface, use the new Admin password. If you cannot

remember the password, click I forgot the Admin password. After you correctly answer the security

question you set up, the current password is displayed.

Otros manuales para Wavemaker FW2010

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Inseego

Inseego

Inseego Wavemaker PRO 5G Outdoor CPE FW2000e Manual de usuario

Inseego

Inseego Wavemaker PRO Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario
