INOGENI CAM230

User Guide

User guide

Version 1.0

April 12, 2023

VERSION HISTORY

CONTENTS

Version history ...............................................................................................................................................................1

Typical application .........................................................................................................................................................2

Block diagram ................................................................................................................................................................3

Audio routing..................................................................................................................................................................3

Device interfaces ...........................................................................................................................................................4

LEDs behavior ...............................................................................................................................................................5

Specifications.................................................................................................................................................................6

Serial communication protocol.......................................................................................................................................8

INOGENI Remote ..........................................................................................................................................................9

LAN communication protocol.......................................................................................................................................10

CDC-NCM communication protocol.............................................................................................................................10

PoE ..............................................................................................................................................................................10

Webpage......................................................................................................................................................................11

REST API.....................................................................................................................................................................15

INOGENI Control App..................................................................................................................................................17

Mechanical specifications............................................................................................................................................18

DIP switches ................................................................................................................................................................19

Troubleshooting section...............................................................................................................................................20

Support.........................................................................................................................................................................21

Certifications ................................................................................................................................................................21

Version

Date

Description

1.0

April 12, 2023

First release.

TYPICAL APPLICATION

Here is a typical connection diagram used for the CAM230 device in a videoconferencing setup.

Figure 1: Common use case

BLOCK DIAGRAM

Here is a simple block diagram to better understand the usage of the product.

USB3.0/2.0 camera

input

USB3.0/2.0 camera

input

HDMI input

USB2.0 camera

output

(Control + PoE)

RS232

Buttons

Power

management

Status leds

HDMI output

Figure 2: Basic block diagram

The device embeds a video switch that can connect to USB3.0/2.0 and HDMI cameras. The device will output video

content from the selected source over HDMI and USB2.0 outputs simultaneously.

This can give you a great asset to your videoconferencing equipment to switch camera interface easily without going

into your UC settings.

AUDIO ROUTING

The device can connect to USB microphones/speakerphones and on a HDMI feed that includes audio. These sources

can be sent over the HDMI output and to the USB2.0 output.

The USB2.0 interface embeds a digital audio interface which implements a microphone and a speaker device.

Ultimately, the UC software connected to the USB2.0 camera interface can receive and transmit audio from/to the

connected USB videobar.

DEVICE INTERFACES

Here are the devices interfaces.

Figure 3: Front side connections

Figure 4: Back side connections

Input selection buttons

Input status LEDs

HDMI output

USB2.0 camera output

USB3.0 camera inputs

HDMI camera input

RS232 and remote interface

LAN/PoE interface

+12VDC power input

LEDS BEHAVIOR

Here are the LEDs behavior:

Power input

OFF

No power.

SOLID

Device is powered up.

PoE

OFF

Not powered from PoE.

SOLID

Powered from PoE.

Input led

OFF

Input not detected and not selected.

LOW

Input detected and not selected.

FLASH-LOW

Input not detected and selected.

HIGH

Input detected and selected.

SPECIFICATIONS

Here is the complete specification.

Physical details

Dimensions (W x L x H)

17.33 cm x 11.57 cm x 3.26 cm

6.82” x 4.55” x 1.28”

Power supply

12V (100-240 VAC 50/60Hz to 12V/1.2A DC)

–or –

PoE source compliant with IEEE 802.3af (802.3at Type 1)

Weight

606 g

Package content

1 x USB 2.0 Type-B to Type-A cable (3ft).

1 x terminal block connection.

1 x 12V power supply.

Operating temperature

0° to 45° C (32° to 113° F)

Storage temperature

-40° to 105° C (-40° to 221° F)

Relative humidity

0% to 90% non-condensing

UPC code

51497302825

Origin

Canada

Warranty

2 years

USB inputs

2x USB 3.0 inputs

1x USB 3.0/2.0 camera

Uncompressed, YUYV/NV12/I420 –1080p50/60, 4K30

MJPEG –1080p30

HDMI input

Resolution

1080p50/60 fps, 720p50/60 fps

Connector

HDMI

HDMI output

Resolution

3840x2160p23.98/24/25/29.97/30 fps, 1080p50/60 fps, 720p50/60 fps

Connector

HDMI

USB 2.0 output

USB-B Type-B connector

Device will expose a UVC interface over USB 2.0 up to 1080p30 MJPEG with a

digital audio input and output interfaces

Audio

Digital audio I/O

Embedded in HDMI or USB

Control

Control options

Front buttons

RS-232

LAN

USB

IP interface

100 Mbps

RS232 interface

Baud rate: 9600

Data bits: 8

Stop bits: 1

Parity: None

Flow control: None

Certifications

HDCP compliant

The device does not decrypt BD/DVD movies, satellite/cable receivers or other

encrypted sources.

Certifications

FCC, CE, RoHS, IEC62368, SoV

TAA-compliant

Yes

Compatibility

Operating system

NO driver installation necessary

Windows 7 and above (32/64-bit)

macOS 10.10 and above

Linux (kernel v2.6.38 and above)

Cameras Supported

Cameras (or video Source) with a HDMI or USB outputs

Software Compatibility

UVC-compliant. Runs with all software compatible to

DirectShow/MediaFoundation, V4L2, QuickTime and AVFoundation.

SERIAL COMMUNICATION PROTOCOL

Here is the complete list of commands provided through the serial connection.

As written on the back of the device, here is the pinout of the terminal block.

Pin 1: Receive

Pin 2: GND

Pin 3: Transmit

Pin 4: 5V supply (for INOGENI Remote)

Typically, commands will return ACK in case of success and NACK in case of failure.

Note that if serial interface was disabled using REST API, commands will not be parsed, and no response will be

provided.

Baud rate: 9600 // Data bits: 8 // Stop bits: 1 // Parity: None // Flow control: None

Command

Argument(s)

Description

HELP

None

Return command list with

description

RSTR

None

Restore default settings

RESET

None

Reset/reboot the device

None

Returns IP address

VERSION

None

Returns firmware version

QUIT

None

Restart application

STATUS

None

Return devices, video/audio inputs

and HDMI output status

PAN

1 argument (integer)

The sign specifies the direction.

We multiply the argument by the camera

smallest step, and if the speed is too fast, we go

as fast as the camera allow. We recommend

using values between -10 and 10.

Relative pan of the selected camera

TILT

1 argument (integer)

The sign specifies the direction.

We multiply the argument by the camera

smallest step, and if the speed is too fast, we go

as fast as the camera allow. We recommend

using values between -10 and 10.

Relative tilt of the selected camera

ZOOM

1 argument (integer)

The sign specifies the direction.

We multiply the argument by the camera

smallest step, and if the speed is too fast, we go

as fast as the camera allow. We recommend

using values between -10 and 10.

Relative zoom of the selected

camera

SETHDMI

1 argument (integer)

Possible parameters:

0 => 1080P60

1 => 1080P50

2 => 720P60

3 => 720P50

4 => 4K24

5 => 4K25

6 => 4K30

Set HDMI output mode

SETVIDEOFORMAT

2 arguments (integer)

Set video input format

1st arg: <inputIndex>

1 => USB input #1

2 => USB input #2

3 => HDMI input

2nd arg: <formatIndex>

GETVIDEOFORMATS

1 argument (integer)

The argument specifies the index of the video

input for which we want to get the available

formats.

1 => USB input #1

2 => USB input #2

3 => HDMI input

Get video input format

SETAUDIOINPUT

1 argument (integer)

The argument specifies the index of the audio

input.

1 => USB input #1

2 => USB input #2

3 => HDMI input

To see available inputs, use STATUS

command.

Set audio input

SETVIDEOINPUT

1 argument (integer)

The argument specifies the index of the video

input.

1 => USB input #1

2 => USB input #2

3 => HDMI input

To see available inputs, use STATUS

command.

Set video input

SETVIDEOINPUTMODE

1 argument (integer)

The argument specifies if we want manual or

automatic switching.

0 => manual switching

1 => automatic switching

Set video input switching mode

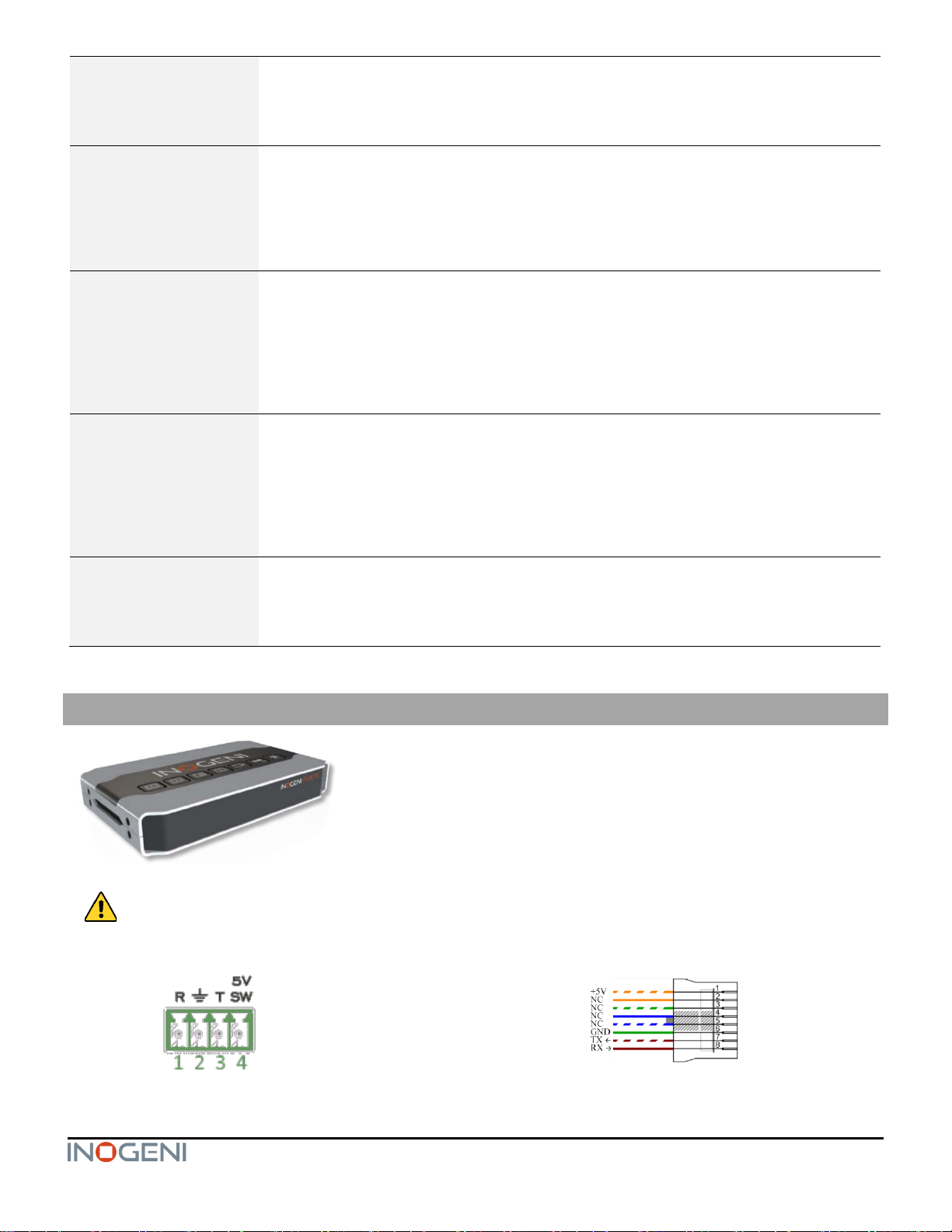

INOGENI REMOTE

The INOGENI Remote needs to be connected to the terminal block port in

order to operate. Apply wiring accordingly. This remote is sending serial

commands to the device. Make sure to set the DIP SW6 below the device to

ON in order to apply power to the remote before going further. See “DIP

SWITCHES” section and user manual of the INOGENI REMOTE for more

details.

Do not plug a RJ45 cable between the INOGENI device and the REMOTE.

INOGENI device side

Pin 1: Receive

Pin 2: GND

Pin 3: Transmit

Pin 4: 5V supply

REMOTE side
