Inogeni U-CAM Manual de usuario

INOGENI U-CAM

User guide

Version 1.5

September 25, 2023

VERSION HISTORY

CONTENTS

Version history ...........................................................................................................................................................................1

Typical application .....................................................................................................................................................................2

Device interfaces .......................................................................................................................................................................3

Leds behavior ............................................................................................................................................................................4

Specifications.............................................................................................................................................................................5

Serial communication protocol...................................................................................................................................................7

LAN communication protocol.....................................................................................................................................................8

CDC-NCM communication protocol...........................................................................................................................................8

Webpage....................................................................................................................................................................................8

REST API................................................................................................................................................................................ 14

INOGENI Control App............................................................................................................................................................. 17

Support.................................................................................................................................................................................... 18

Certifications ........................................................................................................................................................................... 18

Version

Date

Description

1.0

April 19, 2022

First release.

1.1

May 27, 2022

•Second release.

•Adding RS232 API.

•Adding REST API.

1.2

July 12, 2022

•Update image to support new hardware revision.

•Change REST API functions to have same name as RS232 API.

•Add HTTP to HTTPS redirection for webpage.

1.3

September 30, 2022

•Added audio input switching.

1.4

October 25, 2022

•Modified “disableSerialInterface” function description.

•Adding new functions over LAN interface.

1.5

September 25, 2023

•Adding new section for webpage.

•Updated specifications for firmware release v2.2.

•Elaborate on RS232 and RESTAPI commands.

TYPICAL APPLICATION

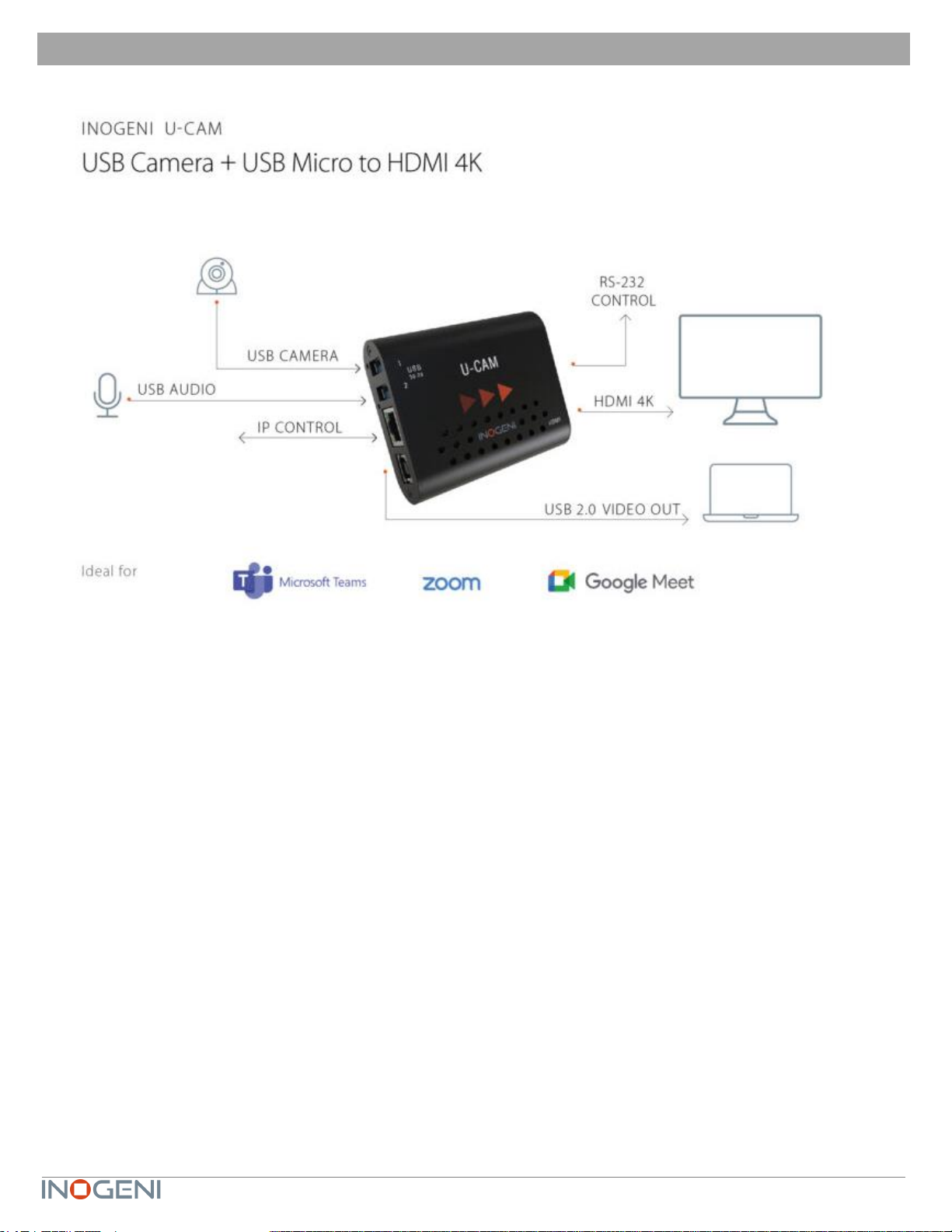

Here is a typical connection diagram used for the U-CAM device in a videoconferencing setup.

DEVICE INTERFACES

Here are the devices interfaces.

USB input #1

USB input #2

LAN port

USB 2.0 output

HDMI output

RS232 port

+12V power input

USB device detection leds

Factory upgrade switch

System activity led

LEDS BEHAVIOR

Here are the leds behavior:

USB input

OFF

No USB camera/device connected.

SOLID

USB camera/device connected.

System activity led

OFF

No power present on board.

BLINK

System firmware running correctly.

SPECIFICATIONS

Here is the complete specification.

Physical details

Dimensions (W x L x H)

70 x 83 x 23 mm

Power supply

12V

Power consumption

Up to 1.2A

Weight

136 g

Package content

1 x USB 2.0 Type-B to Type-A cable.

1 x terminal block connection.

1 x 12V power supply.

Operating temperature

0° to 45° C (32° to 113° F)

Storage temperature

-40° to 105° C (-40° to 221° F)

Origin

Canada

Warranty

2 years

USB inputs

2x USB 3.0 inputs

Capture video and audio from USB 3.0 and 2.0 cameras

Capture is done from a single camera à

Video capabilities

MJPEG: Up to 1080p30 using USB 2.0/3.0

YUYV: Up to 1080p60 using USB 3.0, 1080p10 using USB 2.0

Audio capabilities

Device will capture embedded audio from USB camera or external USB device and

will output through HDMI.

USB Power

Up to 1.2A shared between the USB ports

HDMI output

Resolution

3840x2160p23.98/24/25/29.97/30 fps, 1080p50/60 fps, 720p50/60 fps

Connector

HDMI

USB output

USB connector

1x USB 2.0 Type-B

UVC interface up to 1080p30 MJPEG.

UAC interface with audio I/O.

PTZ control supported.

Control

Control options

RS-232

LAN

USB

IP interface

100 Mbps half-duplex (autonegotiation not supported)

Supports DHCP or static IP addressing

RS232 interface

Baud rate: 9600

Data bits: 8

Stop bits: 1

Parity: None

Flow control: None

Certifications

HDCP compliant

The device does not decrypt BD/DVD movies, satellite/cable receivers or other

encrypted sources.

Certifications

FCC, CE, UKCA, RoHS, IEC62368, SoV, RCM

TAA-compliant

Yes

Compatibility

Operating system

NO driver installation necessary

Windows 7 and above (32/64-bit)

macOS 10.10 and above,

Cameras Supported

Cameras (or video Source) with an USB output

Software Compatibility

UVC-compliant. Runs with all software compatible to DirectShow/MediaFoundation,

V4L2, QuickTime and AVFoundation.

SERIAL COMMUNICATION PROTOCOL

Here is the complete list of commands provided through the serial connection. Pinout is indicated on the enclosure.

There must be a space character between command and arguments.

Typically, commands will return ACK in case of success and NACK in case of failure.

You need to add a carriage return character and a line feed “\r\n” at the end of the command string.

Note that if serial interface was disabled using REST API, commands will not be parsed, and no response will be provided.

Baud rate: 9600 // Data bits: 8 // Stop bits: 1 // Parity: None // Flow control: None

Command

Argument(s)

HELP

Return command list with description.

None

RSTR

Restore default settings.

None

RESET

Reset/reboot the device.

None

Return IP address.

None

VERSION

Return firmware version.

None

QUIT

Restart application.

None

STATUS

Return device, video/audio inputs and

HDMI output status.

None

PAN

Relative pan.

1 argument (integer)

The sign specifies the direction.

We multiply the argument by the camera smallest step, and if the speed is too

fast, we go as fast as the camera allows. We recommend using values

between -10 and 10.

TILT

Relative tilt.

1 argument (integer)

The sign specifies the direction.

We multiply the argument by the camera smallest step, and if the speed is too

fast, we go as fast as the camera allows. We recommend using values

between -10 and 10.

ZOOM

Relative zoom.

1 argument (integer)

The sign specifies the direction.

We multiply the argument by the camera smallest step, and if the speed is too

fast, we go as fast as the camera allows. We recommend using values

between -10 and 10.

SETHDMI

Set HDMI output mode.

1 argument (integer)

Possible parameters:

0 => 1080P60

1 => 1080P50

2 => 720P60

3 => 720P50

4 => 4K24

5 => 4K25

6 => 4K30

SETVIDEOFORMAT

1 argument (integer)

0 => 1st preferred format

Set video input format.

1 => 2nd preferred format

2 => 3rd preferred format

3 => 4th preferred format

GETVIDEOFORMATS

Get video input format.

None

SETAUDIOINPUT

Set audio input.

1 argument (integer)

The argument specifies the index of the audio input. To see available inputs,

use STATUS command.

LAN COMMUNICATION PROTOCOL

You can access the device settings through its LAN interface. The LAN interface uses DHCP (default) and static IP

addressing. You can obtain the IP from the INOGENI Control App or from the serial port IP command. Note that LAN is set to

100Mbps half-duplex.

CDC-NCM COMMUNICATION PROTOCOL

The device can also be controlled through CDC-NCM interface exposed on the USB2.0 device port.

This interface has the same functions as the LAN interface, except the requests are done through USB to ease configuration.

CDC-NCM IP address: 169.254.10.10

WEBPAGE

Here is the webpage that can be used to configure and upgrade the device. This webpage is accessible through IP or

through the CDC-NCM interface over USB2.0.

The username is “admin”, and the default password is “admin”.

The STATUS page will give you information about the firmware installed. video and audio devices that you can monitor.

Figure 1: Status preview
